SR50G-GFSQK (1996)
Toyota Lite/Townace Noah,V

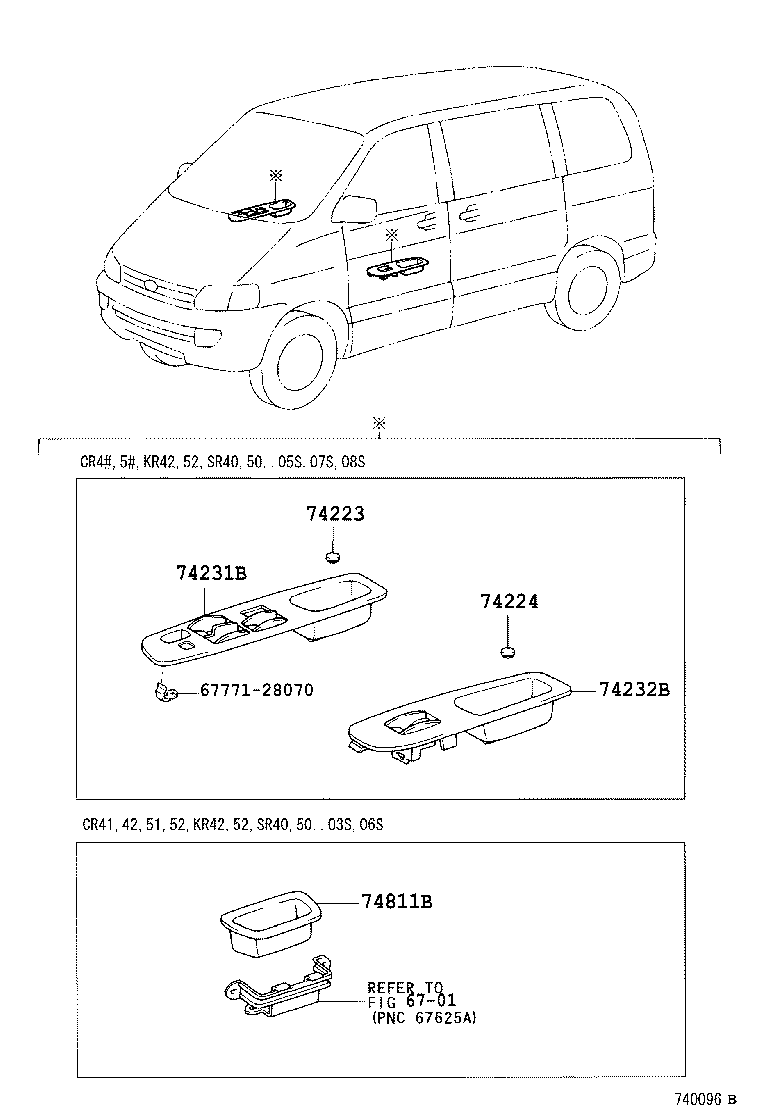

ILLUST NO. 1 OF 2(9610- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-28010C0 |
CR40,50,SR40,50..D BLACK,TRIM10 |
1 | ||
| 74223-28010C0 |
CR40,50,SR40,50..E,Q BLACK,TRIM1#,6# |
1 | ||
| 74223-28010C0 |
CR40,50,SR40,50..D,V BLACK,TRIM1# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-28010C0 |
CR40,50,SR40,50..D,V BLACK,TRIM1# |
1 | ||
| 74223-28010C0 |
CR40,50,SR40,50..E,Q BLACK,TRIM1#,6# |
1 | ||
| 74223-28010C0 |
CR40,50,SR40,50..D BLACK,TRIM10 |
1 | ||
| 74231B - PANEL, DOOR ARMREST BASE, RH | ||||
| 74231-28070B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
1 | ||
| 74231-28060 |
CR40,50,SR40,50..E,Q ﾓｸﾒ |
1 | ||
| 74231-28120 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S) & ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 74231-28090 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S) |
1 | ||
| 74232B - PANEL, DOOR ARMREST BASE, LH | ||||
| 74232-28040 |
CR40,50,SR40,50..E,Q ﾓｸﾒ |
1 | ||
| 74232-28050 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S) |
1 | ||
| Common parts | ||||
| 67771-28070 | ||||
| Linked diagrams | ||||
| 6701 | ||||

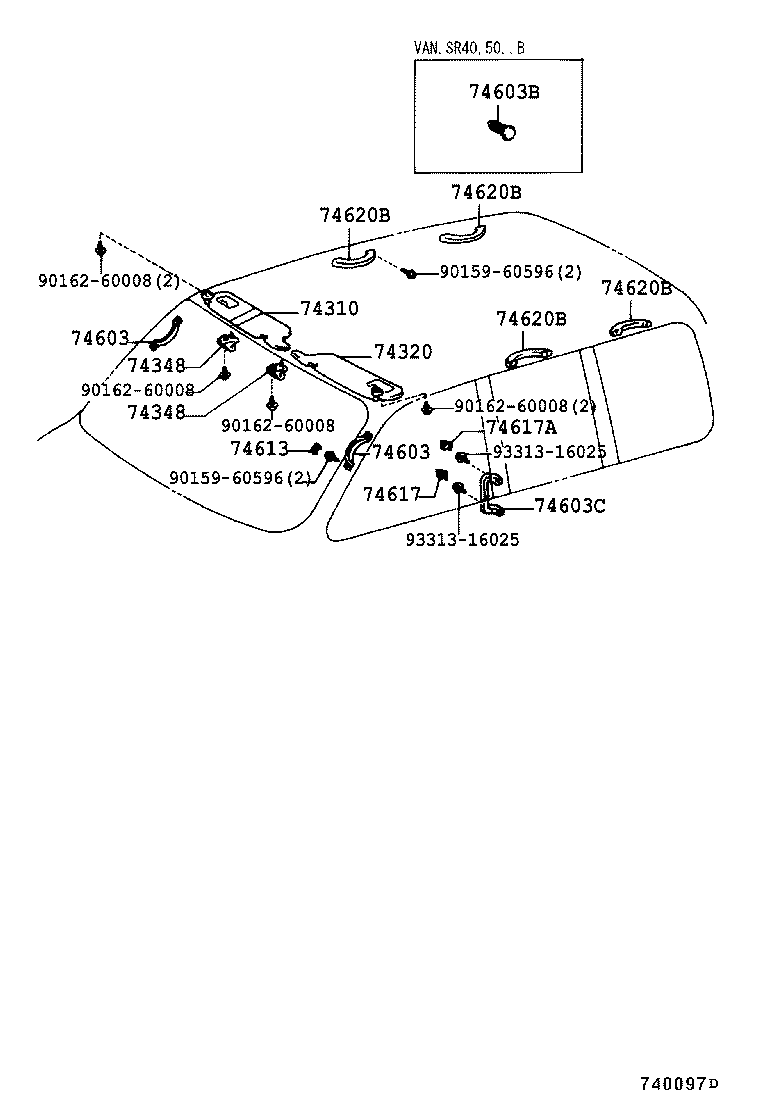

ILLUST NO. 2 OF 2(9610- )
VISOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-28760B0 |
CR5#,SR50..B,D,N MOONMIST,TRIM1# |
1 | ||
| 74310-28780G0 |
CR50,SR50..E,Q SAGE,TRIM6# |
1 | ||
| 74310-28780B0 |
CR50,SR50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 74310-28761B0 |
CR5#,SR50..B,D,N ｱﾘ(*80,ｳﾝﾃﾝｾｷ),MOONMIST,TRIM1# |
1 | ||
| 74310-28781G0 |
CR50,SR50..E,Q SAGE,TRIM6# |
1 | ||
| 74310-28781B0 |
CR50,SR50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-28390G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 74320-28380B0 |
CR4#,5#,KR4#,SR40,50..B,D,N ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),MOONMIST,TRIM1# |
1 | ||
| 74320-28390B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 74320-28381B0 |
CR4#,5#,KR4#,SR40,50..B,D,N ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),MOONMIST,TRIM1# |
1 | ||
| 74320-28391G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 74320-28391B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-22020G1 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
2 | ||
| 74348-22020B8 |
CR4#,5#,KR4#,SR40,50 MOON MIST,TRIM1# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-22020G1 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
2 | ||
| 74348-22020B8 |
CR4#,5#,KR4#,SR40,50 MOON MIST,TRIM1# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74603-44010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
2 | ||
| 74603-44010B0 |
CR4#,5#,KR4#,SR40,50 MOON MIST,TRIM1# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74603-44010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
2 | ||
| 74603-44010B0 |
CR4#,5#,KR4#,SR40,50 MOON MIST,TRIM1# |
2 | ||
| 74603C - GRIP SUB-ASSY, ASSIST | ||||
| 74603-28040B0 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
1 | ||
| 74603-28040G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-28080G0 |
CR40,50,SR40,50..07S,08S SAGE,TRIM6# |
4 | ||
| 74617-28030B1 |
CR4#,5#,KR4#,SR40,50 MOON MIST,TRIM1# |
4 | ||
| 74617 - PLUG, BACK DOOR ASSIST GRIP | ||||
| 74617-28070B0 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
1 | ||
| 74617-28070G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-28060G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 74617-28060B0 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
1 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74611-20030G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
4 | ||
| 74611-20030B5 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
4 | ||
| 74611-20030B5 |
SR40,50..B MOON MIST,TRIM1# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74611-20030G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
4 | ||
| 74611-20030B5 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
4 | ||
| 74611-20030B5 |
SR40,50..B MOON MIST,TRIM1# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74611-20030G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
4 | ||
| 74611-20030B5 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
4 | ||
| 74611-20030B5 |
SR40,50..B MOON MIST,TRIM1# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74611-20030G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
4 | ||
| 74611-20030B5 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
4 | ||
| 74611-20030B5 |
SR40,50..B MOON MIST,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60596 | ||||
| 90162-60008 | ||||
| 93313-16025 | ||||
