SR50G-GFSQK (1996)
Toyota Lite/Townace Noah,V

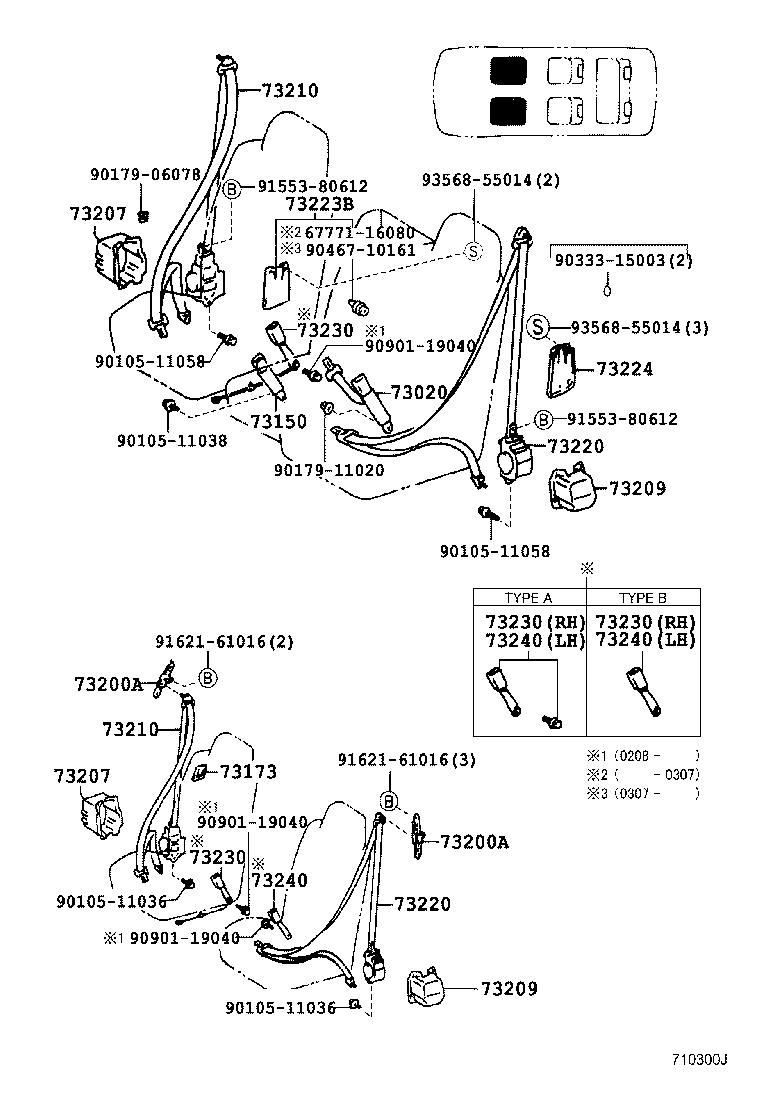

ILLUST NO. 1 OF 6(9610- )
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73173 - COVER, FRONT SEAT BELT HOLE, RH | ||||
| 73173-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73173-28010B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73290-28010B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,左側 |
1 | ||
| 73200-28020B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,右側 |
1 | ||
| 73200-28020G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6#,右側 |
1 | ||
| 73290-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6#,左側 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73290-28010B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,左側 |
1 | ||
| 73200-28020B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,右側 |
1 | ||
| 73200-28020G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6#,右側 |
1 | ||
| 73290-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6#,左側 |
1 | ||
| 73207 - COVER SUB-ASSY, SEAT BELT RETRACTOR, RH | ||||
| 73207-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73207-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73207 - COVER SUB-ASSY, SEAT BELT RETRACTOR, RH | ||||
| 73207-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73207-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73209 - COVER SUB-ASSY, SEAT BELT RETRACTOR, LH | ||||
| 73209-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73209-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73209 - COVER SUB-ASSY, SEAT BELT RETRACTOR, LH | ||||
| 73209-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73209-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-28470B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73210-28560G1 |
CR40,50,SR40,50..E,Q ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),DARK AGATE,TRIM6# |
1 | ||
| 73210-28490B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73210-28560B0 |
CR40,50,SR40,50..E,Q,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 73210-28470G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73210-28570B0 |
CR4#,5#,KR4#,SR40,50..B,D,N ｱﾘ(*80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-28470B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73210-28560G1 |
CR40,50,SR40,50..E,Q ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),DARK AGATE,TRIM6# |
1 | ||
| 73210-28490B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73210-28560B0 |
CR40,50,SR40,50..E,Q,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 73210-28470G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73210-28570B0 |
CR4#,5#,KR4#,SR40,50..B,D,N ｱﾘ(*80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-28450G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73220-28450B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28460B0 |
CR4#,5#,KR4#,SR40,50..B,D,N ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28490B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28420B0 |
SR40,50..B ｱﾘ(*80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28500B0 |
CR40,50,SR40,50..B,D BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28490G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-28450G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73220-28450B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28460B0 |
CR4#,5#,KR4#,SR40,50..B,D,N ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28490B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28420B0 |
SR40,50..B ｱﾘ(*80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28500B0 |
CR40,50,SR40,50..B,D BLUISH GRAY,TRIM1# |
1 | ||
| 73220-28490G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-28010B0 |
CR4#,5#,KR4#,SR40,50..B,D,N MD.MOON MIST,TRIM1# |
1 | ||
| 73223-28030B0 |
CR40,50,SR40,50..D ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),MD.MOON MIST,TRIM1# |
1 | ||
| 73223-28020B0 |
CR40,50,SR40,50..D ｱﾘ(*80,ｳﾝﾃﾝｾｷ),MD.MOON MIST,TRIM1# |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-28030B0 |
CR4#,5#,KR4#,SR40,50..B,D,N ｱﾘ(*80),MD.MOON MIST,TRIM1# |
1 | ||
| 73224-28020B0 |
CR4#,5#,KR4#,SR40,50..B,D,N MD.MOON MIST,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28220B0 |
CR4#,5#,KR4#,SR40,50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 73230-28220G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28220B0 |
CR4#,5#,KR4#,SR40,50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 73230-28220G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28220B0 |
CR4#,5#,KR4#,SR40,50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 73230-28220G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28220B0 |
CR4#,5#,KR4#,SR40,50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 73230-28220G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-28130B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 73240-28130G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-28130B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 73240-28130G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-28130B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 73240-28130G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 67771-16080 | ||||
| 90105-11036 | ||||
| 90105-11038 | ||||
| 90105-11058 | ||||
| 90179-06078 | ||||
| 90179-11020 | ||||
| 90333-15003 | ||||
| 90467-10161 | ||||
| 90901-19040 | ||||
| 91553-80612 | ||||
| 91621-61016 | ||||
| 93568-55014 | ||||
ILLUST NO. 6 OF 6(9610-0111)07S,08S
ﾘﾔ NO.2ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73298 - COVER, QUARTER TRIM BELT HOLE, NO.2 RH | ||||
| 73299-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73299-28010B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73299 - COVER, QUARTER TRIM BELT HOLE, NO.2 LH | ||||
| 73299-28020G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73299-28020B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-28090B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73530-28090G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-28070B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73540-28070G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28240G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73560-28240B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73560-28250B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28240G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73570-28240B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73570-28250B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-28160B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73580-28160G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-28160B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73580-28160G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11040 | ||||
ILLUST NO. 2 OF 6(9610-9812)E,Q,V ; (9812-0111)E,Q,S,V
ﾘﾔ NO.1ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73241B - CASE, SEAT BELT RETRACTOR, RH(FOR NO.2 SEAT) | ||||
| 73241-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73241B - CASE, SEAT BELT RETRACTOR, RH(FOR NO.2 SEAT) | ||||
| 73241-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73242B - CASE, SEAT BELT RETRACTOR, LH(FOR NO.2 SEAT) | ||||
| 73242-28071 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73242-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73242B - CASE, SEAT BELT RETRACTOR, LH(FOR NO.2 SEAT) | ||||
| 73242-28071 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73242-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73297B - COVER, QUARTER TRIM BELT HOLE, RH | ||||
| 73297-28060B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
1 | ||
| 73297-28040B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73297-28040G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73298B - COVER, QUARTER TRIM BELT HOLE, LH | ||||
| 73297-28050B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73298-28050B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
1 | ||
| 73297-28050G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73330D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER RH | ||||
| 73330-28120G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73330-28120G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73340D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER LH | ||||
| 73340-28070G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73340-28070G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73340-28120B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28070B0 |
CR40,50,SR40,50..(E,V)..CBU BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28070B0 |
CR40,50,SR40,50..E,V BLUISH GRAY,TRIM1# |
1 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-28160B0 |
CR40,50,SR40,50..E,V BLUISH GRAY,TRIM1# |
1 | ||
| 73350-28160G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73350-28160G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73350-28160B0 |
CR40,50,SR40,50..(E,V)..CBU BLUISH GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-28530B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28530G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-28530B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28530G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73340-28070B0 |
CR40,50,SR40,50..(E,V)..CBU BLUISH GRAY,TRIM1# |
1 | ||
| 73330-28130B0 |
CR40,50,SR40,50..Q BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28070B0 |
CR40,50,SR40,50..E,V BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28070G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73330-28130G0 |
CR40,50,SR40,50..Q DARK AGATE,TRIM6# |
1 | ||
| 73340-28070G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73340-28070B0 |
CR40,50,SR40,50..(E,V)..CBU BLUISH GRAY,TRIM1# |
1 | ||
| 73330-28130B0 |
CR40,50,SR40,50..Q BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28070B0 |
CR40,50,SR40,50..E,V BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28070G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73330-28130G0 |
CR40,50,SR40,50..Q DARK AGATE,TRIM6# |
1 | ||
| 73340-28070G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-28430B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28430G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370-28440B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-28430B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28430G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370-28440B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73330-28130B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73330-28130G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73330-28130B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73330-28130G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73390-28200G0 |
CR40,50,SR40,50..Q DARK AGATE,TRIM6# |
1 | ||
| 73380-28250G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73390-28200B0 |
CR40,50,SR40,50..Q BLUISH GRAY,TRIM1# |
1 | ||
| 73380-28250G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-28250G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73390-28200B0 |
CR40,50,SR40,50..Q BLUISH GRAY,TRIM1# |
1 | ||
| 73380-28250G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73390-28200G0 |
CR40,50,SR40,50..Q DARK AGATE,TRIM6# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73390-28200G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73390-28200B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73390-28200G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73390-28200B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
ILLUST NO. 3 OF 6(9610-0111)CR40,50,SR40,50..D
ﾘﾔ NO.1ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73241B - CASE, SEAT BELT RETRACTOR, RH(FOR NO.2 SEAT) | ||||
| 73241-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73242B - CASE, SEAT BELT RETRACTOR, LH(FOR NO.2 SEAT) | ||||
| 73242-28071 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73242-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73297B - COVER, QUARTER TRIM BELT HOLE, RH | ||||
| 73297-28060B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
1 | ||
| 73297-28040B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73297-28040G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73298B - COVER, QUARTER TRIM BELT HOLE, LH | ||||
| 73297-28050B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73298-28050B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
1 | ||
| 73297-28050G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73330D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER RH | ||||
| 73330-28120G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73330-28120G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73340D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER LH | ||||
| 73340-28070G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73340-28070G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73340-28120B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28070B0 |
CR40,50,SR40,50..(E,V)..CBU BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28070B0 |
CR40,50,SR40,50..E,V BLUISH GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-28530B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28530G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-28430B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28430G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370-28440B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73390-28200G0 |
CR40,50,SR40,50..Q DARK AGATE,TRIM6# |
1 | ||
| 73380-28250G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73390-28200B0 |
CR40,50,SR40,50..Q BLUISH GRAY,TRIM1# |
1 | ||
| 73380-28250G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73390-28200G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73390-28200B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
