SR40G-TDSBK (1996)
Toyota Lite/Townace Noah,V
(9610-9812) ; (9812- )B,D,N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-26030B1 |
CR4#,5#,KR4#,SR40,50..B,D MD.MOON MIST,TRIM1# |
1 | ||
| 46201-26040B1 |
CR4#,5#,KR42,SR40,50..E,N,Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 46201-26040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 46201-26030B1 |
CR40,50,SR40,50..B,D MD.MOON MIST,TRIM1# |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46249-28010 |
CR40,50,SR40,50..B,D |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-28010 |
CR40,50,SR40,50 |
1 | ||
| 46304-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-28060 |
CR40,50,SR40,50 |
1 | ||
| 46321-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46334 - PROTECTOR, INTERMEDIATE LEVER | ||||
| 46334-28010 |
CR41,KR4#..V1;CR40,5#,SR40,50 NO.1 |
1 | ||
| 46334-28010 |
CR40,50,SR40,50 |
1 | ||
| 46334 - PROTECTOR, INTERMEDIATE LEVER | ||||
| 46334-28010 |
CR41,KR4#..V1;CR40,5#,SR40,50 NO.1 |
1 | ||
| 46334-28010 |
CR40,50,SR40,50 |
1 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-28031 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46356-28031 |
CR40,50,SR40,50 |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-28031 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46361-28031 |
CR40,50,SR40,50 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-28200 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46410-28200 |
CR40,50,SR40,50..B,D |
1 | ||
| 46410-28210 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-28400 |
CR40,SR40;CR41,KR4#..V1 |
1 | ||
| 46420-28400 |
CR40,SR40 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-28350 |
CR40,SR40;CR41,KR4#..V1 |
1 | ||
| 46430-28350 |
CR40,SR40 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46441-35010 |
CR40,50,SR40,50 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46458-28010 |
CR40,50,SR40,50 |
1 | ||
| 46458A - RETAINER, CABLE | ||||
| 46458-28010 |
CR40,50,SR40,50 |
2 | ||
| 46458-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 46458A - RETAINER, CABLE | ||||
| 46458-28010 |
CR40,50,SR40,50 |
2 | ||
| 46458-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90189-06095 | ||||
| 90206-09001 | ||||
| 90269-03067 | ||||
| 90468-08001 | ||||
| 90468-12134 | ||||
| 90506-14071 | ||||
| 90949-01799 | ||||
| 90949-01B04 | ||||
| 90959-01558 | ||||
| 91611-G0612 | ||||
| 91651-60818 | ||||
| 91651-B0822 | ||||
| 93590-56014 | ||||
| 94120-40800 | ||||
| 94130-60600 | ||||
| 94612-10800 | ||||
| 95381-02515 | ||||
| Linked diagrams | ||||
| 8401 | ||||

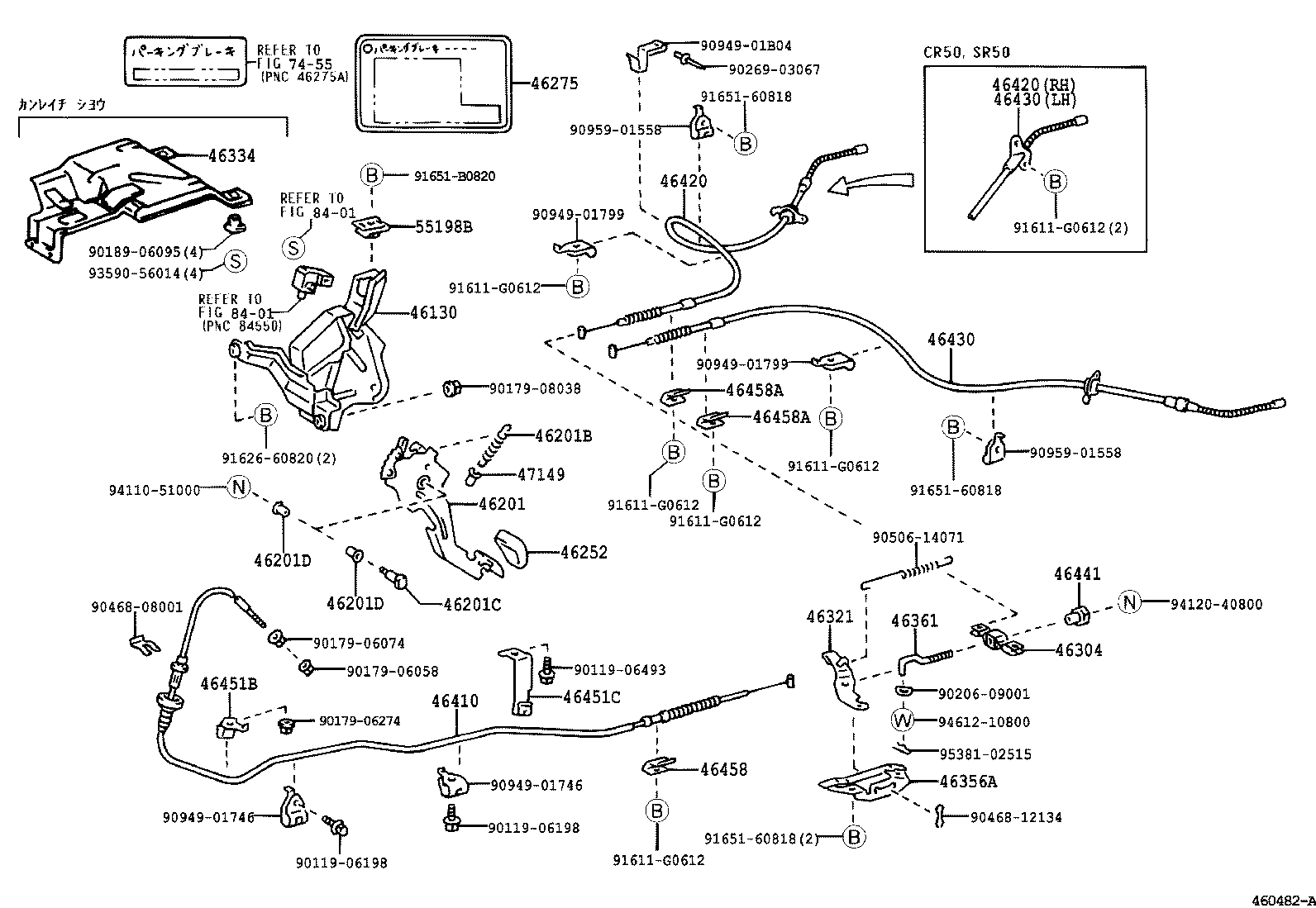

(9812- )E,Q,S,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-28020 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46210-28320 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90506-19005 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
CR40,50,SR40,50..E,Q,S,V |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
CR40,50,SR40,50..E,Q,S,V |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-33010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-33020 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46275-47010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-28010 |
CR40,50,SR40,50 |
1 | ||
| 46304-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-28060 |
CR40,50,SR40,50 |
1 | ||
| 46321-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46334 - PROTECTOR, INTERMEDIATE LEVER | ||||
| 46334-28010 |
CR41,KR4#..V1;CR40,5#,SR40,50 NO.1 |
1 | ||
| 46334-28010 |
CR40,50,SR40,50 |
1 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-28031 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46356-28031 |
CR40,50,SR40,50 |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-28031 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46361-28031 |
CR40,50,SR40,50 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-28200 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46410-28200 |
CR40,50,SR40,50..B,D |
1 | ||
| 46410-28210 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-28400 |
CR40,SR40;CR41,KR4#..V1 |
1 | ||
| 46420-28400 |
CR40,SR40 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-28400 |
CR40,SR40;CR41,KR4#..V1 |
1 | ||
| 46420-28400 |
CR40,SR40 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-28350 |
CR40,SR40;CR41,KR4#..V1 |
1 | ||
| 46430-28350 |
CR40,SR40 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-28350 |
CR40,SR40;CR41,KR4#..V1 |
1 | ||
| 46430-28350 |
CR40,SR40 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46441-35010 |
CR40,50,SR40,50 |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-28080 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-28070 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 46458-28010 |
CR40,50,SR40,50 |
1 | ||
| 46458A - RETAINER, CABLE | ||||
| 46458-28010 |
CR40,50,SR40,50 |
2 | ||
| 46458-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 46458A - RETAINER, CABLE | ||||
| 46458-28010 |
CR40,50,SR40,50 |
2 | ||
| 46458-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 47149 - DAMPER, RETURN SPRING | ||||
| 47149-22010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 55198B - HOLDER, BRAKE AWAY MOUNTING BOLT | ||||
| 55198-13010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| Common parts | ||||
| 90119-06198 | ||||
| 90119-06493 | ||||
| 90179-06058 | ||||
| 90179-06074 | ||||
| 90179-06274 | ||||
| 90179-08038 | ||||
| 90189-06095 | ||||
| 90206-09001 | ||||
| 90269-03067 | ||||
| 90468-08001 | ||||
| 90468-12134 | ||||
| 90506-14071 | ||||
| 90949-01746 | ||||
| 90949-01799 | ||||
| 90949-01B04 | ||||
| 90959-01558 | ||||
| 91611-G0612 | ||||
| 91626-60820 | ||||
| 91651-60818 | ||||
| 91651-B0820 | ||||
| 93590-56014 | ||||
| 94110-51000 | ||||
| 94120-40800 | ||||
| 94612-10800 | ||||
| 95381-02515 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||
