SR40G-HRSEK (1996)
Toyota Lite/Townace Noah,V

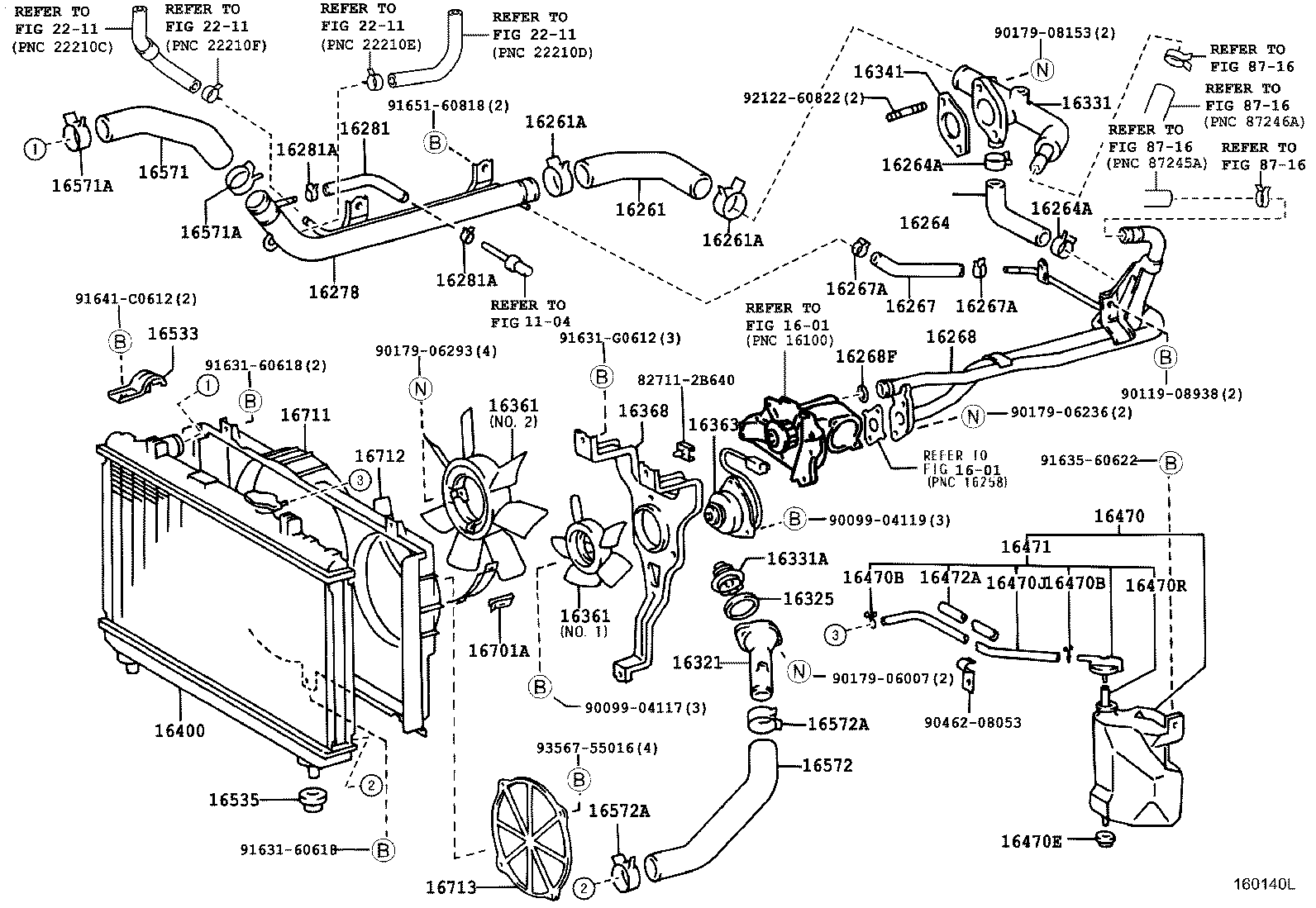

ILLUST NO. 1 OF 2(9610-9812)3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74120 |
3SFE..SR40,50 |
1 | ||
| 16261-74120 |
3SFE..SR40,50 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-74120 |
3SFE..SR40,50 |
1 | ||
| 16264-74120 |
3SFE..SR40,50 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22003 |
3SFE..SR40,50 |
2 | ||
| 90467-22003 |
3SFE..SR40,50 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22003 |
3SFE..SR40,50 |
2 | ||
| 90467-22003 |
3SFE..SR40,50 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-74090 |
3SFE..SR40,50 |
1 | ||
| 16267-74090 |
3SFE..SR40,50 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74210 |
3SFE..SR40,50 |
1 | ||
| 16268-74210 |
3SFE..SR40,50 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3SFE..SR40,50 |
1 | ||
| 96761-24017 |
3SFE..SR40,50 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-74050 |
3SFE..SR40,50 |
1 | ||
| 16278-74050 |
3SFE..SR40,50 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-74030 |
3SFE..SR40,50 |
1 | ||
| 16281-74030 |
3SFE..SR40,50 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-74050 |
3SFE..SR40,50 |
1 | ||
| 16321-74050 |
3SFE..SR40,50 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3SFE..SR40,50 |
1 | ||
| 16325-63011 |
3SFE..SR40,50 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-74240 |
3SFE..SR40,50 |
1 | ||
| 16304-74240 |
3SFE..SR40,50 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03090 |
3SFE..SR40,50 *WAX 82−95 |
1 | ||
| 90916-03090 |
3SFE..SR40,50 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-74020 |
3SFE..SR40,50 |
1 | ||
| 16341-74020 |
3SFE..SR40,50 |
1 | ||
| 16361 - FAN | ||||
| 16361-46050 |
3SFE..SR40,50..07S,08S NO.1 |
1 | ||
| 16361-74150 |
3SFE..SR40,50..07S,08S NO.1 |
1 | ||
| 16361-56070 |
3SFE..SR40,50 NO.2 |
1 | ||
| 16361-56070 |
3SFE..SR40,50 NO.2 |
1 | ||
| 16361 - FAN | ||||
| 16361-46050 |
3SFE..SR40,50..07S,08S NO.1 |
1 | ||
| 16361-74150 |
3SFE..SR40,50..07S,08S NO.1 |
1 | ||
| 16361-56070 |
3SFE..SR40,50 NO.2 |
1 | ||
| 16361-56070 |
3SFE..SR40,50 NO.2 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74350 |
3SFE..SR40,50..07S,08S |
1 | ||
| 88550-12160 |
3SFE..SR40,50..07S,08S |
1 | ||
| 16368 - BRACKET, COOLING MOTOR | ||||
| 16368-74010 |
3SFE..SR40,50..07S,08S |
1 | ||

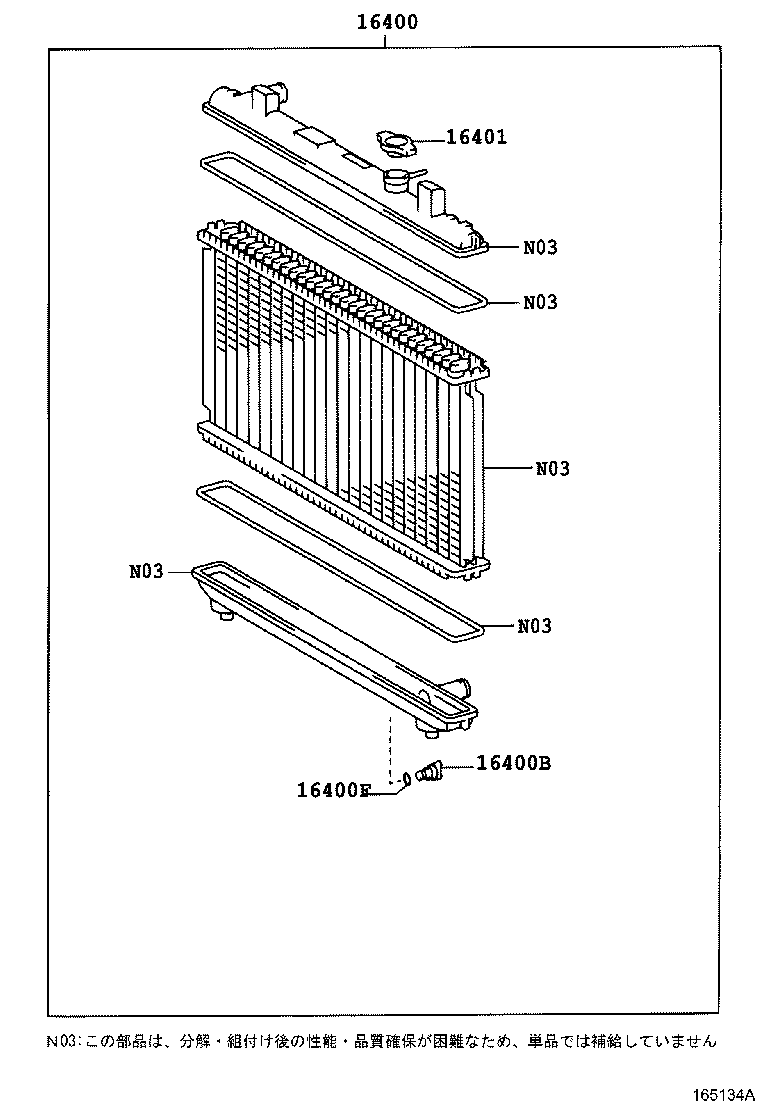

| 16400 - RADIATOR ASSY | ||||
| 16400-7A390 |
3SFE..SR40,50..ATM |
1 | ||
| 16400-7A660 |
3SFE..SR40,50..ATM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64220 |
3SFE..SR40,50 |
1 | ||
| 16470-64220 |
3SFE..SR40,50 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SFE..SR40,50 |
2 | ||
| 90467-11085 |
3SFE..SR40,50 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SFE..SR40,50 |
2 | ||
| 90467-11085 |
3SFE..SR40,50 |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-20014 |
3SFE..SR40,50 |
1 | ||
| 90480-20014 |
3SFE..SR40,50 |
1 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
3SFE..SR40,50 長さ=640 |
1 | ||
| 90099-33534 |
3SFE..SR40,50 長さ=640 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3SFE..SR40,50 *H,L=215 |
1 | ||
| 90445-12078 |
3SFE..SR40,50 *H,L=215 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64060 |
3SFE..SR40,50 |
1 | ||
| 16471-64060 |
3SFE..SR40,50 |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16479-64220 |
3SFE..SR40,50 |
1 | ||
| 16479-64220 |
3SFE..SR40,50 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-64010 |
3SFE..SR40,50 |
2 | ||
| 16505-64010 |
3SFE..SR40,50 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
3SFE..SR40,50 |
2 | ||
| 90480-40016 |
3SFE..SR40,50 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74410 |
3SFE..SR40,50 |
1 | ||
| 16571-74410 |
3SFE..SR40,50 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
3SFE..SR40,50 |
2 | ||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
3SFE..SR40,50 |
2 | ||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74310 |
3SFE..SR40,50 |
1 | ||
| 16572-74310 |
3SFE..SR40,50 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 90467-34001 |
3SFE..SR40,50 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 90467-34001 |
3SFE..SR40,50 |
2 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
3SFE..SR40,50 |
2 | ||
| 90468-06013 |
3SFE..SR40,50 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-74640 |
3SFE..SR40,50 |
1 | ||
| 16711-74640 |
3SFE..SR40,50..B |
1 | ||
| 16711-74730 |
3SFE..SR40,50..07S,08S |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-74020 |
3SFE..SR40,50 |
1 | ||
| 16712-74020 |
3SFE..SR40,50 |
1 | ||
| 16713 - SHROUD, FAN, NO.3 | ||||
| 16713-74010 |
3SFE..SR40,50..B |
1 | ||
| 16713-74010 |
3SFE..SR40,50..B |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-08938 | ||||
| 90179-06007 | ||||
| 90179-06236 | ||||
| 90179-06293 | ||||
| 90179-08153 | ||||
| 90462-08053 | ||||
| 91631-60618 | ||||
| 91631-G0612 | ||||
| 91635-60622 | ||||
| 91641-C0612 | ||||
| 91651-60818 | ||||
| 92122-60822 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1601 | ||||
| 2211 | ||||
| 8716 | ||||

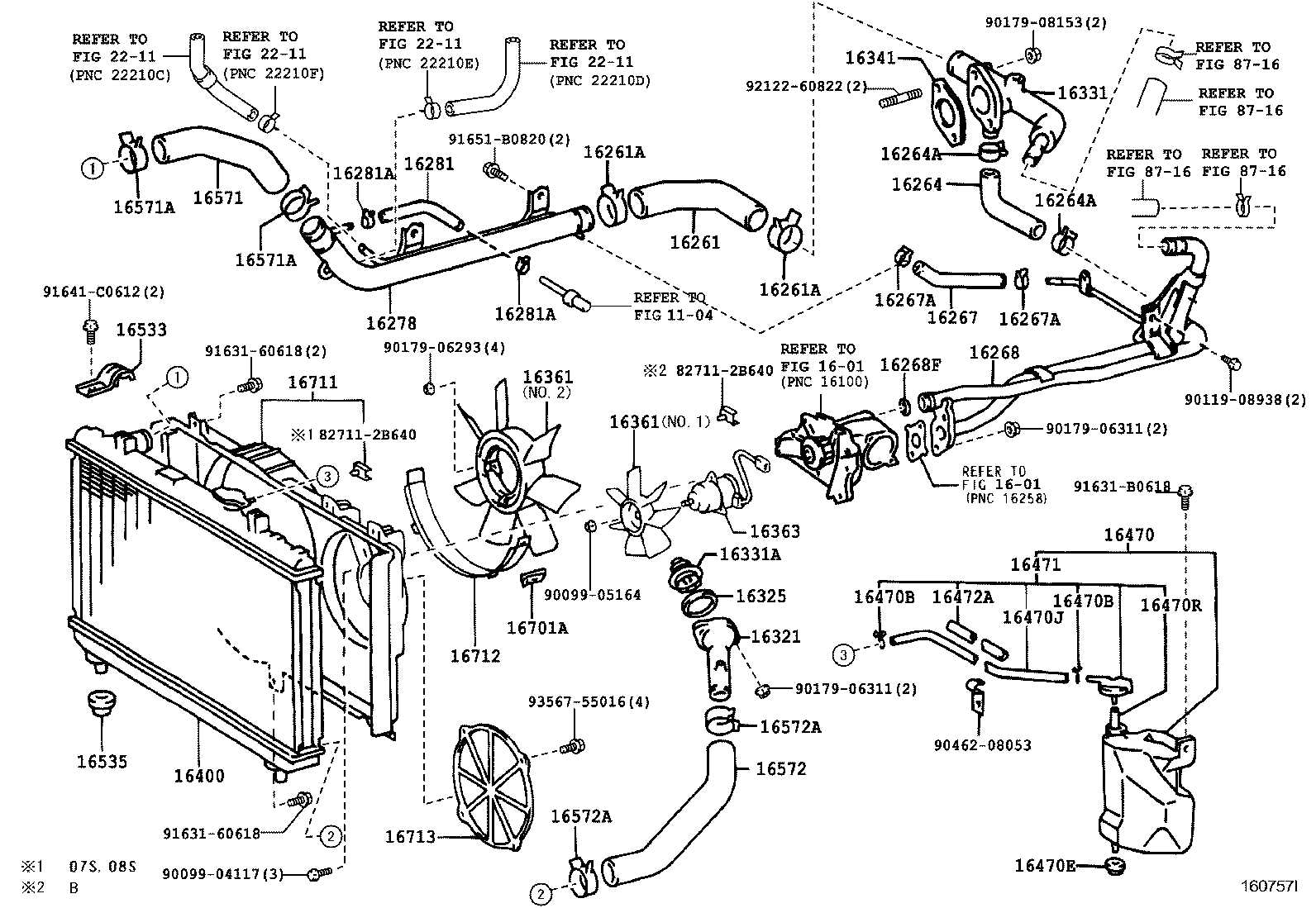

ILLUST NO. 1 OF 2(9812- )3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74120 |
3SFE..SR40,50 |
1 | ||
| 16261-74120 |
3SFE..SR40,50 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-74120 |
3SFE..SR40,50 |
1 | ||
| 16264-74120 |
3SFE..SR40,50 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22003 |
3SFE..SR40,50 |
2 | ||
| 90467-22003 |
3SFE..SR40,50 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22003 |
3SFE..SR40,50 |
2 | ||
| 90467-22003 |
3SFE..SR40,50 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-74090 |
3SFE..SR40,50 |
1 | ||
| 16267-74090 |
3SFE..SR40,50 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74210 |
3SFE..SR40,50 |
1 | ||
| 16268-74210 |
3SFE..SR40,50 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3SFE..SR40,50 |
1 | ||
| 96761-24017 |
3SFE..SR40,50 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-74050 |
3SFE..SR40,50 |
1 | ||
| 16278-74050 |
3SFE..SR40,50 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-74030 |
3SFE..SR40,50 |
1 | ||
| 16281-74030 |
3SFE..SR40,50 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 90467-13050 |
3SFE..SR40,50 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-74050 |
3SFE..SR40,50 |
1 | ||
| 16321-74050 |
3SFE..SR40,50 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3SFE..SR40,50 |
1 | ||
| 16325-63011 |
3SFE..SR40,50 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-74240 |
3SFE..SR40,50 |
1 | ||
| 16304-74240 |
3SFE..SR40,50 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03090 |
3SFE..SR40,50 *WAX 82−95 |
1 | ||
| 90916-03090 |
3SFE..SR40,50 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-74020 |
3SFE..SR40,50 |
1 | ||
| 16341-74020 |
3SFE..SR40,50 |
1 | ||
| 16361 - FAN | ||||
| 16361-46050 |
3SFE..SR40,50..07S,08S NO.1 |
1 | ||
| 16361-74150 |
3SFE..SR40,50..07S,08S NO.1 |
1 | ||
| 16361-56070 |
3SFE..SR40,50 NO.2 |
1 | ||
| 16361-56070 |
3SFE..SR40,50 NO.2 |
1 | ||
| 16361 - FAN | ||||
| 16361-46050 |
3SFE..SR40,50..07S,08S NO.1 |
1 | ||
| 16361-74150 |
3SFE..SR40,50..07S,08S NO.1 |
1 | ||
| 16361-56070 |
3SFE..SR40,50 NO.2 |
1 | ||
| 16361-56070 |
3SFE..SR40,50 NO.2 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74350 |
3SFE..SR40,50..07S,08S |
1 | ||
| 88550-12160 |
3SFE..SR40,50..07S,08S |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-7A390 |
3SFE..SR40,50..ATM |
1 | ||
| 16400-7A660 |
3SFE..SR40,50..ATM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64220 |
3SFE..SR40,50 |
1 | ||
| 16470-64220 |
3SFE..SR40,50 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SFE..SR40,50 |
2 | ||
| 90467-11085 |
3SFE..SR40,50 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SFE..SR40,50 |
2 | ||
| 90467-11085 |
3SFE..SR40,50 |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-20014 |
3SFE..SR40,50 |
1 | ||
| 90480-20014 |
3SFE..SR40,50 |
1 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
3SFE..SR40,50 長さ=640 |
1 | ||
| 90099-33534 |
3SFE..SR40,50 長さ=640 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3SFE..SR40,50 *H,L=215 |
1 | ||
| 90445-12078 |
3SFE..SR40,50 *H,L=215 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64060 |
3SFE..SR40,50 |
1 | ||
| 16471-64060 |
3SFE..SR40,50 |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16479-64220 |
3SFE..SR40,50 |
1 | ||
| 16479-64220 |
3SFE..SR40,50 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-64010 |
3SFE..SR40,50 |
2 | ||
| 16505-64010 |
3SFE..SR40,50 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
3SFE..SR40,50 |
2 | ||
| 90480-40016 |
3SFE..SR40,50 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74410 |
3SFE..SR40,50 |
1 | ||
| 16571-74410 |
3SFE..SR40,50 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
3SFE..SR40,50 |
2 | ||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
3SFE..SR40,50 |
2 | ||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74310 |
3SFE..SR40,50 |
1 | ||
| 16572-74310 |
3SFE..SR40,50 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 90467-34001 |
3SFE..SR40,50 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
3SFE..SR40,50 |
2 | ||
| 90467-34001 |
3SFE..SR40,50 |
2 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
3SFE..SR40,50 |
2 | ||
| 90468-06013 |
3SFE..SR40,50 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-74640 |
3SFE..SR40,50 |
1 | ||
| 16711-74640 |
3SFE..SR40,50..B |
1 | ||
| 16711-74730 |
3SFE..SR40,50..07S,08S |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-74020 |
3SFE..SR40,50 |
1 | ||
| 16712-74020 |
3SFE..SR40,50 |
1 | ||
| 16713 - SHROUD, FAN, NO.3 | ||||
| 16713-74010 |
3SFE..SR40,50..B |
1 | ||
| 16713-74010 |
3SFE..SR40,50..B |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90119-08938 | ||||
| 90179-06293 | ||||
| 90179-06311 | ||||
| 90179-08153 | ||||
| 90462-08053 | ||||
| 91631-60618 | ||||
| 91631-B0618 | ||||
| 91641-C0612 | ||||
| 91651-B0820 | ||||
| 92122-60822 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1601 | ||||
| 2211 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(9610- )3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-7A390 |
3SFE..SR40,50..ATM |
1 | ||
| 16400-7A660 |
3SFE..SR40,50..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3SFE..SR40,50 |
1 | ||
| 23322-54010 |
3SFE..SR40,50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3SFE..SR40,50 |
1 | ||
| 96711-19007 |
3SFE..SR40,50 |
1 | ||
| 96711-19007 |
3SFE..SR40,50 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3SFE..SR40,50 |
1 | ||
| 16401-72090 |
3SFE..SR40,50 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
