SR40G-HFSQK (1996)
Toyota Lite/Townace Noah,V

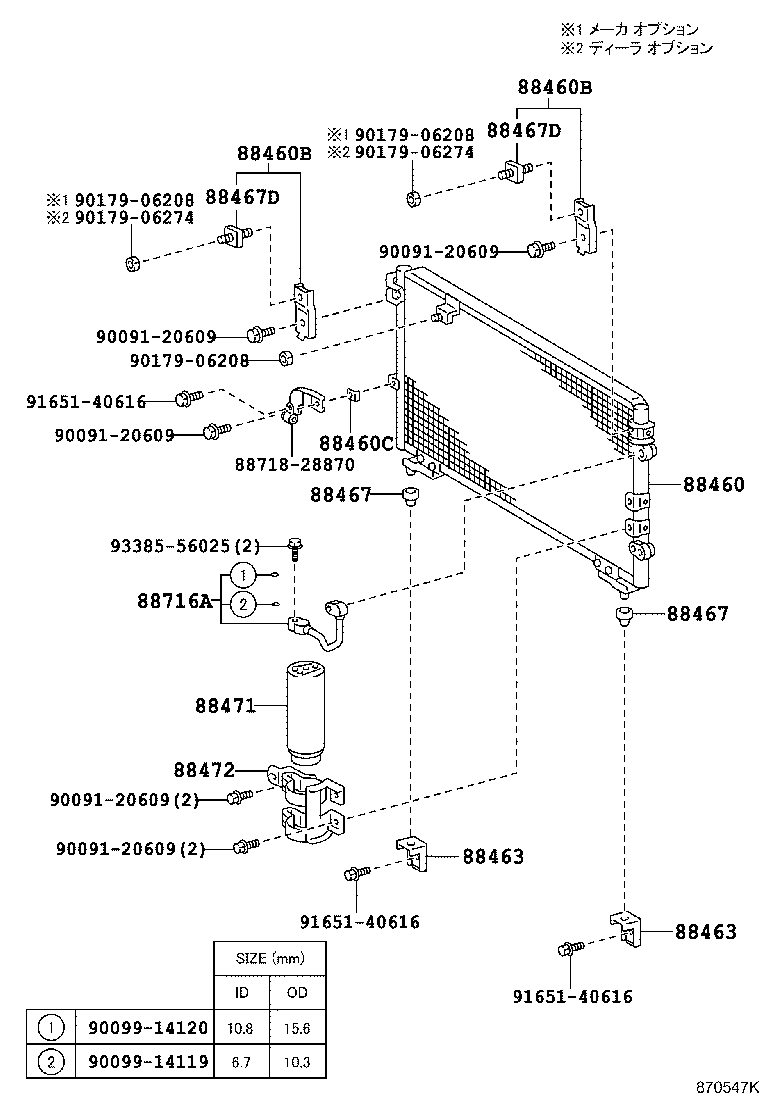

ILLUST NO. 2 OF 3(9610- )
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28460 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88460-28460 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-2J390 |
CR4#,5#,KR42,52,SR40,50 |
2 | ||
| 88688-2J390 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-2J390 |
CR4#,5#,KR42,52,SR40,50 |
2 | ||
| 88688-2J390 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-26470 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88688-26470 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28440 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 88463-28440 |
CR4#,5#,KR42,52,SR40,50 |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28440 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 88463-28440 |
CR4#,5#,KR42,52,SR40,50 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-95D01 |
CR4#,5#,KR42,52,SR40,50 |
2 | ||
| 88467-95D01 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-95D01 |
CR4#,5#,KR42,52,SR40,50 |
2 | ||
| 88467-95D01 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
CR4#,5#,SR40,50..05S,07S,08S |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-28130 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88472-28130 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2R620 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88716-2R620 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| Common parts | ||||
| 88718-28870 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90179-06208 | ||||
| 90179-06274 | ||||
| 91651-40616 | ||||
| 93385-56025 | ||||

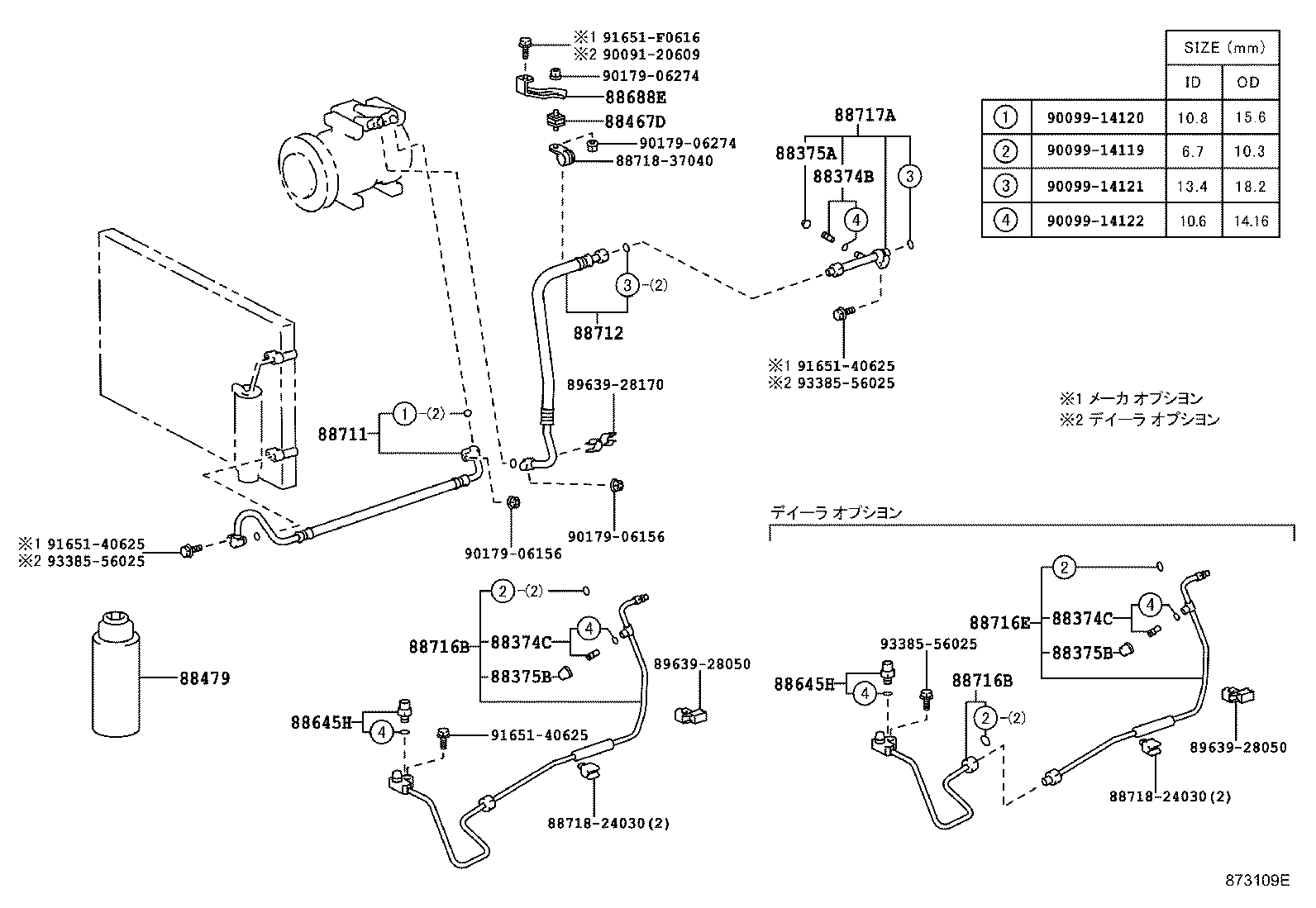

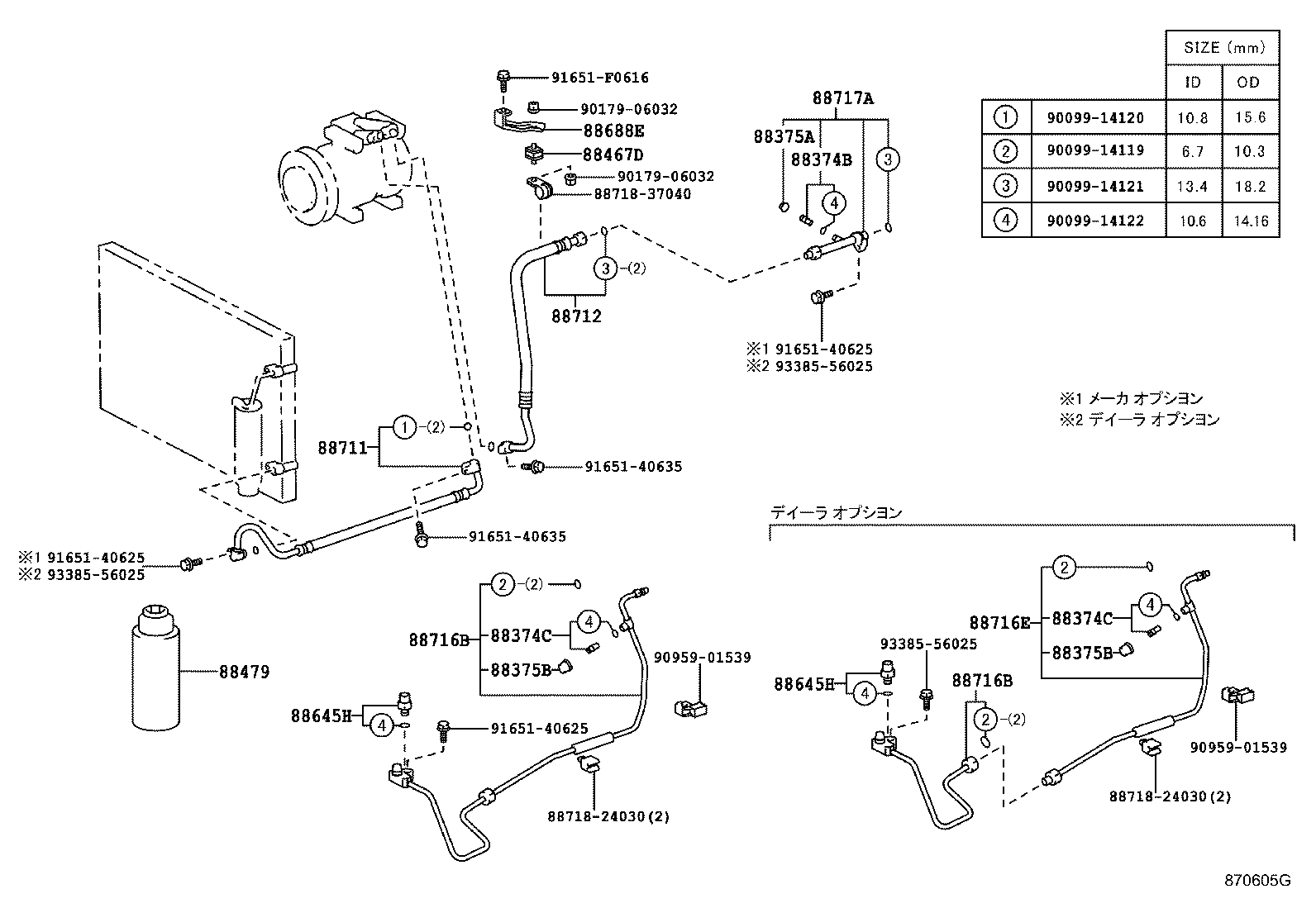

ILLUST NO. 3 OF 3(9611-9812)CR41,51,SR40,50
ﾊﾟｲﾋﾟﾝｸﾞ---ｼﾝｸﾞﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
CR40,50,SR40,50 |
1 | ||
| 88375-30290 |
CR4#,5#,SR40,50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
CR40,50,SR40,50 |
1 | ||
| 88375-30280 |
CR4#,5#,SR40,50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
CR40,50,SR40,50 |
1 | ||
| 88375-30280 |
CR4#,5#,SR40,50 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
SR40,50..B 200G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-34010 |
SR40,50..B |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-34010 |
SR40,50..B |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28850 |
CR4#,5#,SR40,50 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28570 |
CR4#,5#;SR40,50..B |
1 | ||
| 88712-28600 |
SR40,50 |
1 | ||
| 88712-28590 |
SR40,50..07S,08S |
1 | ||
| 88712-28570 |
CR4#,5#,SR40,50 |
1 | ||
| 88712-28590 |
SR40,50 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R820 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R820 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2R810 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2J850 |
SR40,50..B |
1 | ||
| 88717-2J830 |
SR40,50..07S,08S |
1 | ||
| 88717-2J831 |
SR40,50..07S,08S |
1 | ||
| 88717-2J831 |
SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 88718-24030 | ||||
| 88718-37040 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90179-06032 | ||||
| 90959-01539 | ||||
| 91651-40625 | ||||
| 91651-40635 | ||||
| 91651-F0616 | ||||
| 93385-56025 | ||||

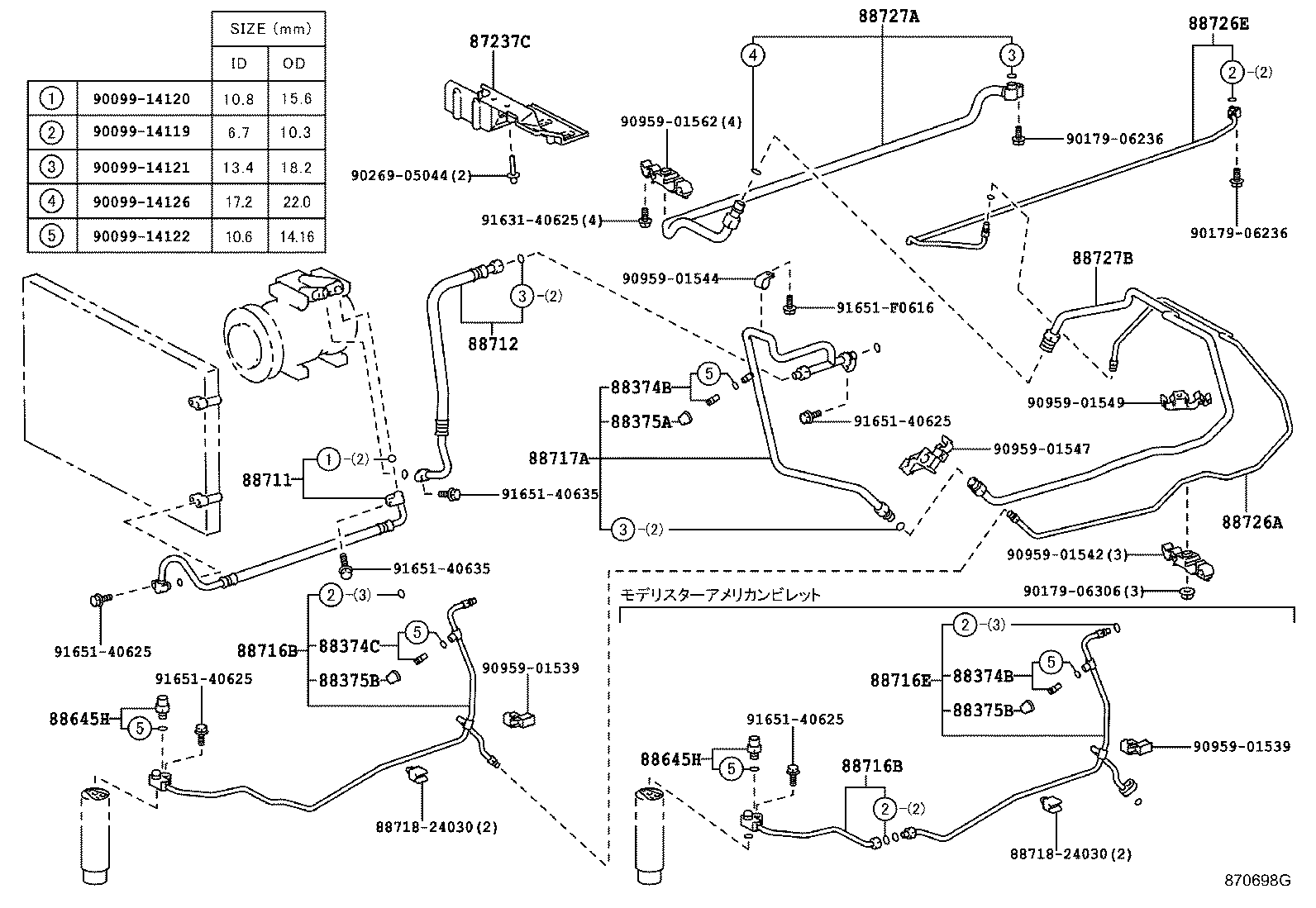

ILLUST NO. 3 OF 3(9610-9812)CR40,50,SR40,50
ﾊﾟｲﾋﾟﾝｸﾞ---ﾃﾞﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87237C - COVER, HEATER PIPING | ||||
| 87237-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87237-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87237-28010 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
CR40,50,SR40,50 |
1 | ||
| 88375-30290 |
CR4#,5#,SR40,50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
CR40,50,SR40,50 |
1 | ||
| 88375-30280 |
CR4#,5#,SR40,50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
CR40,50,SR40,50 |
1 | ||
| 88375-30280 |
CR4#,5#,SR40,50 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-34010 |
SR40,50..B |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-34010 |
SR40,50..B |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28850 |
CR4#,5#,SR40,50 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28570 |
CR4#,5#;SR40,50..B |
1 | ||
| 88712-28600 |
SR40,50 |
1 | ||
| 88712-28590 |
SR40,50..07S,08S |
1 | ||
| 88712-28570 |
CR4#,5#,SR40,50 |
1 | ||
| 88712-28590 |
SR40,50 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R820 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R820 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2R810 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2J850 |
SR40,50..B |
1 | ||
| 88717-2J830 |
SR40,50..07S,08S |
1 | ||
| 88717-2J831 |
SR40,50..07S,08S |
1 | ||
| 88717-2J831 |
SR40,50..07S,08S |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2R790 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R660 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2R670 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R800 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2J870 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88717-2J870 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88717-2R060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2J860 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88717-2R050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 88718-24030 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14126 | ||||
| 90179-06236 | ||||
| 90179-06306 | ||||
| 90269-05044 | ||||
| 90959-01539 | ||||
| 90959-01542 | ||||
| 90959-01544 | ||||
| 90959-01547 | ||||
| 90959-01549 | ||||
| 90959-01562 | ||||
| 91631-40625 | ||||
| 91651-40625 | ||||
| 91651-40635 | ||||
| 91651-F0616 | ||||

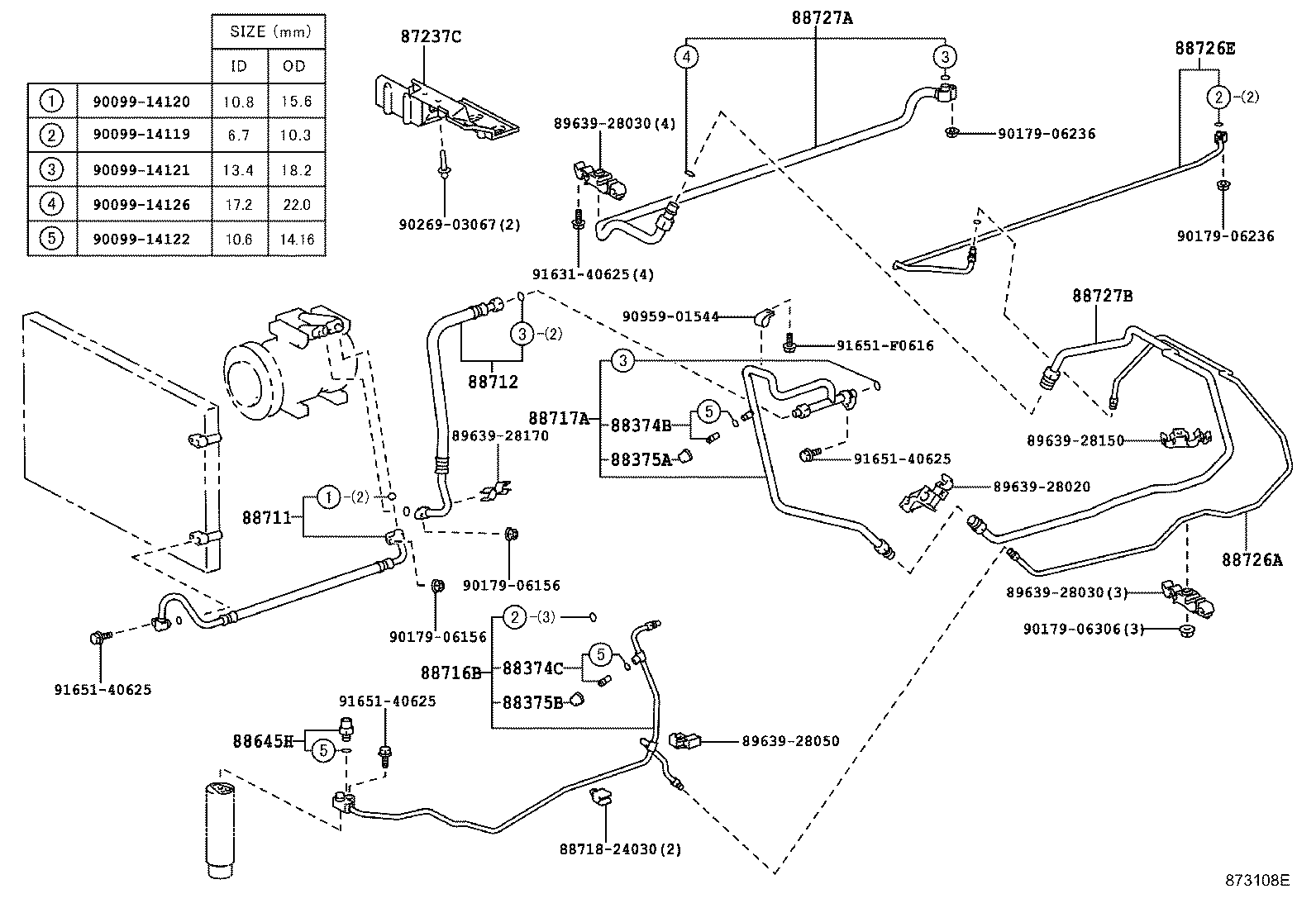

ILLUST NO. 3 OF 3(9812- )CR40,50,SR40,50
ﾊﾟｲﾋﾟﾝｸﾞ---ﾃﾞﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87237C - COVER, HEATER PIPING | ||||
| 87237-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87237-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87237-28010 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
CR40,50,SR40,50 |
1 | ||
| 88375-30290 |
CR4#,5#,SR40,50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
CR40,50,SR40,50 |
1 | ||
| 88375-30280 |
CR4#,5#,SR40,50 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-34010 |
SR40,50..B |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28850 |
CR4#,5#,SR40,50 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28570 |
CR4#,5#;SR40,50..B |
1 | ||
| 88712-28600 |
SR40,50 |
1 | ||
| 88712-28590 |
SR40,50..07S,08S |
1 | ||
| 88712-28570 |
CR4#,5#,SR40,50 |
1 | ||
| 88712-28590 |
SR40,50 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R820 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2J830 |
SR40,50..07S,08S |
1 | ||
| 88717-2J850 |
SR40,50..B |
1 | ||
| 88717-2J831 |
SR40,50..07S,08S |
1 | ||
| 88717-2J831 |
SR40,50..07S,08S |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2R790 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R660 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2R670 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R800 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2J870 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88717-2J870 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88717-2R060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2J860 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88717-2R050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 88718-24030 | ||||
| 89639-28020 | ||||
| 89639-28030 | ||||
| 89639-28050 | ||||
| 89639-28150 | ||||
| 89639-28170 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14126 | ||||
| 90179-06156 | ||||
| 90179-06236 | ||||
| 90179-06306 | ||||
| 90269-03067 | ||||
| 90959-01544 | ||||
| 91631-40625 | ||||
| 91651-40625 | ||||
| 91651-F0616 | ||||
ILLUST NO. 3 OF 3(9812- )CR42,52,SR40,50
ﾊﾟｲﾋﾟﾝｸﾞ---ｼﾝｸﾞﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
CR40,50,SR40,50 |
1 | ||
| 88374-30010 |
CR4#,5#,SR40,50 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
CR40,50,SR40,50 |
1 | ||
| 88375-30290 |
CR4#,5#,SR40,50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
CR40,50,SR40,50 |
1 | ||
| 88375-30280 |
CR4#,5#,SR40,50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
CR40,50,SR40,50 |
1 | ||
| 88375-30280 |
CR4#,5#,SR40,50 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
SR40,50..B 200G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-34010 |
SR40,50..B |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-60030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88645-34010 |
SR40,50..B |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28850 |
CR4#,5#,SR40,50 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28570 |
CR4#,5#;SR40,50..B |
1 | ||
| 88712-28600 |
SR40,50 |
1 | ||
| 88712-28590 |
SR40,50..07S,08S |
1 | ||
| 88712-28570 |
CR4#,5#,SR40,50 |
1 | ||
| 88712-28590 |
SR40,50 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R820 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R630 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88716-2R820 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2R810 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2J830 |
SR40,50..07S,08S |
1 | ||
| 88717-2J850 |
SR40,50..B |
1 | ||
| 88717-2J831 |
SR40,50..07S,08S |
1 | ||
| 88717-2J831 |
SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 88718-24030 | ||||
| 88718-37040 | ||||
| 89639-28050 | ||||
| 89639-28170 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90179-06156 | ||||
| 90179-06274 | ||||
| 91651-40625 | ||||
| 91651-F0616 | ||||
| 93385-56025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
