SR40G-HDSBK (1996)
Toyota Lite/Townace Noah,V

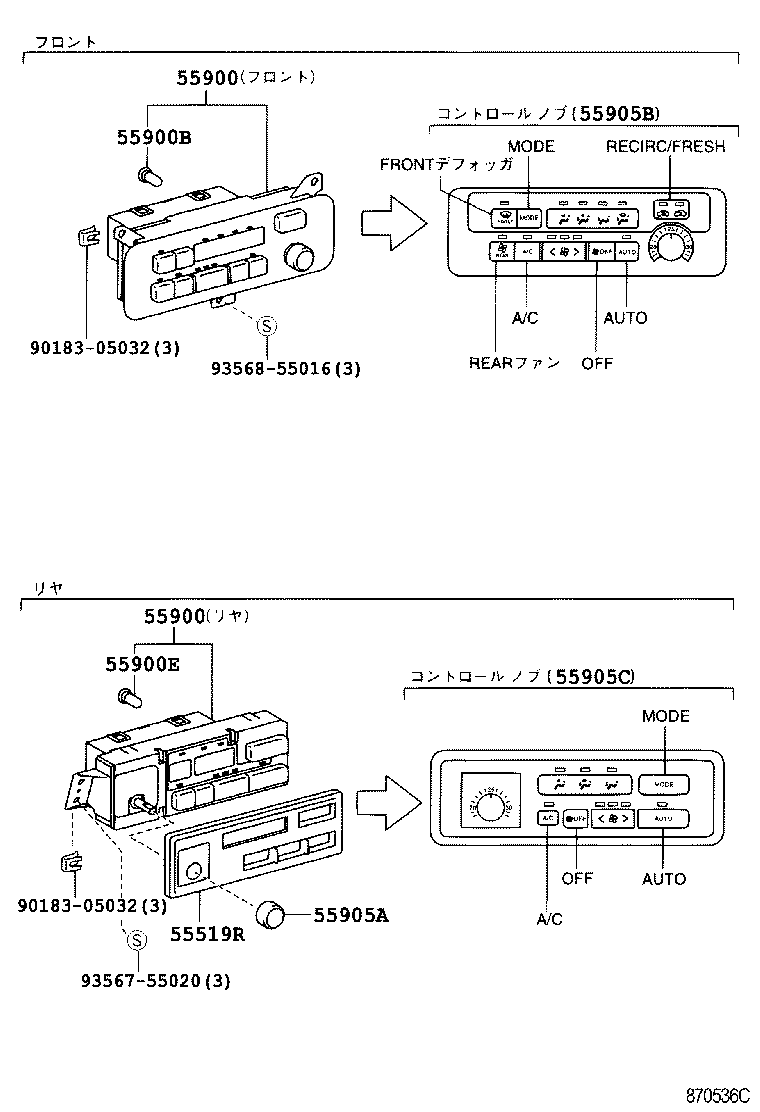

ILLUST NO. 1 OF 5(9610-9812)
ﾌﾛﾝﾄ---ﾌﾟﾂｼﾕｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-28320 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-28300 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55519-28320 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-28650 |
CR40,50,SR40,50..E,Q,V ﾘﾔ |
1 | ||
| 55900-28650 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 55900-28690 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900-28640 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-28650 |
CR40,50,SR40,50..E,Q,V ﾘﾔ |
1 | ||
| 55900-28650 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 55900-28690 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900-28640 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR40,50,SR40,50..E,V 14V 1.4W,*DH |
2 | ||
| 90010-05115 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
4 | ||
| 90010-05116 |
CR40,50,SR40,50..D,E,S,V 14V 1.12W,*DH 有り(ｷｬｯﾌﾟ) |
2 | ||
| 90010-05106 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾓ-ﾄﾞ & ｵﾝﾄﾞ & ﾌﾞﾛﾜ ｺﾝﾄﾛ-ﾙ ﾖｳ,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
3 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V 14V 1.4W,*DH |
2 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55900E - BULB, AIR CONDITIONER CONTROL, NO.2 | ||||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
4 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
CR40,50,SR40,50..E,V |
1 | ||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905-89115 |
CR40,50,SR40,50..E,V |
2 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55905-89115 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S |
4 | ||
| 55905-2B040 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28160 |
CR40,50,SR40,50..E,Q,S,V RECIRC |
1 | ||
| 55905-13030 |
CR40,50,SR40,50..E,V A/C |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-28110 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,S,V ｵｰﾄ |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,V A/C |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,S,V OFF |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,S,V A/C |
1 | ||
| 55905-28110 |
CR40,50,SR40,50..E,Q,S,V ﾓｰﾄﾞ |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93567-55020 | ||||
| 93568-55016 | ||||

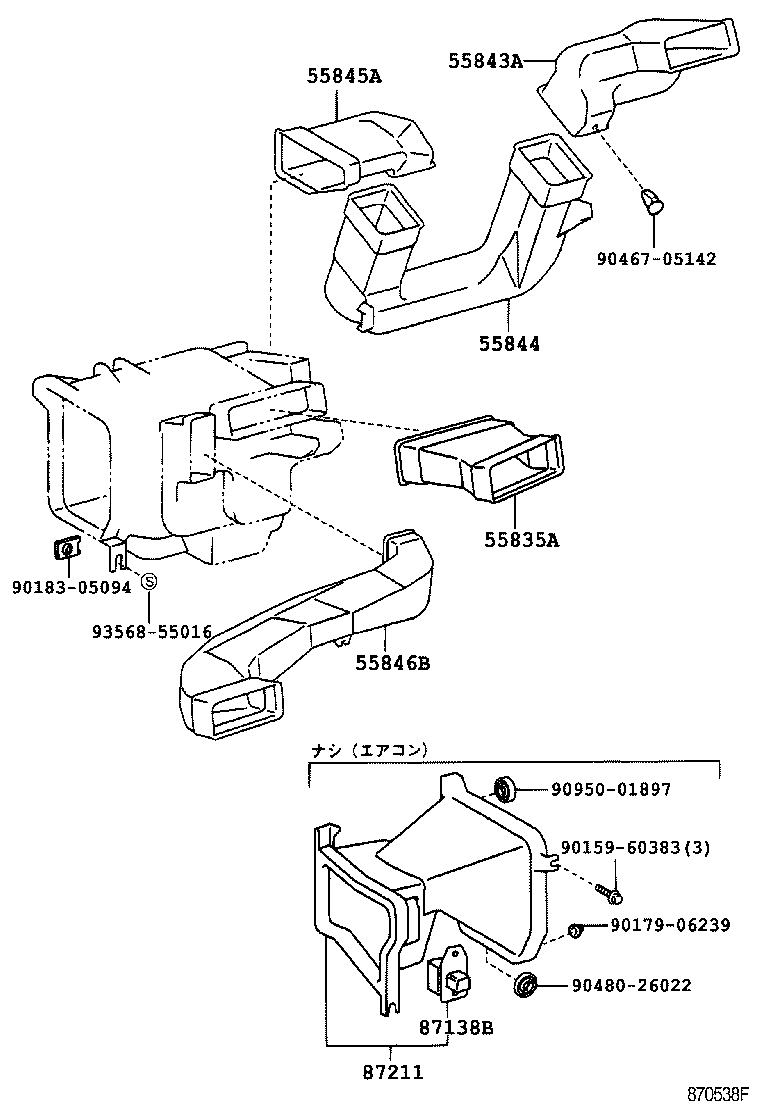

ILLUST NO. 3 OF 5(9610-9812)
ﾌﾛﾝﾄﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-28070 |
CR40,50,SR40,50 |
1 | ||
| 55835-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55843-28040 |
CR40,50,SR40,50 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55844-28070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55846-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55846-28050 |
CR40,50,SR40,50 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-28160 |
CR41,51,KR4#,SR40,50..03S,06S |
1 | ||
| 87138-28160 |
SR40,50..B |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-28150 |
SR40,50..B |
1 | ||
| 87201-28150 |
CR41,51,KR4#,SR40,50..03S,06S |
1 | ||
| Common parts | ||||
| 90159-60383 | ||||
| 90179-06239 | ||||
| 90183-05094 | ||||
| 90467-05142 | ||||
| 90480-26022 | ||||
| 90950-01897 | ||||
| 93568-55016 | ||||

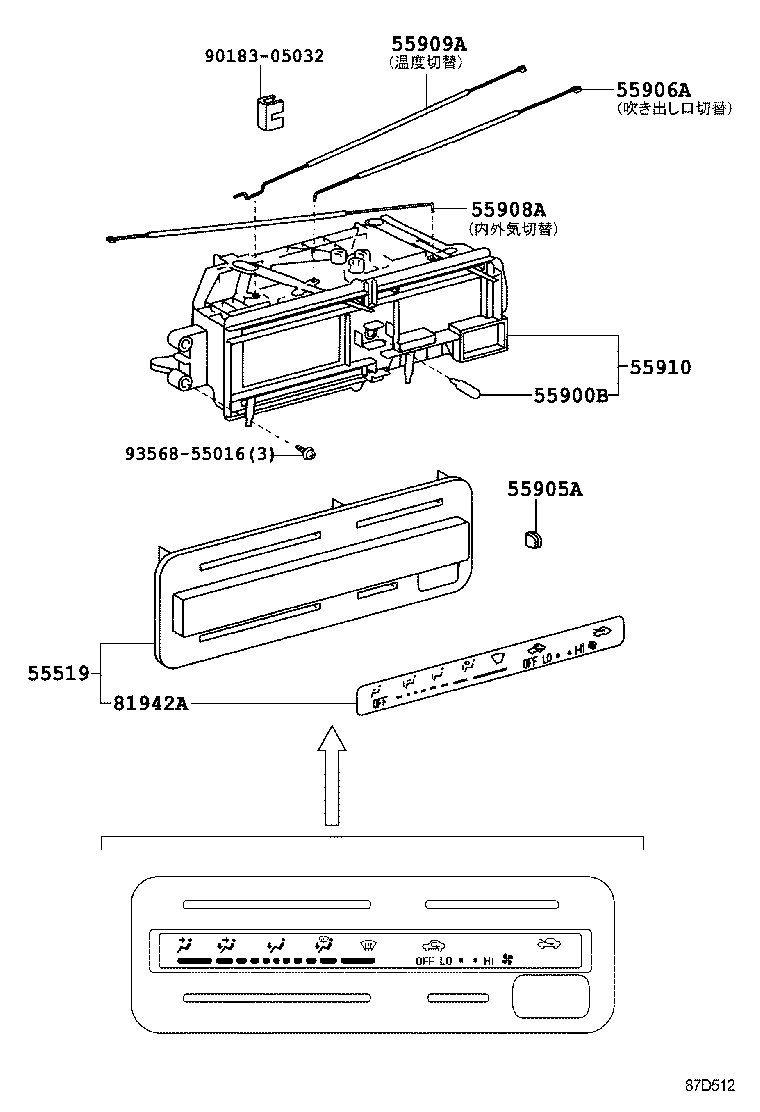

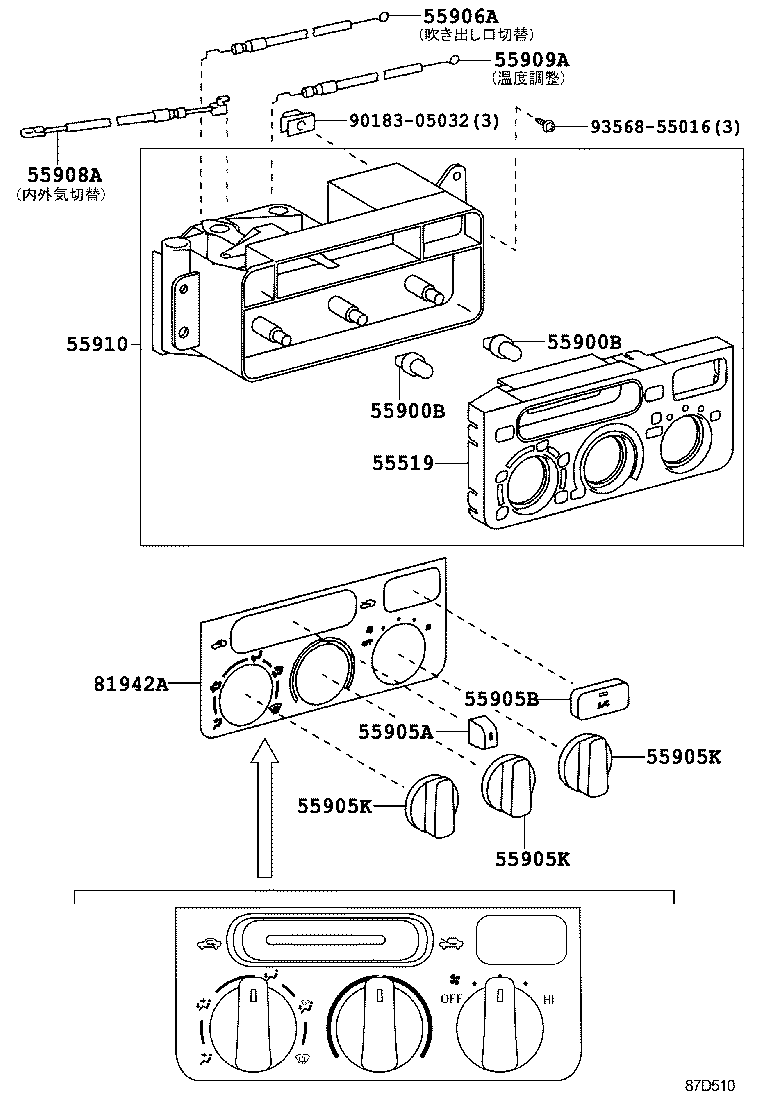

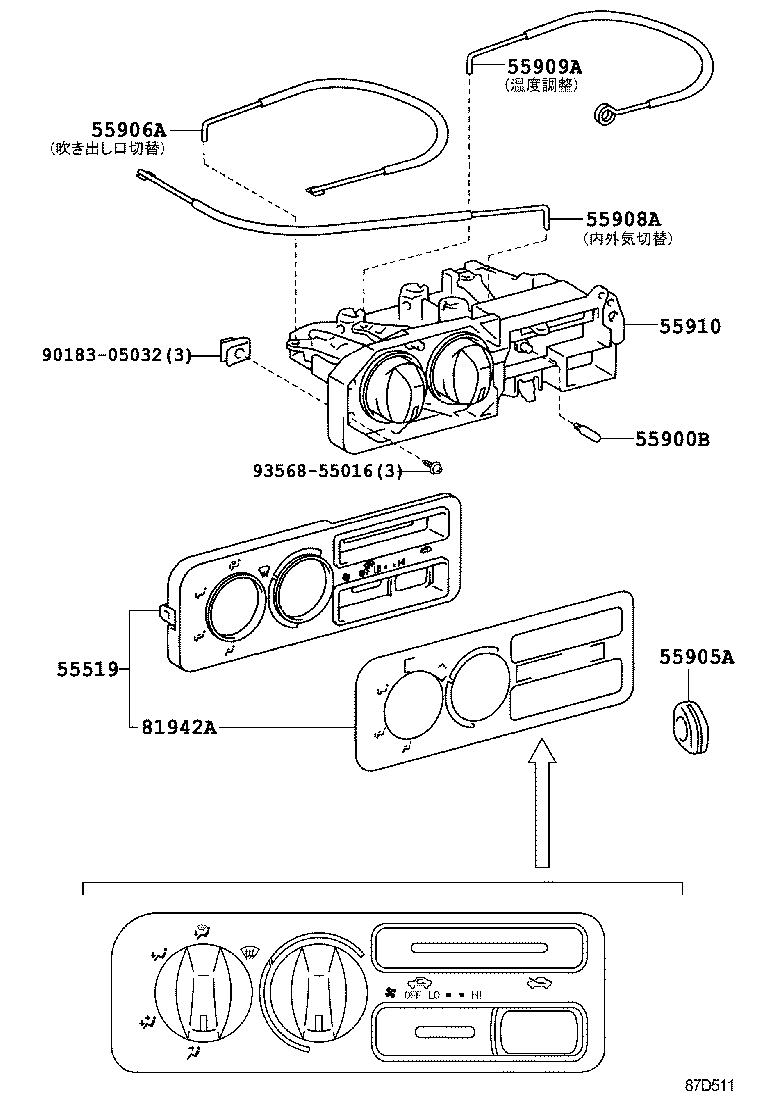

ILLUST NO. 1 OF 5(9812- )CR4#,5#,KR42,SR40,50
ﾌﾛﾝﾄ---ﾀﾞｲﾔﾙｼｷ(ｵｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-28320 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-28300 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55519-28320 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-28650 |
CR40,50,SR40,50..E,Q,V ﾘﾔ |
1 | ||
| 55900-28650 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 55900-28690 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900-28640 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR40,50,SR40,50..E,V 14V 1.4W,*DH |
2 | ||
| 90010-05115 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
4 | ||
| 90010-05116 |
CR40,50,SR40,50..D,E,S,V 14V 1.12W,*DH 有り(ｷｬｯﾌﾟ) |
2 | ||
| 90010-05106 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾓ-ﾄﾞ & ｵﾝﾄﾞ & ﾌﾞﾛﾜ ｺﾝﾄﾛ-ﾙ ﾖｳ,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
3 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V 14V 1.4W,*DH |
2 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR40,50,SR40,50..E,V 14V 1.4W,*DH |
2 | ||
| 90010-05115 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
4 | ||
| 90010-05116 |
CR40,50,SR40,50..D,E,S,V 14V 1.12W,*DH 有り(ｷｬｯﾌﾟ) |
2 | ||
| 90010-05106 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾓ-ﾄﾞ & ｵﾝﾄﾞ & ﾌﾞﾛﾜ ｺﾝﾄﾛ-ﾙ ﾖｳ,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
3 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V 14V 1.4W,*DH |
2 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55900E - BULB, AIR CONDITIONER CONTROL, NO.2 | ||||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
4 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-28170 |
CR40,50,SR40,50..E..CBU Gﾘﾐﾃﾂﾄﾞ *(P),*(Q) |
1 | ||
| 55901-28060 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 55901-28170 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
CR40,50,SR40,50..E,V |
1 | ||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905-89115 |
CR40,50,SR40,50..E,V |
2 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55905-89115 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S |
4 | ||
| 55905-2B040 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28160 |
CR40,50,SR40,50..E,Q,S,V RECIRC |
1 | ||
| 55905-13030 |
CR40,50,SR40,50..E,V A/C |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28160 |
CR40,50,SR40,50..E,Q,S,V RECIRC |
1 | ||
| 55905-13030 |
CR40,50,SR40,50..E,V A/C |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28160 |
CR40,50,SR40,50..E,Q,S,V RECIRC |
1 | ||
| 55905-13030 |
CR40,50,SR40,50..E,V A/C |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28160 |
CR40,50,SR40,50..E,Q,S,V RECIRC |
1 | ||
| 55905-13030 |
CR40,50,SR40,50..E,V A/C |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-28110 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,S,V ｵｰﾄ |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,V A/C |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,S,V OFF |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,S,V A/C |
1 | ||
| 55905-28110 |
CR40,50,SR40,50..E,Q,S,V ﾓｰﾄﾞ |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-28110 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,S,V ｵｰﾄ |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,V A/C |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,S,V OFF |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,S,V A/C |
1 | ||
| 55905-28110 |
CR40,50,SR40,50..E,Q,S,V ﾓｰﾄﾞ |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-28110 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,S,V ｵｰﾄ |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,V A/C |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,S,V OFF |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,S,V A/C |
1 | ||
| 55905-28110 |
CR40,50,SR40,50..E,Q,S,V ﾓｰﾄﾞ |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-28110 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,S,V ｵｰﾄ |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,V A/C |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,S,V OFF |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,S,V A/C |
1 | ||
| 55905-28110 |
CR40,50,SR40,50..E,Q,S,V ﾓｰﾄﾞ |
1 | ||
| 55912C - HOUSING, HEATER CONTROL | ||||
| 55912-28020 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-28760 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93567-55020 | ||||
ILLUST NO. 3 OF 5(9812- )
ﾌﾛﾝﾄﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-28070 |
CR40,50,SR40,50 |
1 | ||
| 55835-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55843-28040 |
CR40,50,SR40,50 |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55846-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55846-28050 |
CR40,50,SR40,50 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-28160 |
CR41,51,KR4#,SR40,50..03S,06S |
1 | ||
| 87138-28160 |
SR40,50..B |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-28150 |
SR40,50..B |
1 | ||
| 87201-28150 |
CR41,51,KR4#,SR40,50..03S,06S |
1 | ||
| Common parts | ||||
| 90159-60096 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
| 90467-05142 | ||||
| 90480-26022 | ||||
| 90950-01897 | ||||
ILLUST NO. 1 OF 5(9812- )CR4#,5#,KR42,SR40,50
ﾌﾛﾝﾄ---ﾀﾞｲﾔﾙｼｷ(ﾏﾆｭｱﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16090 |
CR40,50,SR40,50..E,V |
1 | ||
| 55519-28360 |
CR40,50,SR40,50..E,V |
1 | ||
| 55519-28370 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55519-16110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR40,50,SR40,50..E,V 14V 1.4W,*DH |
2 | ||
| 90010-05115 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
4 | ||
| 90010-05116 |
CR40,50,SR40,50..D,E,S,V 14V 1.12W,*DH 有り(ｷｬｯﾌﾟ) |
2 | ||
| 90010-05106 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾓ-ﾄﾞ & ｵﾝﾄﾞ & ﾌﾞﾛﾜ ｺﾝﾄﾛ-ﾙ ﾖｳ,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
3 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V 14V 1.4W,*DH |
2 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR40,50,SR40,50..E,V 14V 1.4W,*DH |
2 | ||
| 90010-05115 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
4 | ||
| 90010-05116 |
CR40,50,SR40,50..D,E,S,V 14V 1.12W,*DH 有り(ｷｬｯﾌﾟ) |
2 | ||
| 90010-05106 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾓ-ﾄﾞ & ｵﾝﾄﾞ & ﾌﾞﾛﾜ ｺﾝﾄﾛ-ﾙ ﾖｳ,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
3 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V 14V 1.4W,*DH |
2 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
CR40,50,SR40,50..E,V |
1 | ||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905-89115 |
CR40,50,SR40,50..E,V |
2 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55905-89115 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S |
4 | ||
| 55905-2B040 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28160 |
CR40,50,SR40,50..E,Q,S,V RECIRC |
1 | ||
| 55905-13030 |
CR40,50,SR40,50..E,V A/C |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28160 |
CR40,50,SR40,50..E,Q,S,V RECIRC |
1 | ||
| 55905-13030 |
CR40,50,SR40,50..E,V A/C |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28160 |
CR40,50,SR40,50..E,Q,S,V RECIRC |
1 | ||
| 55905-13030 |
CR40,50,SR40,50..E,V A/C |
1 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM10,60,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440B0 |
CR40,50,SR40,50..E SHADOW GRAY,TRIM1#,6#,ﾌﾛﾝﾄ |
3 | ||
| 55905-28070 |
CR40,50,SR40,50..D,E,S,V ﾘﾔ |
1 | ||
| 55905-12440C0 |
CR40,50,SR40,50..D,S,V BLACK,TRIM1#,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM6#,ﾌﾛﾝﾄ |
3 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM10,60,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440B0 |
CR40,50,SR40,50..E SHADOW GRAY,TRIM1#,6#,ﾌﾛﾝﾄ |
3 | ||
| 55905-28070 |
CR40,50,SR40,50..D,E,S,V ﾘﾔ |
1 | ||
| 55905-12440C0 |
CR40,50,SR40,50..D,S,V BLACK,TRIM1#,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM6#,ﾌﾛﾝﾄ |
3 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM10,60,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440B0 |
CR40,50,SR40,50..E SHADOW GRAY,TRIM1#,6#,ﾌﾛﾝﾄ |
3 | ||
| 55905-28070 |
CR40,50,SR40,50..D,E,S,V ﾘﾔ |
1 | ||
| 55905-12440C0 |
CR40,50,SR40,50..D,S,V BLACK,TRIM1#,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM6#,ﾌﾛﾝﾄ |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55906-28210 |
SR40,50..B |
1 | ||
| 55906-28260 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55906-28230 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55908-28020 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908-28110 |
SR40,50..B |
1 | ||
| 55908-28120 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908-28150 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28160 |
SR40,50..B |
1 | ||
| 55909-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55909-28150 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55909-28120 |
CR40,50,SR40,50..E,V |
1 | ||
| 55909-28100 |
CR40,50,SR40,50..E,V |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16270 |
CR40,50,SR40,50..E,V |
1 | ||
| 55910-28430 |
SR40,50..B |
1 | ||
| 55910-28330 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55910-28420 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55910-28370 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16260 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942-28050 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942-28070 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 81942-16200 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81942-28080 |
SR40,50..B |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 5(9801-9812)
ﾌﾛﾝﾄ---ﾀﾞｲﾔﾙｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16090 |
CR40,50,SR40,50..E,V |
1 | ||
| 55519-28360 |
CR40,50,SR40,50..E,V |
1 | ||
| 55519-28370 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55519-16110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR40,50,SR40,50..E,V 14V 1.4W,*DH |
2 | ||
| 90010-05115 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
4 | ||
| 90010-05116 |
CR40,50,SR40,50..D,E,S,V 14V 1.12W,*DH 有り(ｷｬｯﾌﾟ) |
2 | ||
| 90010-05106 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾓ-ﾄﾞ & ｵﾝﾄﾞ & ﾌﾞﾛﾜ ｺﾝﾄﾛ-ﾙ ﾖｳ,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
3 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V 14V 1.4W,*DH |
2 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR40,50,SR40,50..E,V 14V 1.4W,*DH |
2 | ||
| 90010-05115 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
4 | ||
| 90010-05116 |
CR40,50,SR40,50..D,E,S,V 14V 1.12W,*DH 有り(ｷｬｯﾌﾟ) |
2 | ||
| 90010-05106 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾓ-ﾄﾞ & ｵﾝﾄﾞ & ﾌﾞﾛﾜ ｺﾝﾄﾛ-ﾙ ﾖｳ,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
3 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V 14V 1.4W,*DH |
2 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
CR40,50,SR40,50..E,V |
1 | ||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905-89115 |
CR40,50,SR40,50..E,V |
2 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55905-89115 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S |
4 | ||
| 55905-2B040 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28160 |
CR40,50,SR40,50..E,Q,S,V RECIRC |
1 | ||
| 55905-13030 |
CR40,50,SR40,50..E,V A/C |
1 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM10,60,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440B0 |
CR40,50,SR40,50..E SHADOW GRAY,TRIM1#,6#,ﾌﾛﾝﾄ |
3 | ||
| 55905-28070 |
CR40,50,SR40,50..D,E,S,V ﾘﾔ |
1 | ||
| 55905-12440C0 |
CR40,50,SR40,50..D,S,V BLACK,TRIM1#,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM6#,ﾌﾛﾝﾄ |
3 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM10,60,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440B0 |
CR40,50,SR40,50..E SHADOW GRAY,TRIM1#,6#,ﾌﾛﾝﾄ |
3 | ||
| 55905-28070 |
CR40,50,SR40,50..D,E,S,V ﾘﾔ |
1 | ||
| 55905-12440C0 |
CR40,50,SR40,50..D,S,V BLACK,TRIM1#,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM6#,ﾌﾛﾝﾄ |
3 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM10,60,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440B0 |
CR40,50,SR40,50..E SHADOW GRAY,TRIM1#,6#,ﾌﾛﾝﾄ |
3 | ||
| 55905-28070 |
CR40,50,SR40,50..D,E,S,V ﾘﾔ |
1 | ||
| 55905-12440C0 |
CR40,50,SR40,50..D,S,V BLACK,TRIM1#,ﾌﾛﾝﾄ |
3 | ||
| 55905-12440C0 |
CR40,50,SR40,50..E BLACK,TRIM6#,ﾌﾛﾝﾄ |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55906-28210 |
SR40,50..B |
1 | ||
| 55906-28260 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55906-28230 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55908-28020 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908-28110 |
SR40,50..B |
1 | ||
| 55908-28120 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908-28150 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28160 |
SR40,50..B |
1 | ||
| 55909-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55909-28150 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55909-28120 |
CR40,50,SR40,50..E,V |
1 | ||
| 55909-28100 |
CR40,50,SR40,50..E,V |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16270 |
CR40,50,SR40,50..E,V |
1 | ||
| 55910-28430 |
SR40,50..B |
1 | ||
| 55910-28330 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55910-28420 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55910-28370 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16260 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942-28050 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942-28070 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 81942-16200 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81942-28080 |
SR40,50..B |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 5(9610-9801)
ﾌﾛﾝﾄ---ﾀﾞｲﾔﾙｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16090 |
CR40,50,SR40,50..E,V |
1 | ||
| 55519-28360 |
CR40,50,SR40,50..E,V |
1 | ||
| 55519-28370 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55519-16110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR40,50,SR40,50..E,V 14V 1.4W,*DH |
2 | ||
| 90010-05115 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
4 | ||
| 90010-05116 |
CR40,50,SR40,50..D,E,S,V 14V 1.12W,*DH 有り(ｷｬｯﾌﾟ) |
2 | ||
| 90010-05106 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾓ-ﾄﾞ & ｵﾝﾄﾞ & ﾌﾞﾛﾜ ｺﾝﾄﾛ-ﾙ ﾖｳ,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
3 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V 14V 1.4W,*DH |
2 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
CR40,50,SR40,50..E,V |
1 | ||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905-89115 |
CR40,50,SR40,50..E,V |
2 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55905-89115 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S |
4 | ||
| 55905-2B040 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55906-28210 |
SR40,50..B |
1 | ||
| 55906-28260 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55906-28230 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55908-28020 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908-28110 |
SR40,50..B |
1 | ||
| 55908-28120 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908-28150 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28160 |
SR40,50..B |
1 | ||
| 55909-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55909-28150 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55909-28120 |
CR40,50,SR40,50..E,V |
1 | ||
| 55909-28100 |
CR40,50,SR40,50..E,V |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16270 |
CR40,50,SR40,50..E,V |
1 | ||
| 55910-28430 |
SR40,50..B |
1 | ||
| 55910-28330 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55910-28420 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55910-28370 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16260 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942-28050 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942-28070 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 81942-16200 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81942-28080 |
SR40,50..B |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 5(9611- )
ﾌﾛﾝﾄ---ﾚﾊﾞ-ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16090 |
CR40,50,SR40,50..E,V |
1 | ||
| 55519-28360 |
CR40,50,SR40,50..E,V |
1 | ||
| 55519-28370 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55519-16110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR40,50,SR40,50..E,V 14V 1.4W,*DH |
2 | ||
| 90010-05115 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
4 | ||
| 90010-05116 |
CR40,50,SR40,50..D,E,S,V 14V 1.12W,*DH 有り(ｷｬｯﾌﾟ) |
2 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05106 |
CR40,50,SR40,50..E,Q,S,V 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾓ-ﾄﾞ & ｵﾝﾄﾞ & ﾌﾞﾛﾜ ｺﾝﾄﾛ-ﾙ ﾖｳ,有り(ﾃﾞｭｱﾙ ｵ−ﾄ ｴｱｺﾝ) |
3 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 90981-11014 |
CR40,50,SR40,50..D,E,S,V 14V 1.4W,*DH |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
CR40,50,SR40,50..E,V |
1 | ||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905-89115 |
CR40,50,SR40,50..E,V |
2 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55905-89115 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S |
4 | ||
| 55905-2B040 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55906-28210 |
SR40,50..B |
1 | ||
| 55906-28260 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55906-28230 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55908-28020 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908-28110 |
SR40,50..B |
1 | ||
| 55908-28120 |
CR40,50,SR40,50..E,V |
1 | ||
| 55908-28150 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28160 |
SR40,50..B |
1 | ||
| 55909-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55909-28150 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55909-28120 |
CR40,50,SR40,50..E,V |
1 | ||
| 55909-28100 |
CR40,50,SR40,50..E,V |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16270 |
CR40,50,SR40,50..E,V |
1 | ||
| 55910-28430 |
SR40,50..B |
1 | ||
| 55910-28330 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55910-28420 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 55910-28370 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16260 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942-28050 |
CR40,50,SR40,50..E,V |
1 | ||
| 81942-28070 |
CR40,50,SR40,50..D,E,S,V |
1 | ||
| 81942-16200 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81942-28080 |
SR40,50..B |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
