SR40G-GRSVK (1996)
Toyota Lite/Townace Noah,V

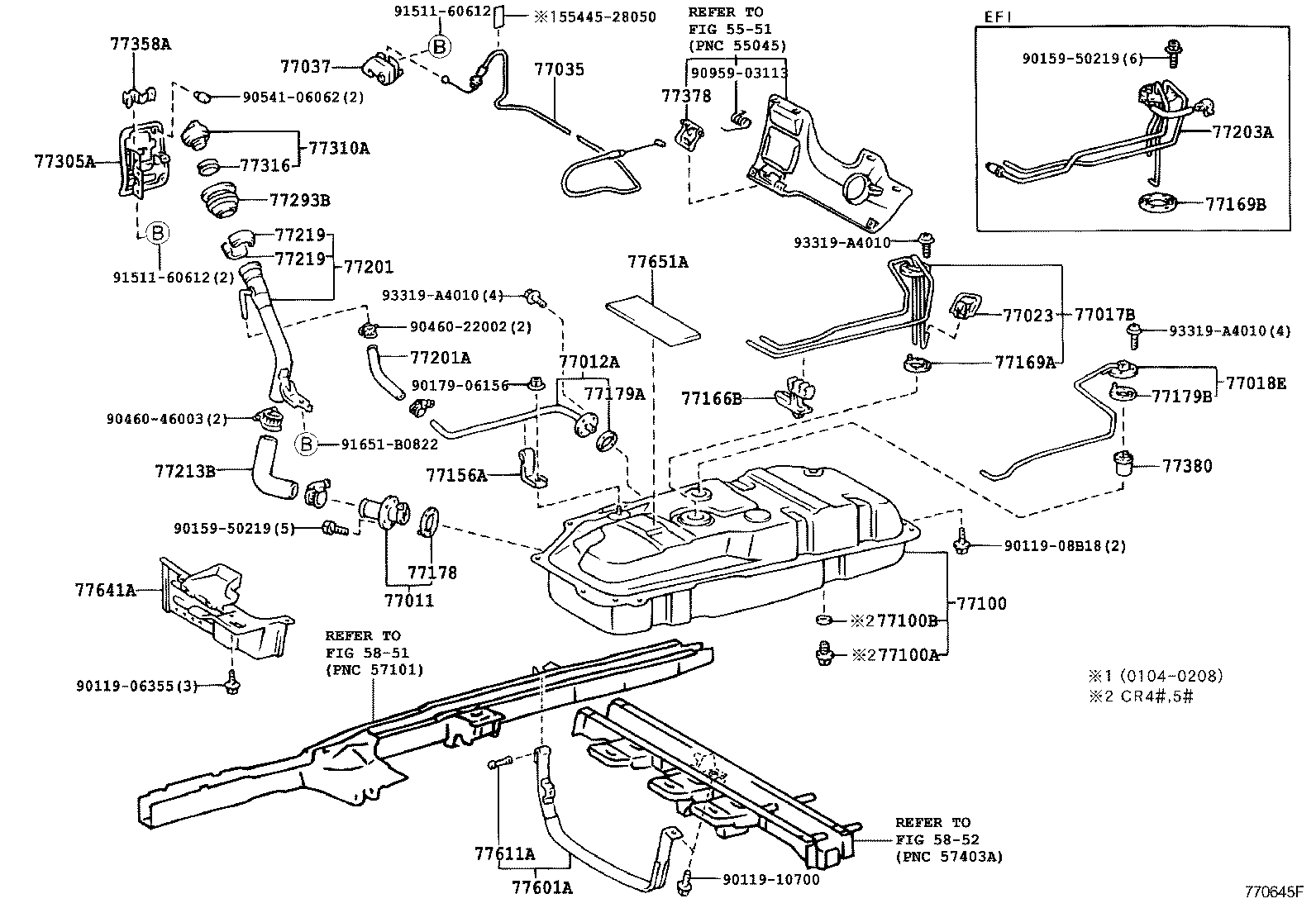

ILLUST NO. 1 OF 2(9610-9812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-28010 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77011-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77012-28061 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77012-28060 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-28090 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77018-28090 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-28070 |
CR40,50,SR40,50 |
1 | ||
| 77035-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-28011 |
CR40,50,SR40,50 |
1 | ||
| 77037-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77037-28011 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-28460 |
SR40,50 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77156A - PLATE, BREATHER TUBE SUPPORT, NO.2 | ||||
| 77156-28030 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77156-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77166B - SUPPORT, FUEL TANK VENT TUBE, NO.1 | ||||
| 77166-28030 |
KR42,52,SR40,50 |
1 | ||
| 77166-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-32010 |
SR40,50 |
1 | ||
| 77169-32010 |
SR40,50 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77178-20030 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-14030 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77179-14030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77179-26010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-28180 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77201-28180 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13019 |
CR4#,5#,KR4#,SR40,50 長さ=190 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-28120 |
SR40,50 |
1 | ||
| 77203-28150 |
SR40,50 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77217-28070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 77293B - PACKING, FUEL INLET PIPE LOWER SHIELD PLATE | ||||
| 77293-28020 |
CR40,50,SR40,50 |
1 | ||
| 77293-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-28020 |
CR4#,5#,KR42,52,SR40,50..4D |
1 | ||
| 77305-28020 |
CR4#,5#,KR4#,SR40,50..4D |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
KR4#,SR40,50 |
1 | ||
| 77310-48010 |
KR4#,SR40,50 |
1 | ||
| 77310-48010 |
SR40,50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CR40,50,SR40,50 |
1 | ||
| 77316-16010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-28050 |
CR40,50,SR40,50 |
1 | ||
| 77358-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77380-26010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-28070 |
CR40,50,SR40,50 |
1 | ||
| 77601-28070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77653-25010 |
CR40,50,SR40,50 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-28070 |
CR40,50,SR40,50 |
1 | ||
| 77641-28070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77651-28040 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90119-08B18 | ||||
| 90119-10700 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90179-06156 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90541-06062 | ||||
| 91511-60612 | ||||
| 91651-B0822 | ||||
| 93319-A4010 | ||||

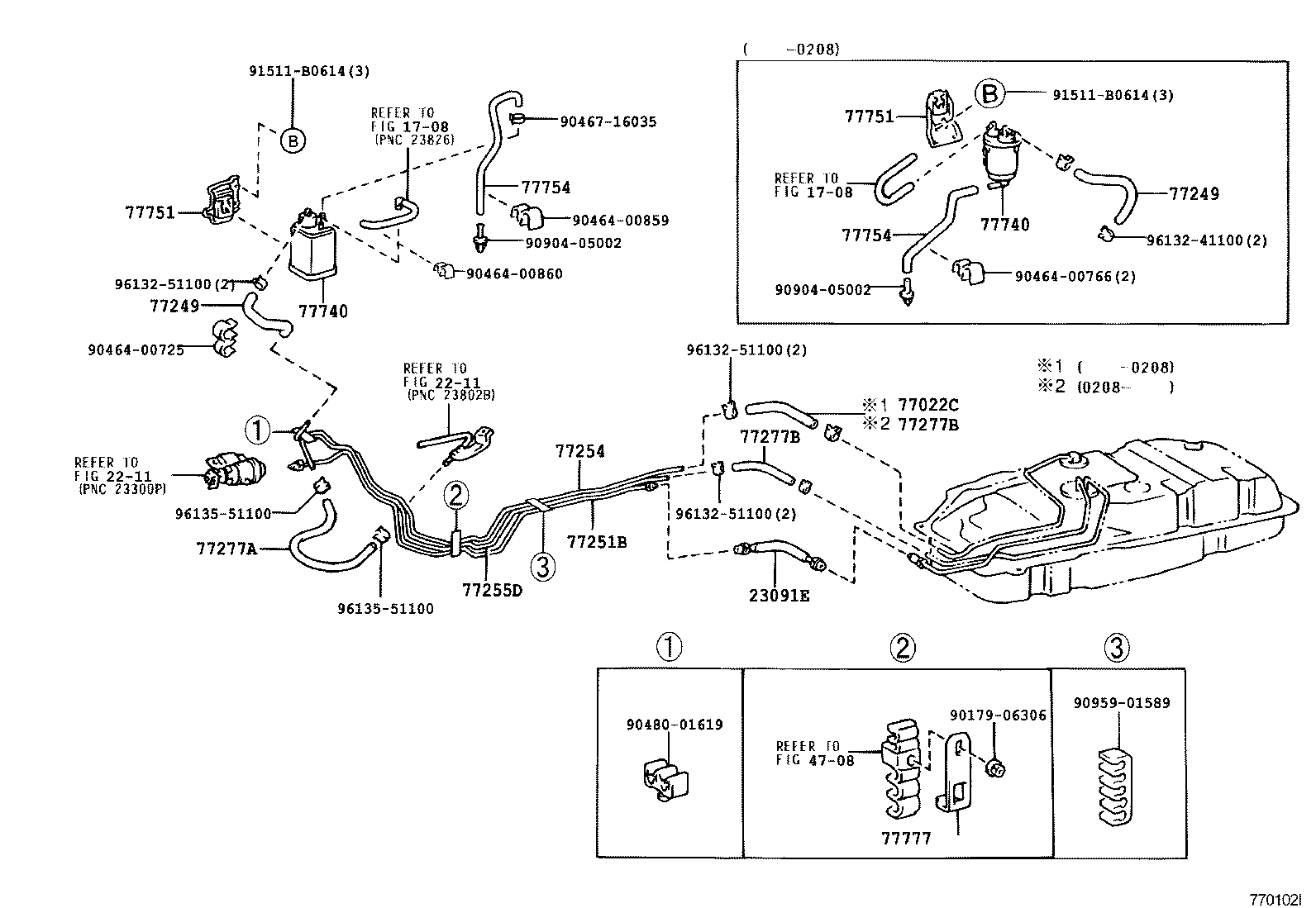

ILLUST NO. 2 OF 2(9610- )SR40,50 ; (9812- )KR42,52
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091E - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74280 |
3SFE..SR40,50 |
1 | ||
| 23091-74270 |
3SFE..SR40,50 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
KR4#,SR40,50 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95333-06030 |
SR40,50 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95333-06030 |
SR40,50 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-28160 |
SR40,50 |
1 | ||
| 77251-28140 |
SR40,50 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-28100 |
KR42,52,SR40,50 |
1 | ||
| 77263-28090 |
KR4#,SR40,50 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-28120 |
SR40,50 |
1 | ||
| 77255-28120 |
SR40,50 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12154 |
SR40,50 長さ=480 |
1 | ||
| 90447-12154 |
SR40,50 長さ=480 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
SR40,50 *H,L=140 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
SR40,50 *H,L=140 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-28170 |
SR40,50 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-28170 |
SR40,50 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-28110 |
SR40,50 |
1 | ||
| 77751-28111 |
SR40,50 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-28110 |
SR40,50 |
1 | ||
| 77751-28111 |
SR40,50 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-28030 |
KR4#,SR40,50 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-28030 |
KR4#,SR40,50 |
1 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77777-28010 |
CR40,50,SR40,50 |
1 | ||
| 77777-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| Common parts | ||||
| 90179-06306 | ||||
| 90464-00725 | ||||
| 90464-00766 | ||||
| 90464-00859 | ||||
| 90464-00860 | ||||
| 90467-16035 | ||||
| 90480-01619 | ||||
| 90904-05002 | ||||
| 90959-01589 | ||||
| 91511-B0614 | ||||
| 96132-41100 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 4708 | ||||
ILLUST NO. 1 OF 2(9812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-28010 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77011-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77012-28061 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77012-28060 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-28090 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77018-28090 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-28070 |
CR40,50,SR40,50 |
1 | ||
| 77035-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-28011 |
CR40,50,SR40,50 |
1 | ||
| 77037-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77037-28011 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-28460 |
SR40,50 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77156A - PLATE, BREATHER TUBE SUPPORT, NO.2 | ||||
| 77156-28030 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77156-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77166B - SUPPORT, FUEL TANK VENT TUBE, NO.1 | ||||
| 77166-28030 |
KR42,52,SR40,50 |
1 | ||
| 77166-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-32010 |
SR40,50 |
1 | ||
| 77169-32010 |
SR40,50 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77178-20030 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-14030 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77179-14030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77179-26010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-28180 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77201-28180 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13019 |
CR4#,5#,KR4#,SR40,50 長さ=190 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-28120 |
SR40,50 |
1 | ||
| 77203-28150 |
SR40,50 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77217-28070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 77293B - PACKING, FUEL INLET PIPE LOWER SHIELD PLATE | ||||
| 77293-28020 |
CR40,50,SR40,50 |
1 | ||
| 77293-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-28020 |
CR4#,5#,KR42,52,SR40,50..4D |
1 | ||
| 77305-28020 |
CR4#,5#,KR4#,SR40,50..4D |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
KR4#,SR40,50 |
1 | ||
| 77310-48010 |
KR4#,SR40,50 |
1 | ||
| 77310-48010 |
SR40,50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CR40,50,SR40,50 |
1 | ||
| 77316-16010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-28050 |
CR40,50,SR40,50 |
1 | ||
| 77358-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77378 - LEVER, FUEL FILLER LID LOCK | ||||
| 77335-28040B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 77335-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 77335-28040B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 77380-26010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-28070 |
CR40,50,SR40,50 |
1 | ||
| 77601-28070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77653-25010 |
CR40,50,SR40,50 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-28070 |
CR40,50,SR40,50 |
1 | ||
| 77641-28070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77651-28040 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 55445-28050 | ||||
| 90119-06355 | ||||
| 90119-08B18 | ||||
| 90119-10700 | ||||
| 90159-50219 | ||||
| 90179-06156 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90541-06062 | ||||
| 90959-03113 | ||||
| 91511-60612 | ||||
| 91651-B0822 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 5851 | ||||
| 5852 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
