SR40G-GRSVK (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

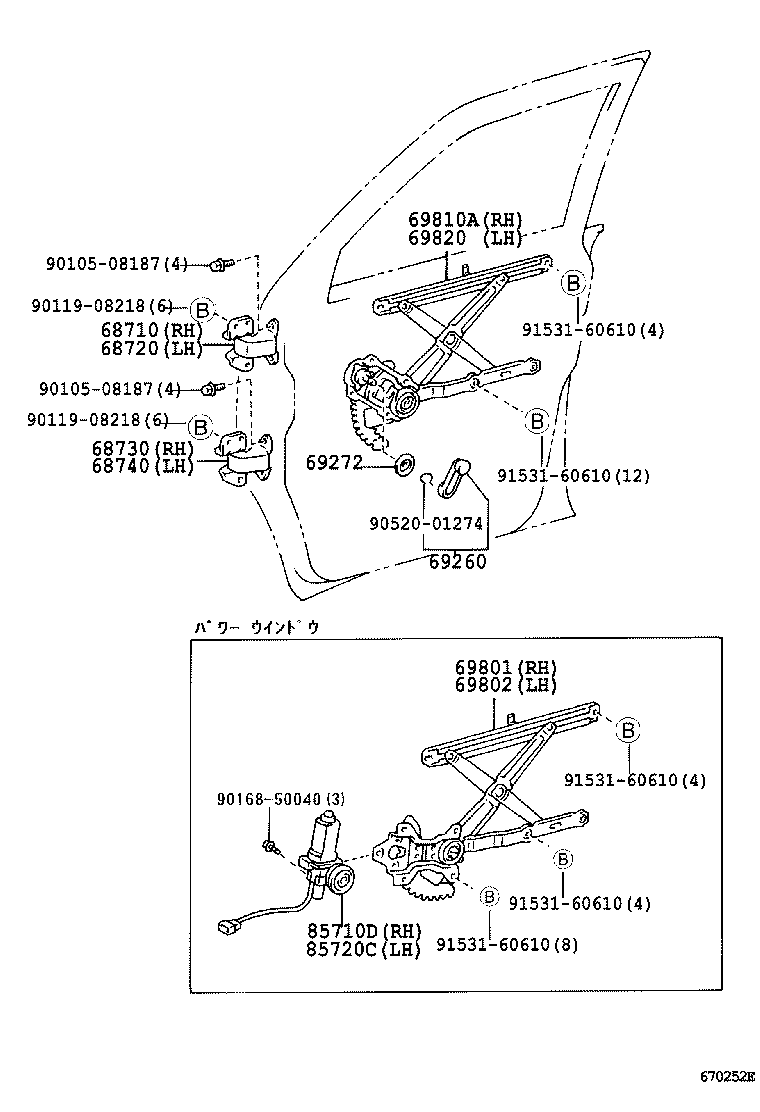

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69272 69801 69802 69810A 69820 85710D 85720C 9010508187 9010508187 9011908218 9011908218 9052001274 9153160610 9153160610 9153160610 9153160610 9153160610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-28040

CR4#,5#,KR4#,SR40,50

 1
68710-28040

CR4#,5#,KR42,52,SR40,50

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-28040

CR4#,5#,KR4#,SR40,50

 1
68720-28040

CR4#,5#,KR42,52,SR40,50

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-28030

CR4#,5#,KR4#,SR40,50

 1
68730-28030

CR4#,5#,KR42,52,SR40,50

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-28020

CR4#,5#,KR42,52,SR40,50

 1
68740-28020

CR4#,5#,KR4#,SR40,50

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-10040B5

SR40,50..B

MD.MOON MIST,TRIM1#,右側

 1
69260-28020B0

SR40,50..B

MD.MOON MIST,TRIM1#,左側

 1
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

SR40,50..B

NATURAL WHITE,TRIM1#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-28060

CR4#,5#,KR42,SR40,50..05S,07S,08S

 1
69801-28030

CR4#,5#,KR42,SR40,50..05S,07S,08S

 1
69801-28060

CR40,50,SR40,50..07S,08S

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-28030

CR40,50,SR40,50..07S,08S

 1
69802-28030

CR4#,5#,KR42,SR40,50..05S,07S,08S

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-28050

SR40,50..B

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-28050

SR40,50..B

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-28070

CR4#,5#,KR42,SR40,50..05S,07S,08S

 1
85710-20280

CR4#,5#,KR42,SR40,50..05S,07S,08S

 1
85710-28040

CR4#,5#,KR42,SR40,50..05S,07S,08S

 1
85710-28070

CR40,50,SR40,50..07S,08S

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-28040

CR4#,5#,KR42,SR40,50..05S,07S,08S

 1
85720-20310

CR4#,5#,KR42,SR40,50..05S,07S,08S

 1
85720-20310

CR40,50,SR40,50..07S,08S

 1
Common parts
90105-08187
90119-08218
90520-01274
91531-60610
