SR40G-GRSVK (1996)
Toyota Lite/Townace Noah,V

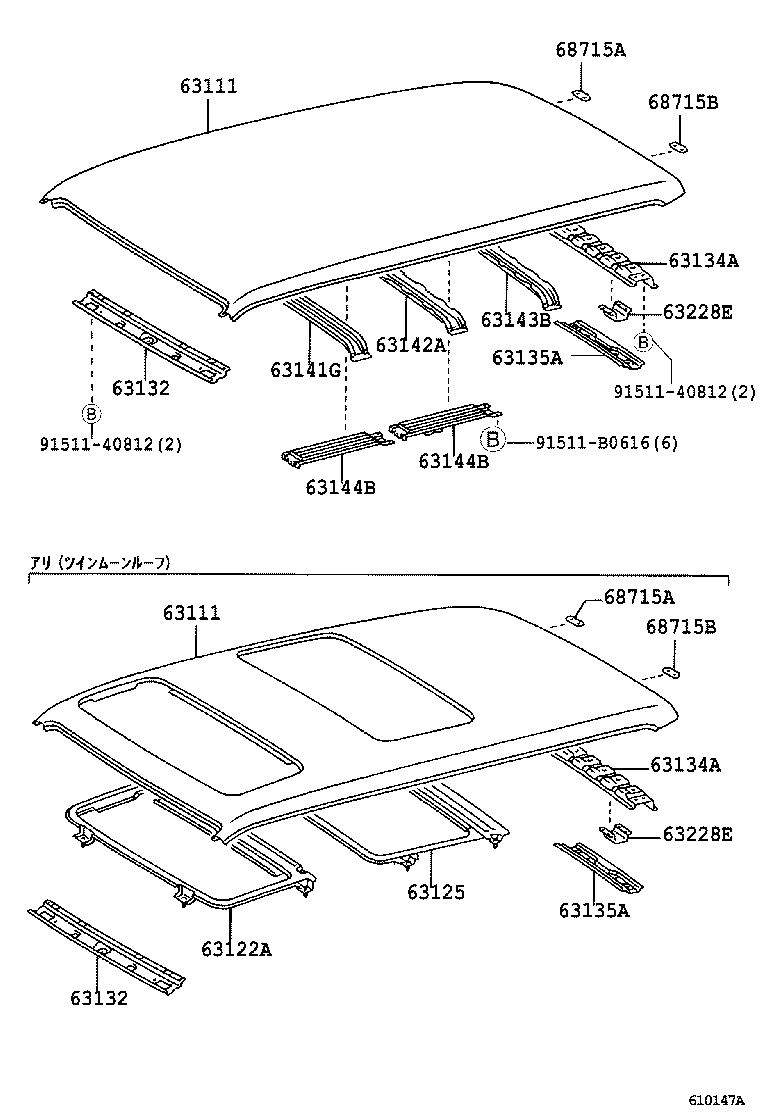

ILLUST NO. 1 OF 3(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-28110 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63111-28120 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-28110 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63111-28110 |
CR40,50,SR40,50..V ｱﾘ(ﾙ-ﾌ ﾗﾂｸ) |
1 | ||
| 63111-28070 |
CR4#,5#,KR4#,SR40,50..SRF..(D,E,N,Q) |
1 | ||
| 63111-28070 |
CR40,50,SR40,50..SRF..(D,E) |
1 | ||
| 63111-28110 |
CR40,50,SR40,50..S,V ｱﾘ(ﾙ-ﾌ ﾗﾂｸ) |
1 | ||
| 63111-28120 |
SR40,50..V ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾗﾂｸ) |
1 | ||
| 63111-28120 |
SR40,50..S;CR40,50..S,V ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-28120 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-28120 |
CR40,50,SR40,50..V ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾗﾂｸ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-28110 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63111-28120 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-28110 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63111-28110 |
CR40,50,SR40,50..V ｱﾘ(ﾙ-ﾌ ﾗﾂｸ) |
1 | ||
| 63111-28070 |
CR4#,5#,KR4#,SR40,50..SRF..(D,E,N,Q) |
1 | ||
| 63111-28070 |
CR40,50,SR40,50..SRF..(D,E) |
1 | ||
| 63111-28110 |
CR40,50,SR40,50..S,V ｱﾘ(ﾙ-ﾌ ﾗﾂｸ) |
1 | ||
| 63111-28120 |
SR40,50..V ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾗﾂｸ) |
1 | ||
| 63111-28120 |
SR40,50..S;CR40,50..S,V ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-28120 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-28120 |
CR40,50,SR40,50..V ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾗﾂｸ) |
1 | ||
| 63122A - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63122-28030 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63122-28030 |
CR40,50,SR40,50..S,V |
1 | ||
| 63122-28030 |
CR40,50,SR40,50..V |
1 | ||
| 63122-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63125-28030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63125-28030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63125-28030 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63125-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28040 |
CR40,50,SR40,50 |
1 | ||
| 63132-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28040 |
CR40,50,SR40,50 |
1 | ||
| 63132-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-28040 |
CR4#,5#,KR4#,SR40,50..SRF |
1 | ||
| 63134-28040 |
CR40,50,SR40,50..SRF |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-28040 |
CR4#,5#,KR4#,SR40,50..SRF |
1 | ||
| 63134-28040 |
CR40,50,SR40,50..SRF |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-28040 |
CR4#,5#,KR4#,SR40,50..SRF |
1 | ||
| 63135-28040 |
CR40,50,SR40,50..SRF |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-28040 |
CR4#,5#,KR4#,SR40,50..SRF |
1 | ||
| 63135-28040 |
CR40,50,SR40,50..SRF |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-28050 |
CR40,50,SR40,50..SRF |
1 | ||
| 63141-28050 |
CR40,50,SR40,50..SRF |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-28040 |
CR40,50,SR40,50..SRF |
1 | ||
| 63142-28040 |
CR4#,5#,KR4#,SR40,50..SRF |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-28030 |
CR4#,5#,KR4#,SR40,50..SRF |
1 | ||
| 63143-28030 |
CR40,50,SR40,50..SRF |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-28040 |
CR40,50,SR40,50..B,D |
2 | ||
| 63144-28040 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 63144-28040 |
CR4#,5#,KR4#,SR40,50..B,D,N |
2 | ||
| 63046-28010 |
CR40,50,SR40,50..E,Q,S,V ﾘﾔ |
1 | ||
| 63046-28010 |
CR40,50,SR40,50..E,Q,V ﾘﾔ |
1 | ||
| 63144-28040 |
CR40,50,SR40,50..E,Q,S,V ﾌﾛﾝﾄ |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-28040 |
CR40,50,SR40,50..B,D |
2 | ||
| 63144-28040 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 63144-28040 |
CR4#,5#,KR4#,SR40,50..B,D,N |
2 | ||
| 63046-28010 |
CR40,50,SR40,50..E,Q,S,V ﾘﾔ |
1 | ||
| 63046-28010 |
CR40,50,SR40,50..E,Q,V ﾘﾔ |
1 | ||
| 63144-28040 |
CR40,50,SR40,50..E,Q,S,V ﾌﾛﾝﾄ |
1 | ||
| 63228E - BRACKET, ROOF HEADLINING, NO.1 | ||||
| 63228-28030 |
CR40,50,SR40,50 |
1 | ||
| 63228-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 63228E - BRACKET, ROOF HEADLINING, NO.1 | ||||
| 63228-28030 |
CR40,50,SR40,50 |
1 | ||
| 63228-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 68715A - PLATE, DOOR HINGE, UPPER | ||||
| 68715-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 68715-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 68715-28040 |
SR40,50..B |
1 | ||
| 68715A - PLATE, DOOR HINGE, UPPER | ||||
| 68715-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 68715-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 68715-28040 |
SR40,50..B |
1 | ||
| 68715B - PLATE, DOOR HINGE, UPPER | ||||
| 68715-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 68715-28040 |
CR40,50,SR40,50 |
1 | ||
| 68715B - PLATE, DOOR HINGE, UPPER | ||||
| 68715-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 68715-28040 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 91511-40812 | ||||
| 91511-B0616 | ||||

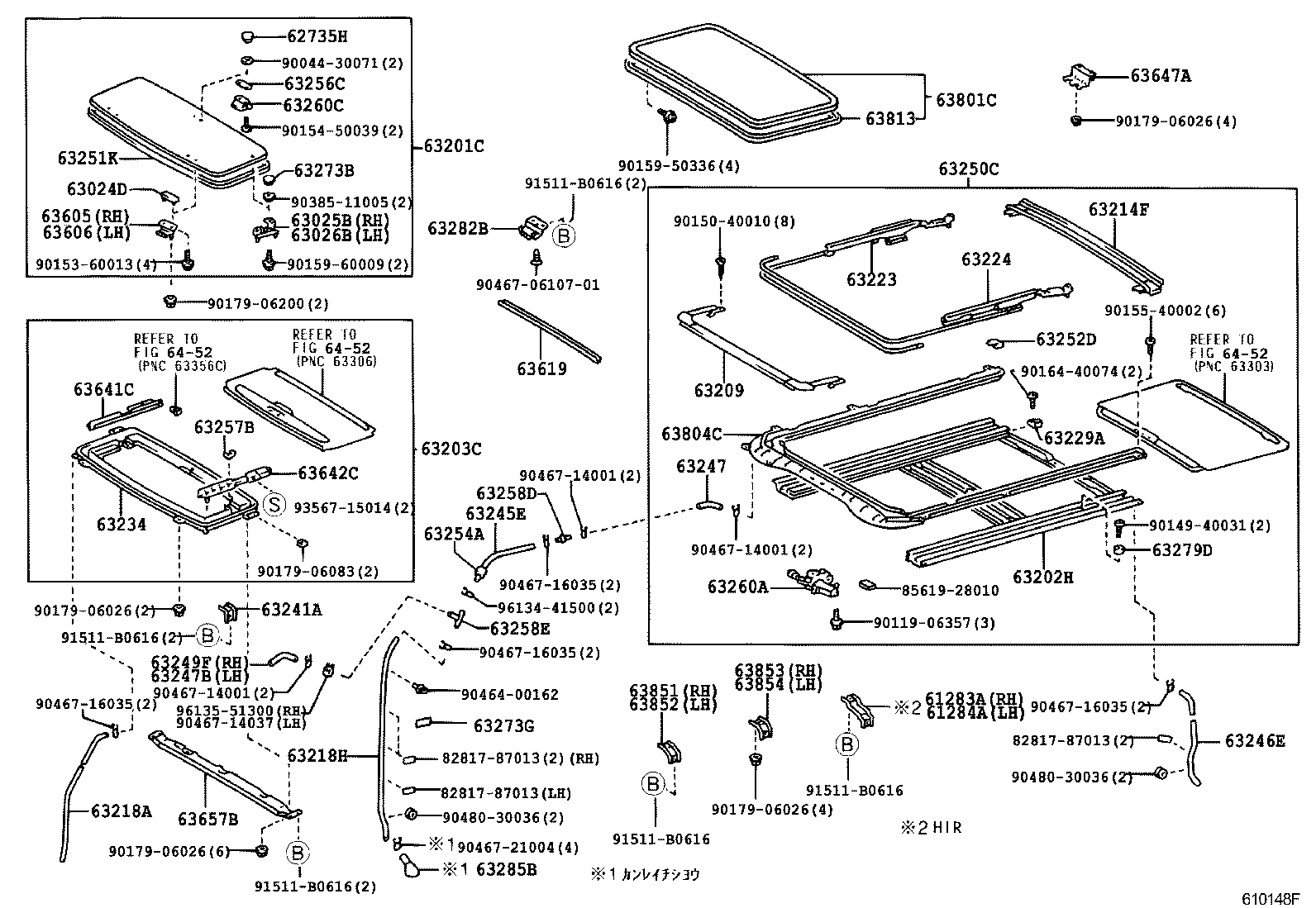

ILLUST NO. 2 OF 3(9610- )
ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62735H - RETAINER, QUARTER WINDOW HINGE | ||||
| 62735-28030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 62753-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 62735-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
2 | ||
| 62735-28030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63024D - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 | ||||
| 63024-95700 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63024-95700 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63024-95700 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63024-95700 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63025-28030 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63025-28030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63025-28030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-28030 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63026-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63026-28030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63026-28030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-28250 |
SR40,50..SRF..E *TT,厚さ=4.0,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63201-28250 |
SR40,50..SRF..E *TT,厚さ=4.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63201-28250 |
CR40,50,SR40,50..V *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63201-28250 |
CR40,50,SR40,50..S,V *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-28060 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63202-28060 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63202-28060 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63202-28060 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63203C - HOUSING SUB-ASSY, TILT ROOF | ||||
| 63203-28030B0 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MOON MIST,TRIM1# |
1 | ||
| 63203-28120B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 63203-28030B0 |
CR40,50,SR40,50..V MOON MIST,TRIM1# |
1 | ||
| 63203-28030B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),MOON MIST,TRIM1# |
1 | ||
| 63203-28030B0 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-28010 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63209-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63209-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63209-28010 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-28090 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63214-28090 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63214-28090 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63214-28090 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-28040 |
SR40,50..SRF..E 長さ=1430,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63249-28040 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) 長さ=1430 |
2 | ||
| 63249-28040 |
SR40,50..SRF..E 長さ=1430,TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
2 | ||
| 63249-28040 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) 長さ=1430 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63246-28040 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ),右側 |
1 | ||
| 63246-28050 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,左側 |
1 | ||
| 63246-28050 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),左側 |
1 | ||
| 63246-28050 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) 左側 |
1 | ||
| 63246-28050 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) 左側 |
1 | ||
| 63246-28040 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) 右側 |
1 | ||
| 63246-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),右側 |
1 | ||
| 63246-28040 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) 右側 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63223-28020 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63223-28020 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63223-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-28020 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63224-28020 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63224-28020 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63224-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-28030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63229-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63229-28030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63229-28030 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63234 - PROTECTOR, SLIDE ROOF HOUSING | ||||
| 63234-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63234-28030 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63234-28030 |
CR40,50,SR40,50..S,V |
1 | ||
| 63234-28030 |
CR40,50,SR40,50..V |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63241-28010 |
CR40,50,SR40,50..S,V |
2 | ||
| 63241-28010 |
CR40,50,SR40,50..V |
2 | ||
| 63241-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63245E - HOSE, SLIDE ROOF RAIN CHANNEL, NO.1 | ||||
| 63245-28040 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ),左側 |
1 | ||
| 63245-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,右側 |
1 | ||
| 63245-28040 |
CR40,50,SR40,50..V 左側 |
1 | ||
| 63245-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),右側 |
1 | ||
| 63245-28030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) 右側 |
1 | ||
| 63245-28030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) 右側 |
1 | ||
| 63245-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),左側 |
1 | ||
| 63245-28040 |
CR40,50,SR40,50..S,V 左側 |
1 | ||
| 63246E - HOSE, SLIDE ROOF RAIN CHANNEL, NO.2 | ||||
| 63246-28060 |
CR40,50,SR40,50..V |
2 | ||
| 63246-28060 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63246-28060 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63246-28060 |
CR40,50,SR40,50..S,V |
2 | ||
| 63247 - HOSE, SLIDING ROOF HOUSING DRAIN | ||||
| 63247-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
2 | ||
| 63247-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63247-28030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63247-28030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63247B - HOSE, SLIDING ROOF | ||||
| 63247-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63247-28030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63247-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63247-28030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-28050 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) 長さ=170 |
1 | ||
| 63249-28050 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) 長さ=170 |
1 | ||
| 63249-28050 |
SR40,50..SRF..E 長さ=170,TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63249-28050 |
SR40,50..SRF..E 長さ=170,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63250C - HOUSING ASSY, SLIDING ROOF | ||||
| 63250-28010B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 63250-28010B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 63250-28010B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 63250-28010B0 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 63250-28010B0 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) MOON MIST,TRIM1# |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-28070 |
CR40,50,SR40,50..V |
1 | ||
| 63251-28070 |
CR40,50,SR40,50..S,V |
1 | ||
| 63251-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63251-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-28040 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63252-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63252-28040 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63252-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
2 | ||
| 63254A - PROTECTOR, WATER HOSE | ||||
| 63254-87001 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) 左側 |
1 | ||
| 63649-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63649-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63649-28010 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63649-28010 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) 右側 |
1 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63256-28020 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63256-28020 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63256-28020 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63257-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63257-28010 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63257-28010 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-28030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63258-28030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
4 | ||
| 63258-28030 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63258-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63258E - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 63258-87004 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63258-87004 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63258-87004 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63258-87004 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63290-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63290-28010 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63290-28010 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63290-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63260-26030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63260-26030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63260-26030 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-95701 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63273-95701 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63273-95701 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
2 | ||
| 63273-95701 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63273G - PACKING, SLIDE ROOF | ||||
| 63273-28040 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63273-28040 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63273-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63273-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63279-12030 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63279-12030 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
2 | ||
| 63279-12030 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-95J01 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63282-95J01 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63282-95J01 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63282-95J01 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63285B - COVER, SLIDING ROOF HOUSING DRAIN, FRONT | ||||
| 63285-87004 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 63285-87004 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
4 | ||
| 63285-87004 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 63285-87004 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
4 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63605-28040 |
CR40,50,SR40,50..V |
1 | ||
| 63605-28040 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63605-28040 |
CR40,50,SR40,50..S,V |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-28040 |
CR40,50,SR40,50..V |
1 | ||
| 63606-28040 |
CR40,50,SR40,50..S,V |
1 | ||
| 63606-28040 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63606-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-28020 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63619-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63619-28020 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63619-28020 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63641C - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63681-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63681-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63681-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63681-28010 |
CR40,50,SR40,50..S,V |
1 | ||
| 63642C - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63682-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63682-28010 |
CR40,50,SR40,50..S,V |
1 | ||
| 63682-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63682-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63647A - BRACKET, SLIDING ROOF HOUSING, REAR | ||||
| 63647-28040 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63647-28040 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63647-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63647-28040 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63657B - REINFORCEMENT, SUN ROOF HEADLINING, NO.1 | ||||
| 63657-28020 |
CR40,50,SR40,50..V |
1 | ||
| 63657-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63657-28020 |
CR40,50,SR40,50..S,V |
1 | ||
| 63657-28020 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-28040 |
SR40,50..SRF..E *TT,厚さ=4.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63801-28040 |
SR40,50..SRF..E *TT,厚さ=4.0,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63801-28040 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63801-28040 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63804C - HOUSING SUB-ASSY, REAR SLIDE ROOF | ||||
| 63804-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63804-28010 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63804-28010 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63804-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63813 - WEATHERSTRIP, REAR SLIDE ROOF | ||||
| 63813-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63813-28040 |
CR40,50,SR40,50..S,V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63813-28040 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63813-28040 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 63851 - BRACKET, REAR SLIDE ROOF HOUSING, NO.1 RH | ||||
| 63851-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63851-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63851-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63851-28010 |
CR40,50,SR40,50..S,V |
1 | ||
| 63852 - BRACKET, REAR SLIDE ROOF HOUSING, NO.1 LH | ||||
| 63851-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63851-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63851-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63851-28010 |
CR40,50,SR40,50..S,V |
1 | ||
| 63853 - BRACKET, REAR SLIDE ROOF HOUSING, NO.2 RH | ||||
| 63853-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63853-28010 |
CR40,50,SR40,50..S,V |
1 | ||
| 63853-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63853-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63854 - BRACKET, REAR SLIDE ROOF HOUSING, NO.2 LH | ||||
| 63853-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63853-28010 |
CR40,50,SR40,50..S,V |
1 | ||
| 63853-28010 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63853-28010 |
CR40,50,SR40,50..V |
1 | ||
| Common parts | ||||
| 82817-87013 | ||||
| 85619-28010 | ||||
| 90044-30071 | ||||
| 90119-06357 | ||||
| 90149-40031 | ||||
| 90150-40010 | ||||
| 90153-60013 | ||||
| 90154-50039 | ||||
| 90155-40002 | ||||
| 90159-50336 | ||||
| 90159-60009 | ||||
| 90164-40074 | ||||
| 90179-06026 | ||||
| 90179-06083 | ||||
| 90179-06200 | ||||
| 90385-11005 | ||||
| 90464-00162 | ||||
| 90467-0610701 | ||||
| 90467-14001 | ||||
| 90467-14037 | ||||
| 90467-16035 | ||||
| 90467-21004 | ||||
| 90480-30036 | ||||
| 91511-B0616 | ||||
| 93567-15014 | ||||
| 96134-41500 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 6452 | ||||

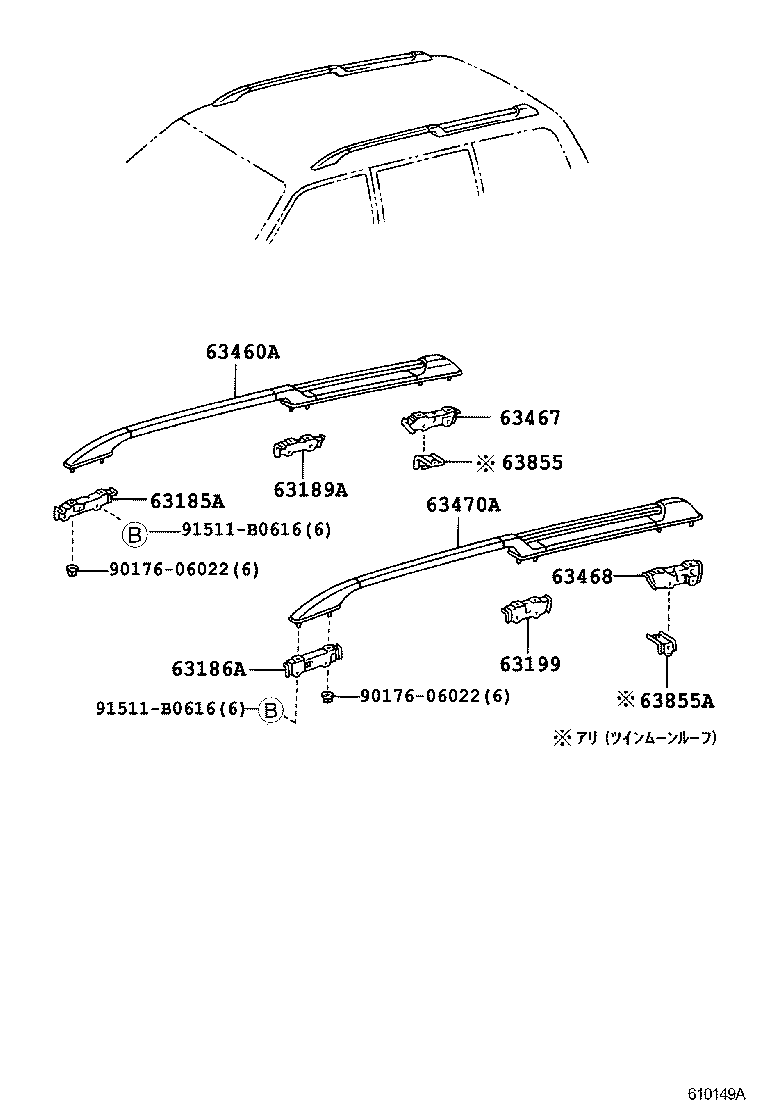

ILLUST NO. 3 OF 3(9610- )
ｱﾘ(ﾙ-ﾌ ﾗｯｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63185-28030 |
CR40,50,SR40,50..S,V |
1 | ||
| 63185-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63185-28030 |
CR40,50,SR40,50..V |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-28020 |
CR40,50,SR40,50..V |
1 | ||
| 63186-28020 |
CR40,50,SR40,50..S,V |
1 | ||
| 63186-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63186-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-28030 |
CR40,50,SR40,50..S,V |
1 | ||
| 63189-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63189-28030 |
CR40,50,SR40,50..V |
1 | ||
| 63189-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63199 - BRACKET, ROOF RACK, CENTER LH | ||||
| 63199-28020 |
CR40,50,SR40,50..V |
1 | ||
| 63199-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63199-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63199-28020 |
CR40,50,SR40,50..S,V |
1 | ||
| 63460A - RACK ASSY, ROOF, RH | ||||
| 63460-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63460-28040C0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),BLACK ME.,205 |
1 | ||
| 63460-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63460-28040A1 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),WHITE PEARL M.M.,042 |
1 | ||
| 63460-28040A1 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),WHITE PEARL M.M.,042 |
1 | ||
| 63460-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63460-28040B0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 63460-28040A0 |
CR40,50,SR40,50..S WHITE,056 |
1 | ||
| 63460-28040B0 |
CR40,50,SR40,50..S SILVER ME.,1C0 |
1 | ||
| 63460-28040B0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),SILVER ME.,1C0 |
1 | ||
| 63460-28040C0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),BLACK ME.,205 |
1 | ||
| 63460-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63467 - BRACKET, ROOF RACK, REAR RH | ||||
| 63467-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63467-28010 |
CR40,50,SR40,50..S,V |
1 | ||
| 63467-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63467-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63468 - BRACKET, ROOF RACK, REAR LH | ||||
| 63468-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63468-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63468-28010 |
CR40,50,SR40,50..S,V |
1 | ||
| 63468-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63470A - RACK ASSY, ROOF, LH | ||||
| 63470-28030 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63470-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63470-28010 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 63470-28040C0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),BLACK ME.,205 |
1 | ||
| 63470-28040B0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),SILVER ME.,1C0 |
1 | ||
| 63470-28040A1 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),WHITE PEARL M.M.,042 |
1 | ||
| 63470-28040B0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 63470-28040A1 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),WHITE PEARL M.M.,042 |
1 | ||
| 63470-28040A0 |
CR40,50,SR40,50..S WHITE,056 |
1 | ||
| 63470-28040C0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),BLACK ME.,205 |
1 | ||
| 63470-28010 |
CR40,50,SR40,50..V |
1 | ||
| 63470-28040B0 |
CR40,50,SR40,50..S SILVER ME.,1C0 |
1 | ||
| 63855 - BRACKET, REAR SLIDE ROOF HOUSING, NO.3 | ||||
| 63855-28020 |
CR40,50,SR40,50..V |
1 | ||
| 63855-28020 |
CR40,50,SR40,50..S,V |
1 | ||
| 63855-28020 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63855-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63855A - BRACKET, REAR SLIDE ROOF HOUSING, NO.3 | ||||
| 63855-28020 |
CR40,50,SR40,50..S,V |
1 | ||
| 63855-28020 |
CR40,50,SR40,50..V |
1 | ||
| 63855-28020 |
SR40,50..SRF..E ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63855-28020 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| Common parts | ||||
| 90176-06022 | ||||
| 91511-B0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
