SR40G-GRSVK (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )CR4#,KR4#,SR40

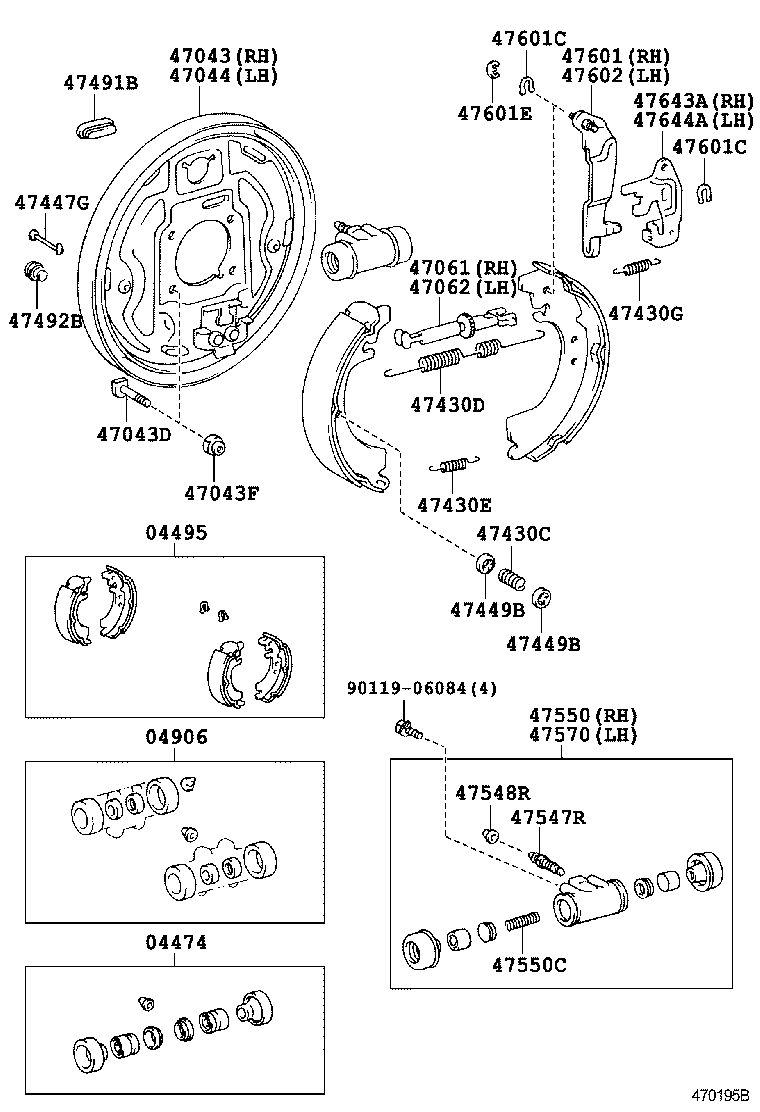

Click highlighted areas on diagram

diagram 04474 04495 04906 47043 47043D 47043F 47044 47061 47062 47430C 47430D 47430E 47430G 47447G 47449B 47449B 47491B 47492B 47547R 47548R 47550 47550C 47570 47601 47601C 47601C 47601E 47602 47643A 47644A 9011906084
Part # Description Qty Price
04474 - CYLINDER KIT, REAR WHEEL
04474-22030

CR4#,KR4#,SR40

 2
04495 - SHOE KIT, REAR BRAKE
04495-44010

CR4#,KR42,SR40

ﾏｰｸ NBK LN512

 1
04495-28100

CR4#,KR4#,SR40

 1
04495-44010

CR4#,KR4#,SR40

ﾏｰｸ NBK LN512

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-22040

CR4#,KR4#,SR40

 1
04906-22040

CR4#,KR42,SR40

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-28120

CR40,SR40;CR41,KR4#..V1

 1
47043-28120

CR40,SR40

 1
47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-28030

CR40,50,SR40,50

 8
42184-28010

CR4#,5#,KR4#,SR40,50

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90179-10150

CR40,50,SR40,50

 8
90179-10150

CR4#,5#,KR4#,SR40,50

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-28120

CR40,SR40;CR41,KR4#..V1

 1
47044-28120

CR40,SR40

 1
47061 - STRUT SET, PARKING BRAKE SHOE, RH
47061-43010

CR40,SR40

 1
47061-43010

CR4#,KR4#,SR40

 1
47062 - STRUT SET, PARKING BRAKE SHOE, LH
47062-43010

CR4#,KR4#,SR40

 1
47062-43010

CR40,SR40

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-20604

CR40,50,SR40,50

 4
90501-20604

CR4#,5#,KR4#,SR40,50

 4
90501-18017

CR4#,KR4#,SR40

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-29008

CR40,SR40

右側

 1
90506-29009

CR4#,KR4#,SR40

左側

 1
90506-29009

CR40,SR40

左側

 1
90506-29008

CR4#,KR4#,SR40

右側

 1
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-18076

CR40,50,SR40,50

 2
90506-18076

CR4#,5#,KR4#,SR40,50

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12011

CR40,SR40

 2
90506-12011

CR4#,KR4#,SR40

 2
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-20030

CR40,SR40

 4
47447-20030

CR4#,KR4#,SR40

 4
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

CR40,50,SR40,50

 8
47449-30020

CR4#,5#,KR4#,SR40,50

 8
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

CR40,50,SR40,50

 8
47449-30020

CR4#,5#,KR4#,SR40,50

 8
47491B - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

CR40,50,SR40,50

 2
47491-20011

CR4#,5#,KR4#,SR40,50

 2
47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47492-28010

CR40,50,SR40,50

 2
47492-28010

CR4#,5#,KR4#,SR40,50

 2
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-26010

CR4#,KR4#,SR40

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

CR4#,5#,KR4#,SR40,50

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-22100

CR4#,KR4#,SR40

 1
47550-22100

CR40,SR40

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-09079

CR4#,KR4#,SR40

 2
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-22100

CR40,SR40

 1
47550-22100

CR4#,KR4#,SR40

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47611-43010

CR40,SR40

 1
47611-43010

CR4#,KR4#,SR40

 1
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

CR40,50,SR40,50

厚さ=1.2

 2
90213-06013

CR4#,5#,KR4#,SR40,50

厚さ=1.2

 2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

CR40,50,SR40,50

厚さ=1.2

 2
90213-06013

CR4#,5#,KR4#,SR40,50

厚さ=1.2

 2
47601E - RING, E(FOR REAR BRAKE)
96160-00500

CR4#,KR4#,SR40

 2
96160-00500

CR40,SR40

 2
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47612-43010

CR40,SR40

 1
47612-43010

CR4#,KR4#,SR40

 1
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47643-33010

CR4#,KR4#,SR40

 1
47643-33010

CR40,SR40

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47644-33010

CR40,SR40

 1
47644-33010

CR4#,KR4#,SR40

 1
Common parts
90119-06084
