SR40G-GRSVK (1996)
Toyota Lite/Townace Noah,V
(9610- )3SFE
12V 80A,12V 90A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

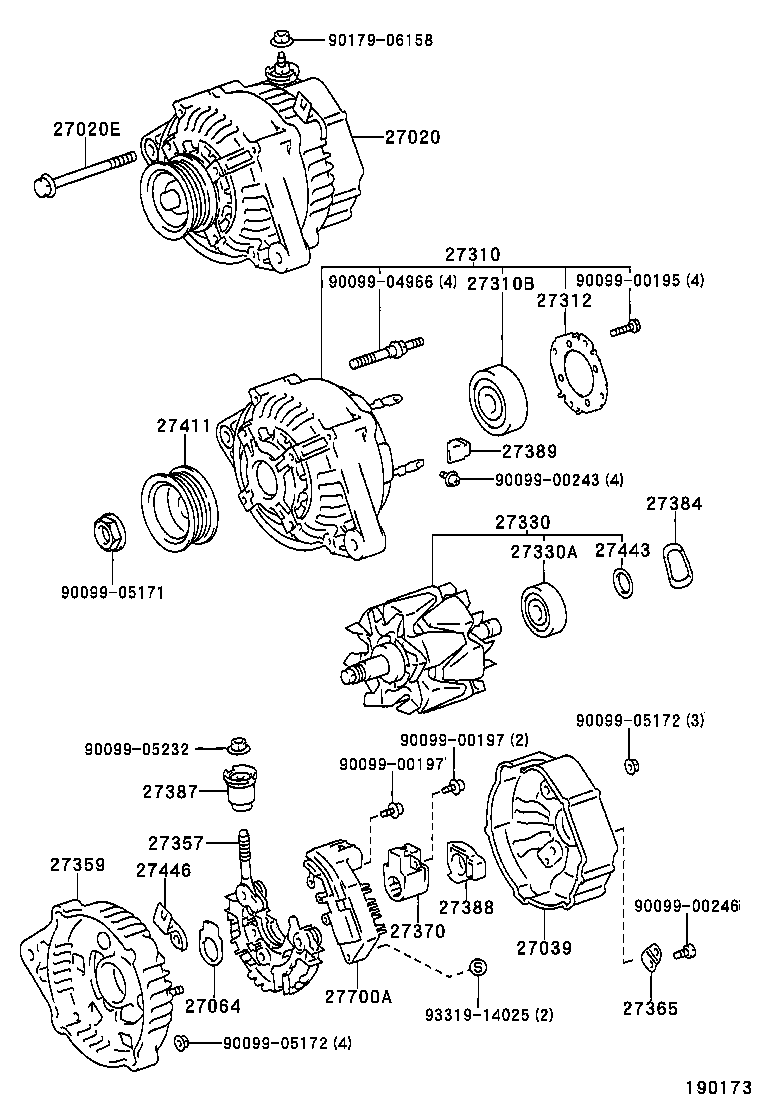

| 27020 - ALTERNATOR ASSY | ||||
| 27060-74670 |
3SFE..SR40,50..ATM 12V 80A |
1 | ||
| 27060-74790 |
3SFE..SR40,50..ATM 12V 90A |
1 | ||
| 27060-74790 |
3SFE..SR40,50..ATM 12V 90A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10249 |
3SFE..SR40,50 |
1 | ||
| 90105-10249 |
3SFE..SR40,50 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A |
1 | ||
| 27039-70470 |
3SFE..SR40,50 12V 70A,80A,90A |
1 | ||
| 27039-55080 |
3C#,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
3CTE,3SFE..CR40,50,SR40,50 |
1 | ||
| 27064-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-74490 |
3SFE..SR40,50..ATM |
1 | ||
| 27310-74490 |
3SFE..SR40,50..ATM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27312-42010 |
3CTE,3SFE..CR40,50,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72280 |
3SFE..SR40..ATM;2C,3CT,3SFE..CR4#,5#,SR50 12V 90A |
1 | ||
| 27330-74550 |
3SFE..SR40,50..ATM 12V 90A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3CTE,3SFE..CR40,50,SR40,50 12V 55A,70A,80A,90A,120A |
1 | ||
| 90099-10140 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 55A,70A,80A,90A,120A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
3SFE..SR40,50;2C..CR41,51..MTM;2C..CR41,51..ATM..IV5 12V 70A,80A |
1 | ||
| 27357-16310 |
3SFE..SR40,50..ATM 12V 80A,90A |
1 | ||
| 27357-16310 |
3CTE,3SFE..CR40,50,SR40,50..ATM 12V 80A,90A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-74550 |
3SFE..SR40,50..ATM |
1 | ||
| 27359-74550 |
3SFE..SR40,50..ATM |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
2C,3CT,3SFE..CR4#,5#,SR40,50 |
1 | ||
| 27365-55080 |
3CTE,3SFE..CR40,50,SR40,50 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27370-75060 |
3CTE,3SFE..CR40,50,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27384-50030 |
3CTE,3SFE..CR40,50,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
3SFE..SR40,50;2C..CR41,51..MTM;2C..CR41,51..ATM..IV5 12V 70A,80A,90A,120A |
1 | ||
| 27387-42021 |
3CTE,3SFE..CR40,50,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27387-42020 |
3SFE..SR40,50 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 |
1 | ||
| 27388-42010 |
3CTE,3SFE..CR40,50,SR40,50 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
4 | ||
| 27389-42010 |
3CTE,3SFE..CR40,50,SR40,50 12V 70A,80A,90A,120A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3SFE..SR40,50 |
1 | ||
| 27411-42030 |
3SFE..SR40,50 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3CTE,3SFE..CR40,50,SR40,50 |
1 | ||
| 27443-63020 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-74250 |
3SFE..SR40,50 |
1 | ||
| 27446-74250 |
3SFE..SR40,50 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-46050 |
3SFE..SR40,50..ATM |
1 | ||
| 27700-46050 |
3SFE..SR40,50..ATM |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
