SR40G-GRSSK (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )

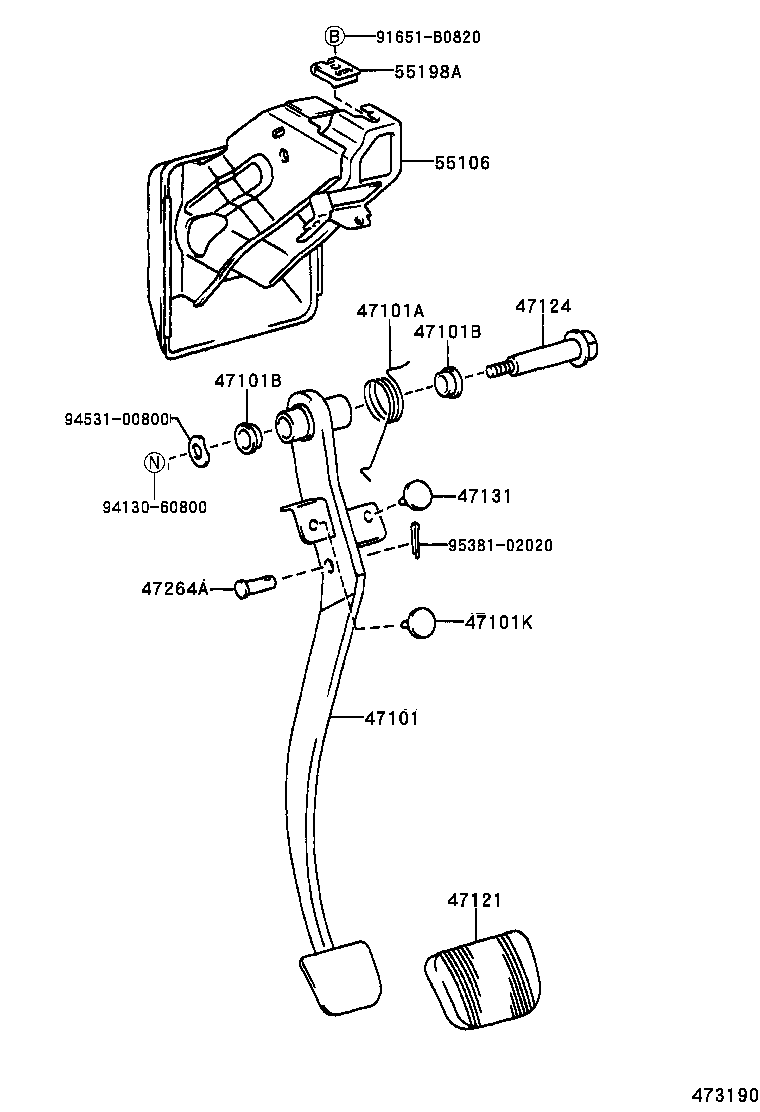

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47101K 47121 47124 47131 47264A 55106 55198A 91651B0820 9413060800 9453100800 9538102020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-28170

CR4#,5#,KR4#,SR40,50..ATM

 1
47101-28170

CR40,50,SR40,50..ATM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90959-03122

CR4#,5#,KR4#,SR40,50

 1
90959-03122

CR40,50,SR40,50

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CR4#,5#,KR4#,SR40,50

 2
90386-13007

CR40,50,SR40,50

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CR4#,5#,KR4#,SR40,50

 2
90386-13007

CR40,50,SR40,50

 2
47101K - CUSHION(FOR PARKING LOCK CABLE)
90541-06049

CR4#,5#,KR4#,SR40,50..ATM

 1
90541-06049

CR40,50,SR40,50..ATM

 1
47121 - PAD, BRAKE PEDAL
31321-30040

CR4#,5#,KR4#,SR40,50..ATM

 1
31321-30040

CR40,50,SR40,50..ATM

 1
47124 - SHAFT, BRAKE PEDAL
47124-28010

CR40,50,SR40,50

 1
47124-28010

CR4#,5#,KR4#,SR40,50

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

CR40,50,SR40,50

 1
90541-06036

CR4#,5#,KR4#,SR40,50

 1
47264A - PIN(FOR PUSH ROD)
90240-08070

CR40,50,SR40,50

 1
90240-08070

CR4#,5#,KR4#,SR40,50

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-28230

CR40,50,SR40,50..ATM

 1
55106-28210

CR4#,5#,KR4#,SR40,50..ATM

 1
55198A - HOLDER, BRAKE AWAY MOUNTING BOLT
55198-13010

CR40,50,SR40,50

 1
Common parts
91651-B0820
94130-60800
94531-00800
95381-02020
