SR40G-GRSEK (1996)
Toyota Lite/Townace Noah,V
(9610-9812)07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

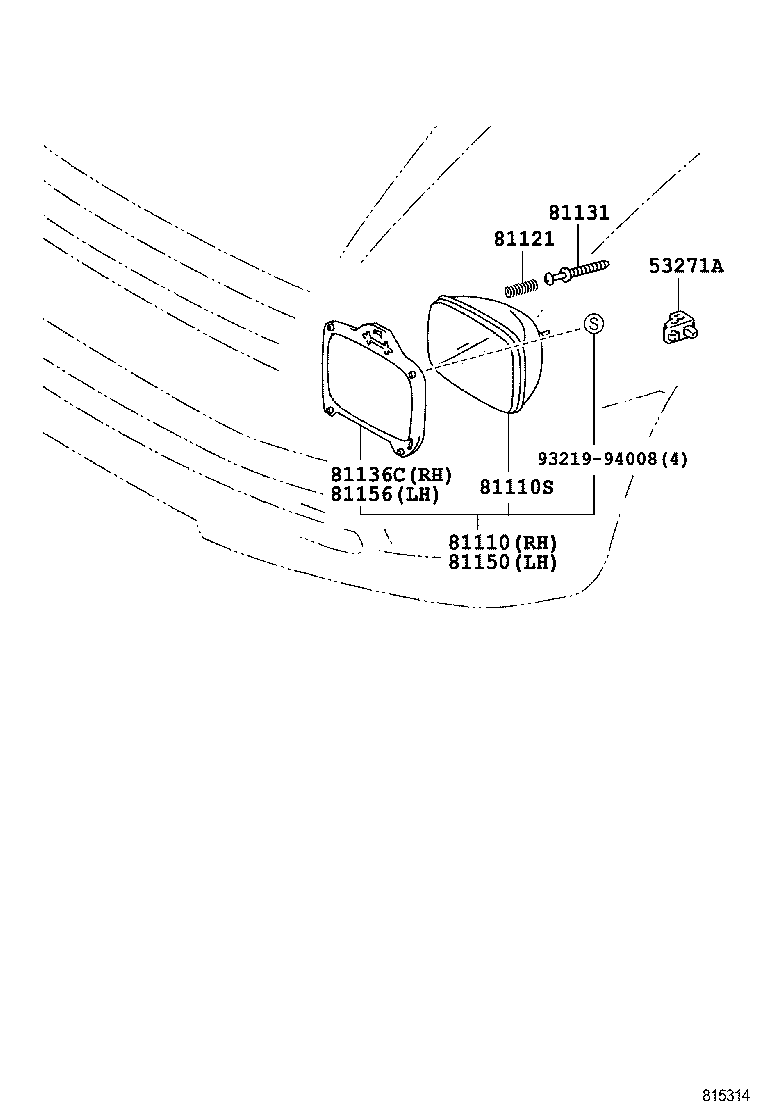

| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-28040 |
CR40,50,SR40,50 |
2 | ||
| 53271-12060 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13055 |
CR40,50,SR40,50..07S,08S 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-22004 |
CR40,50,SR40,50..07S,08S 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-28470 |
CR40,50,SR40,50..E..CBU Gﾘﾐﾃﾂﾄﾞ *(P),*(Q) |
1 | ||
| 81130-28530 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 81130-28230 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 81130-28470 |
CR40,50,SR40,50..E..CBU ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I) |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 90075-65001 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28230 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 81170-28480 |
CR40,50,SR40,50..E..CBU ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I) |
1 | ||
| 81170-28470 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 81170-28480 |
CR40,50,SR40,50..E..CBU Gﾘﾐﾃﾂﾄﾞ *(P),*(Q) |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
CR40,50,SR40,50..07S,08S 12V 5W |
2 | ||
| 99132-12050 |
CR40,50,SR40,50..07S,08S 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 90075-60004 |
CR40,50,SR40,50..07S,08S |
2 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-10011 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
| 91626-A0625 | ||||
(9806-0111)E,Q..CBU..TD ; (9806-0111)SR40,50..07S ; (9806-0111)SR40,50..E..CBU
ﾓﾃﾞﾘｽﾀ - ｱﾒﾘｶﾝﾋﾞﾚｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-28040 |
CR40,50,SR40,50 |
2 | ||
| 53271-12060 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-28240 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 81110-28240 |
SR40,50..B |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-28240 |
SR40,50..B |
6 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-28240 |
SR40,50..B |
6 | ||
| 81136C - RIM, HEADLAMP, RH | ||||
| 81116-28240 |
SR40,50..B |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81110-28240 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 81110-28240 |
SR40,50..B |
1 | ||
| 81156 - RIM, HEADLAMP, LH | ||||
| 81116-28240 |
SR40,50..B |
1 | ||
| Common parts | ||||
| 93219-94008 | ||||
