SR40G-GRSEK (1996)
Toyota Lite/Townace Noah,V

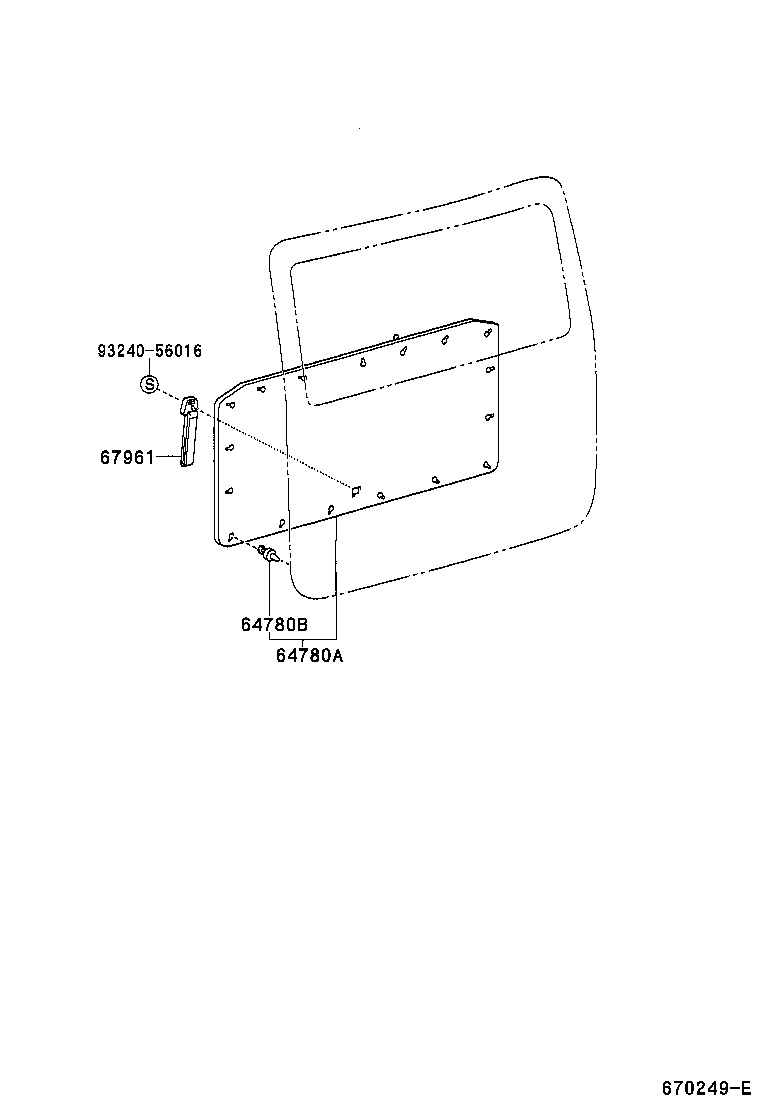

ILLUST NO. 1 OF 2(9610- )B,D,N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-28120B0 |
CR40,50,SR40,50..B,D MD.MOON MIST,TRIM1# |
1 | ||
| 64780-28120B0 |
CR4#,5#,KR4#,SR40,50..B,D,N MD.MOON MIST,TRIM1# |
1 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 67771-28040 |
CR40,50,SR40,50..B,D |
17 | ||
| 67771-28040 |
CR4#,5#,KR4#,SR40,50..B,D,N |
17 | ||
| 67961 - STRAP, BACK DOOR PULL | ||||
| 67908-28020B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 67908-28020B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 67908-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 67908-28020B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 67908-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 93240-56016 | ||||

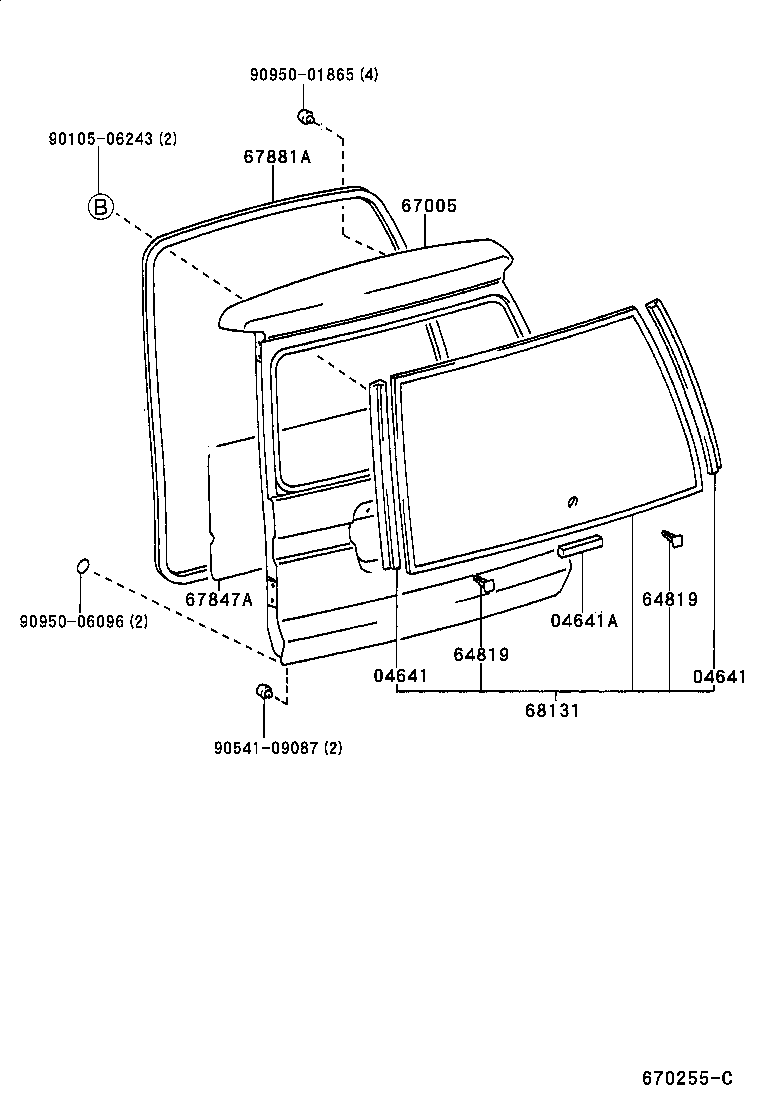

ILLUST NO. 2 OF 2(9610- )E,Q,S,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 68294-28070 |
CR40,50,SR40,50..E,Q,S,V |
2 | ||
| 68294-28070 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 68294-28070 |
CR40,50,SR40,50..E,Q,S,V |
2 | ||
| 68294-28070 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE | ||||
| 68294-28060 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 68294-28080 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 68294-28060 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 68294-28080 |
CR40,50,SR40,50..B,D |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64827-28020 |
CR40,50,SR40,50..E,Q,S,V |
2 | ||
| 64827-28020 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64827-28020 |
CR40,50,SR40,50..E,Q,S,V |
2 | ||
| 64827-28020 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-2J620 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2J670 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ- ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 67005-2R260 |
CR40,50,SR40,50..SRF..E ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2J650 |
CR4#,5#,KR4#,SR40,50..SRF..(D,N)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R270 |
CR4#,5#,KR4#,SR40,50..SRF..(D,N)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R280 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ- & ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 67005-2J680 |
CR4#,5#,KR4#,SR40,50..SRF..D..CBU ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R470 |
CR40,50,SR40,50..SRF..(E,S) ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗｰ) |
1 | ||
| 67005-2R280 |
CR40,50,SR40,50..SRF..E ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 67005-2R290 |
CR4#,5#,KR4#,SR40,50..SRF..D..CBU ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R580 |
CR40,50,SR40,50..S ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-2R560 |
CR40,50,SR40,50..SRF..E |
1 | ||
| 67005-2R590 |
CR40,50,SR40,50..SRF..(E,S) ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-2R540 |
CR40,50,SR40,50..SRF..E ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R610 |
CR4#,5#,KR42,SR40,50..SRF..D..CBU ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R450 |
CR4#,5#,KR42,SR40,50..SRF..(D,N)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 67847-28060 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 67847-28080 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 67847-28060 |
CR40,50,SR40,50..B,D |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-28060 |
CR4#,5#,KR4#,SR40,50..SRF |
1 | ||
| 67881-28060 |
CR40,50,SR40,50..SRF |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-28200 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28150 |
CR4#,5#,KR4#,SR40,50..(B,D,N)..CBU *EHT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68105-28190 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28130 |
CR40,50,SR40,50..E *EHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28190 |
CR40,50,SR40,50..E..CBU *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ,ﾘﾐﾃﾂﾄﾞ *(R),*(S) |
1 | ||
| 68105-28360 |
CR40,50,SR40,50..E..CBU *EHTT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ﾘﾓ *(M), *(N) |
1 | ||
| 68105-28190 |
CR40,50,SR40,50..E..CBU *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28170 |
CR40,50,SR40,50..E *EHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28350 |
CR40,50,SR40,50..E..CBU *EHTT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ｴｸｻ-ﾌﾞ *(J), *(K) |
1 | ||
| 68105-28200 |
CR40,50,SR40,50..E..CBU *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ,ﾘﾐﾃﾂﾄﾞ *(G),*(H) |
1 | ||
| 68105-28200 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28200 |
CR40,50,SR40,50..E..CBU *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28370 |
CR40,50,SR40,50..E *EHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28190 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28380 |
CR40,50,SR40,50..E *EHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28430 |
CR40,50,SR40,50..E,S *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28400 |
CR40,50,SR40,50..E,Q,V *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28200 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28150 |
CR40,50,SR40,50..B,D *EHT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68105-28440 |
CR40,50,SR40,50..E,S *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28390 |
CR40,50,SR40,50..E,Q,V *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ |
1 | ||
| Common parts | ||||
| 90105-06243 | ||||
| 90541-09087 | ||||
| 90950-01865 | ||||
| 90950-06096 | ||||
ILLUST NO. 2 OF 2(9611- )B,D,N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE | ||||
| 68294-28060 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 68294-28080 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 68294-28060 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 68294-28080 |
CR40,50,SR40,50..B,D |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-2J620 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2J670 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ- ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 67005-2R260 |
CR40,50,SR40,50..SRF..E ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2J650 |
CR4#,5#,KR4#,SR40,50..SRF..(D,N)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R270 |
CR4#,5#,KR4#,SR40,50..SRF..(D,N)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R280 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ- & ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 67005-2J680 |
CR4#,5#,KR4#,SR40,50..SRF..D..CBU ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R470 |
CR40,50,SR40,50..SRF..(E,S) ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗｰ) |
1 | ||
| 67005-2R280 |
CR40,50,SR40,50..SRF..E ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 67005-2R290 |
CR4#,5#,KR4#,SR40,50..SRF..D..CBU ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R580 |
CR40,50,SR40,50..S ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-2R560 |
CR40,50,SR40,50..SRF..E |
1 | ||
| 67005-2R590 |
CR40,50,SR40,50..SRF..(E,S) ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-2R540 |
CR40,50,SR40,50..SRF..E ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R610 |
CR4#,5#,KR42,SR40,50..SRF..D..CBU ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67005-2R450 |
CR4#,5#,KR42,SR40,50..SRF..(D,N)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 67847-28060 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 67847-28080 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 67847-28060 |
CR40,50,SR40,50..B,D |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-28060 |
CR4#,5#,KR4#,SR40,50..SRF |
1 | ||
| 67881-28060 |
CR40,50,SR40,50..SRF |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-28200 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28150 |
CR4#,5#,KR4#,SR40,50..(B,D,N)..CBU *EHT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68105-28190 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28130 |
CR40,50,SR40,50..E *EHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28190 |
CR40,50,SR40,50..E..CBU *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ,ﾘﾐﾃﾂﾄﾞ *(R),*(S) |
1 | ||
| 68105-28360 |
CR40,50,SR40,50..E..CBU *EHTT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ﾘﾓ *(M), *(N) |
1 | ||
| 68105-28190 |
CR40,50,SR40,50..E..CBU *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28170 |
CR40,50,SR40,50..E *EHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28350 |
CR40,50,SR40,50..E..CBU *EHTT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ｴｸｻ-ﾌﾞ *(J), *(K) |
1 | ||
| 68105-28200 |
CR40,50,SR40,50..E..CBU *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ,ﾘﾐﾃﾂﾄﾞ *(G),*(H) |
1 | ||
| 68105-28200 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28200 |
CR40,50,SR40,50..E..CBU *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28370 |
CR40,50,SR40,50..E *EHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28190 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28380 |
CR40,50,SR40,50..E *EHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28430 |
CR40,50,SR40,50..E,S *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ |
1 | ||
| 68105-28400 |
CR40,50,SR40,50..E,Q,V *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28200 |
SR40,50..SRF..E *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28150 |
CR40,50,SR40,50..B,D *EHT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68105-28440 |
CR40,50,SR40,50..E,S *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ﾀｳﾝｴ-ｽ |
1 | ||
| 68105-28390 |
CR40,50,SR40,50..E,Q,V *EHSERT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾗｲﾄｴ-ｽ |
1 | ||
| 75812 - MOULDING, BACK DOOR, OUTSIDE UPPER RH | ||||
| 75812-28030 |
CR40,50,SR40,50..B,D |
1 | ||
| 75812-28010 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 75812-28011 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 75812-28030 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 75813G - MOULDING, BACK DOOR, OUTSIDE UPPER LH | ||||
| 75813-28010 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 75813-28050 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 75813-28011 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 75813-28050 |
CR40,50,SR40,50..B,D |
1 | ||
| Common parts | ||||
| 85143-28040 | ||||
| 85373-28030 | ||||
| 90105-06243 | ||||
| 90541-09087 | ||||
| 90950-01254 | ||||
| 90950-01865 | ||||
| 90950-01910 | ||||
| 90950-06096 | ||||

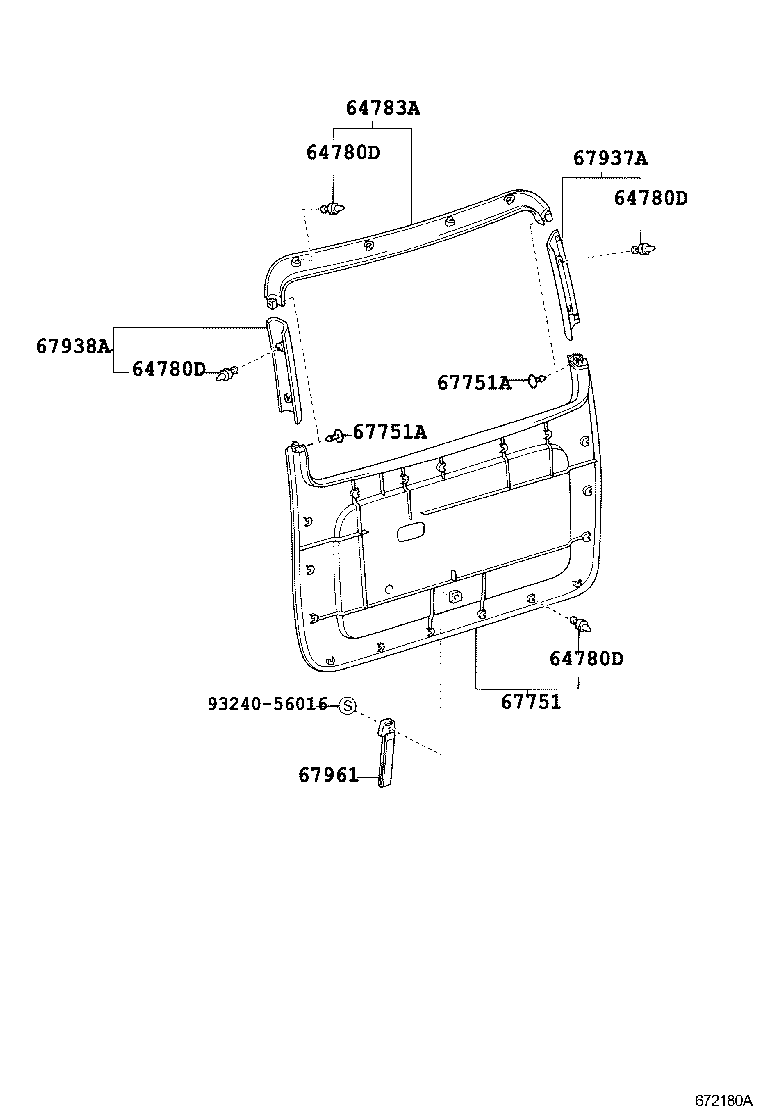

ILLUST NO. 1 OF 2(9610- )E,Q,S,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780D - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-16080 |
CR40,50,SR40,50..SRF..(E,S,V) |
25 | ||
| 67771-16080 |
CR40,50,SR40,50..SRF..(E,Q,V) |
25 | ||
| 64780D - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-16080 |
CR40,50,SR40,50..SRF..(E,S,V) |
25 | ||
| 67771-16080 |
CR40,50,SR40,50..SRF..(E,Q,V) |
25 | ||
| 64780D - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-16080 |
CR40,50,SR40,50..SRF..(E,S,V) |
25 | ||
| 67771-16080 |
CR40,50,SR40,50..SRF..(E,Q,V) |
25 | ||
| 64780D - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-16080 |
CR40,50,SR40,50..SRF..(E,S,V) |
25 | ||
| 67771-16080 |
CR40,50,SR40,50..SRF..(E,Q,V) |
25 | ||
| 64783A - TRIM, BACK WINDOW PANEL, UPPER | ||||
| 64783-28070G0 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),SAGE,TRIM6# |
1 | ||
| 64783-28070B0 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),MOON MIST,TRIM1# |
1 | ||
| 64783-28080B0 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),MOON MIST,TRIM1# |
1 | ||
| 64783-28100B0 |
CR40,50,SR40,50..SRF..(E,Q,V) ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ),MOON MIST,TRIM1# |
1 | ||
| 64783-28080G0 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),SAGE,TRIM6# |
1 | ||
| 64783-28100G0 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ),SAGE,TRIM6# |
1 | ||
| 64783-28090B0 |
CR40,50,SR40,50..SRF..(E,Q,V) ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ),MOON MIST,TRIM1# |
1 | ||
| 64783-28080G0 |
CR40,50,SR40,50..SRF..E ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),SAGE,TRIM6# |
1 | ||
| 64783-28070B0 |
SR40,50..SRF..E ﾓﾃﾞﾘｽﾀ & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｰﾃﾝ),MD.MOON MIST,TRIM10 |
1 | ||
| 64783-28090G0 |
CR40,50,SR40,50..SRF..(E,Q) ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ),SAGE,TRIM6# |
1 | ||
| 64783-28070G0 |
CR40,50,SR40,50..SRF..E ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),SAGE,TRIM6# |
1 | ||
| 64783-28070B0 |
CR40,50,SR40,50..SRF..E ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),MOON MIST,TRIM1# |
1 | ||
| 64783-28090B0 |
SR40,50..S;CR40,50..S,V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),MOON MIST,TRIM1# |
1 | ||
| 64783-28090G0 |
SR40,50..SRF..E ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ),SAGE,TRIM6# |
1 | ||
| 64783-28090B0 |
SR40,50..SRF..E ﾓﾃﾞﾘｽﾀ & ｱﾘ(ﾃﾞﾝﾄﾞｳｶｰﾃﾝ & ﾘﾔ ｽﾎﾟｲﾗ),MD.MOON MIST,TRIM10 |
1 | ||
| 64783-28080B0 |
CR40,50,SR40,50..SRF..E ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),MOON MIST,TRIM1# |
1 | ||
| 64783-28100B0 |
SR40,50..S;CR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 64783-28100B0 |
SR40,50..SRF..E ﾓﾃﾞﾘｽﾀ & ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),MD.MOON MIST,TRIM10 |
1 | ||
| 64783-28080B0 |
SR40,50..SRF..E ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 64783-28080G0 |
SR40,50..SRF..E ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),SAGE,TRIM6# |
1 | ||
| 64783-28070G0 |
SR40,50..SRF..E ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),SAGE,TRIM6# |
1 | ||
| 64783-28100G0 |
SR40,50..SRF..E ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ),SAGE,TRIM6# |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 64785-28040B0 |
CR40,50,SR40,50..(E,Q,V)..CBU ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),MOON MIST,TRIM1# |
1 | ||
| 64785-28030G0 |
CR40,50,SR40,50..(E,Q)..CBU SAGE,TRIM6# |
1 | ||
| 64785-28030B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 64785-28030B0 |
CR40,50,SR40,50..(E,Q,V)..CBU MOON MIST,TRIM1# |
1 | ||
| 64785-28030B0 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 64785-28040G0 |
CR40,50,SR40,50..(E,Q)..CBU ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),SAGE,TRIM6# |
1 | ||
| 64785-28040B0 |
CR40,50,SR40,50..S,V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),MOON MIST,TRIM1# |
1 | ||
| 64785-28030B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 64785-28030G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 64785-28040G0 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),SAGE,TRIM6# |
1 | ||
| 64785-28040G0 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),SAGE,TRIM6# |
1 | ||
| 64785-28040B0 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),MOON MIST,TRIM1# |
1 | ||
| 64785-28030G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 64785-28040B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｰﾃﾝ),MD.MOON MIST,TRIM10 |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-05063B3 |
CR40,50,SR40,50..E,Q BLUISH GRAY,TRIM1#,6# |
4 | ||
| 90467-05063B3 |
CR40,50,SR40,50..S,V BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05063B3 |
CR40,50,SR40,50..E,Q BLUISH GRAY,TRIM6# |
4 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-05063B3 |
CR40,50,SR40,50..E,Q BLUISH GRAY,TRIM1#,6# |
4 | ||
| 90467-05063B3 |
CR40,50,SR40,50..S,V BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05063B3 |
CR40,50,SR40,50..E,Q BLUISH GRAY,TRIM6# |
4 | ||
| 67937A - GARNISH, BACK DOOR SIDE | ||||
| 67937-28010B0 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 67937-28010B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 67937-28010B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 67937-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 67937-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-28010B0 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 67938-28010B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 67938-28010B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 67938-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 67938-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 67961 - STRAP, BACK DOOR PULL | ||||
| 67908-28020B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 67908-28020B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 67908-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 67908-28020B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 67908-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 93240-56016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
