SR40G-GRSEK (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )CR4#,KR4#,SR40

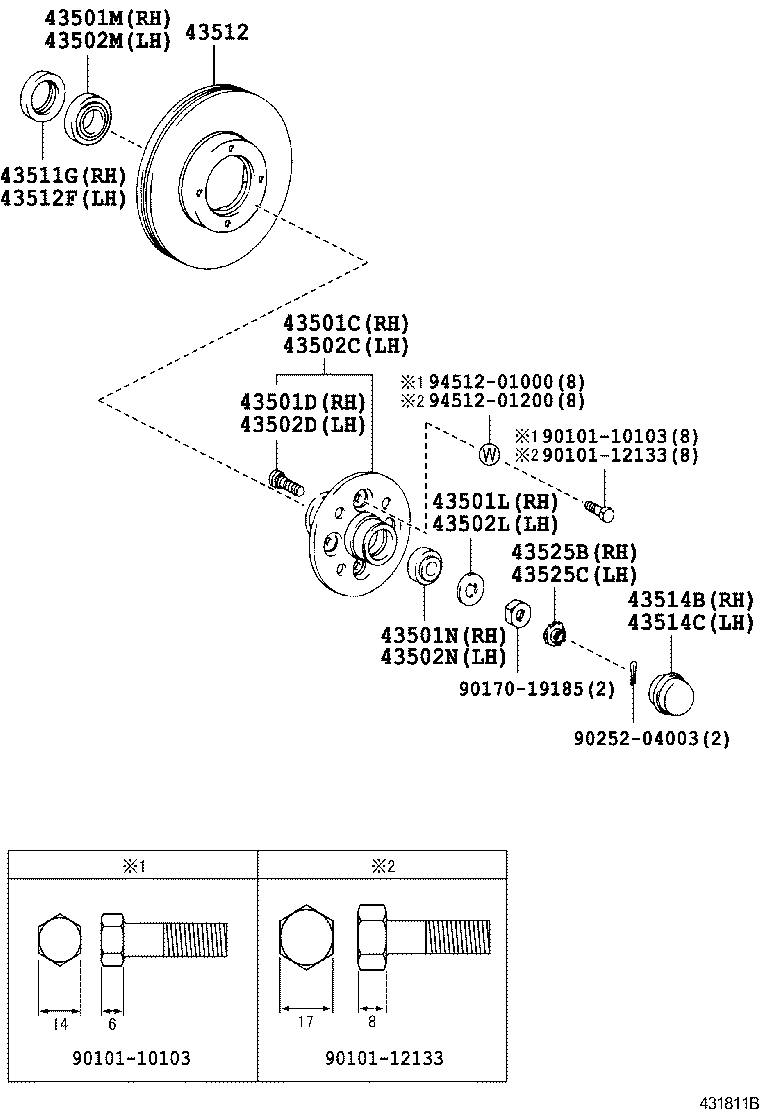

Click highlighted areas on diagram

diagram 43501C 43501D 43501L 43501M 43501N 43502C 43502D 43502L 43502M 43502N 43511G 43512 43512F 43514B 43514C 43525B 43525C 9010110103 9010112133 9017019185 9025204003 9451201000 9451201200
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43503-28010

CR40,SR40..E,Q,V

 1
43503-28010

CR40,SR40..07S,08S

 1
43503-28020

CR4#,KR4#,SR40..B,D,N

ｱﾘ(ABS)

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02048

CR4#,KR42,SR40

 1
90942-02048

CR4#,KR4#,SR40

 4
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-20005

CR4#,KR4#,SR40

 1
90214-20005

CR40,SR40..07S,08S

 1
90214-20005

SR40..B

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90368-31067

CR40,SR40..07S,08S

 1
90368-31067

CR4#,KR4#,SR40

 1
90368-31067

SR40..B

 1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90368-19037

CR40,SR40..07S,08S

 1
90368-19037

SR40..B

 1
90368-19037

CR4#,KR4#,SR40

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43503-28010

CR40,SR40..E,Q,V

 1
43503-28020

CR4#,KR4#,SR40..B,D,N

ｱﾘ(ABS)

 1
43503-28010

CR40,SR40..07S,08S

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02048

CR4#,KR42,SR40

 1
90942-02048

CR4#,KR4#,SR40

 4
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-20005

CR40,SR40..07S,08S

 1
90214-20005

CR4#,KR4#,SR40

 1
90214-20005

SR40..B

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90368-31067

SR40..B

 1
90368-31067

CR4#,KR4#,SR40

 1
90368-31067

CR40,SR40..07S,08S

 1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90368-19037

CR40,SR40..07S,08S

 1
90368-19037

SR40..B

 1
90368-19037

CR4#,KR4#,SR40

 1
43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH)
90311-48001

CR4#,KR4#,SR40

 1
90311-48001

CR40,SR40..07S,08S

 1
43512 - DISC, FRONT
43512-28130

CR40,SR40..E,Q,V

 2
43512-28150

SR40..B

 2
43512-28150

CR4#,KR4#,SR40..B,D,N

 2
43512-28130

CR40,SR40..07S,08S

 2
43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH)
90311-48001

CR4#,KR4#,SR40

 1
90311-48001

CR40,SR40..07S,08S

 1
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-22020

CR40,SR40..07S,08S

 1
43514-22020

SR40..B

 1
43514-22020

CR4#,KR4#,SR40

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-22020

CR4#,KR4#,SR40

 1
43514-22020

CR40,SR40..07S,08S

 1
43514-22020

SR40..B

 1
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-22010

CR4#,KR4#,SR40

 1
43525-22010

CR40,SR40..07S,08S

 1
43525-22010

SR40..B

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-22010

SR40..B

 1
43525-22010

CR4#,KR4#,SR40

 1
43525-22010

CR40,SR40..07S,08S

 1
Common parts
90101-10103
90101-12133
90170-19185
90252-04003
94512-01000
94512-01200
