SR40G-GRSEK (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )3SFE

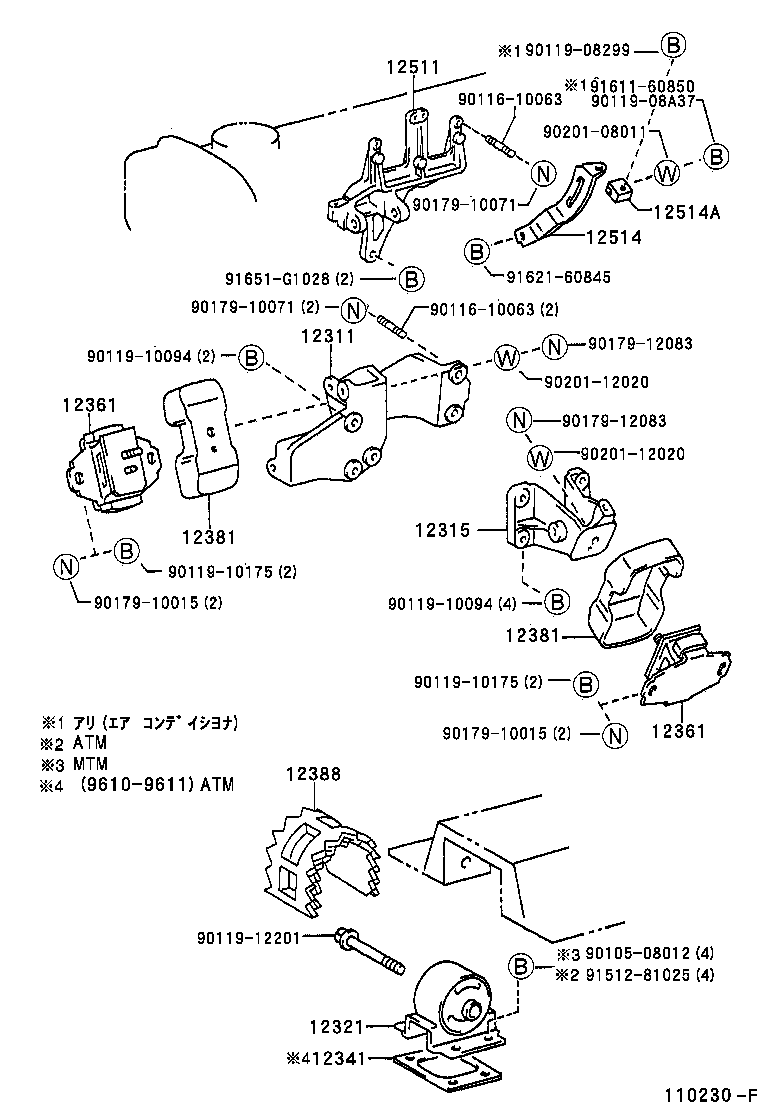

Click highlighted areas on diagram

diagram 12311 12315 12321 12341 12361 12361 12381 12381 12388 12511 12514 12514A 9010508012 9011610063 9011610063 9011908299 9011908A37 9011910094 9011910094 9011910175 9011910175 9011912201 9017910015 9017910015 9017910071 9017910071 9017912083 9017912083 9020108011 9020112020 9020112020 9151281025 9161160850 9162160845 91651G1028
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-74260

3SFE..SR40,50

 1
12311-74260

3SFE..SR40,50

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-74150

3SFE..SR40,50

 1
12315-74150

3SFE..SR40,50

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64121

3SFE..SR40..ATM

 1
12303-64120

3SFE..SR40

 1
12303-64121

3SFE..SR40..ATM

 1
12341 - SPACER, ENGINE MOUNTING
12341-64040

3SFE..SR40,50

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-74480

3SFE..SR40,50

 2
12361-74480

3SFE..SR40,50

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-74480

3SFE..SR40,50

 2
12361-74480

3SFE..SR40,50

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

3SFE..SR40,50

 2
12381-73010

3SFE..SR40,50

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

3SFE..SR40,50

 2
12381-73010

3SFE..SR40,50

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

3SFE..SR40,50

 1
12388-67011

3SFE..SR40,50

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74130

3SFE..SR40,50

 1
12511-74130

3SFE..SR40,50

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-74050

3SFE..SR40,50

 1
12514-74051

3SFE..SR40,50

 1
12514-74051

3SFE..SR40,50

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011

3SFE..SR40,50

 1
16385-64011

3SFE..SR40,50

 1
Common parts
90105-08012
90116-10063
90119-08299
90119-08A37
90119-10094
90119-10175
90119-12201
90179-10015
90179-10071
90179-12083
90201-08011
90201-12020
91512-81025
91611-60850
91621-60845
91651-G1028
