SR40G-GRSDK (1996)
Toyota Lite/Townace Noah,V

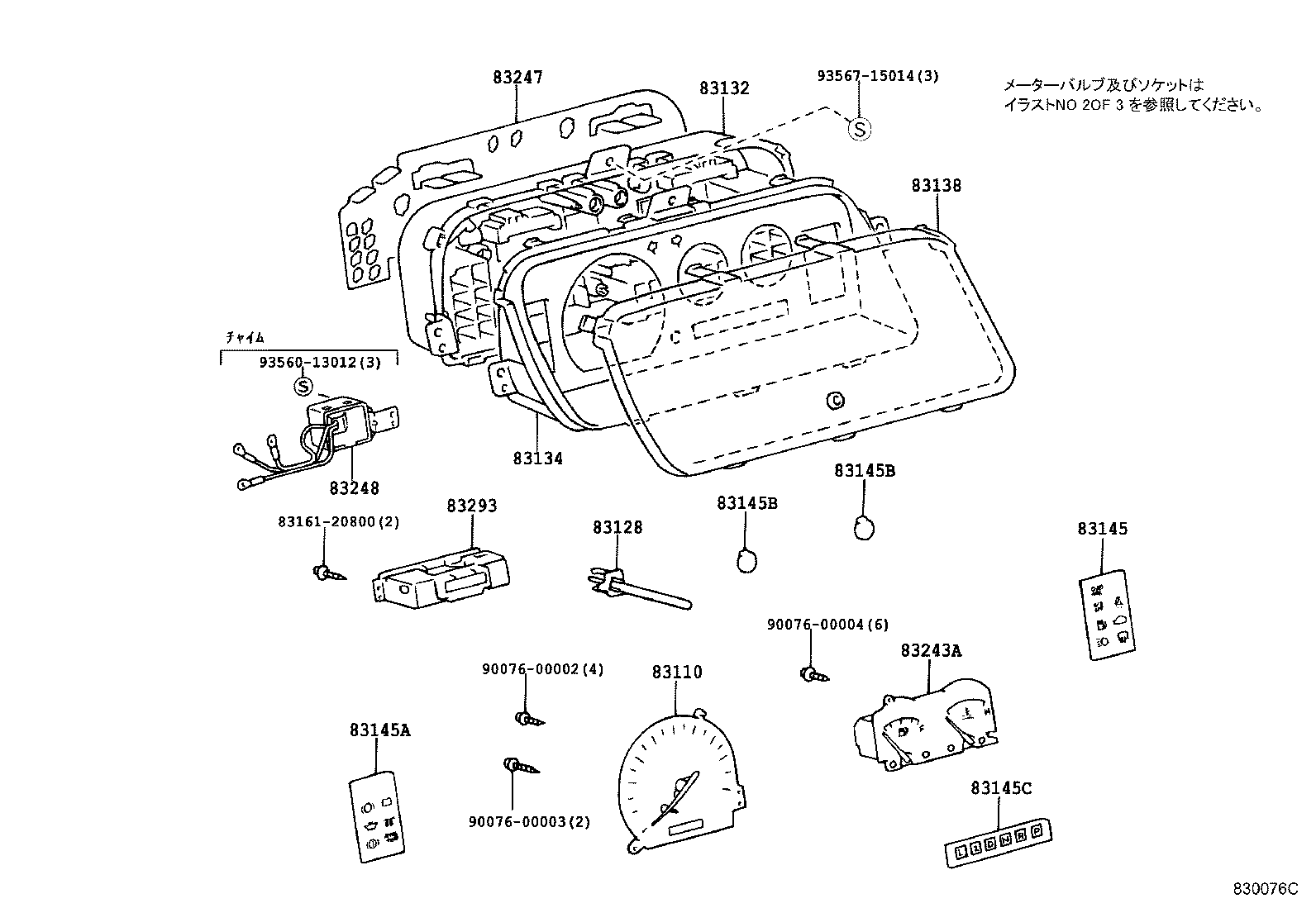

ILLUST NO. 1 OF 3(9611-9812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28120 |
CR40,50,SR40,50..E..CBU YAZAKI,ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83220-28060 |
CR40,50,SR40,50..E,Q YAZAKI |
1 | ||
| 83220-28090 |
CR4#,5#,KR4#,SR40,50..B,D,N YAZAKI |
1 | ||
| 83221-28490 |
CR40,50,SR40,50..S YAZAKI |
1 | ||
| 83220-28130 |
SR40,50..SRF..E YAZAKI,TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83221-28410 |
CR40,50,SR40,50..E,Q,V YAZAKI |
1 | ||
| 83221-28490 |
SR40,50..E..CBU YAZAKI,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83221-28490 |
SR40,50..E..CBU YAZAKI,ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83224-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83224-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83224-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28410 |
SR40..E,Q,S,V |
1 | ||
| 83841-28530 |
KR42,SR40..ATM..(B,D,N) |
1 | ||
| 83841-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83841-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-28530 |
CR4#,5#,KR42,52,SR40,50..ATM..(B,D,N) |
1 | ||
| 83851-28080 |
CR40,50,SR40,50..ATM..(E,Q,V) |
1 | ||
| 83851-28160 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D,N) |
1 | ||
| 83821-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83852-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83852-28410 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-28060 |
SR40,50..E,Q,V |
1 | ||
| 83831-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-28130 |
KR4#,SR40,50..B,D,N |
1 | ||
| 83832-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83833-28080 |
CR40,50,SR40,50..ATM..(E,Q,V) |
1 | ||
| 83831-28160 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D,N) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28410 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83882-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83882-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83882-28490 |
CR40,50,SR40,50..S |
1 | ||
| 83882-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83882-28100 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83882-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83882-28080 |
CR40,50,SR40,50..E,Q |
1 | ||
| 83882-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-28330 |
SR40..E,Q,V |
1 | ||
| 83861-28070 |
SR40..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83861-28160 |
KR4#,SR40..ATM..(B,D,N) |
1 | ||
| 83861-28191 |
CR40,SR40..ATM..(E,Q,V) |
1 | ||
| 83861-28161 |
CR4#,KR4#,SR40..ATM..(B,D,N) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 86650-12030 |
CR40,50,SR40,50..B,D |
1 | ||
| 86650-12030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28010 |
SR40,50..E,Q,V |
1 | ||
| 83293-28050 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83293-28080 |
SR40,50..E,Q,S,V |
1 | ||
| 83293-28011 |
SR40,50..E,Q,V |
1 | ||
| 83293-28051 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90076-00002 | ||||
| 90076-00003 | ||||
| 90076-00004 | ||||
| 93560-13012 | ||||
| 93567-15014 | ||||

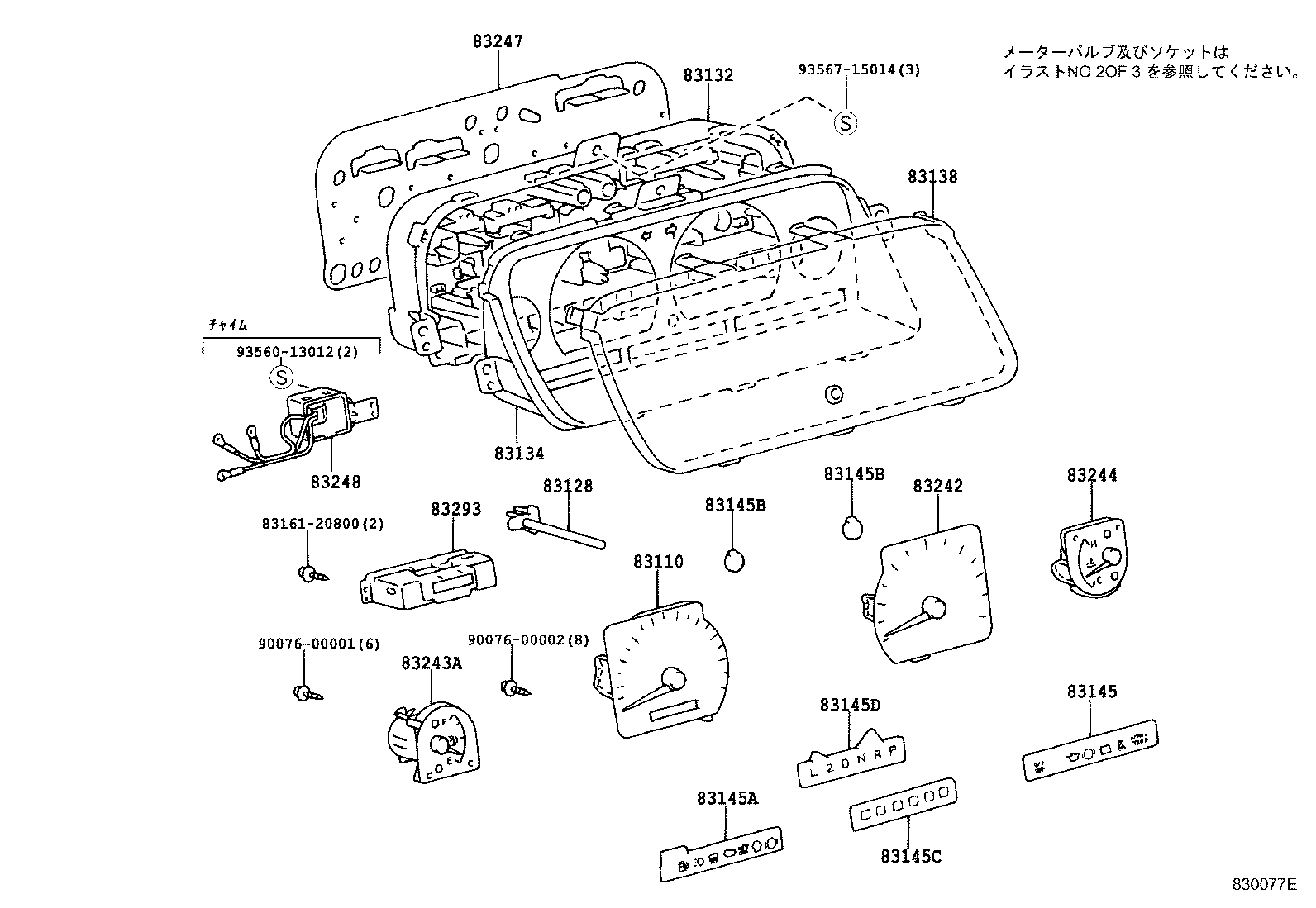

ILLUST NO. 1 OF 3(9610-9812)
ｱﾘ(ﾀｺ ﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28120 |
CR40,50,SR40,50..E..CBU YAZAKI,ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83220-28060 |
CR40,50,SR40,50..E,Q YAZAKI |
1 | ||
| 83220-28090 |
CR4#,5#,KR4#,SR40,50..B,D,N YAZAKI |
1 | ||
| 83221-28490 |
CR40,50,SR40,50..S YAZAKI |
1 | ||
| 83220-28130 |
SR40,50..SRF..E YAZAKI,TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83221-28410 |
CR40,50,SR40,50..E,Q,V YAZAKI |
1 | ||
| 83221-28490 |
SR40,50..E..CBU YAZAKI,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83221-28490 |
SR40,50..E..CBU YAZAKI,ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83224-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83224-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83224-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28410 |
SR40..E,Q,S,V |
1 | ||
| 83841-28530 |
KR42,SR40..ATM..(B,D,N) |
1 | ||
| 83841-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83841-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-28530 |
CR4#,5#,KR42,52,SR40,50..ATM..(B,D,N) |
1 | ||
| 83851-28080 |
CR40,50,SR40,50..ATM..(E,Q,V) |
1 | ||
| 83851-28160 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D,N) |
1 | ||
| 83821-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83852-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83852-28410 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-28060 |
SR40,50..E,Q,V |
1 | ||
| 83831-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-28130 |
KR4#,SR40,50..B,D,N |
1 | ||
| 83832-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83833-28080 |
CR40,50,SR40,50..ATM..(E,Q,V) |
1 | ||
| 83831-28160 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D,N) |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-28080 |
CR40,50,SR40,50..ATM..(E,Q,V) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83881-28060 |
SR40,50..E,Q |
1 | ||
| 83881-28100 |
SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(H) |
1 | ||
| 83881-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83881-28410 |
SR40,50..E,Q,V |
1 | ||
| 83881-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83881-28490 |
SR40,50..S |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28410 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83882-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83882-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83882-28490 |
CR40,50,SR40,50..S |
1 | ||
| 83882-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83882-28100 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83882-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83882-28080 |
CR40,50,SR40,50..E,Q |
1 | ||
| 83882-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-28100 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83883-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83883-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83883-28080 |
CR40,50,SR40,50..E,Q |
1 | ||
| 83883-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83883-28490 |
CR40,50,SR40,50..S |
1 | ||
| 83883-28410 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-28330 |
SR40..E,Q,V |
1 | ||
| 83861-28070 |
SR40..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83861-28160 |
KR4#,SR40..ATM..(B,D,N) |
1 | ||
| 83861-28191 |
CR40,SR40..ATM..(E,Q,V) |
1 | ||
| 83861-28161 |
CR4#,KR4#,SR40..ATM..(B,D,N) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 86650-12030 |
CR40,50,SR40,50..B,D |
1 | ||
| 86650-12030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28010 |
SR40,50..E,Q,V |
1 | ||
| 83293-28050 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83293-28080 |
SR40,50..E,Q,S,V |
1 | ||
| 83293-28011 |
SR40,50..E,Q,V |
1 | ||
| 83293-28051 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93560-13012 | ||||
| 93567-15014 | ||||
ILLUST NO. 1 OF 3(9812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82824Q - CONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER) | ||||
| 82824-28130 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 82824R - CONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER) | ||||
| 82824-28150 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28120 |
CR40,50,SR40,50..E..CBU YAZAKI,ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83220-28060 |
CR40,50,SR40,50..E,Q YAZAKI |
1 | ||
| 83220-28090 |
CR4#,5#,KR4#,SR40,50..B,D,N YAZAKI |
1 | ||
| 83221-28490 |
CR40,50,SR40,50..S YAZAKI |
1 | ||
| 83220-28130 |
SR40,50..SRF..E YAZAKI,TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83221-28410 |
CR40,50,SR40,50..E,Q,V YAZAKI |
1 | ||
| 83221-28490 |
SR40,50..E..CBU YAZAKI,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83221-28490 |
SR40,50..E..CBU YAZAKI,ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83224-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83224-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83224-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28410 |
SR40..E,Q,S,V |
1 | ||
| 83841-28530 |
KR42,SR40..ATM..(B,D,N) |
1 | ||
| 83841-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83841-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-28530 |
CR4#,5#,KR42,52,SR40,50..ATM..(B,D,N) |
1 | ||
| 83851-28080 |
CR40,50,SR40,50..ATM..(E,Q,V) |
1 | ||
| 83851-28160 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D,N) |
1 | ||
| 83821-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83852-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83852-28410 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28410 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83882-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83882-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83882-28490 |
CR40,50,SR40,50..S |
1 | ||
| 83882-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83882-28100 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83882-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83882-28080 |
CR40,50,SR40,50..E,Q |
1 | ||
| 83882-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 86650-12030 |
CR40,50,SR40,50..B,D |
1 | ||
| 86650-12030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28010 |
SR40,50..E,Q,V |
1 | ||
| 83293-28050 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83293-28080 |
SR40,50..E,Q,S,V |
1 | ||
| 83293-28011 |
SR40,50..E,Q,V |
1 | ||
| 83293-28051 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| Common parts | ||||
| 90076-00024 | ||||
| 93560-13012 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 3(9812- )
ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82824Q - CONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER) | ||||
| 82824-28130 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 82824R - CONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER) | ||||
| 82824-28150 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28120 |
CR40,50,SR40,50..E..CBU YAZAKI,ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83220-28060 |
CR40,50,SR40,50..E,Q YAZAKI |
1 | ||
| 83220-28090 |
CR4#,5#,KR4#,SR40,50..B,D,N YAZAKI |
1 | ||
| 83221-28490 |
CR40,50,SR40,50..S YAZAKI |
1 | ||
| 83220-28130 |
SR40,50..SRF..E YAZAKI,TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83221-28410 |
CR40,50,SR40,50..E,Q,V YAZAKI |
1 | ||
| 83221-28490 |
SR40,50..E..CBU YAZAKI,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83221-28490 |
SR40,50..E..CBU YAZAKI,ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83224-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83224-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83224-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28410 |
SR40..E,Q,S,V |
1 | ||
| 83841-28530 |
KR42,SR40..ATM..(B,D,N) |
1 | ||
| 83841-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83841-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83811-28760 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y) |
1 | ||
| 83811-28760 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
1 | ||
| 83811-28410 |
SR40,50..E,Q |
1 | ||
| 83811-28760 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83811-28760 |
SR40,50..S TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83811-28490 |
SR40,50..S |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-28530 |
CR4#,5#,KR42,52,SR40,50..ATM..(B,D,N) |
1 | ||
| 83851-28080 |
CR40,50,SR40,50..ATM..(E,Q,V) |
1 | ||
| 83851-28160 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D,N) |
1 | ||
| 83821-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83852-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83852-28410 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83881-28060 |
SR40,50..E,Q |
1 | ||
| 83881-28100 |
SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(H) |
1 | ||
| 83881-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83881-28410 |
SR40,50..E,Q,V |
1 | ||
| 83881-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83881-28490 |
SR40,50..S |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28410 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83882-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83882-28150 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83882-28490 |
CR40,50,SR40,50..S |
1 | ||
| 83882-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83882-28100 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83882-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83882-28080 |
CR40,50,SR40,50..E,Q |
1 | ||
| 83882-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-28100 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 83883-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ﾖ-ﾛﾋﾟｱﾝ ﾊﾞ-ｼﾖﾝ |
1 | ||
| 83883-28070 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ- |
1 | ||
| 83883-28080 |
CR40,50,SR40,50..E,Q |
1 | ||
| 83883-28490 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2 |
1 | ||
| 83883-28490 |
CR40,50,SR40,50..S |
1 | ||
| 83883-28410 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 86650-12030 |
CR40,50,SR40,50..B,D |
1 | ||
| 86650-12030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28010 |
SR40,50..E,Q,V |
1 | ||
| 83293-28050 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83293-28080 |
SR40,50..E,Q,S,V |
1 | ||
| 83293-28011 |
SR40,50..E,Q,V |
1 | ||
| 83293-28051 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 83887 - PLATE, COMBINATION METER PRISM, NO.1 | ||||
| 83887-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83895 - PLATE, COMBINATION METER PRISM, NO.2 | ||||
| 83895-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83896 - PLATE, COMBINATION METER PRISM, NO.3 | ||||
| 83896-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83897 - PLATE, COMBINATION METER PRISM, NO.4 | ||||
| 83897-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| Common parts | ||||
| 90076-00023 | ||||
| 90076-00024 | ||||
| 93560-13012 | ||||

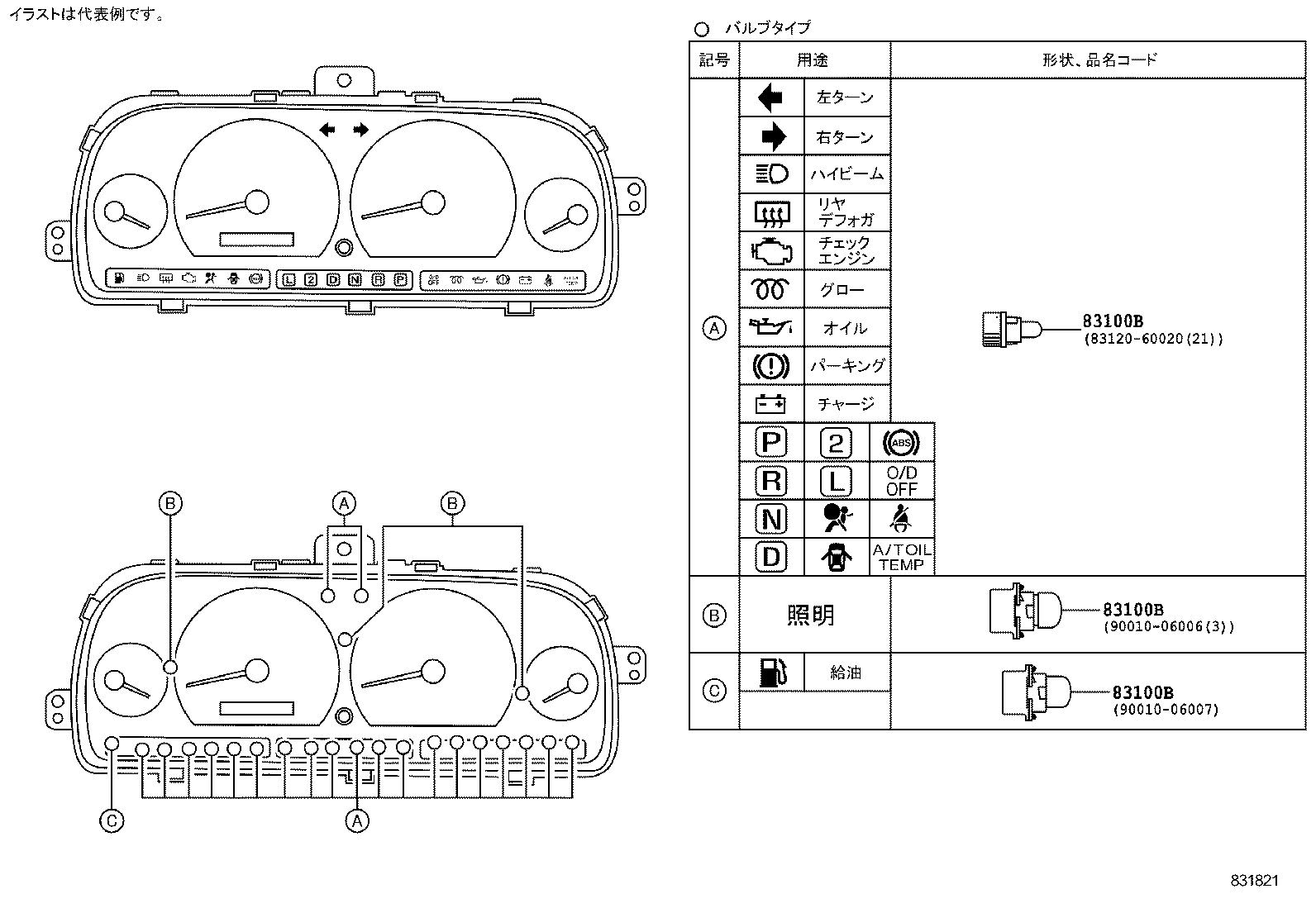

ILLUST NO. 2 OF 3(9611-9812)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||

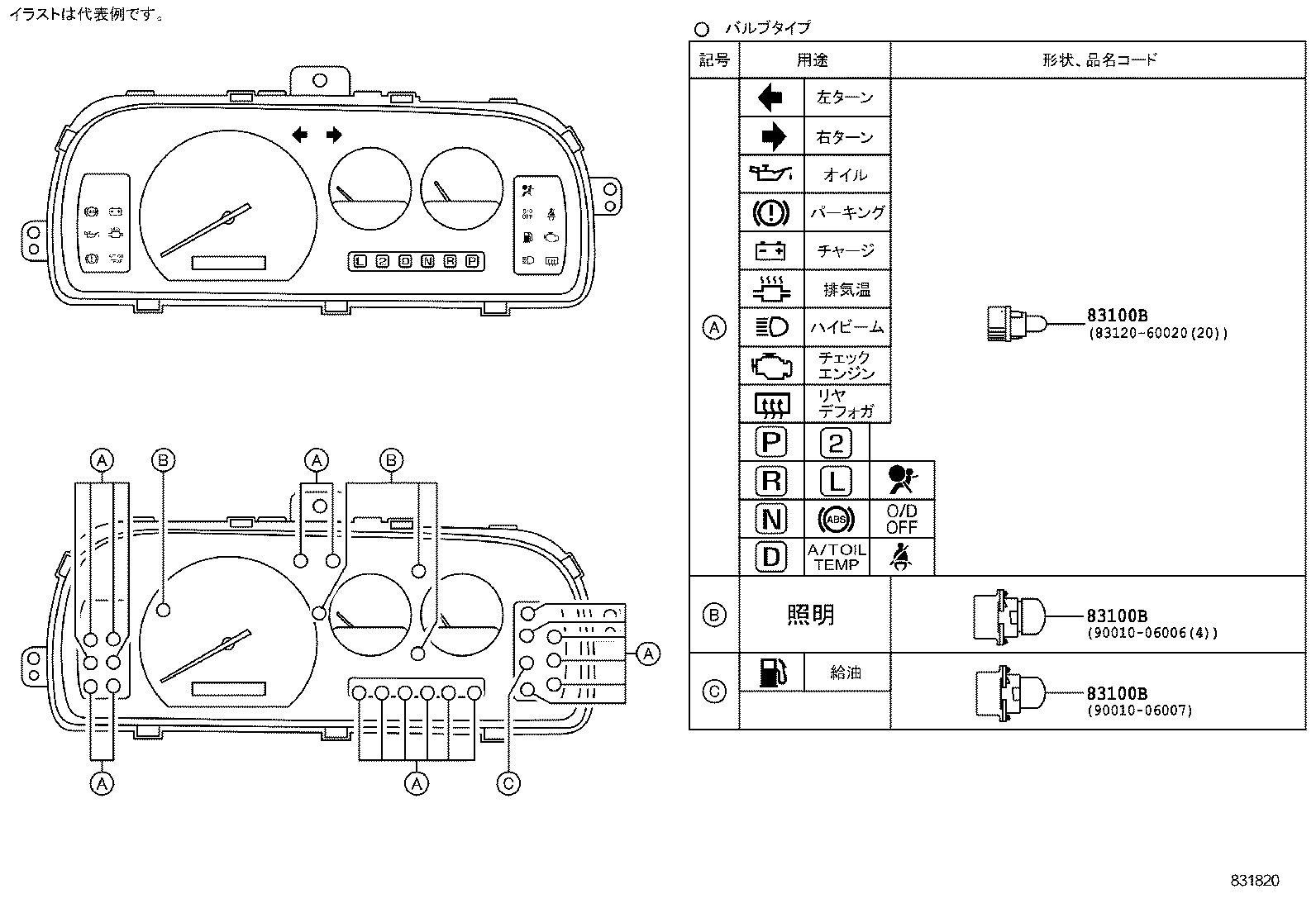

ILLUST NO. 2 OF 3(9610-9812)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||
ILLUST NO. 2 OF 3(9812- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||
ILLUST NO. 2 OF 3(9812- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
SR50..B,D;CR50,SR40..ATM..(E,Q,V) 12V 1.4W,ｿｹｯﾄ付き |
20 | ||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06028 |
KR42,SR40..ATM..(B,D,N) 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06018 |
SR40,50..SRF..E 12V 3.4W,ﾎﾜｲﾄ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06034 |
KR42,SR40..ATM..(B,D,N) 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06039 |
SR40,50..S 14V 3W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き,ﾘﾐﾃﾂﾄﾞ *(P), *(R) |
5 | ||
Part Price Details
Loading price information...
Part Number:
Price:
