SR40G-GFSQK (1996)
Toyota Lite/Townace Noah,V
ILLUST NO. 2 OF 2(9610-0111)Q,V ; (9610-0111)CR40,50,SR40,50..IV5
ﾘﾔ NO.1 ｼ-ﾄ=ｷﾔﾌﾟﾃﾝｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62551D - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-28070G0 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 DK.SAGE,TRIM6# |
1 | ||
| 62551-28070B0 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 MD.MOON MIST,TRIM10 |
1 | ||
| 62552D - GARNISH, REAR SEAT SIDE, LH | ||||
| 62551-28060B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM10 |
1 | ||
| 62551-28060G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
1 | ||
| 62553A - GARNISH, REAR SEAT SIDE, NO.2 RH | ||||
| 62553-28010G0 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 DK.SAGE,TRIM6# |
1 | ||
| 62553-28010B0 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 MD.MOON MIST,TRIM10 |
1 | ||
| 62554A - GARNISH, REAR SEAT SIDE, NO.2 LH | ||||
| 62553-28010B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM10 |
1 | ||
| 62553-28010G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
1 | ||
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-28030G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
9 | ||
| 62556-28030B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
9 | ||
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-28030G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
9 | ||
| 62556-28030B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
9 | ||
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-28030G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
9 | ||
| 62556-28030B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
9 | ||
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-28030G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
9 | ||
| 62556-28030B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
9 | ||
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-28030G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
9 | ||
| 62556-28030B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
9 | ||
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-28030G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
9 | ||
| 62556-28030B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
9 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-28060 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-28060 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-28010B0 |
CR40,50,SR40,50..(07S,08S)..CBU MD.MOON MIST,TRIM1# |
2 | ||
| 71778-28010G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
2 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-28010B0 |
CR40,50,SR40,50..(07S,08S)..CBU MD.MOON MIST,TRIM1# |
2 | ||
| 71778-28010G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
2 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-28010B0 |
CR40,50,SR40,50..(07S,08S)..CBU MD.MOON MIST,TRIM1# |
2 | ||
| 71779-28010G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
2 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-28010B0 |
CR40,50,SR40,50..(07S,08S)..CBU MD.MOON MIST,TRIM1# |
2 | ||
| 71779-28010G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
2 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-28040G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
1 | ||
| 71833-28060G0 |
CR40,50,SR40,50..E..CBU DK.SAGE,TRIM6# |
1 | ||
| 71833-28040B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71834-28060B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
1 | ||
| 71834-28050G0 |
CR40,50,SR40,50..E..CBU DK.SAGE,TRIM6# |
1 | ||
| 71834-28060G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71833-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71833-28040B0 |
CR40,50,SR40,50..(07S,08S)..CBU MD.MOON MIST,TRIM1# |
1 | ||
| 71833-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71833-28040G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-28040G0 |
CR40,50,SR40,50..E..CBU DK.SAGE,TRIM6# |
1 | ||
| 71834-28060B0 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
1 | ||
| 71834-28040G0 |
CR40,50,SR40,50..E DK.SAGE,TRIM6# |
1 | ||
| 71834-28060G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-28050B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72137-28050G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72138-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-87002B1 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM10 |
4 | ||
| 72213-87002G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
4 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-87002B1 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM10 |
4 | ||
| 72213-87002G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
4 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-87002B1 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM10 |
4 | ||
| 72213-87002G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
4 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-87002B1 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM10 |
4 | ||
| 72213-87002G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
4 | ||
| 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 | ||||
| 72382-87001 |
SR40,50..B |
1 | ||
| 72381-28050 |
CR40,50,SR40,50..Q |
1 | ||
| 72381-28050 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 |
1 | ||
| 72381A - ROD, REAR SEAT RECLINING ADJUSTER EQUALIZING, LH | ||||
| 72381-28050 |
CR40,50,SR40,50..(07S,08S)..CBU |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72526-16010G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
1 | ||
| 72526-16010B7 |
CR40,50,SR40,50..Q MD.MOON MIST,TRIM1# |
1 | ||
| 72525-16010G0 |
CR40,50,SR40,50..E..CBU DK.SAGE,TRIM6# |
1 | ||
| 72525-28020B1 |
SR40,50..B MD.MOON MIST,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-28020B1 |
SR40,50..B MD.MOON MIST,TRIM1# |
1 | ||
| 72526-16010B7 |
CR40,50,SR40,50..(07S,08S)..CBU MD.MOON MIST,TRIM1# |
1 | ||
| 72526-16010B7 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72526-16010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72526-16010G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
1 | ||
| 72630B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72730-28410 |
CR40,50,SR40,50..Q |
1 | ||
| 72730-28410 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 |
1 | ||
| 72640B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72730-28410 |
CR40,50,SR40,50..Q |
1 | ||
| 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 | ||||
| 72692-28030 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 | ||||
| 72692-28030 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72740-28420 |
CR40,50,SR40,50..Q |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-28420 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 |
1 | ||
| 72740-28420 |
CR40,50,SR40,50..Q |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-28010B0 |
CR40,50,SR40,50..(E,Q,V)..CBU MD.MOON MIST,TRIM1# |
2 | ||
| 72927-28010G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-28010B0 |
CR40,50,SR40,50..(E,Q,V)..CBU MD.MOON MIST,TRIM1# |
2 | ||
| 72927-28010G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
2 | ||
| 72928A - COVER, REAR SEAT CUSHION UNDER, NO.2 | ||||
| 72928-28010G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
2 | ||
| 72928-28010B0 |
CR40,50,SR40,50..(E,Q,V)..CBU MD.MOON MIST,TRIM1# |
2 | ||
| 72928A - COVER, REAR SEAT CUSHION UNDER, NO.2 | ||||
| 72928-28010G0 |
CR40,50,SR40,50..(E,Q)..CBU DK.SAGE,TRIM6# |
2 | ||
| 72928-28010B0 |
CR40,50,SR40,50..(E,Q,V)..CBU MD.MOON MIST,TRIM1# |
2 | ||
| 72960B - TABLE ASSY, REAR SEAT TURN, RH | ||||
| 72960-28140 |
CR40,50,SR40,50..(E,V)..CBU |
1 | ||
| 72960-28210 |
CR40,50,SR40,50..(E,V)..CBU |
1 | ||
| 72960-28150 |
CR40,50,SR40,50..Q |
1 | ||
| 72960-28150 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 |
1 | ||
| 72969B - KNOB, REAR SEAT TURN LOCK, RH | ||||
| 72969-28050G0 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 DK.SAGE,TRIM6# |
1 | ||
| 72969C - KNOB, REAR SEAT TURN LOCK, LH | ||||
| 72969-28050G0 |
CR40,50,SR40,50..Q DK.SAGE,TRIM6# |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-28140 |
CR40,50,SR40,50..(E,V)..CBU |
1 | ||
| 72970-28210 |
CR40,50,SR40,50..E,V |
1 | ||
| 72970-28210 |
CR40,50,SR40,50..(E,V)..CBU |
1 | ||
| 72970-28150 |
CR40,50,SR40,50..Q |
1 | ||
| 79365 - COVER, NO.3 SEAT LEG BRACKET | ||||
| 79365-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 79365-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 79365 - COVER, NO.3 SEAT LEG BRACKET | ||||
| 79365-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 79365-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79965-28020G0 |
CR40,50,SR40,50..Q,V DK.SAGE,TRIM6# |
1 | ||
| 79965-28020B0 |
CR40,50,SR40,50..Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79965-28020G0 |
CR40,50,SR40,50..Q,V;CR40,50,SR40,50..IV5 DK.SAGE,TRIM6# |
1 | ||
| 79965-28020B0 |
CR40,50,SR40,50..Q,V;CR40,50,SR40,50..IV5 MD.MOON MIST,TRIM1# |
1 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-28090B0 |
CR40,50,SR40,50..Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 79959-28090G0 |
CR40,50,SR40,50..Q,V DK.SAGE,TRIM6# |
1 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-28090B0 |
CR40,50,SR40,50..Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 79959-28090G0 |
CR40,50,SR40,50..Q,V DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 72137-28140 | ||||
| 90119-10836 | ||||
| 90159-40246 | ||||
| 90179-10201 | ||||
| 90467-07043B1 | ||||
| 90467-07043C0 | ||||
| 91512-61020 | ||||
| 91611-60816 | ||||
| 93560-15012 | ||||
ILLUST NO. 3 OF 3(9610-0111)CR40,50,SR40,50
ﾘﾔ NO.2 ｼ-ﾄ,ｱｼﾞﾔｽﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-28060 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-28060 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 71349-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 71349-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 71396C - CUSHION, NO.2 SEAT SUPPORT, REAR | ||||
| 71396-28010 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 71396C - CUSHION, NO.2 SEAT SUPPORT, REAR | ||||
| 71396-28010 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71691-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71691-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71691C - COVER, REAR SEAT LOCK, INNER RH | ||||
| 71691-28030B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71691-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71692-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71692C - COVER, REAR SEAT LOCK, INNER LH | ||||
| 71692-28030B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71692-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 71833-28050B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71833-28050G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71834C - COVER, REAR SEAT RECLINING, NO.3 LH | ||||
| 71834-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71834-28030B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71875-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28020B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71875-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71876-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28020B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71876-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-28030B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71878-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71879-28030B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-28071G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72065-28070B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72065-28070G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72065-28071B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-28070G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72065-28071B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72065-28071G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72065-28070B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-28050B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72137-28050G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72138-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-28110B0 |
CR40,50,SR40,50..07S,08S LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72160-28100B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72160-28110G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 72160-28100G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-28100B0 |
CR40,50,SR40,50..07S,08S LT. BLUISH GRAY,TRIM1# |
1 | ||
| 72170-28090G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72170-28100G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 72170-28090B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72210C - CABLE ASSY, SEAT TRACK CONTROL, LH | ||||
| 72210-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 72213-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 72213-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-28060 |
CR4#,5#,KR4#,SR40,50 ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 72345-28050 |
CR40,50,SR40,50..07S,08S ﾘﾔｼｰﾄ |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-28060 |
CR4#,5#,KR42,SR40,50..05S,07S,08S ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 72345-28050 |
CR40,50,SR40,50..07S,08S NO.2 ｼｰﾄ |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-28050G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72525-28050B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72526-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72526-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72650G - LOCK ASSY, REAR NO.2 SEAT, RH | ||||
| 72650-28040 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-95701C0 |
CR40,50,SR40,50..E,Q BLACK,TRIM1#,6# |
2 | ||
| 72658-95701C0 |
CR40,50,SR40,50..D,V BLACK,TRIM1# |
2 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-95701C0 |
CR40,50,SR40,50..E,Q BLACK,TRIM1#,6# |
2 | ||
| 72658-95701C0 |
CR40,50,SR40,50..D,V BLACK,TRIM1# |
2 | ||
| 72660H - LOCK ASSY, REAR NO.2 SEAT, LH | ||||
| 72660-28040 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72681A - HOOK, REAR SEAT | ||||
| 72681-28020B0 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
2 | ||
| 72681-28020G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
2 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-87001 |
CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S |
2 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-87001 |
CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S |
2 | ||
| 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 | ||||
| 72692-28030 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 | ||||
| 72692-28030 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 72710B - ADJUSTER ASSY, REAR SEAT BACK, INNER RH | ||||
| 72710-28010 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72720B - ADJUSTER ASSY, REAR SEAT BACK, INNER LH | ||||
| 72720-28010 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-28420 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-28430 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79030-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79040-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79236-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79236B - COVER, NO.2 SEAT LEG, LH | ||||
| 79246-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79246-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79365 - COVER, NO.3 SEAT LEG BRACKET | ||||
| 79365-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 79365-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 79365 - COVER, NO.3 SEAT LEG BRACKET | ||||
| 79365-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 79365-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-28020B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79366-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-28010B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79367-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-28030B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79372-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79374-28030B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79382-28030B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-28030B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79384-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90109-08255 | ||||
| 90109-08261 | ||||
| 90109-08269 | ||||
| 90119-10392 | ||||
| 90119-10836 | ||||
| 90159-40246 | ||||
| 90159-50296 | ||||
| 90159-60280 | ||||
| 90167-40044 | ||||
| 90179-08068 | ||||
| 90189-04201 | ||||
| 90206-12035 | ||||
| 90386-12018 | ||||
| 90506-10041 | ||||
| 90506-16069 | ||||
| 90506-26024 | ||||
| 90905-06026 | ||||
| 90959-03115 | ||||
| 90959-03116 | ||||
| 91512-61020 | ||||
| 91611-60816 | ||||
| 91622-61018 | ||||
| 93210-56025 | ||||
| 93249-54008 | ||||
| 93269-54008 | ||||
| 93560-55016 | ||||
| 94185-61000 | ||||

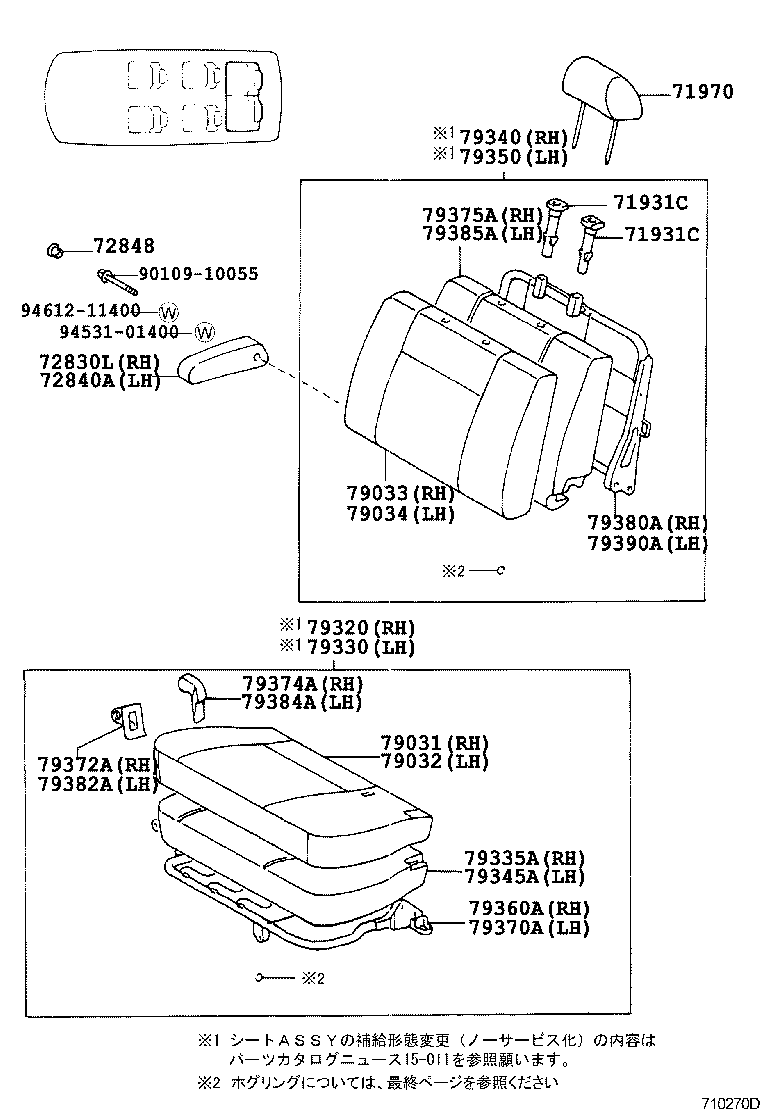

ILLUST NO. 3 OF 3(9610-0111)CR40,50,SR40,50
ﾘﾔ NO.2 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28040B0 |
CR40,50,SR40,50..07S,08S ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ無,DK.SAGE,TRIM6# |
2 | ||
| 71931-28050B0 |
CR40,50,SR40,50..07S,08S ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ付,DK.SAGE,TRIM6# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28040B0 |
CR40,50,SR40,50..07S,08S ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ無,DK.SAGE,TRIM6# |
2 | ||
| 71931-28050B0 |
CR40,50,SR40,50..07S,08S ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ付,DK.SAGE,TRIM6# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-28620B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28750B1 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28660B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
2 | ||
| 71910-28650B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
2 | ||
| 71910-28620G1 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
2 | ||
| 71910-28540B2 |
CR40,50,SR40,50..D,E MOONMIST,TRIM1# |
2 | ||
| 71910-28750B1 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),MD.MOON MIST,TRIM1 |
2 | ||
| 71910-28751B2 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
2 | ||
| 71910-28790B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28790G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
2 | ||
| 71910-28540G2 |
CR40,50,SR40,50..E SAGE,TRIM6# |
2 | ||
| 72830L - ARMREST ASSY, REAR NO.2 SEAT, RH | ||||
| 72830-28280G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 72830-28280B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 72840A - ARMREST ASSY, REAR NO.2 SEAT, LH | ||||
| 72840-28240G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 72840-28240B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 72848 - CAP, NO.3 SEAT ARMREST | ||||
| 72848-28010G0 |
CR40,50,SR40,50..Q SAGE,TRIM1#,6# |
2 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-28260B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79031-28360BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79031-28300B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79031-28280B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79031-28260G0 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
1 | ||
| 79031-28340B2 |
CR40,50,SR40,50..D,E MOON MIST,TRIM1# |
1 | ||
| 79031-28360B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79031-28270G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 79031-28370B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79031-28340G1 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 79031-28260B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79031-28270B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79031-28361B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-28330BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79032-28250B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79032-28250G0 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
1 | ||
| 79032-28290B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79032-28270B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79032-28260B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79032-28310B2 |
CR40,50,SR40,50..D,E MOON MIST,TRIM1# |
1 | ||
| 79032-28340B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79032-28250B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79032-28331B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79032-28260G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 79032-28330B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79032-28310G1 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-28360BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79033-28290B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79033-28310B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79033-28330B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79033-28340B2 |
CR40,50,SR40,50..D,E MOON MIST,TRIM1# |
1 | ||
| 79033-28360B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79033-28300G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 79033-28290G0 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
1 | ||
| 79033-28290B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79033-28370B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79033-28361B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79033-28300B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79033-28340G1 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-28280B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79034-28280B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79034-28300B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79034-28320B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79034-28350BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79034-28280G0 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
1 | ||
| 79034-28290B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79034-28351B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79034-28330B2 |
CR40,50,SR40,50..D,E MOON MIST,TRIM1# |
1 | ||
| 79034-28360B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79034-28350B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79034-28290G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 79034-28330G1 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-28260G0 |
CR40,50,SR40,50..E ***,DK. SAGE,TRIM6# |
1 | ||
| 79320-28270B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79320-28280B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79320-28260B0 |
CR40,50,SR40,50..E ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79320-28260B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79320-28340B2 |
CR40,50,SR40,50..D,E ***,MOON MIST,TRIM1# |
1 | ||
| 79320-28270G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 79320-28370B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79320-28360B0 |
CR40,50,SR40,50..E..CBU ***,ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79320-28361B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79320-28300B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79320-28340G1 |
CR40,50,SR40,50..E ***,SAGE,TRIM6# |
1 | ||
| 79320-28360BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79330-28340BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79330-28250B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79330-28290B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79330-28250G0 |
CR40,50,SR40,50..E ***,DK.SAGE,TRIM6# |
1 | ||
| 79330-28270B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79330-28260G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 79330-28350B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79330-28250B0 |
CR40,50,SR40,50..E ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79330-28260B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79330-28320B2 |
CR40,50,SR40,50..D,E ***,MOON MIST,TRIM1# |
1 | ||
| 79330-28340B0 |
CR40,50,SR40,50..E..CBU ***,ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79330-28320G1 |
CR40,50,SR40,50..E ***,SAGE,TRIM6# |
1 | ||
| 79330-28341B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79335-28050 |
CR40,50,SR40,50..Q |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79340-28420BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79340-28400G1 |
CR40,50,SR40,50..E ***,SAGE,TRIM6# |
1 | ||
| 79340-28320B0 |
CR40,50,SR40,50..E ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79340-28360B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79340-28340B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79340-28330G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 79340-28430B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79340-28320B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79340-28330B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79340-28400B1 |
CR40,50,SR40,50..D,E ***,MOON MIST,TRIM1# |
1 | ||
| 79340-28421B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79340-28320G0 |
CR40,50,SR40,50..E ***,DK. SAGE,TRIM6# |
1 | ||
| 79340-28420B0 |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(J), *(K),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79345-28050 |
CR40,50,SR40,50..Q |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79350-28310B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79350-28400BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79350-28310G0 |
CR40,50,SR40,50..E ***,DK. SAGE,TRIM6# |
1 | ||
| 79350-28320G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 79350-28350B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79350-28310B0 |
CR40,50,SR40,50..E ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79350-28330B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79350-28410B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79350-28401B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79350-28380B1 |
CR40,50,SR40,50..D,E ***,MOON MIST,TRIM1# |
1 | ||
| 79350-28400B0 |
CR40,50,SR40,50..E..CBU ***,ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79350-28380G1 |
CR40,50,SR40,50..E ***,SAGE,TRIM6# |
1 | ||
| 79350-28320B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79360-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79370-28020 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 79372A - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79372-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79374A - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79374-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79375-28050 |
CR40,50,SR40,50..Q |
1 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79203-28150 |
CR40,50,SR40,50..Q |
1 | ||
| 79382A - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79382-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79384A - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-28040B0 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 79384-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79385-28050 |
CR40,50,SR40,50..Q |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79204-28120 |
CR40,50,SR40,50..Q |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 94531-01400 | ||||
| 94612-11400 | ||||
ILLUST NO. 2 OF 2(9610-0111)07S,08S ; (9611-0111)N
ﾌﾛﾝﾄ ｼ-ﾄ(ｼｰﾄ ｱﾝﾀﾞ ﾄﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00B1 |
CR40,50,SR40,50..E,Q,V MEDIUM MOON MIST,TRIM1# |
1 | ||
| 55560-95J00G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-26010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71750-26010B1 |
CR40,50,SR40,50..E,Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 71769 - COVER, FRONT SEAT UNDER TRAY BRACKET | ||||
| 71769-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71769-28010B0 |
CR40,50,SR40,50..E,Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| Common parts | ||||
| 90168-40093 | ||||
| 91621-G0614 | ||||
ILLUST NO. 1 OF 2(9610-0111)07S,08S ; (9611-0111)SR40,50..5D..ATM; (9611-0407)CR41,42,51,52..N ; (9
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-28130 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-10220 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2J110B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71071-2J130G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 71071-2J150B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71071-2J200B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71071-2J250BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71071-2J210G2 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 71071-2J251B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71071-2J260B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71071-2J110B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71071-2J110G0 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
1 | ||
| 71071-2J130B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71071-2J210B2 |
CR40,50,SR40,50..D,E MOONMIST,TRIM1# |
1 | ||
| 71071-2J250B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) & ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2J090B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71072-2J110B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71072-2J240BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71072-2J090G0 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
1 | ||
| 71072-2J090B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71072-2J190B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71072-2J110G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 71072-2J200B2 |
CR40,50,SR40,50..D,E MOONMIST,TRIM1# |
1 | ||
| 71072-2J130B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71072-2J241B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71072-2J200G2 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 71072-2J240B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) & ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71072-2J250B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2J120G0 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
1 | ||
| 71073-2J210B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71073-2J240B1 |
CR40,50,SR40,50..D,E MOONMIST,TRIM1# |
1 | ||
| 71073-2J120B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71073-2J140B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71073-2J140G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 71073-2J160B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71073-2J330B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71073-2J120B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71073-2J240G1 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 71073-2J270G2 |
CR40,50,SR40,50..E ｱﾘ(ｱ-ﾑﾚｽﾄ),SAGE,TRIM6# |
1 | ||
| 71073-2J311B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71073-2J310BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71073-2J270B1 |
CR40,50,SR40,50..E ｱﾘ(ｱ-ﾑﾚｽﾄ),MOON MIST,TRIM1# |
1 | ||
| 71073-2J310B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) & ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2J320BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71073-2J120G0 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
1 | ||
| 71074-2J220B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71073-2J120B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71073-2J160B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71073-2J210B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71074-2J220G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 71074-2J280B2 |
CR40,50,SR40,50..E ｱﾘ(ｱ-ﾑﾚｽﾄ),MOON MIST,TRIM1# |
1 | ||
| 71074-2J280G2 |
CR40,50,SR40,50..E ｱﾘ(ｱ-ﾑﾚｽﾄ),SAGE,TRIM6# |
1 | ||
| 71074-2J321B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71073-2J330B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71073-2J120B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71073-2J240G1 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 71074-2J320B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) & ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71073-2J240B1 |
CR40,50,SR40,50..D,E MOONMIST,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-28770G0 |
CR40,50,SR40,50..E ***,DK. SAGE,TRIM6# |
1 | ||
| 71410-28810B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71410-28770B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71410-28770B0 |
CR40,50,SR40,50..E ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71410-2J140B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71410-28790G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 71410-2J190B0 |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(J), *(K) & ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71410-2J150B3 |
CR40,50,SR40,50..D,E ***,MOON MIST,TRIM1# |
1 | ||
| 71410-2J190BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71410-2J191B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71410-28790B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71410-2J150G2 |
CR40,50,SR40,50..E ***,SAGE,TRIM6# |
1 | ||
| 71410-2J200B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-28710B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71420-28710G0 |
CR40,50,SR40,50..E ***,DK. SAGE,TRIM6# |
1 | ||
| 71420-2J090B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71420-2J140BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71420-28750B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71420-2J100G2 |
CR40,50,SR40,50..E ***,SAGE,TRIM6# |
1 | ||
| 71420-28730G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 71420-28730B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71420-2J100B3 |
CR40,50,SR40,50..D,E ***,MOON MIST,TRIM1# |
1 | ||
| 71420-2J150B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71420-2J141B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71420-2J140B0 |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(J), *(K) & ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2J230B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71040-28170BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71040-28040B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71430-2J250B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71430-2J010G0 |
CR40,50,SR40,50..E ***,DK. SAGE,TRIM6# |
1 | ||
| 71040-28050B2 |
CR40,50,SR40,50..D,E ***,MOON MIST,TRIM1# |
1 | ||
| 71430-2J010B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71040-28090B2 |
CR40,50,SR40,50..E ***,ｱﾘ(ｱ-ﾑﾚｽﾄ),MOON MIST,TRIM1# |
1 | ||
| 71040-28170B0 |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(J), *(K) & ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71040-28050G1 |
CR40,50,SR40,50..E ***,SAGE,TRIM6# |
1 | ||
| 71430-2J230G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 71430-2J010B0 |
CR40,50,SR40,50..E ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71040-28090G2 |
CR40,50,SR40,50..E ***,ｱﾘ(ｱ-ﾑﾚｽﾄ),SAGE,TRIM6# |
1 | ||
| 71040-28200B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71040-28171B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-2J010B0 |
CR40,50,SR40,50..E ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71430-2J010G0 |
CR40,50,SR40,50..E ***,DK. SAGE,TRIM6# |
1 | ||
| 71430-2J010B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71440-2J040B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71070-28110BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71430-2J250B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71040-28050B2 |
CR40,50,SR40,50..D,E ***,MOON MIST,TRIM1# |
1 | ||
| 71040-28040B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71070-28050B2 |
CR40,50,SR40,50..E ***,ｱﾘ(ｱ-ﾑﾚｽﾄ),MOON MIST,TRIM1# |
1 | ||
| 71070-28050G2 |
CR40,50,SR40,50..E ***,ｱﾘ(ｱ-ﾑﾚｽﾄ),SAGE,TRIM6# |
1 | ||
| 71040-28200B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71070-28110B0 |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(J), *(K) & ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71440-2J040G0 |
CR40,50,SR40,50..Q ***,DK.SAGE,TRIM6# |
1 | ||
| 71040-28050G1 |
CR40,50,SR40,50..E ***,SAGE,TRIM6# |
1 | ||
| 71070-28111B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28190 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28150 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28250 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) |
1 | ||
| 71551-28250 |
CR40,50,SR40,50..Q ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71551-28250 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71551-28250 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K),TRIM1 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-28200 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) |
1 | ||
| 71552-28200 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M), *(N),TRIM1 |
1 | ||
| 71552-28200 |
CR40,50,SR40,50..Q ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71552-28200 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-28300 |
CR40,50,SR40,50..Q ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71630-28300 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) |
1 | ||
| 71630-28300 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71630-28300 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K),TRIM1 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-28170 |
CR40,50,SR40,50..Q ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71640-28170 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) |
1 | ||
| 71640-28170 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M), *(N),TRIM1 |
1 | ||
| 71640-28170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28620G1 |
CR40,50,SR40,50..E DK. SAGE,TRIM6# |
2 | ||
| 71910-28750B1 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28640B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28620B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
2 | ||
| 71910-28620B0 |
CR40,50,SR40,50..E MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28640G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
2 | ||
| 71910-28660B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28540G2 |
CR40,50,SR40,50..E SAGE,TRIM6# |
2 | ||
| 71910-28650B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
2 | ||
| 71910-28540B2 |
CR40,50,SR40,50..D,E MOONMIST,TRIM1# |
2 | ||
| 71910-28751B2 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
2 | ||
| 71910-28750B1 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
2 | ||
| 71910-28660B2 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ付,DK.SAGE,TRIM6# |
2 | ||
| 71931-28050G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ無,DK.SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ付,DK.SAGE,TRIM6# |
2 | ||
| 71931-28050G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ無,DK.SAGE,TRIM6# |
2 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-28660B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 72880-28470B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 72880-28570B2 |
CR40,50,SR40,50..E MOONMIST,TRIM1# |
1 | ||
| 72880-28470G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 72880-28570G2 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 72880-28661B0 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 72880-28660B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M), *(N);ｴｸｻ-ﾌﾞ *(J), *(K),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-28480B2 |
CR40,50,SR40,50..E MOONMIST,TRIM1# |
1 | ||
| 72890-28410B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 72890-28550BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 72890-28480G2 |
CR40,50,SR40,50..E SAGE,TRIM6# |
1 | ||
| 72890-28550B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 72890-28551B0 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 72890-28410G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-10456 | ||||
ILLUST NO. 1 OF 2(9610-0111)Q,V ; (9610-0111)CR40,50,SR40,50..IV5
ﾘﾔ NO.1 ｼ-ﾄ=ｷﾔﾌﾟﾃﾝｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040B0 |
CR40,50,SR40,50..(07S,08S)..CBU ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050B0 |
CR40,50,SR40,50..(07S,08S)..CBU ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040G0 |
CR40,50,SR40,50..(E,Q)..CBU ﾛｯｸ付,DK.SAGE,TRIM6# |
2 | ||
| 71930-28040B0 |
CR40,50,SR40,50..07S,08S ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ付,DK.SAGE,TRIM6# |
2 | ||
| 71930-28040B0 |
CR40,50,SR40,50..E..CBU ﾛｯｸ付,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71931-28050G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ無,DK.SAGE,TRIM6# |
2 | ||
| 71931-28050G0 |
CR40,50,SR40,50..(E,Q)..CBU ﾛｯｸ無,DK.SAGE,TRIM6# |
2 | ||
| 71931-28050B0 |
CR40,50,SR40,50..E..CBU ﾛｯｸ無,ｴｸｻ-ﾌﾞ *(J), *(K),MEDIUM MOON MIST,TRIM1 |
2 | ||
| 71930-28040B0 |
CR40,50,SR40,50..E..CBU ﾛｯｸ付,ｴｸｻ-ﾌﾞ *(J), *(K),MEDIUM MOON MIST,TRIM1 |
2 | ||
| 71931-28050BO |
CR40,50,SR40,50..E..CBU ﾛｯｸ無,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71931-28050B0 |
CR40,50,SR40,50..07S,08S ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040B0 |
CR40,50,SR40,50..(07S,08S)..CBU ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050B0 |
CR40,50,SR40,50..(07S,08S)..CBU ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040G0 |
CR40,50,SR40,50..(E,Q)..CBU ﾛｯｸ付,DK.SAGE,TRIM6# |
2 | ||
| 71930-28040B0 |
CR40,50,SR40,50..07S,08S ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ付,DK.SAGE,TRIM6# |
2 | ||
| 71930-28040B0 |
CR40,50,SR40,50..E..CBU ﾛｯｸ付,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71931-28050G0 |
CR40,50,SR40,50..E,Q ﾛｯｸ無,DK.SAGE,TRIM6# |
2 | ||
| 71931-28050G0 |
CR40,50,SR40,50..(E,Q)..CBU ﾛｯｸ無,DK.SAGE,TRIM6# |
2 | ||
| 71931-28050B0 |
CR40,50,SR40,50..E..CBU ﾛｯｸ無,ｴｸｻ-ﾌﾞ *(J), *(K),MEDIUM MOON MIST,TRIM1 |
2 | ||
| 71930-28040B0 |
CR40,50,SR40,50..E..CBU ﾛｯｸ付,ｴｸｻ-ﾌﾞ *(J), *(K),MEDIUM MOON MIST,TRIM1 |
2 | ||
| 71931-28050BO |
CR40,50,SR40,50..E..CBU ﾛｯｸ無,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71931-28050B0 |
CR40,50,SR40,50..07S,08S ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-28620B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
4 | ||
| 71910-28750B1 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28620B0 |
CR40,50,SR40,50..E..CBU MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28540G2 |
CR40,50,SR40,50..E SAGE,TRIM6# |
2 | ||
| 71910-28540B2 |
CR40,50,SR40,50..D,E MOONMIST,TRIM1# |
2 | ||
| 71910-28650B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
2 | ||
| 71910-28620G1 |
CR40,50,SR40,50..E..CBU DK. SAGE,TRIM6# |
2 | ||
| 71910-28640G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
2 | ||
| 71910-28640G0 |
CR40,SR40,50..Q DK. SAGE,TRIM6# |
2 | ||
| 71910-28640B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28640B0 |
CR40,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
2 | ||
| 71910-28750B1 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
2 | ||
| 71910-28751B2 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
2 | ||
| 71910-28660B2 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
4 | ||
| 71910-28660B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MEDIUM MOON MIST,TRIM1# |
2 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-28240G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
2 | ||
| 72810-28240B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
2 | ||
| 72810G - CLIP, REAR SEAT ARMREST | ||||
| 72848-28010B0 |
CR40,50,SR40,50..Q MOON MIST,TRIM1# |
4 | ||
| 72848-28010G0 |
CR40,50,SR40,50..Q SAGE,TRIM6# |
4 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-28220G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
2 | ||
| 72820-28220B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 71075-28450B0 |
CR40,50,SR40,50..E..CBU MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71075-28550G1 |
CR40,50,SR40,50..E..CBU SAGE,TRIM6# |
1 | ||
| 71075-28450G0 |
CR40,50,SR40,50..E..CBU DK. SAGE,TRIM6# |
1 | ||
| 71075-28580BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71075-28530B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71075-28450B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71075-28490B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71075-28580B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M),*(N) OR ｴｸｻｰﾌﾞ *(J),*(K),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71075-28550B2 |
CR40,50,SR40,50..(D,E)..CBU MOON MIST,TRIM1# |
1 | ||
| 71075-28480G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 71075-28480B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71075-28581B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71075-28590B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71066-28310G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 71066-28320B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71066-28340B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71066-28360B2 |
CR40,50,SR40,50..D MOON MIST,TRIM1# |
1 | ||
| 71066-28300G0 |
CR40,50,SR40,50..E..CBU DK. SAGE,TRIM6# |
1 | ||
| 71066-28310B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71066-28350B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71066-28370B1 |
CR40,50,SR40,50..E..CBU MOON MIST,TRIM1# |
1 | ||
| 71066-28390BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71066-28400B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71066-28390B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M),*(N) OR ｴｸｻｰﾌﾞ *(J),*(K),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71066-28370G1 |
CR40,50,SR40,50..E..CBU SAGE,TRIM6# |
1 | ||
| 71066-28300B0 |
CR40,50,SR40,50..E..CBU MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71066-28391B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 71077-28630BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71077-28460B0 |
CR40,50,SR40,50..E..CBU MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71077-28460G0 |
CR40,50,SR40,50..E..CBU DK. SAGE,TRIM6# |
1 | ||
| 71077-28460B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71077-28500B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71077-28540B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71077-28490B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71077-28490G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 71077-28590G1 |
CR40,50,SR40,50..E..CBU SAGE,TRIM6# |
1 | ||
| 71077-28640B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 71077-28630B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M),*(N) OR ｴｸｻｰﾌﾞ *(J),*(K),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71077-28631B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71077-28590B2 |
CR40,50,SR40,50..(D,E)..CBU MOON MIST,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 71078-28350BO |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71078-28290B0 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71078-28330B2 |
CR40,50,SR40,50..(D,E)..CBU MOON MIST,TRIM1# |
1 | ||
| 71077-28490B0 |
CR40,50,SR40,50..Q MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71078-28320B0 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 71078-28330G1 |
CR40,50,SR40,50..E..CBU SAGE,TRIM6# |
1 | ||
| 71078-28290B0 |
CR40,50,SR40,50..E..CBU MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71078-28290G0 |
CR40,50,SR40,50..E..CBU DK. SAGE,TRIM6# |
1 | ||
| 71078-28350B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ *(M),*(N) OR ｴｸｻｰﾌﾞ *(J),*(K),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 71077-28490G0 |
CR40,50,SR40,50..Q DK. SAGE,TRIM6# |
1 | ||
| 71078-28351B1 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 71078-28300B0 |
CR40,50,SR40,50..D MEDIUM MOON MIST,TRIM1# |
1 | ||
| 71078-28360B1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-28620B0 |
CR40,50,SR40,50..E..CBU ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79120-2J070BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79120-28620G0 |
CR40,50,SR40,50..E..CBU ***,DK. SAGE,TRIM6# |
1 | ||
| 79120-28860B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79120-28640B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79120-2J070B0 |
CR40,50,SR40,50..E..CBU ***,ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79120-2J030B1 |
CR40,50,SR40,50..(D,E)..CBU ***,MOON MIST,TRIM1# |
1 | ||
| 79120-2J030G1 |
CR40,50,SR40,50..E..CBU ***,SAGE,TRIM6# |
1 | ||
| 79120-28670B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79120-28620B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79120-2J071B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79120-28630G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 79120-28630B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-28640B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79130-28680BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79130-28560B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79130-28460B0 |
CR40,50,SR40,50..E..CBU ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79130-28610B2 |
CR40,50,SR40,50..D ***,MOON MIST,TRIM1# |
1 | ||
| 79130-28470B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79130-28480B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79130-28660G1 |
CR40,50,SR40,50..E..CBU ***,SAGE,TRIM6# |
1 | ||
| 79130-28660B1 |
CR40,50,SR40,50..E..CBU ***,MOON MIST,TRIM1# |
1 | ||
| 79130-28620B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79130-28680B0 |
CR40,50,SR40,50..E..CBU ***,ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79130-28681B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79130-28460G0 |
CR40,50,SR40,50..E..CBU ***,DK. SAGE,TRIM6# |
1 | ||
| 79130-28470G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 71611-28140 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ) |
1 | ||
| 71611-28140 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 71611-28140 |
CR40,50,SR40,50..Q |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-2J160B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79140-2J230B1 |
CR40,50,SR40,50..(D,E)..CBU ***,MOON MIST,TRIM1# |
1 | ||
| 79140-28780B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79140-28800B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79140-2J280BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79140-2J230G1 |
CR40,50,SR40,50..E..CBU ***,SAGE,TRIM6# |
1 | ||
| 79140-28780B0 |
CR40,50,SR40,50..E..CBU ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79140-28780G0 |
CR40,50,SR40,50..E..CBU ***,DK. SAGE,TRIM6# |
1 | ||
| 79140-28790G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 79140-28790B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79140-2J280B0 |
CR40,50,SR40,50..E..CBU ***,ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79140-28840B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79140-2J281B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-28670B0 |
CR40,50,SR40,50..E..CBU ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79150-2J090BO |
CR40,50,SR40,50..E..CBU ***,ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79150-28670B0 |
SR40,50..ATM..D ***,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 79150-2J040B2 |
CR40,50,SR40,50..(D,E)..CBU ***,MOON MIST,TRIM1# |
1 | ||
| 79140-28790B0 |
CR40,50,SR40,50..Q ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79150-28830B0 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MD.MOON MIST,TRIM1# |
1 | ||
| 79150-28670G0 |
CR40,50,SR40,50..E..CBU ***,DK. SAGE,TRIM6# |
1 | ||
| 79150-2J090B0 |
CR40,50,SR40,50..E..CBU ***,ﾘﾓ *(M), *(N),MEDIUM MOON MIST,TRIM1 |
1 | ||
| 79150-28680B0 |
CR40,50,SR40,50..D ***,MEDIUM MOON MIST,TRIM1# |
1 | ||
| 79140-28790G0 |
CR40,50,SR40,50..Q ***,DK. SAGE,TRIM6# |
1 | ||
| 79150-2J010B1 |
SR40,50..SRF..E ***,TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,MOON MIST,TRIM1# |
1 | ||
| 79150-2J091B1 |
CR40,50,SR40,50..E..CBU ***,ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),MD.MOON MIST,TRIM1# |
1 | ||
| 79150-2J040G1 |
CR40,50,SR40,50..E..CBU ***,SAGE,TRIM6# |
1 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79170-28050 |
CR40,50,SR40,50..Q;CR40,50,SR40,50..IV5 |
1 | ||
| 79170-28050 |
CR40,50,SR40,50..Q |
1 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79170-28050 |
CR40,50,SR40,50..(07S,08S)..CBU |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 71652-28070 |
CR40,50,SR40,50..Q |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79190-28280 |
CR40,50,SR40,50..Q |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 71652-28070 |
CR40,50,SR40,50..Q |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-28280 |
CR40,50,SR40,50..Q |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90386-14007 | ||||
| 94531-01400 | ||||
| 94612-11400 | ||||
ILLUST NO. 2 OF 2(9611-9812)KR4#..D ; (9611-0111)B ; (9611-0407)CR41,42,51,52..D
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-28050G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71108-28050B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-28100B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71109-28100G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-28010B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71139-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71149A - COVER, FRONT SEAT LEG, LH | ||||
| 71149-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71149-28010B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-28150G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71811-28150B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28130B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71811-28130G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28010B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71861-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-28040 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72123-28040B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72124-28020B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-60070 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72127-28010B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-60030 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
8 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05063B3 |
CR40,50,SR40,50..E,Q BLUISH GRAY,TRIM1#,6# |
2 | ||
| 90467-05063B3 |
CR4#,5#,KR4#,SR40,50..B,D,N,V BLUISH GRAY,TRIM1# |
2 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05063B3 |
CR40,50,SR40,50..E,Q BLUISH GRAY,TRIM1#,6# |
2 | ||
| 90467-05063B3 |
CR4#,5#,KR4#,SR40,50..B,D,N,V BLUISH GRAY,TRIM1# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 72157-28010B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28030 |
CR41,51,KR42..IV5;CR40,50,SR40,50..07S,08S 右側 |
1 | ||
| 72211-28030 |
CR4#,5#,KR4#,SR40,50 右側 |
1 | ||
| 72211-28070 |
CR40,50,SR40,50..07S,08S 左側 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-28060 |
CR4#,5#,KR4#,SR40,50 ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 72345-28050 |
CR40,50,SR40,50..07S,08S ﾘﾔｼｰﾄ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B7 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 72525-16010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90105-10418 | ||||
| 90109-08255 | ||||
| 90119-10897 | ||||
| 90159-40246 | ||||
| 90167-40044 | ||||
| 90167-40055 | ||||
| 90386-12018 | ||||
| 91511-60816 | ||||
| 91512-B1020 | ||||
| 94185-60800 | ||||
ILLUST NO. 2 OF 2(9610-0111)07S,08S ; (9611-0111)SR40,50..5D..ATM; (9611-0208)N
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-28050G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71108-28050B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-28100B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71109-28100G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-28010B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71139-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71149A - COVER, FRONT SEAT LEG, LH | ||||
| 71149-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71149-28010B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-28150G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71811-28150B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28130B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71811-28130G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-28150B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71812-28150G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28140G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71812-28140B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 71822A - BRACKET, FRONT SEAT SHIELD SET, NO.1 LH | ||||
| 71822-28010 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28010B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 71861-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 71862-28010B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-28061 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 72012-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-28040 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72123-28040B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72124-28020B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-28020G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72124-28020B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-60070 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72127-28010B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72127-28010B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72127-28010B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72128-28010B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72128-28010B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72128-28010B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-60030 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
8 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05063B3 |
CR40,50,SR40,50..E,Q BLUISH GRAY,TRIM1#,6# |
2 | ||
| 90467-05063B3 |
CR4#,5#,KR4#,SR40,50..B,D,N,V BLUISH GRAY,TRIM1# |
2 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05063B3 |
CR4#,5#,KR4#,SR40,50..B,D,N,V BLUISH GRAY,TRIM1# |
2 | ||
| 90467-05063B3 |
CR40,50,SR40,50..E,Q BLUISH GRAY,TRIM1#,6# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
2 | ||
| 72157-28010B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28030 |
CR41,51,KR42..IV5;CR40,50,SR40,50..07S,08S 右側 |
1 | ||
| 72211-28030 |
CR4#,5#,KR4#,SR40,50 右側 |
1 | ||
| 72211-28070 |
CR40,50,SR40,50..07S,08S 左側 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28030 |
CR41,51,KR42..IV5;CR40,50,SR40,50..07S,08S 右側 |
1 | ||
| 72211-28030 |
CR4#,5#,KR4#,SR40,50 右側 |
1 | ||
| 72211-28070 |
CR40,50,SR40,50..07S,08S 左側 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-28060 |
CR4#,5#,KR4#,SR40,50 ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 72345-28050 |
CR40,50,SR40,50..07S,08S ﾘﾔｼｰﾄ |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-28060 |
CR4#,5#,KR42,SR40,50..05S,07S,08S ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 72345-28050 |
CR40,50,SR40,50..07S,08S NO.2 ｼｰﾄ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B7 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 72525-16010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 72526-16010B7 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10836 | ||||
| 90167-40044 | ||||
| 90167-40055 | ||||
| 91511-60816 | ||||
| 91512-61020 | ||||
| 91611-60816 | ||||
| 93560-54010 | ||||
(9610- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
