KR52V-SRSDE (2004)

Toyota Lite/Townace Noah,V

Production Dec 2004 - Aug 2007
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

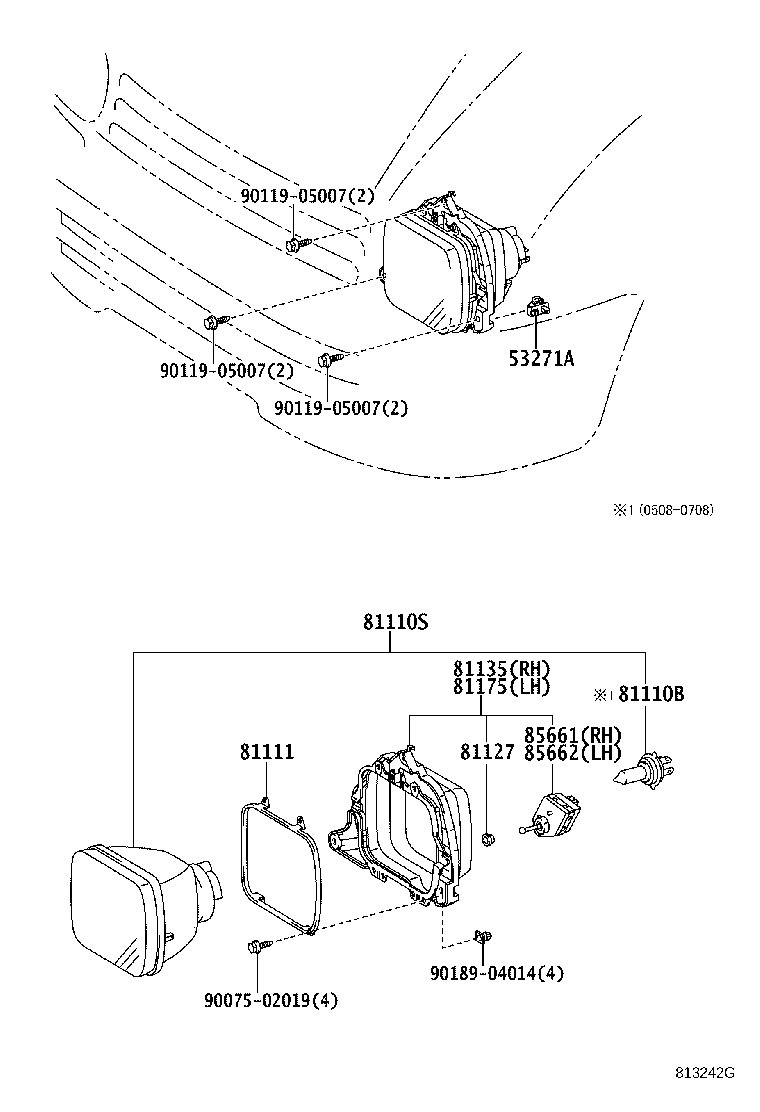

Click highlighted areas on diagram

diagram 53271A 81110B 81110S 81111 81127 81135 81175 85661 85662 9007502019 9011905007 9011905007 9011905007 9018904014
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

CR4#,5#,KR4#,SR40,50

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

KR42,52

12V 60/55W,ﾊﾛｹﾞﾝ

 2
81110S - SEALED BEAM UNIT, NO.1
81110-28B30

KR42,52

12V 60/55W,*HAL,*WB

 2
81111 - RING, SEALED BEAM RETAINING
81111-2B360

KR42,52

 2
81127 - BEARING, HEADLAMP, NO.1
90075-10810

KR42,52

 4
81135 - UNIT ASSY, HEADLAMP, RH
81130-28A90

KR42,52

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-28A90

KR42,52

 1
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-26010

KR42,52

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-26010

KR42,52

 1
Common parts
90075-02019
90119-05007
90189-04014
