KR52V-FSSNE (2004)

Toyota Lite/Townace Noah,V

Production Dec 2004 - Aug 2007
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

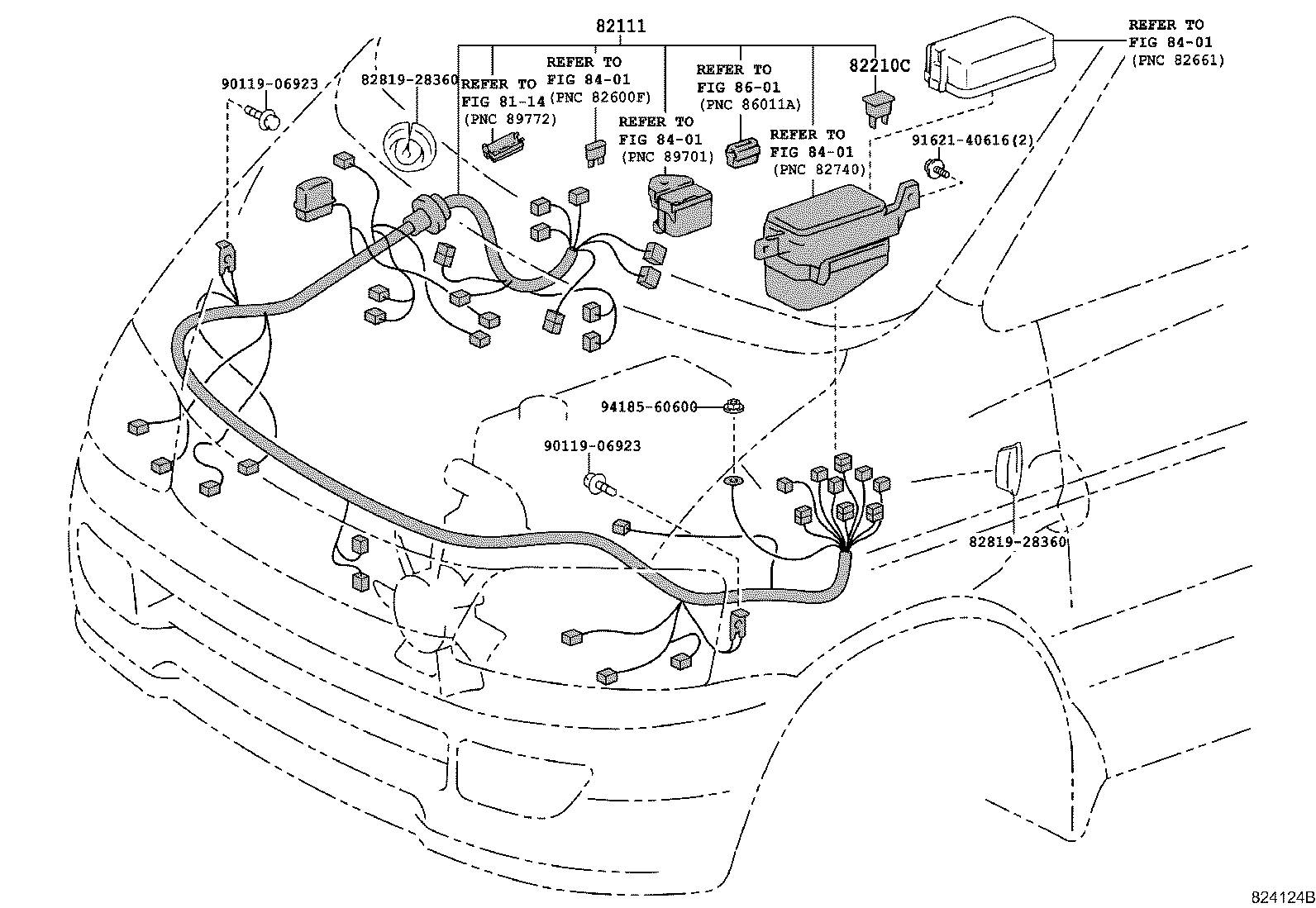

ILLUST NO. 2 OF 9(0412- )KR52

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾙｰﾑ ﾜｲﾔ

diagram 8114 82111 82210C 8281928360 8281928360 8401 8401 8401 8401 8601 9011906923 9011906923 9162140616 9418560600
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-2X602

KR42,52

 1
82210C - FUSIBLE LINK
90982-08202

CR4#,5#,KR4#,SR40,50

60A,ｵｽ端子,黄

 1
90982-08285

CR4#,5#,KR4#,SR40,50

50A,ﾒｽ端子,赤

 1
90982-08286

CR4#,5#,KR4#,SR40,50

140A,ｵｽ端子,赤茶

 1
90982-08203

CR4#,5#,KR4#,SR40,50

80A,ｵｽ端子,黒

 1
90982-08280

CR4#,5#,KR4#,SR40,50

30A,ﾒｽ端子,桃

 1
90982-08254

CR4#,5#,KR4#,SR40,50

120A,ｵｽ端子,白

 1
90982-08284

CR4#,5#,KR4#,SR40,50

40A,ﾒｽ端子,緑

 1
90982-08246

CR4#,5#,KR4#,SR40,50

100A,ｵｽ端子,青

 1
Common parts
82819-28360
90119-06923
91621-40616
94185-60600
Linked diagrams
8114
8401
8601
