KR52V-ERSDE5 (2004)

Toyota Lite/Townace Noah,V

Production Dec 2004 - Aug 2007
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0412- )KR52..ATM

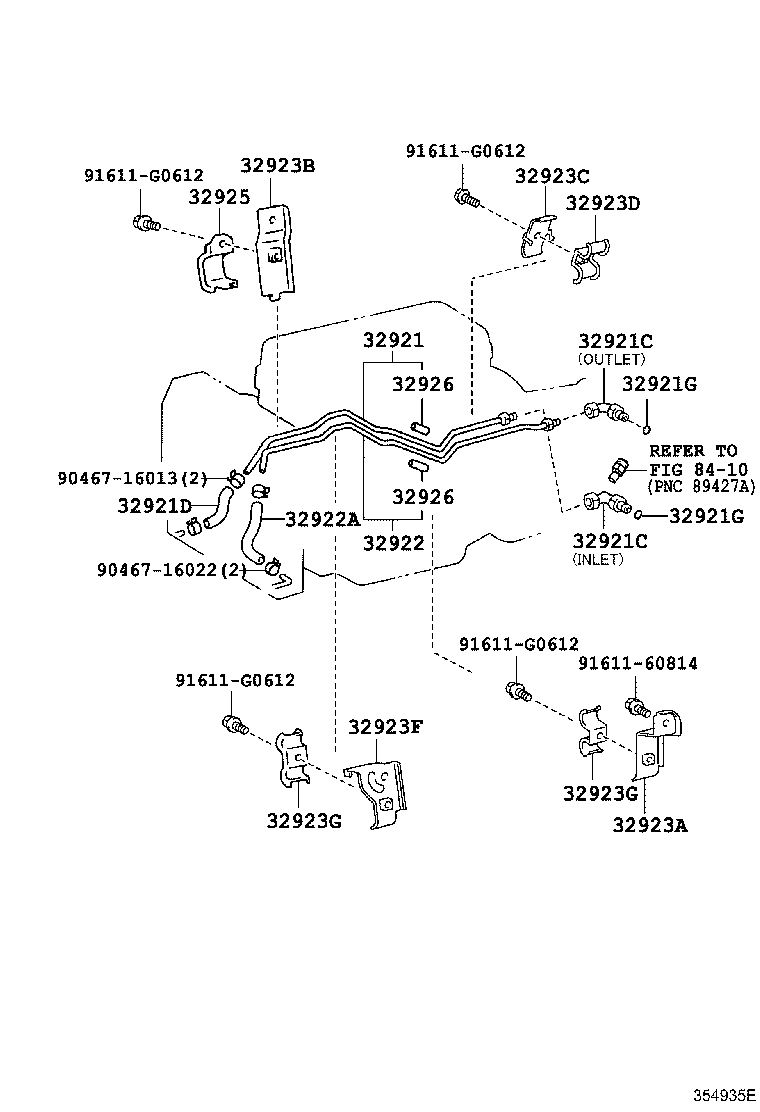

Click highlighted areas on diagram

A44DF

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923A 32923B 32923C 32923D 32923F 32923G 32923G 32925 32926 32926 8410 9046716013 9046716022 9161160814 91611G0612 91611G0612 91611G0612 91611G0612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-28310

KR52..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

CR4#,5#,KR4#,SR40,50..ATM

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

CR4#,5#,KR4#,SR40,50..ATM

ｱｳﾄﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17150

CR4#,5#,SR40,50..ATM

 1
32941-28250

KR52..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

CR4#,5#,KR4#,SR40,50..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

CR4#,5#,KR4#,SR40,50..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-28230

KR52..ATM

 1
32922-28170

CR4#,5#..ATM

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-28140

KR52..ATM

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-28110

CR4#,5#,SR40,50..ATM

 1
32925-28040

KR52..ATM

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32923-28150

KR52..ATM

 1
32924-28070

CR4#,5#,SR40,50..ATM

 1
32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5
32923-28160

KR52..ATM

 1
32923F - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.7
32924-28090

KR52..ATM

 1
32923G - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8
90462-12044

KR52..ATM

 2
32923G - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8
90462-12044

KR52..ATM

 2
32925 - CLAMP, OIL COOLER TUBE, NO.3
32929-28010

CR4#,5#,KR4#,SR40,50..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

KR52..ATM

長さ=35,内径=10

 8
32926-30020

CR4#,5#,SR40,50..ATM

長さ=35,内径=10

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

KR52..ATM

長さ=35,内径=10

 8
32926-30020

CR4#,5#,SR40,50..ATM

長さ=35,内径=10

 6
Common parts
90467-16013
90467-16022
91611-60814
91611-G0612
Linked diagrams
8410
