KR42V-RRMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 7K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-0508)

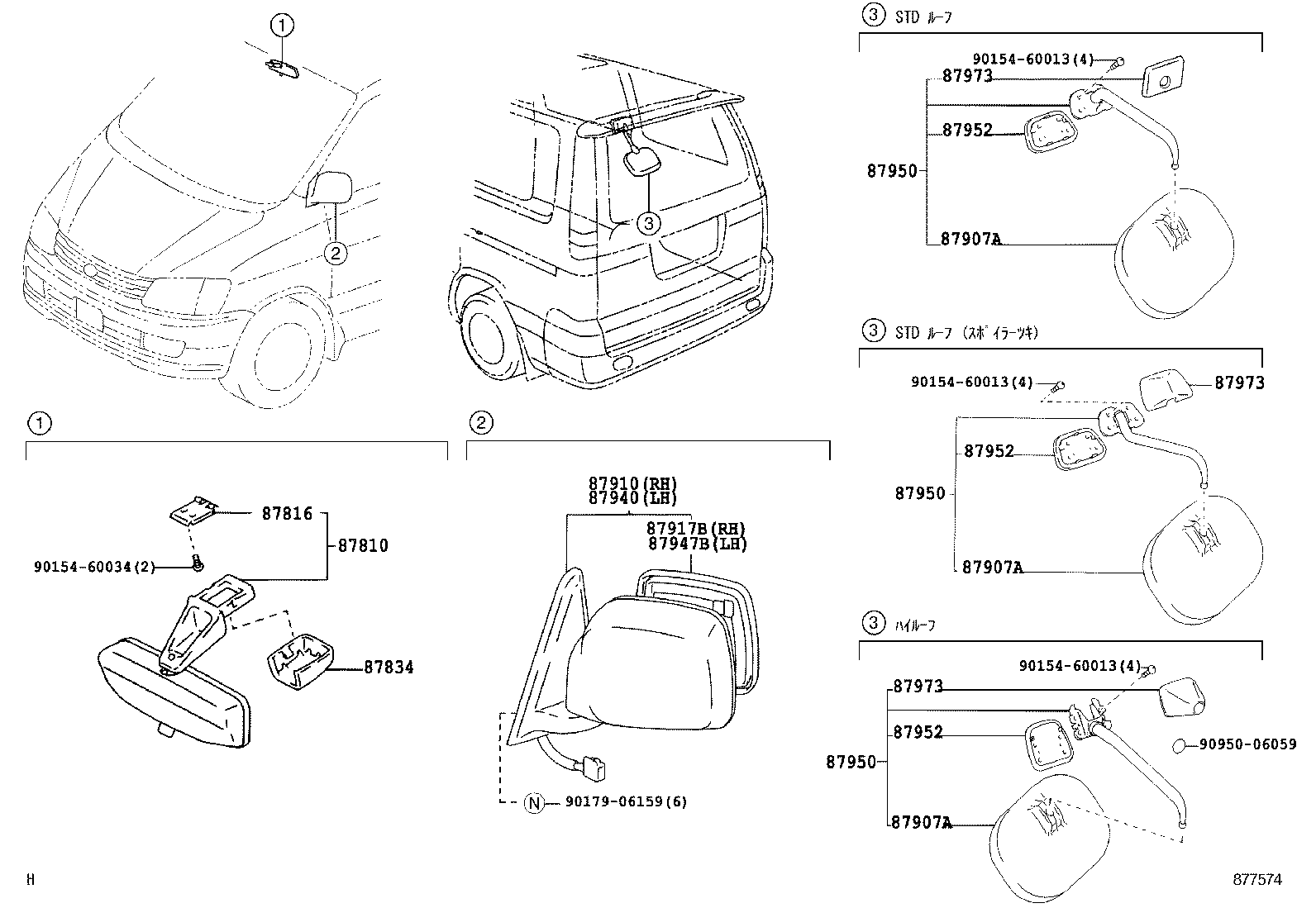

Click highlighted areas on diagram

diagram 87810 87816 87834 87907A 87907A 87907A 87910 87917B 87940 87947B 87950 87950 87950 87952 87952 87952 87973 87973 87973 9015460013 9015460013 9015460013 9015460034 9017906159 9095006059
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-28120B0

CR4#,5#,KR4#,SR40,50..B,D

MOON MIST,TRIM1#

 1
87810-12240B4

CR4#,5#,KR42,SR40,50..E,N,Q,V

MOON MIST,TRIM1#

 1
87810-12230B2

CR4#,5#,KR4#,SR40,50..B,D

MOON MIST,TRIM1#

 1
87810-28110B0

CR4#,5#,KR42,SR40,50..E,N,Q,V

MOON MIST,TRIM1#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

CR4#,5#,KR4#,SR40,50

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-12030B5

CR4#,5#,KR4#,SR40,50

MOON MIST,TRIM1#

 1
87907A - MIRROR SUB-ASSY, OUTER UNDER REAR VIEW
87907-95J02

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
87907A - MIRROR SUB-ASSY, OUTER UNDER REAR VIEW
87907-95J02

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
87907A - MIRROR SUB-ASSY, OUTER UNDER REAR VIEW
87907-95J02

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-28420

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87917-60540

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-28430

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-60480

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-28070

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N,Q)..CBU

 1
87950-28070

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N)..CBU

 1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-28070

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N,Q)..CBU

 1
87950-28070

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N)..CBU

 1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-28070

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N,Q)..CBU

 1
87950-28070

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N)..CBU

 1
87973 - COVER, OUTER UNDER RR VIEW MIRROR
87973-28050

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N)..CBU

 1
87973-28050

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N,Q)..CBU

 1
87973 - COVER, OUTER UNDER RR VIEW MIRROR
87973-28050

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N)..CBU

 1
87973-28050

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N,Q)..CBU

 1
87973 - COVER, OUTER UNDER RR VIEW MIRROR
87973-28050

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N)..CBU

 1
87973-28050

CR4#,5#,KR4#,SR40,50..SRF..(D,E,N,Q)..CBU

 1
Common parts
90154-60013
90154-60034
90179-06159
90950-06059
