KR42V-FSSNE (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Aug 2007
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9812- )CR42,52,KR52,SR40,50..05S,06S..CBU ;(0208- )KR42..HRF..5D..ATM..V1

Click highlighted areas on diagram

ﾘﾔ

diagram 87249B 87249C 87255A 87256A 8963928020 8963928030 8963928030 8963928030 8963928120 8963928130 9017906306 9017906306 9017906306 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022
Part # Description Qty Price
87249B - PIPE, HEATER WATER OUTLET, B
87248-28100

KR42..HRF..5D..ATM..V1

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-28110

KR42..HRF..5D..ATM..V1

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-28770

KR42..HRF..5D..ATM..V1

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-28760

KR42..HRF..5D..ATM..V1

 1
Common parts
89639-28020
89639-28030
89639-28120
89639-28130
90179-06306
90467-19022

ILLUST NO. 1 OF 2(9812- )CR4#,5#

Click highlighted areas on diagram

ﾌﾛﾝﾄ---ｱﾘ(ﾘﾔ ﾋ-ﾀ)

diagram 87245A 87245A 87245A 87245A 87246A 87246A 87246A 87248L 87248M 87248X 87249D 87256C 8963928070 8963928080 8963928130 8963928140 9046719022 9046719022 9046719022 9046719022 9046719022 9046722011 9046722011 9095901543 9165140614 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-2J800

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87245-2J790

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J120

CR4#,5#

NO.2

 1
87245-28570

KR42,52

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2J800

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87245-2J790

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J120

CR4#,5#

NO.2

 1
87245-28570

KR42,52

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2J800

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87245-2J790

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J120

CR4#,5#

NO.2

 1
87245-28570

KR42,52

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2J800

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87245-2J790

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J120

CR4#,5#

NO.2

 1
87245-28570

KR42,52

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J050

KR42,52

 1
87245-2J770

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J760

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J050

KR42,52

 1
87245-2J770

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J760

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J050

KR42,52

 1
87245-2J770

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J760

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87248M - PIPE, HEATER WATER, M
87248-60460

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

 2
87249D - PIPE, HEATER WATER OUTLET, D
87248-28320

KR42..HRF..5D..ATM..V1

 1
87248-28410

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-28A40

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

 1
87245-28750

KR42..HRF..5D..ATM..V1

 1
Common parts
89639-28070
89639-28080
89639-28130
89639-28140
90467-19022
90467-22011
90959-01543
91651-40614
96134-42100

ILLUST NO. 1 OF 2(9812- )KR42,52

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 87245A 87246A 87263 8963928160 9046622004 9046622004 9095901540 91651F0616 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-2J800

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87245-2J790

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J120

CR4#,5#

NO.2

 1
87245-28570

KR42,52

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J050

KR42,52

 1
87245-2J770

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J760

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-28020

KR42,52

 1
Common parts
89639-28160
90466-22004
90959-01540
91651-F0616
96134-42100

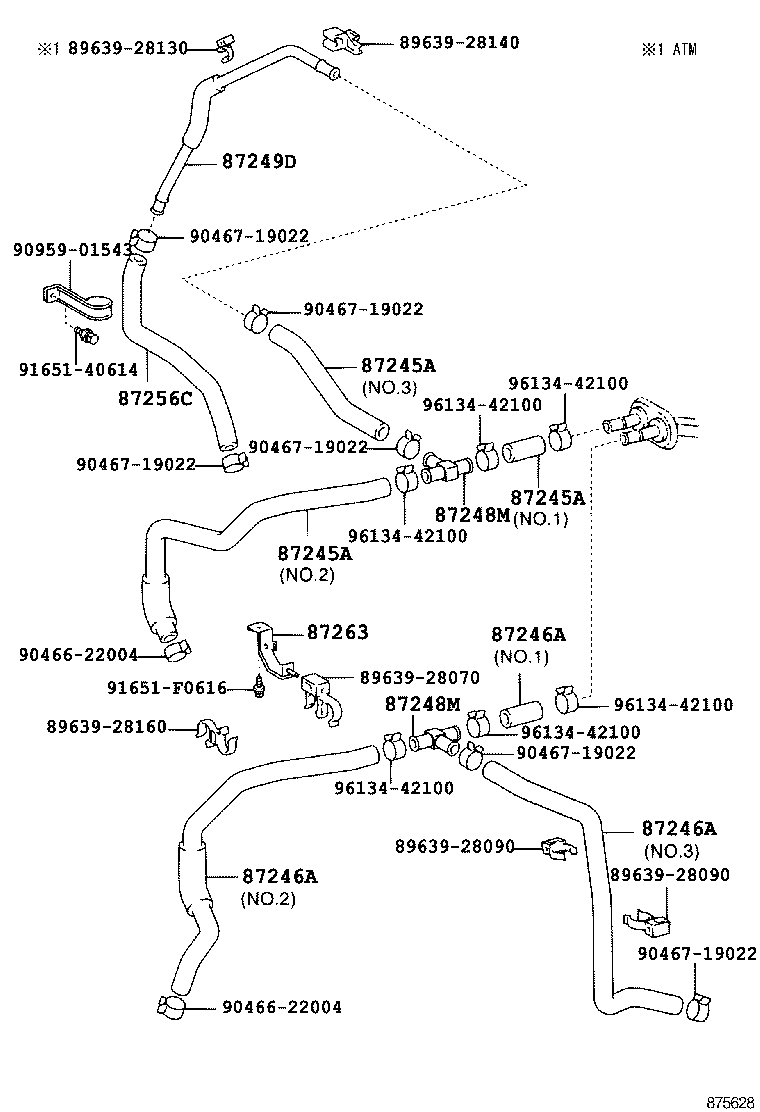

ILLUST NO. 1 OF 2(0208- )KR42..HRF..5D..ATM..V1 ; (0412- )KR52..05S,06S..CBU

Click highlighted areas on diagram

ﾌﾛﾝﾄ---ｱﾘ(ﾘﾔ ﾋ-ﾀ)

diagram 87245A 87245A 87245A 87246A 87246A 87246A 87248M 87248M 87249D 87256C 87263 8963928070 8963928090 8963928090 8963928130 8963928140 8963928160 9046622004 9046622004 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9095901543 9165140614 91651F0616 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-2J800

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87245-2J790

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J120

CR4#,5#

NO.2

 1
87245-28570

KR42,52

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2J800

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87245-2J790

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J120

CR4#,5#

NO.2

 1
87245-28570

KR42,52

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2J800

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87245-2J790

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J120

CR4#,5#

NO.2

 1
87245-28570

KR42,52

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J050

KR42,52

 1
87245-2J770

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J760

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J050

KR42,52

 1
87245-2J770

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J760

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J050

KR42,52

 1
87245-2J770

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3

 1
87245-2J760

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2

 1
87245-2J750

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1

 1
87248M - PIPE, HEATER WATER, M
87248-60460

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

 2
87248M - PIPE, HEATER WATER, M
87248-60460

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

 2
87249D - PIPE, HEATER WATER OUTLET, D
87248-28320

KR42..HRF..5D..ATM..V1

 1
87248-28410

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-28A40

KR52..(05S,06S)..CBU;KR42..HRF..5D..ATM..V1

 1
87245-28750

KR42..HRF..5D..ATM..V1

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-28020

KR42,52

 1
Common parts
89639-28070
89639-28090
89639-28130
89639-28140
89639-28160
90466-22004
90467-19022
90959-01543
91651-40614
91651-F0616
96134-42100
