KR42V-FRSDE (1998)
Toyota Lite/Townace Noah,V

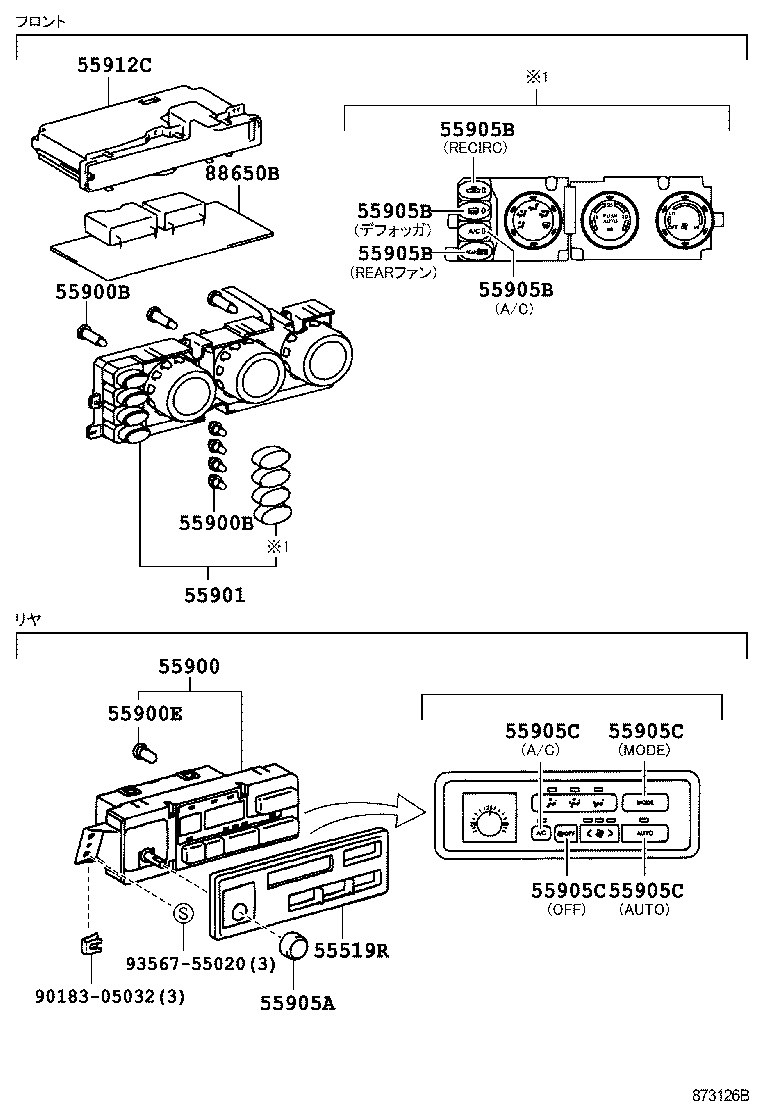

ILLUST NO. 1 OF 5(9812- )CR4#,5#,KR42,SR40,50
ﾌﾛﾝﾄ---ﾀﾞｲﾔﾙｼｷ(ｵｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S 14V 1.4W,*LHC |
1 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S 14V 1.4W,*LHC |
1 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S |
4 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93567-55020 | ||||

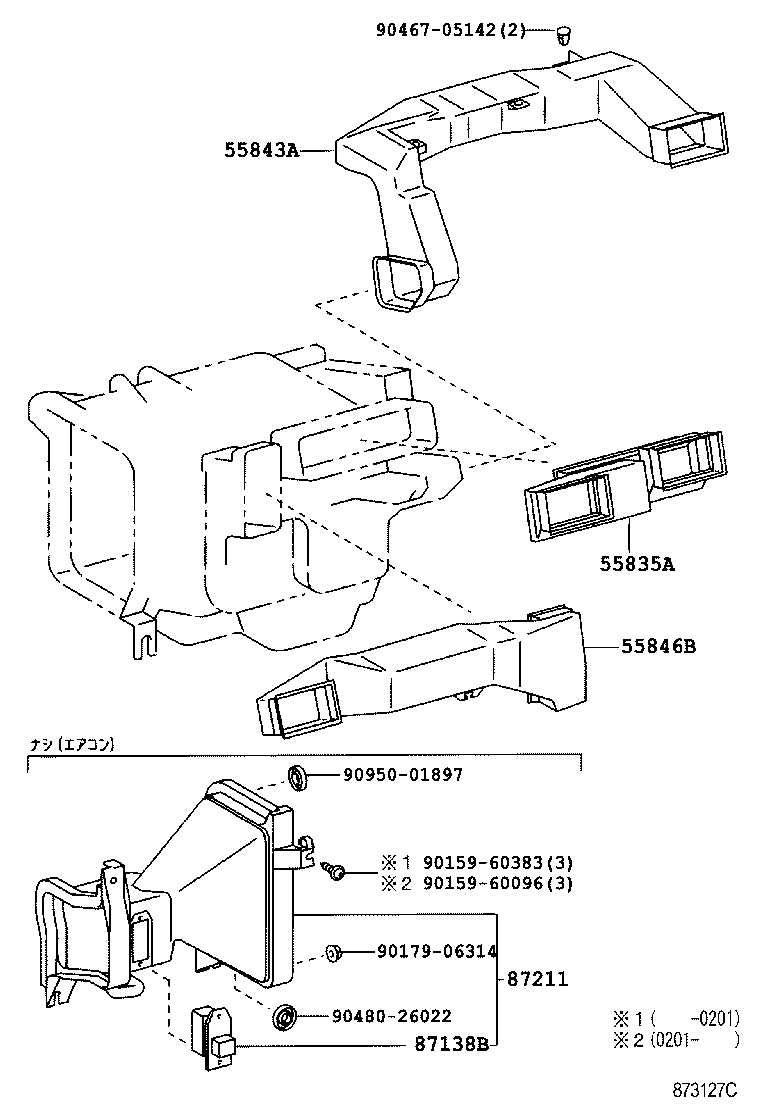

ILLUST NO. 3 OF 5(9812- )
ﾌﾛﾝﾄﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-28070 |
KR42,52 |
1 | ||
| 55835-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55843-28040 |
KR42,52 |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55846-28050 |
KR42,52 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-28160 |
CR42..06S..MTM..IV5;CR42,52,KR42..D..CBU |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-28150 |
CR42..06S..MTM..IV5;CR42,52,KR42..D..CBU |
1 | ||
| Common parts | ||||
| 90159-60096 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
| 90467-05142 | ||||
| 90480-26022 | ||||
| 90950-01897 | ||||

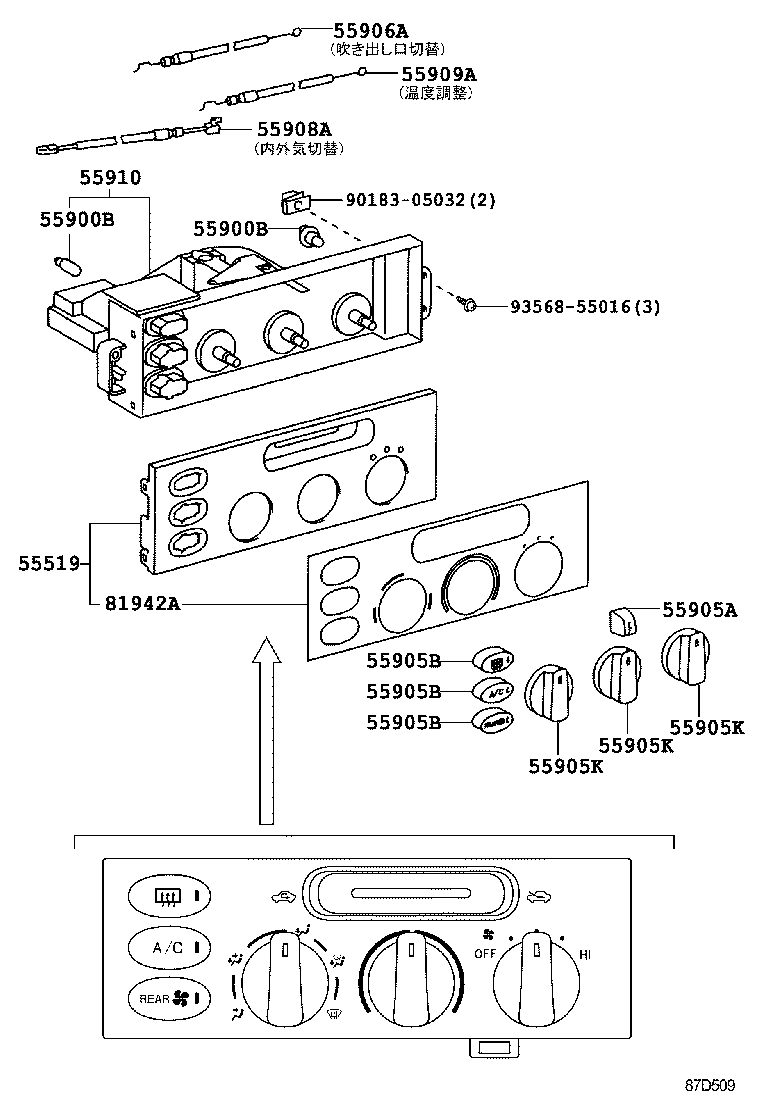

ILLUST NO. 1 OF 5(9812- )CR4#,5#,KR42,SR40,50
ﾌﾛﾝﾄ---ﾀﾞｲﾔﾙｼｷ(ﾏﾆｭｱﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-28380 |
CR52..D;CR42..SRF..D;KR42..D..CBU;CR42..03S..SJL;CR42..HRF..5D..06S;KR42..HRF..IV5..V1 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 55519-28380 |
KR52;KR42..N;KR42..SRF..IV5;KR42..IV5..SJL ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 55519-28420 |
CR42,52,KR42..D..CBU |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S 14V 1.4W,*LHC |
1 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S 14V 1.4W,*LHC |
1 | ||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 1.4W,*DH OR *LHC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
CR42..SRF..4D;CR42..06S..IV5;CR42..03S..SJL;CR42..5D..(05S,06S);CR52,KR42,52,SR40,50..03S,05S,06S |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 55906-28210 |
KR42,52 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-28110 |
KR42,52 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28160 |
KR42,52 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-28430 |
KR42,52 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-28080 |
KR42,52 |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93568-55016 | ||||
