KR42V-FRMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 7K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )5K,7K

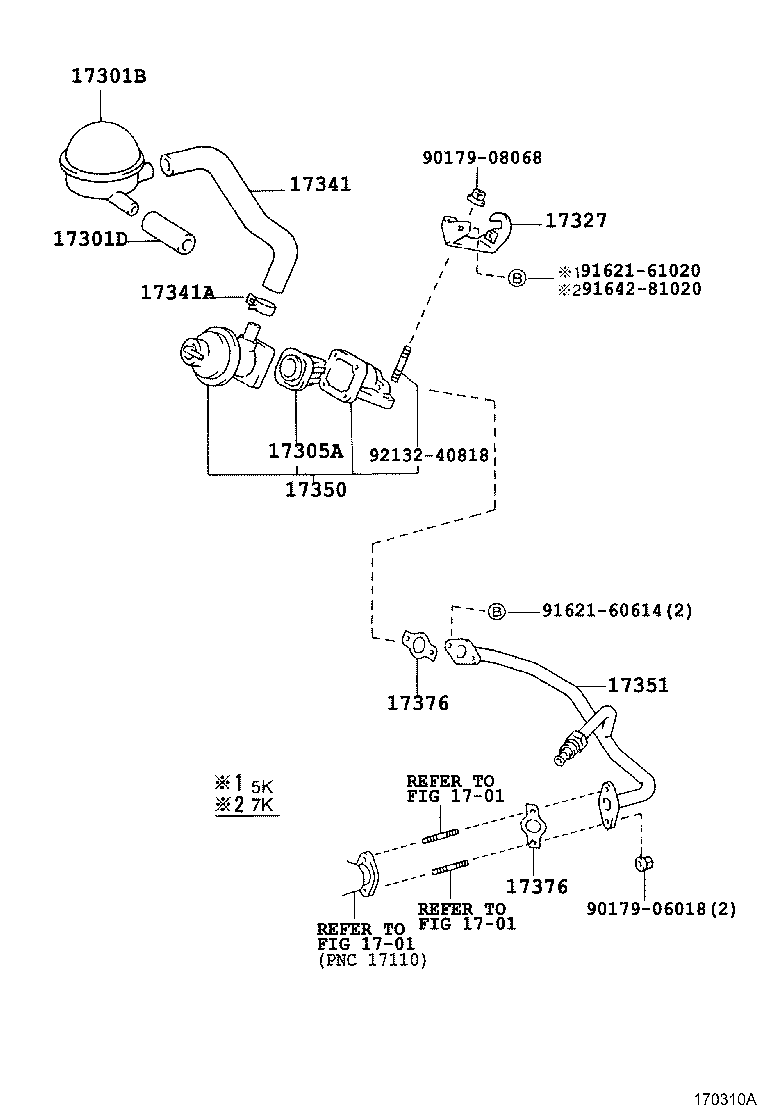

Click highlighted areas on diagram

diagram 1701 1701 1701 17301B 17301D 17305A 17327 17341 17341A 17350 17351 17376 17376 9017906018 9017908068 9162160614 9162161020 9164281020 9213240818
Part # Description Qty Price
17301B - SILENCER SUB-ASSY, AIR SUCTION
17301-13020

5K,7K..KR4#

 1
17301D - HOSE(FOR AIR SUCTION SILENCER)
90445-31014

5K,7K..KR4#

 1
17305A - VALVE SUB-ASSY, REED
17305-13030

5K,7K..KR4#

 1
17327 - BRACKET, REED VALVE
17327-13040

7K..KR42

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-13150

5K,7K..KR4#

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26002

5K,7K..KR4#

 1
90467-26001

5K,7K..KR4#

 1
17350 - VALVE ASSY, REED
17350-13070

5K,7K..KR4#

 1
17351 - MANIFOLD, AIR INJECTION
17306-13060

7K..KR42

 1
17376 - GASKET, AIR TUBE, NO.1
17376-13020

5K,7K..KR4#

 2
17376 - GASKET, AIR TUBE, NO.1
17376-13020

5K,7K..KR4#

 2
Common parts
90179-06018
90179-08068
91621-60614
91621-61020
91642-81020
92132-40818
Linked diagrams
1701
