KR42V-FRMDE (1998)
Toyota Lite/Townace Noah,V
Production
Dec 1998
-
Aug 2007
Engine
7KE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9812- )CR42,52,KR42,52,SR40,50

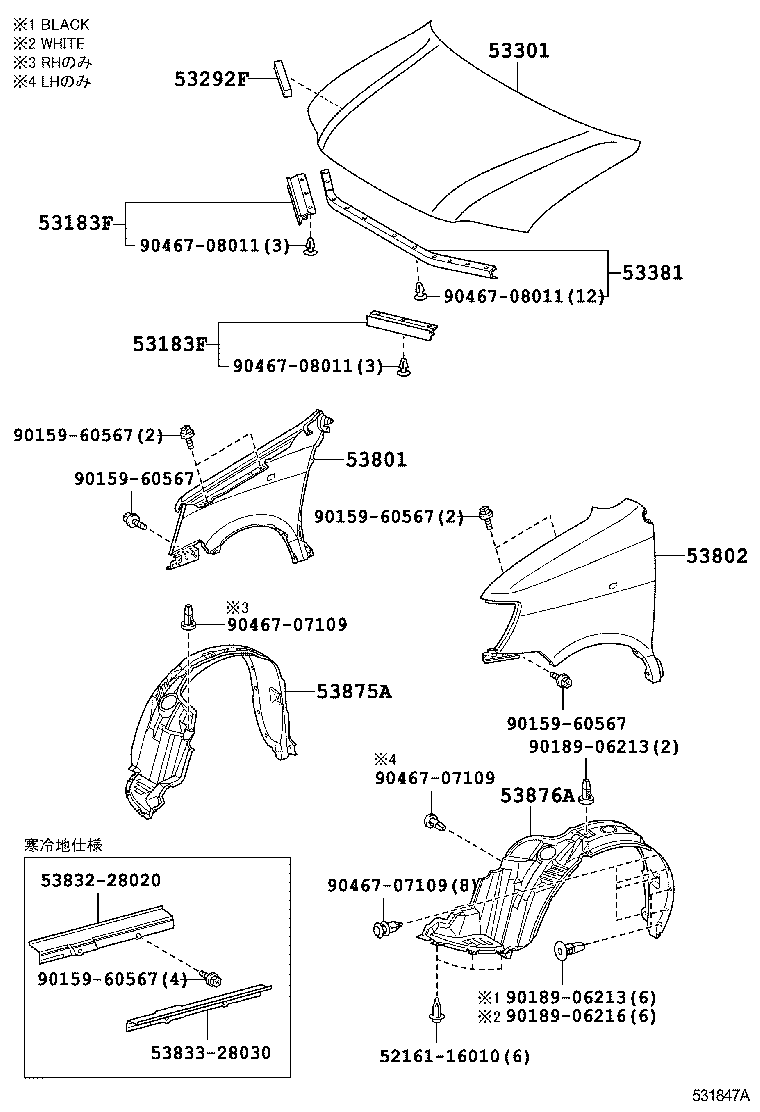

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183F - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53184-28020 |
CR4#,5#,KR4#,SR40,50 左側 |
1 | ||
| 53183-28050 |
CR4#,5#,KR4#,SR40,50 右側 |
1 | ||
| 53184-28020 |
KR42,52 左側 |
1 | ||
| 53183-28050 |
KR42,52 右側 |
1 | ||
| 53183F - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53184-28020 |
CR4#,5#,KR4#,SR40,50 左側 |
1 | ||
| 53183-28050 |
CR4#,5#,KR4#,SR40,50 右側 |
1 | ||
| 53184-28020 |
KR42,52 左側 |
1 | ||
| 53183-28050 |
KR42,52 右側 |
1 | ||
| 53292F - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-28010 |
KR42,52 |
1 | ||
| 53292-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 53301-28050 |
CR42,52,KR42,52,SR40,50 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-28020 |
KR42,52 |
1 | ||
| 53381-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 53811-28030 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 53812-28030 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 53802-28120 |
KR42,52 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-28050 |
KR42,52 |
1 | ||
| 53875-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 53876-28060 |
KR42,52 |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 53832-28020 | ||||
| 53833-28030 | ||||
| 90159-60567 | ||||
| 90189-06213 | ||||
| 90189-06216 | ||||
| 90467-07109 | ||||
| 90467-08011 | ||||
