KR42V-FNSNS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 7K
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )SJL

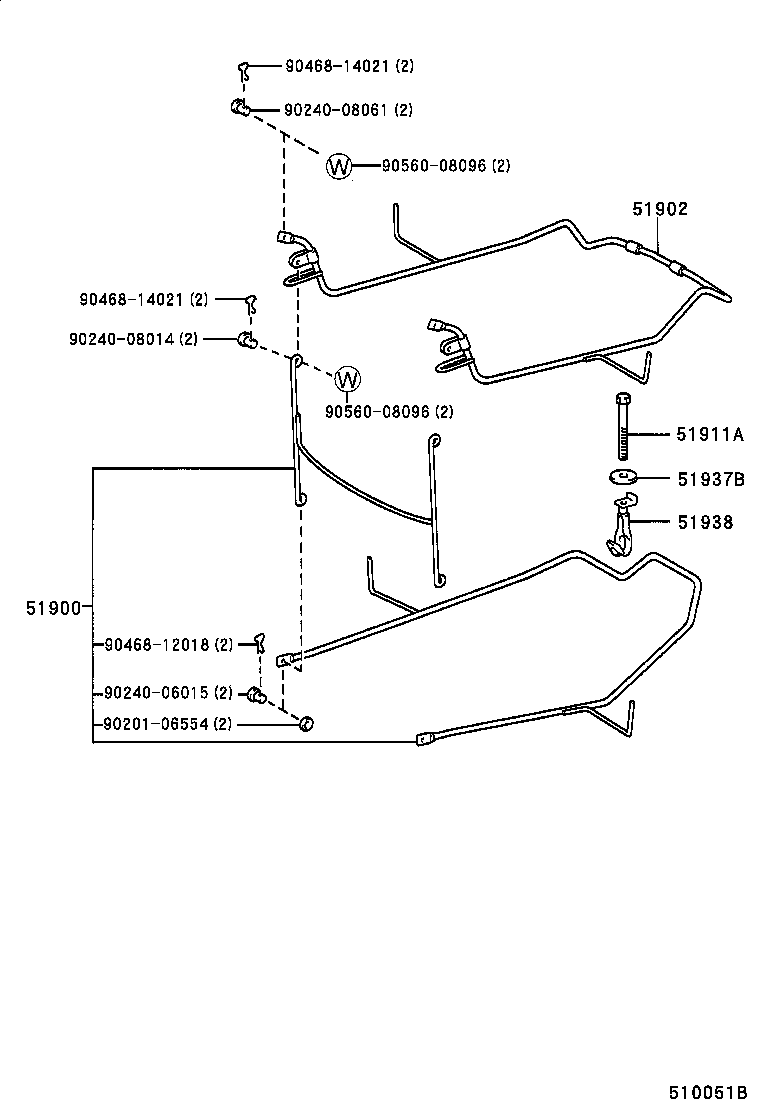

Click highlighted areas on diagram

diagram 51900 51902 51911A 51937B 51938 9020106554 9024006015 9024008014 9024008061 9046812018 9046814021 9046814021 9056008096 9056008096
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51901-28020

CR41,KR4#..SJL

 1
51902 - CARRIER SUB-ASSY, SPARE WHEEL
51903-28020

CR41,KR4#..SJL

 1
51911A - BOLT, SPARE WHEEL
51911-28060

CR41,KR4#..SJL

 1
51911-28050

CR40,5#,SR40,50..B,D,N

 1
51937B - PLATE, SPARE WHEEL CARRIER LOCK
51937-28010

CR4#,5#,KR4#,SR40,50

 1
51938 - LOCK, SPARE WHEEL CARRIER
51938-27070

CR41,KR4#..V1;CR40,5#,SR40,50

 1
51938-28090

CR41,KR4#..SJL

 1
Common parts
90201-06554
90240-06015
90240-08014
90240-08061
90468-12018
90468-14021
90560-08096
