KR42V-FNMNS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 7K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

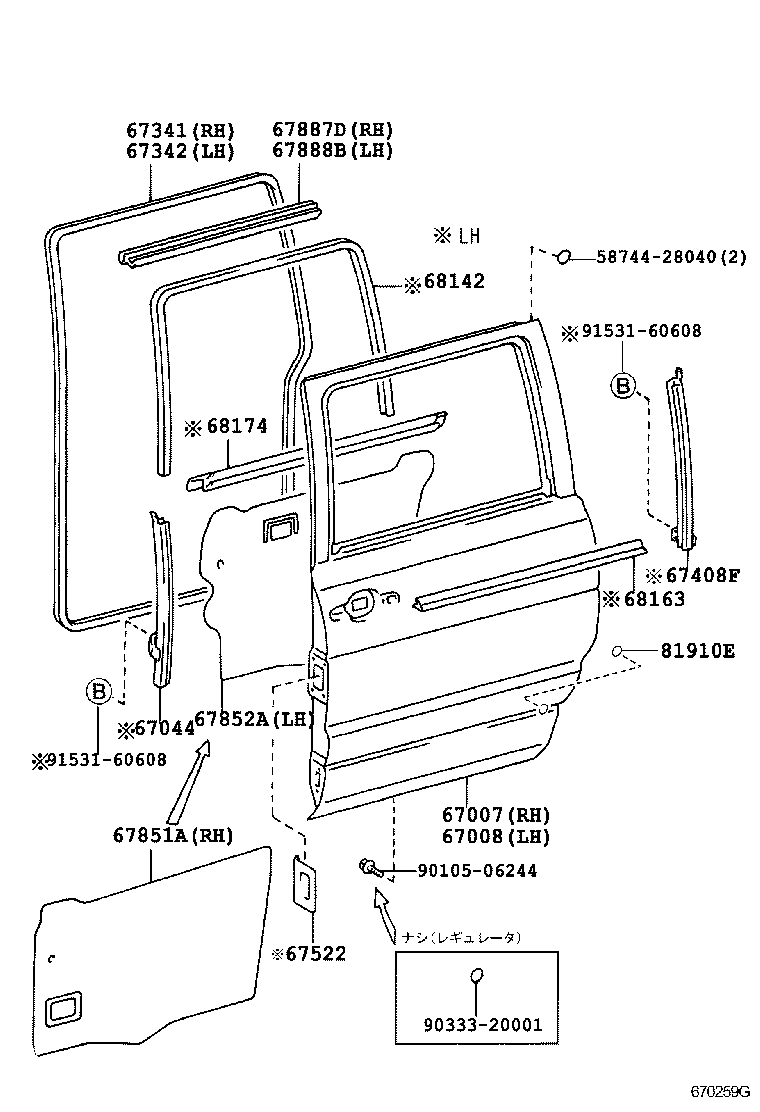

ILLUST NO. 2 OF 2(9611- )5D

Click highlighted areas on diagram

diagram 5874428040 67007 67008 67044 67341 67342 67408F 67522 67851A 67852A 67887D 67888B 68142 68163 68174 81910E 9010506244 9033320001 9153160608 9153160608
Part # Description Qty Price
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-28240

CR41,51,KR4#..5D..(05S,06S)

 1
67008 - PANEL SUB-ASSY, SLIDE DOOR, LH
67004-28010

CR41,51,KR4#..(05S,06S)..CBU

 1
67044 - FRAME SUB-ASSY, REAR DOOR WINDOW, LH
67044-28050

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67044-28070

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67044-28060

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67341 - WEATHERSTRIP, SLIDE DOOR, RH
67871-28020

CR41,51,KR4#,SR40,50..5D

 1
67342 - WEATHERSTRIP, SLIDE DOOR, LH
67872-28050

CR4#,5#,KR4#,SR40,50..B,D,N

 1
67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67408-28010

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67408-28030

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67408-28020

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67851-28030

CR41,51,KR4#,SR40,50..5D..(05S,06S)

 1
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-28050

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH
67887-28040

CR41,51,KR4#,SR40,50..5D

 1
67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH
67888-28030

CR4#,5#,KR4#,SR40,50

 1
68142 - RUN, REAR DOOR GLASS
68142-28050

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68164-28010

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
68174 - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-28010

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
Common parts
58744-28040
90105-06244
90333-20001
91531-60608
