KR42V-FMMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 7K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

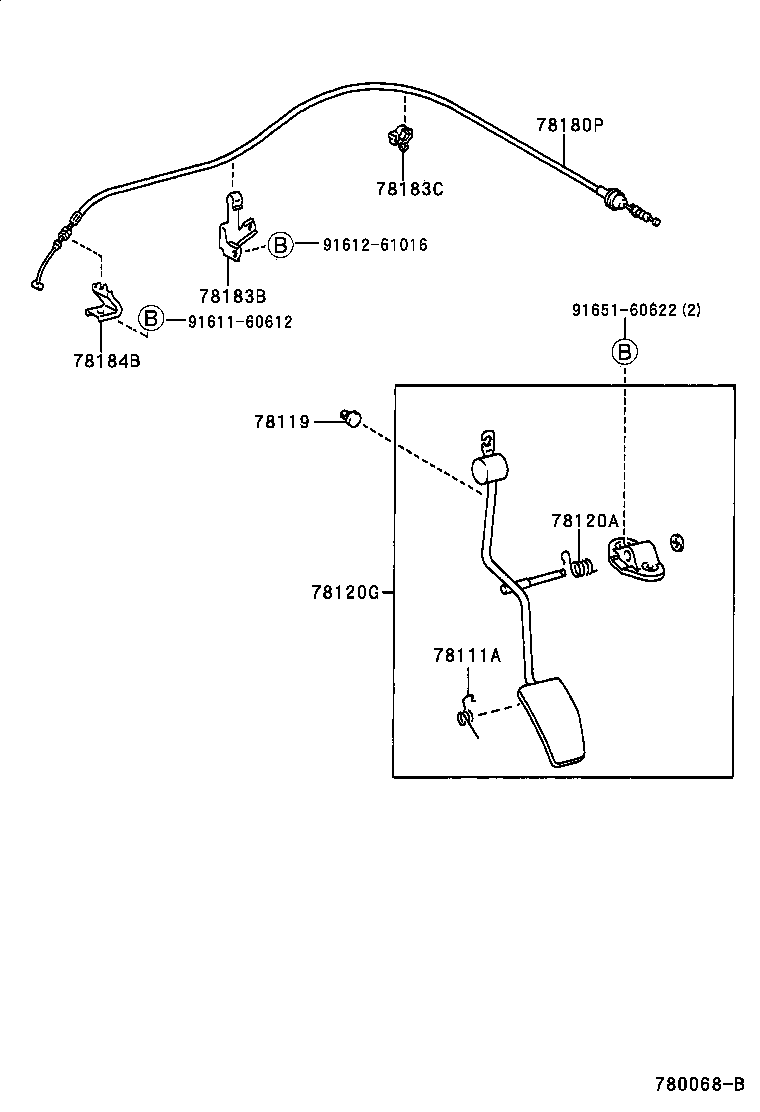

(9610-9812)CR4#,5#

Click highlighted areas on diagram

diagram 78111A 78119 78120A 78120G 78180P 78183B 78183C 78184B 9161160612 9161261016 9165160622
Part # Description Qty Price
78111A - SPRING (FOR ACCELERATOR PEDAL)
90959-03135

CR4#,5#,KR4#,SR40,50

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
90541-06036

CR4#,5#,KR4#,SR40,50

 1
78119-28010

CR4#,5#,KR4#,SR40,50

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90959-03125

KR4#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-28050

KR4#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-28260

KR4#

 1
78180-28270

CR4#,5#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-28220

CR4#,5#

 1
78183-28260

KR4#

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-28230

CR4#,5#,SR40,50

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95705

KR4#

 1
78184-28020

CR4#,5#

 1
Common parts
91611-60612
91612-61016
91651-60622

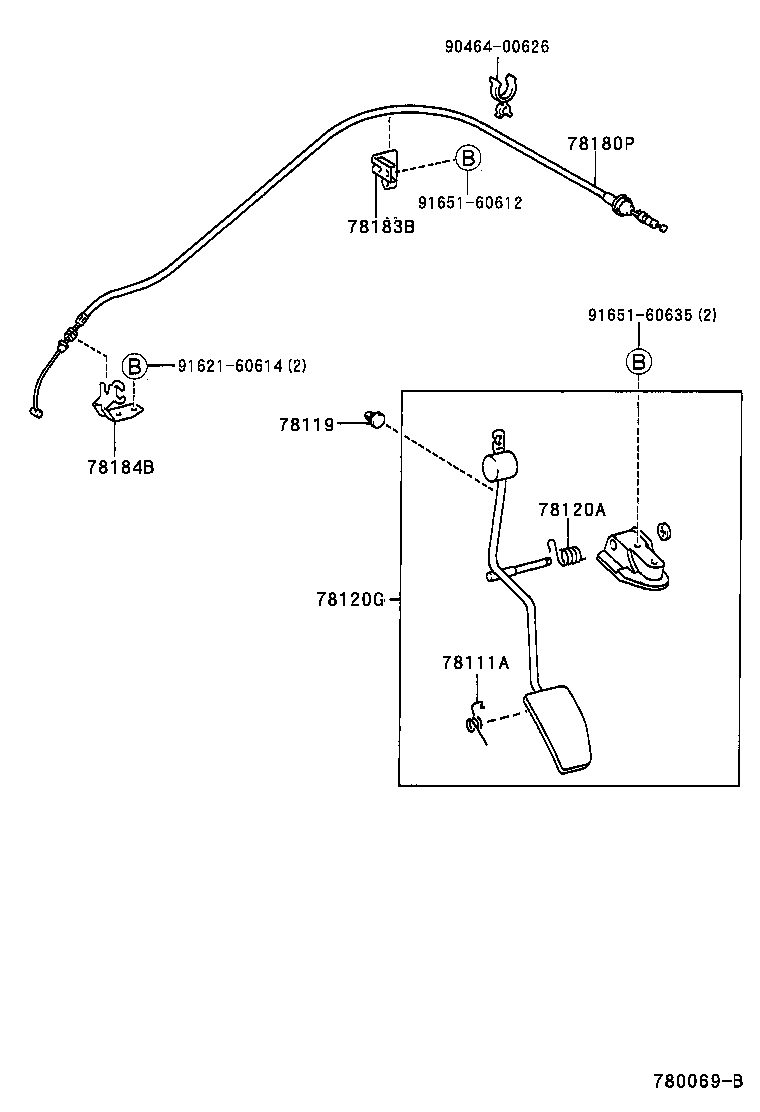

(9611-9812)KR4#

Click highlighted areas on diagram

diagram 78111A 78119 78120A 78120G 78180P 78183B 78184B 9046400626 9162160614 9165160612 9165160635
Part # Description Qty Price
78111A - SPRING (FOR ACCELERATOR PEDAL)
90959-03135

CR4#,5#,KR4#,SR40,50

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
90541-06036

CR4#,5#,KR4#,SR40,50

 1
78119-28010

CR4#,5#,KR4#,SR40,50

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90959-03125

KR4#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-28050

KR4#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-28260

KR4#

 1
78180-28270

CR4#,5#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-28220

CR4#,5#

 1
78183-28260

KR4#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95705

KR4#

 1
78184-28020

CR4#,5#

 1
Common parts
90464-00626
91621-60614
91651-60612
91651-60635
