KR42V-ERSDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 7K
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

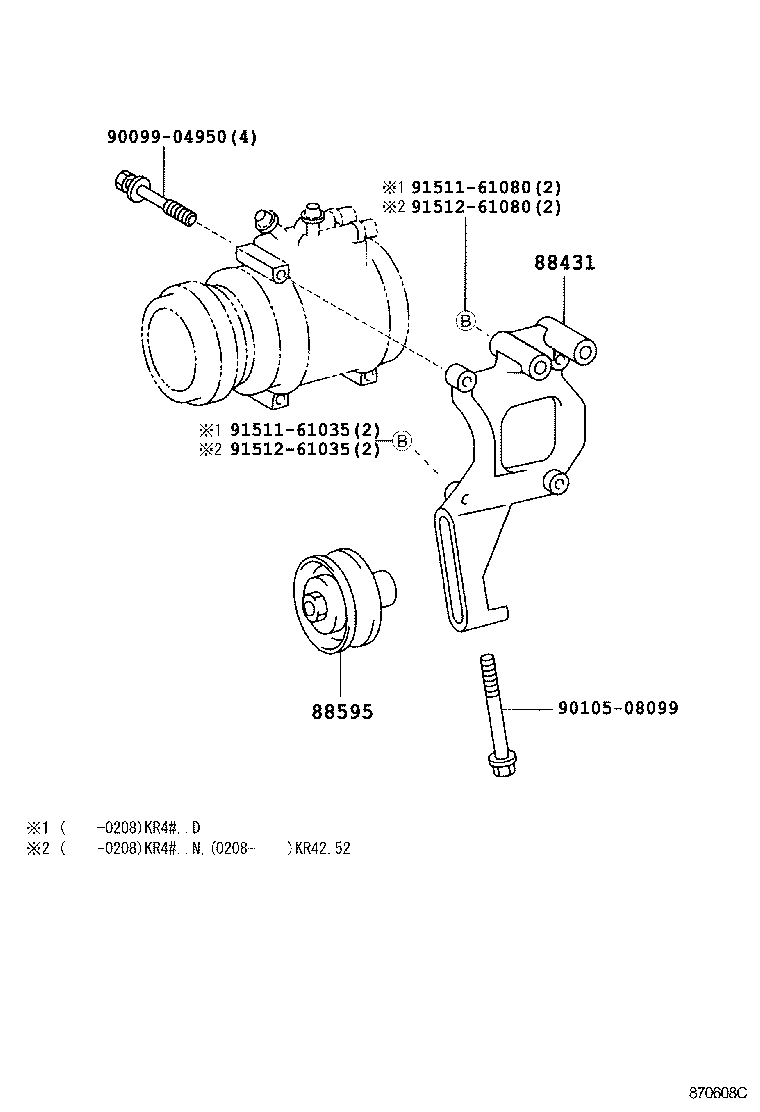

ILLUST NO. 2 OF 2(9611- )KR4#,52

Click highlighted areas on diagram

diagram 88431 88595 9009904950 9010508099 9151161035 9151161080 9151261035 9151261080
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28080

KR4#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

KR4#

 1
Common parts
90099-04950
90105-08099
91511-61035
91511-61080
91512-61035
91512-61080
