KR42V-ERSDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 7K
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

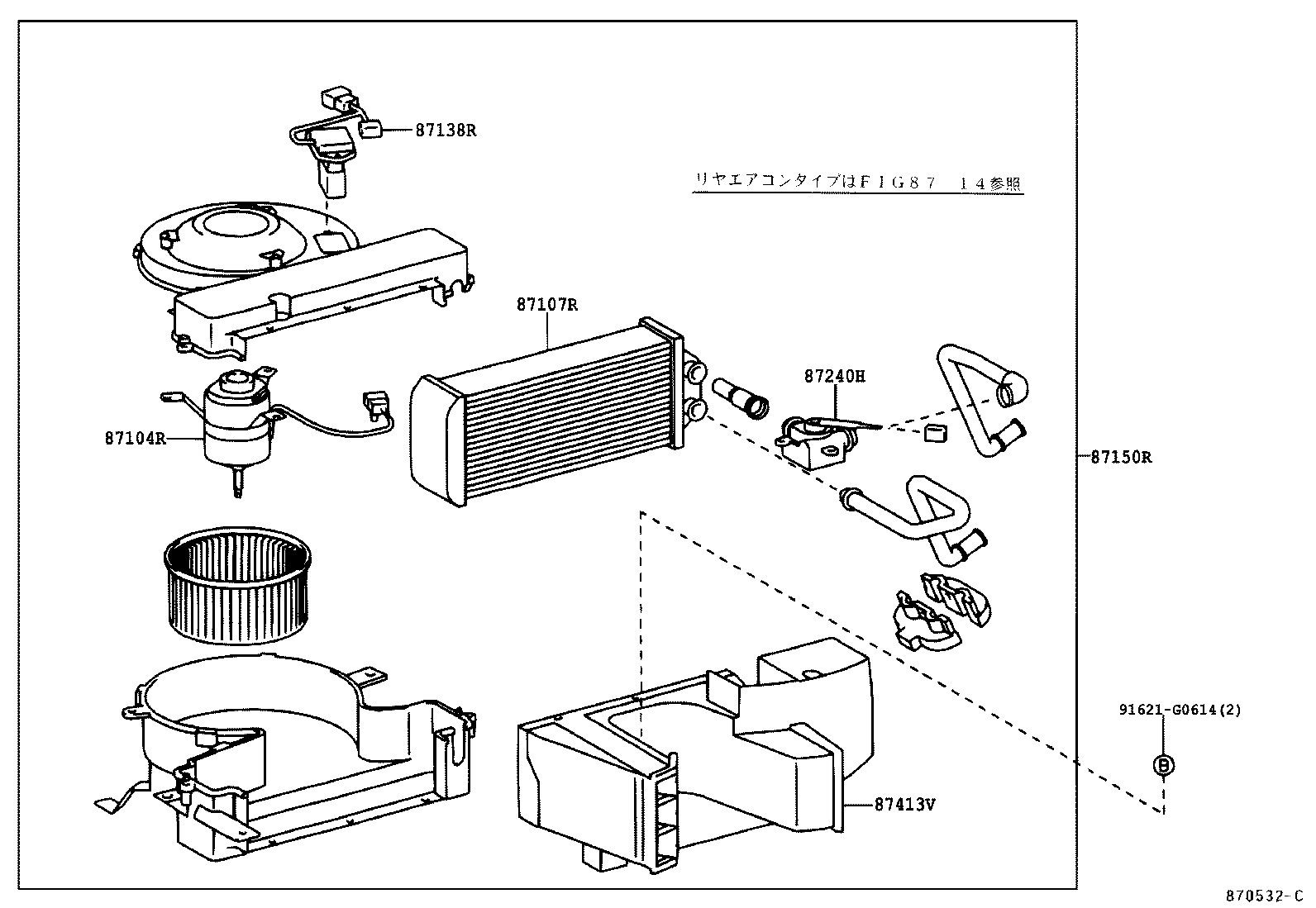

ILLUST NO. 3 OF 3(9611- )

Click highlighted areas on diagram

ﾘﾔﾋ-ﾀ

diagram 87104R 87107R 87138R 87150R 87240H 87413V 91621G0614
Part # Description Qty Price
Common parts
91621-G0614

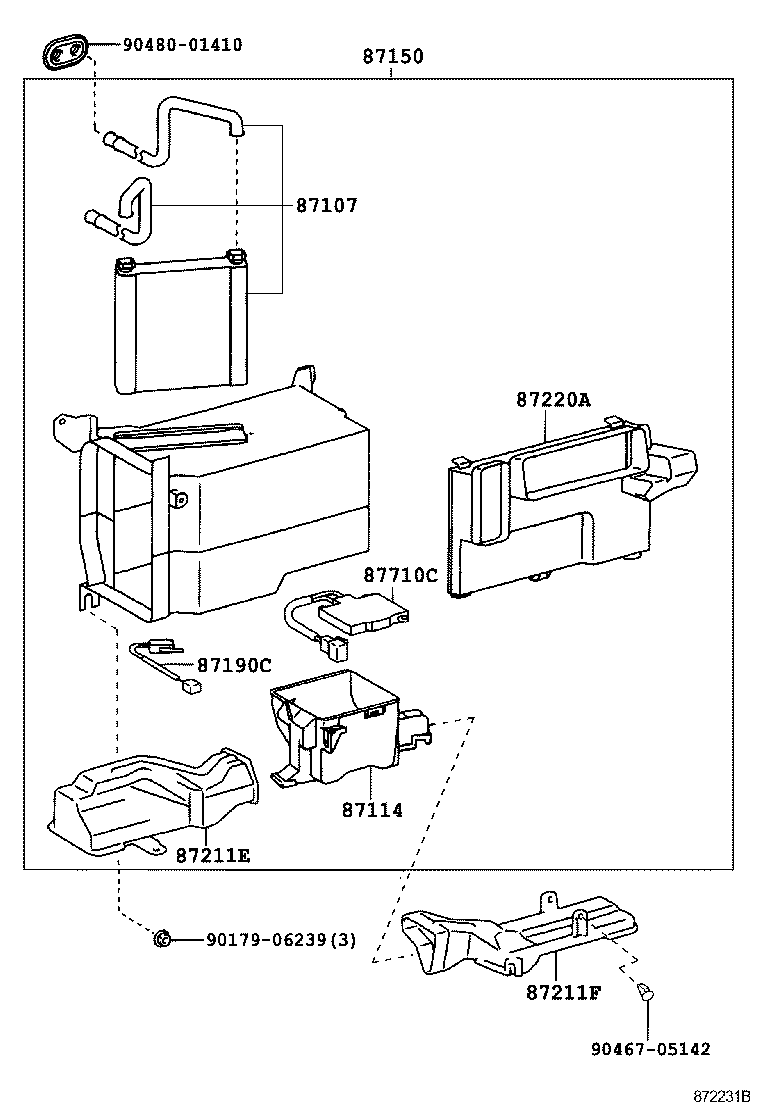

ILLUST NO. 2 OF 3(9610-9812)

Click highlighted areas on diagram

ﾌﾛﾝﾄ ﾕﾆﾂﾄ

diagram 87107 87114 87150 87190C 87211E 87211F 87220A 87710C 9017906239 9046705142 9048001410
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-28050

CR4#,5#,KR4#,SR40,50

 1
87114 - COVER, HEATER
87114-28050

CR4#,5#,KR4#,SR40,50

 1
87114-28061

CR4#,5#,KR4#,SR40,50

 1
87114-28060

CR4#,5#,KR4#,SR40,50

 1
87150 - RADIATOR ASSY, HEATER
87150-28501

KR4#,SR40,50..03S,05S,06S,08S

 1
87150-28470

CR41,51,KR4#

ｱﾘ(ﾃﾝﾊﾟﾗﾁﾔ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ)

 1
87150-28471

CR41,51,KR4#

ｱﾘ(ﾃﾝﾊﾟﾗﾁﾔ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ)

 1
87150-28500

KR4#,SR40,50..03S,05S,06S,08S

 1
87190C - SWITCH ASSY, TEMPERATURE CONTROL
87190-28010

CR4#,5#,KR4#

 1
87211E - DUCT, AIR
87211-28170

CR4#,5#,KR4#,SR40,50

 1
87211F - DUCT, AIR
87211-28160

CR4#,5#,KR4#,SR40,50

 1
87220A - DUCT ASSY, HEATER RADIATOR AIR
87220-28020

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
Common parts
90179-06239
90467-05142
90480-01410

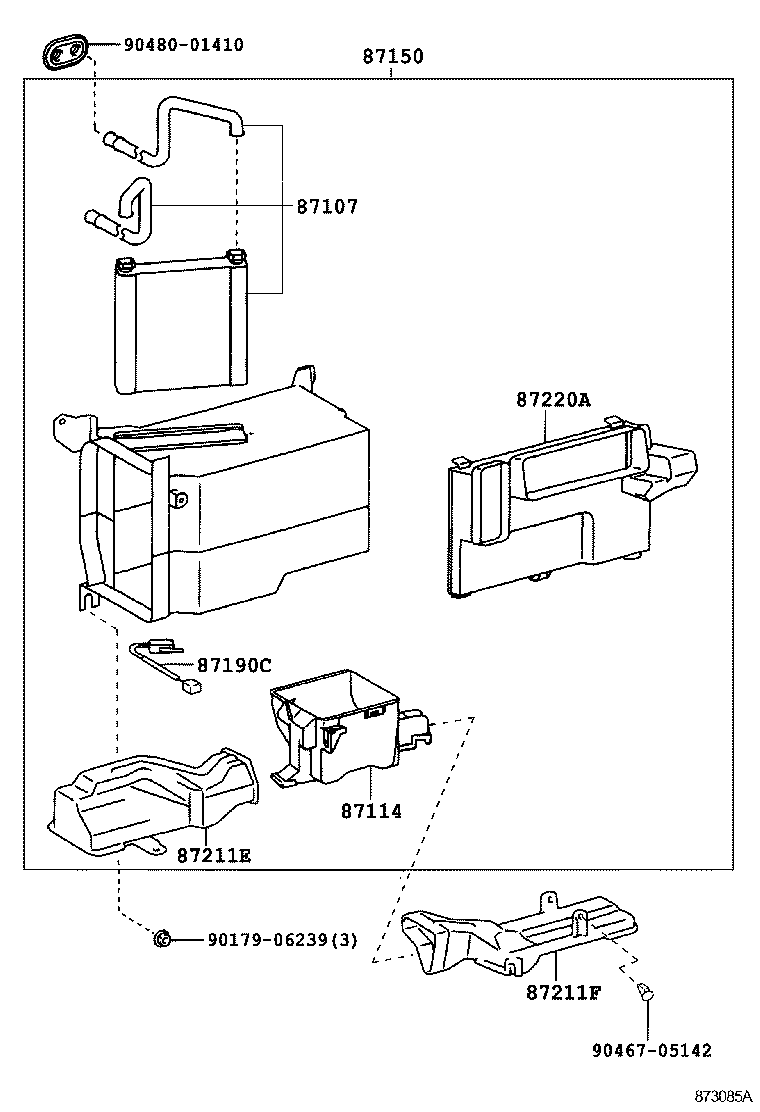

ILLUST NO. 2 OF 3(9610-9812)

Click highlighted areas on diagram

ﾌﾛﾝﾄ ﾕﾆﾂﾄ---ｱﾘ(ﾃﾝﾊﾟﾗﾁﾔ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ)

diagram 87107 87114 87150 87190C 87211E 87211F 87220A 9017906239 9046705142 9048001410
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-28050

CR4#,5#,KR4#,SR40,50

 1
87114 - COVER, HEATER
87114-28050

CR4#,5#,KR4#,SR40,50

 1
87114-28061

CR4#,5#,KR4#,SR40,50

 1
87114-28060

CR4#,5#,KR4#,SR40,50

 1
87150 - RADIATOR ASSY, HEATER
87150-28501

KR4#,SR40,50..03S,05S,06S,08S

 1
87150-28470

CR41,51,KR4#

ｱﾘ(ﾃﾝﾊﾟﾗﾁﾔ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ)

 1
87150-28471

CR41,51,KR4#

ｱﾘ(ﾃﾝﾊﾟﾗﾁﾔ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ)

 1
87150-28500

KR4#,SR40,50..03S,05S,06S,08S

 1
87190C - SWITCH ASSY, TEMPERATURE CONTROL
87190-28010

CR4#,5#,KR4#

 1
87211E - DUCT, AIR
87211-28170

CR4#,5#,KR4#,SR40,50

 1
87211F - DUCT, AIR
87211-28160

CR4#,5#,KR4#,SR40,50

 1
87220A - DUCT ASSY, HEATER RADIATOR AIR
87220-28020

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
Common parts
90179-06239
90467-05142
90480-01410

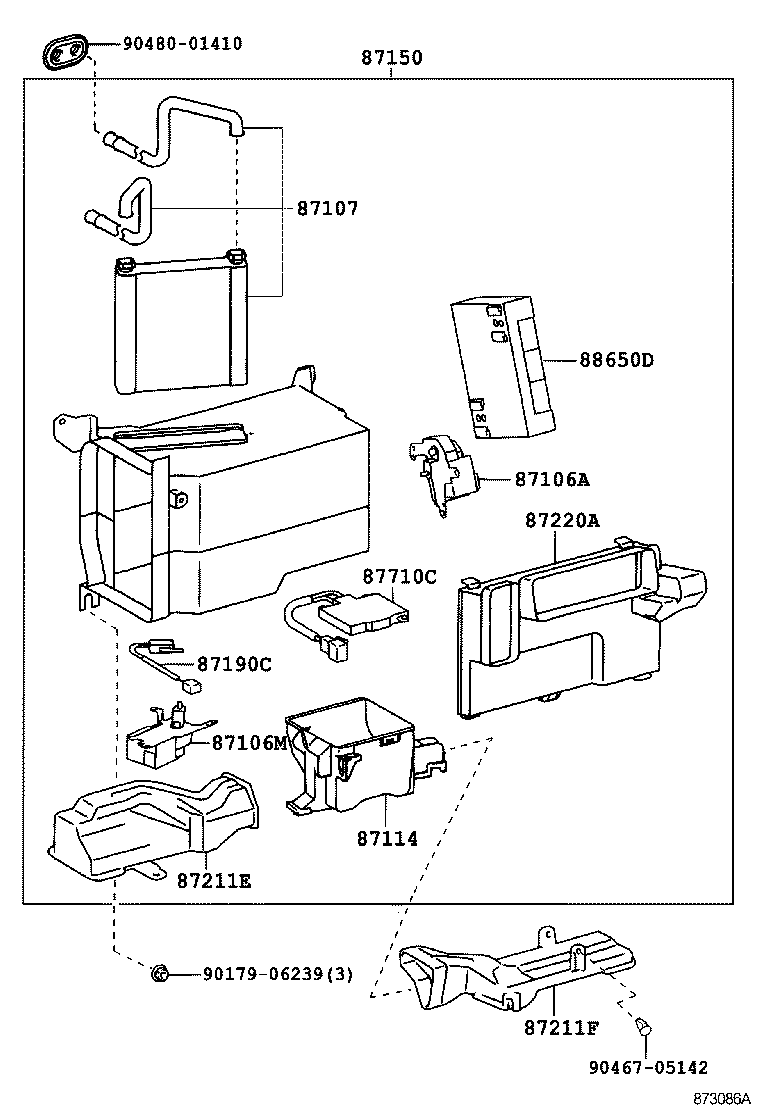

ILLUST NO. 2 OF 3(9610-9812)

Click highlighted areas on diagram

ﾌﾛﾝﾄ ﾕﾆﾂﾄ(ｵ-ﾄ ｴｱｺﾝ)

diagram 87106A 87106M 87107 87114 87150 87190C 87211E 87211F 87220A 87710C 88650D 9017906239 9046705142 9048001410
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-28050

CR4#,5#,KR4#,SR40,50

 1
87114 - COVER, HEATER
87114-28050

CR4#,5#,KR4#,SR40,50

 1
87114-28061

CR4#,5#,KR4#,SR40,50

 1
87114-28060

CR4#,5#,KR4#,SR40,50

 1
87150 - RADIATOR ASSY, HEATER
87150-28501

KR4#,SR40,50..03S,05S,06S,08S

 1
87150-28470

CR41,51,KR4#

ｱﾘ(ﾃﾝﾊﾟﾗﾁﾔ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ)

 1
87150-28471

CR41,51,KR4#

ｱﾘ(ﾃﾝﾊﾟﾗﾁﾔ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ)

 1
87150-28500

KR4#,SR40,50..03S,05S,06S,08S

 1
87190C - SWITCH ASSY, TEMPERATURE CONTROL
87190-28010

CR4#,5#,KR4#

 1
87211E - DUCT, AIR
87211-28170

CR4#,5#,KR4#,SR40,50

 1
87211F - DUCT, AIR
87211-28160

CR4#,5#,KR4#,SR40,50

 1
87220A - DUCT ASSY, HEATER RADIATOR AIR
87220-28020

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
Common parts
90179-06239
90467-05142
90480-01410
