KR42V-EMSDE (1998)
Toyota Lite/Townace Noah,V
Production
Dec 1998
-
Aug 2007
Engine
7KE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

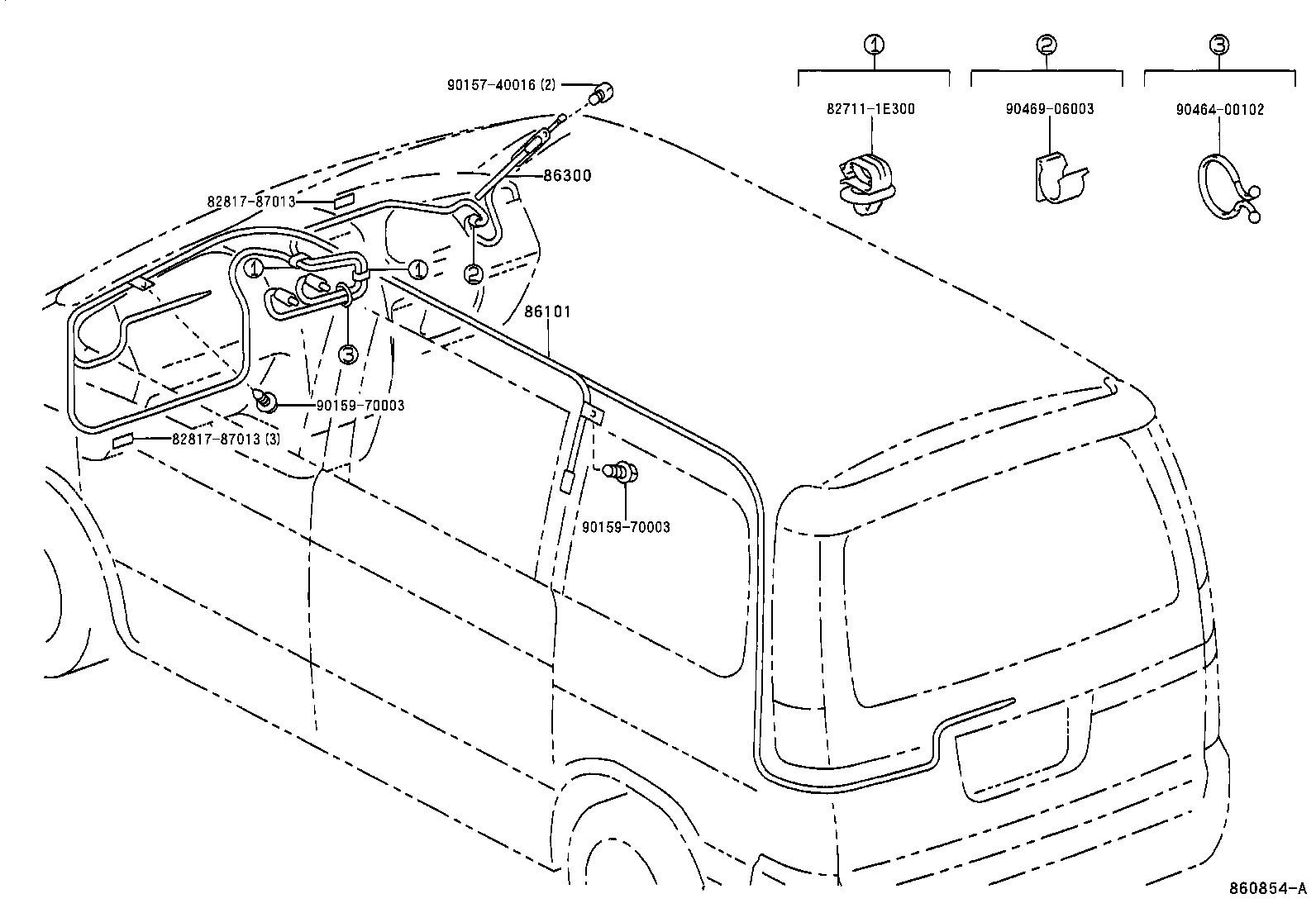

ILLUST NO. 1 OF 2(9812-0401)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-28150 |
KR42,52 |
1 | ||
| 86300-28100 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 82817-87013 | ||||
| 90157-40016 | ||||
| 90159-70003 | ||||
| 90464-00102 | ||||
| 90469-06003 | ||||

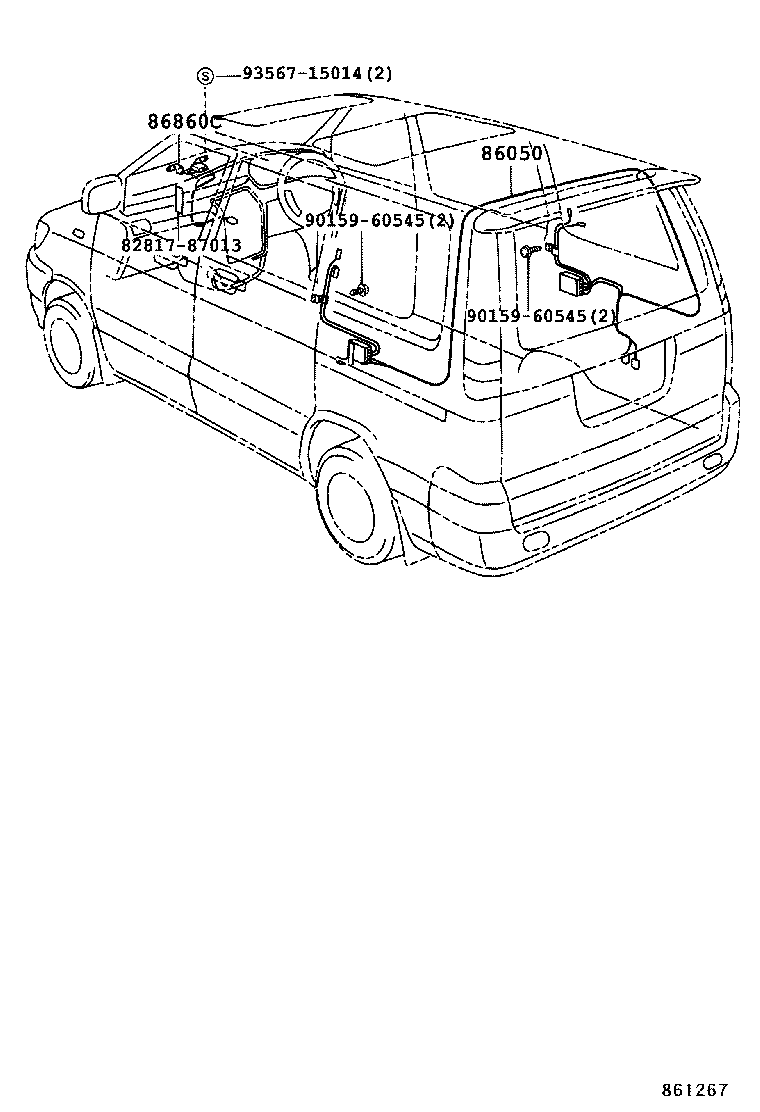

ILLUST NO. 2 OF 2(0008- )
Click highlighted areas on diagram
ﾃﾚﾋﾞｱﾝﾃﾅ&ﾅﾋﾞｹﾞ-ｼﾖﾝｱﾝﾃﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82817-87013 | ||||
| 90159-60545 | ||||
| 93567-15014 | ||||
ILLUST NO. 1 OF 2(0401- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-28150 |
KR42,52 |
1 | ||
| 86300-28100 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82817-87013 | ||||
| 90148-40007 | ||||
| 90157-40016 | ||||
| 90159-70003 | ||||
| 90464-00102 | ||||
| 90469-06003 | ||||
