KR42V-EMSDE (1998)
Toyota Lite/Townace Noah,V
Production
Dec 1998
-
Aug 2007
Engine
7KE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9812- )KR42,52

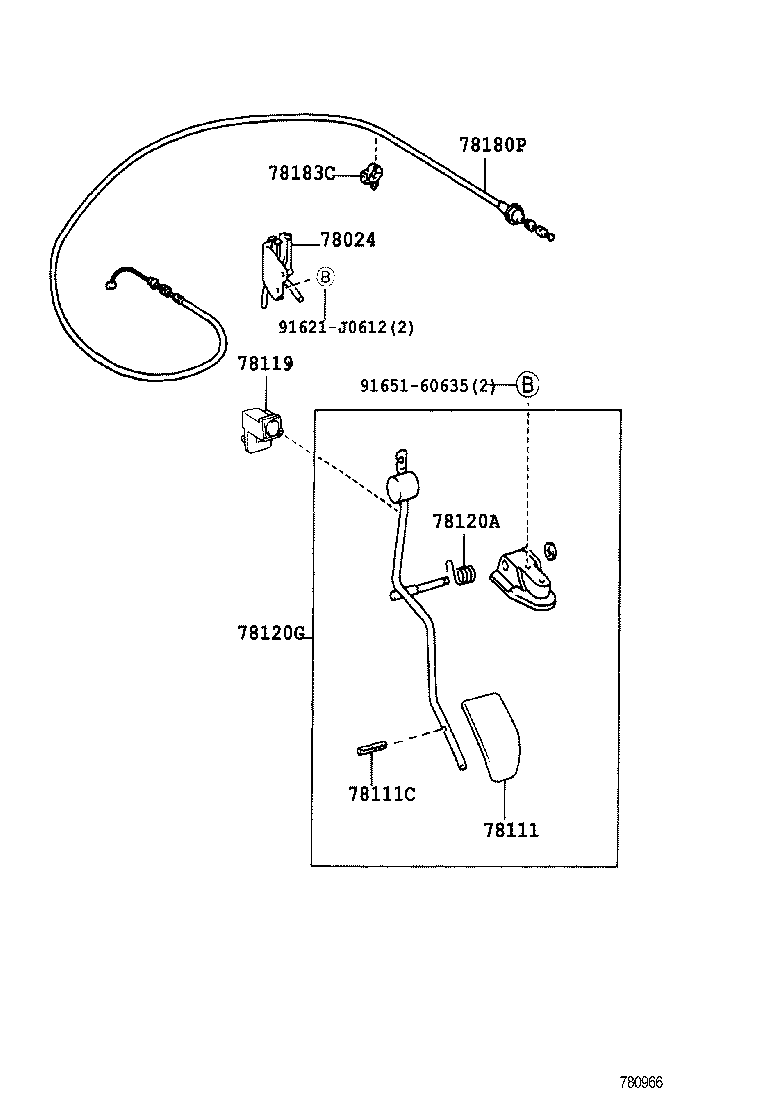

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-38010 |
KR42,52 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-28040 |
KR42,52 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
KR42,52 |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 90541-06036 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 78119-28010 |
KR42,52 |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90959-03125 |
KR42,52 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-28120 |
KR42,52 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-28290 |
KR42,52 |
1 | ||
| 78183C - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-28230 |
KR42,52 |
2 | ||
| Common parts | ||||
| 91621-J0612 | ||||
| 91651-60635 | ||||
