KR42V-EMMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 7K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )KR4#,52

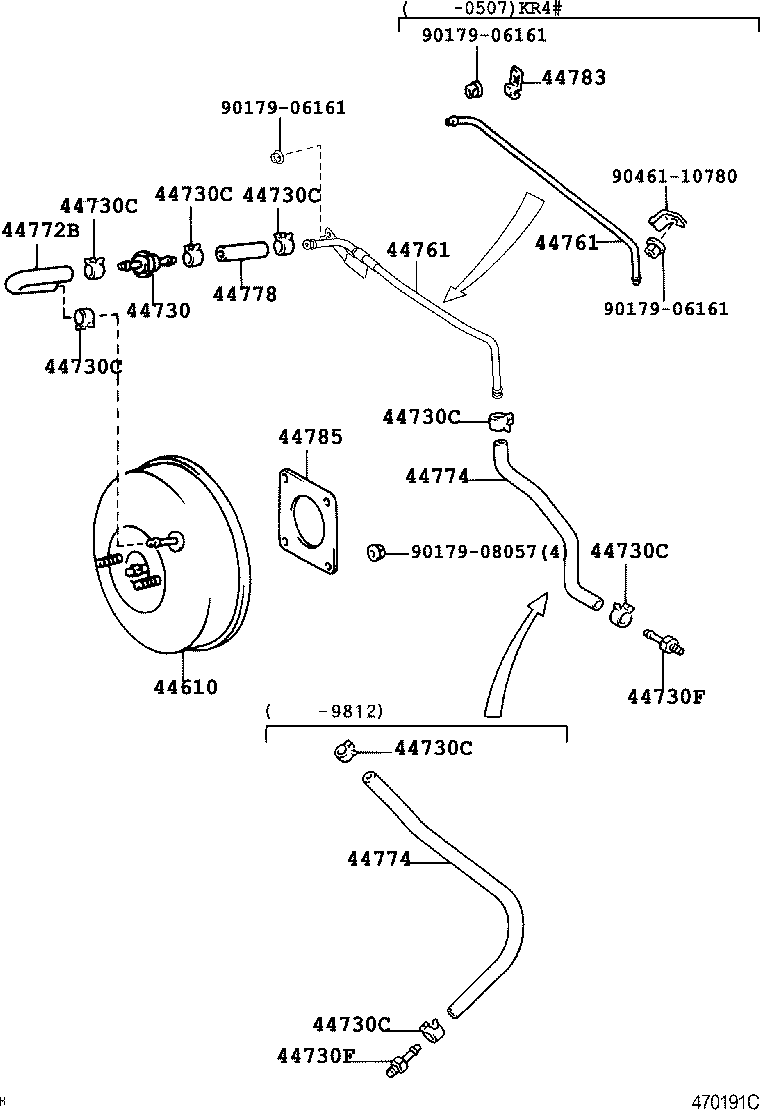

Click highlighted areas on diagram

diagram 44610 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44761 44761 44772B 44774 44774 44778 44783 44785 9017906161 9017906161 9017906161 9017908057 9046110780
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-28880

CR41,51,KR4#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

KR4#,SR40,50

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KR4#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KR4#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KR4#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KR4#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KR4#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KR4#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KR4#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KR4#

 6
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51039

KR4#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51039

KR4#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-28300

KR4#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-28300

KR4#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-28140

KR4#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95447-09400

KR4#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95447-09400

KR4#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
90445-17087

KR4#

 1
44778-28070

KR4#

 1
44783 - CLAMP, VACUUM HOSE
44783-08010

KR4#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CR4#,5#,KR4#,SR40,50

 1
Common parts
90179-06161
90179-08057
90461-10780
