KR42V-EMMDE (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Aug 2007
Engine 7KE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9812-0208)7KE

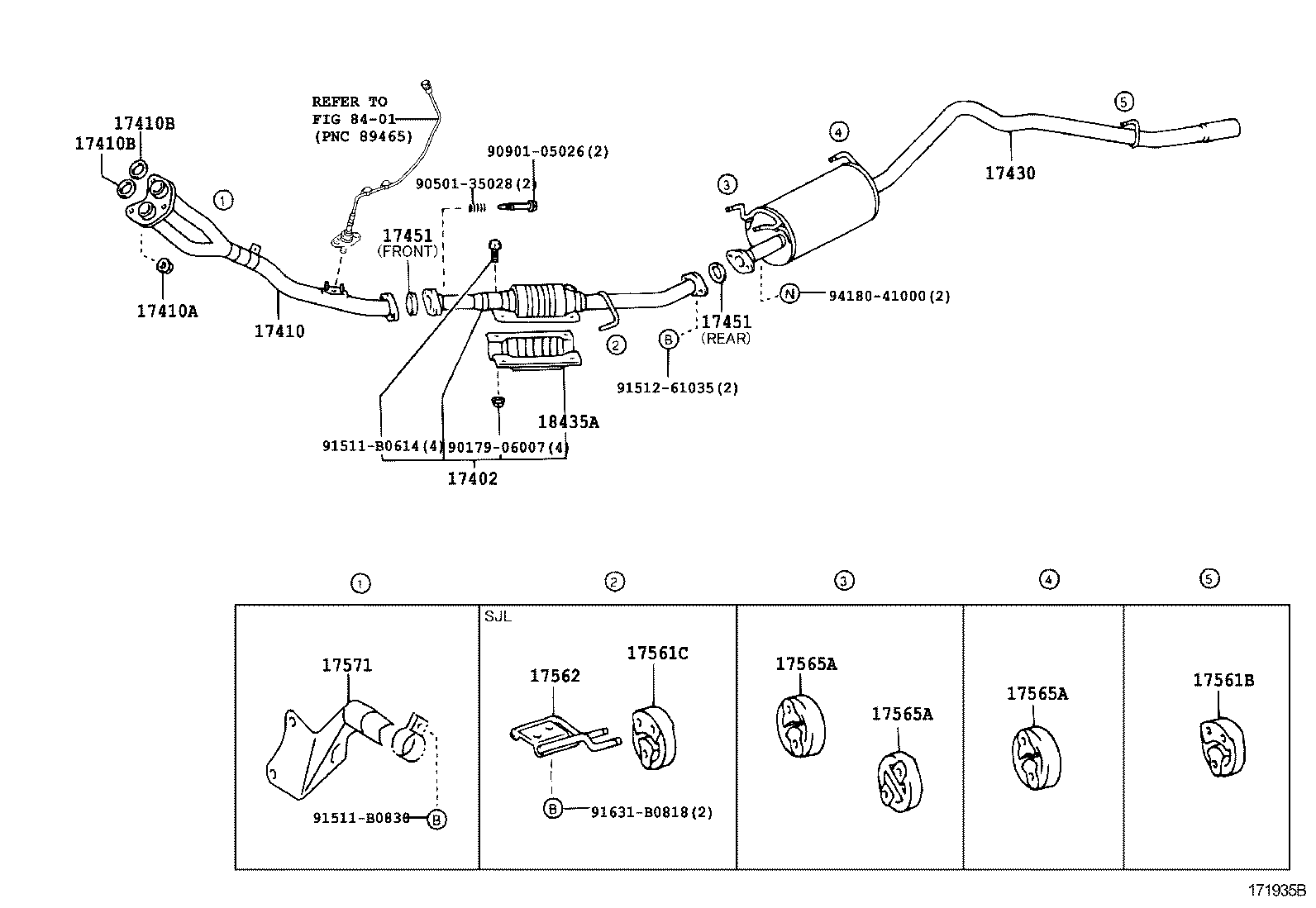

Click highlighted areas on diagram

diagram 17402 17410 17410A 17410B 17410B 17430 17451 17451 17561B 17561C 17562 17565A 17565A 17565A 17571 18435A 8401 9017906007 9050135028 9090105026 91511B0614 91511B0830 9151261035 91631B0818 9418041000
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-13070

7KE..KR42..SJL

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-13720

7KE..KR42

 1
17401-13250

7KE..KR42

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5K,7K,3SFE..KR4#,SR40,50

 3
90179-10070

7KE,3SFE..KR42,SR40,50

 3
17410B - GASKET, EXHAUST PIPE
90917-06069

7KE..KR42

 2
17451-21050

7KE..KR42,52

 1
17451-64030

7KE..KR42

 1
17410B - GASKET, EXHAUST PIPE
90917-06069

7KE..KR42

 2
17451-21050

7KE..KR42,52

 1
17451-64030

7KE..KR42

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-13600

7KE..KR42..CBU..SJL

 1
17430-13550

7KE..KR42..SJL

 1
17451 - GASKET, EXHAUST PIPE
17451-64030

7KE..KR42

ﾌﾛﾝﾄ

 1
90917-06044

7KE..KR42,52

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
17451-64030

7KE..KR42

ﾌﾛﾝﾄ

 1
90917-06044

7KE..KR42,52

ﾘﾔ

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 1
17561-73020

7KE..KR42,52

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

5K,7K..KR4#..SJL;2C,3CT,3SFE..CR4#,5#,SR40

 1
17561-74110

7KE..KR52;7KE..KR42..SJL;7KE..KR42..SRF..IV5

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-74370

3SFE..SR40;5K,7K..KR4#..SJL

 1
17562-74370

7KE..KR42..SJL

 1
17562-13200

7KE..KR42,52

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565-15140

7KE..KR42,52

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565-15140

7KE..KR42,52

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565-15140

7KE..KR42,52

 3
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-13300

7KE..KR42

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-11030

7KE..KR42,52

 1
Common parts
90179-06007
90501-35028
90901-05026
91511-B0614
91511-B0830
91512-61035
91631-B0818
94180-41000
Linked diagrams
8401

(0208- )7KE..KR42

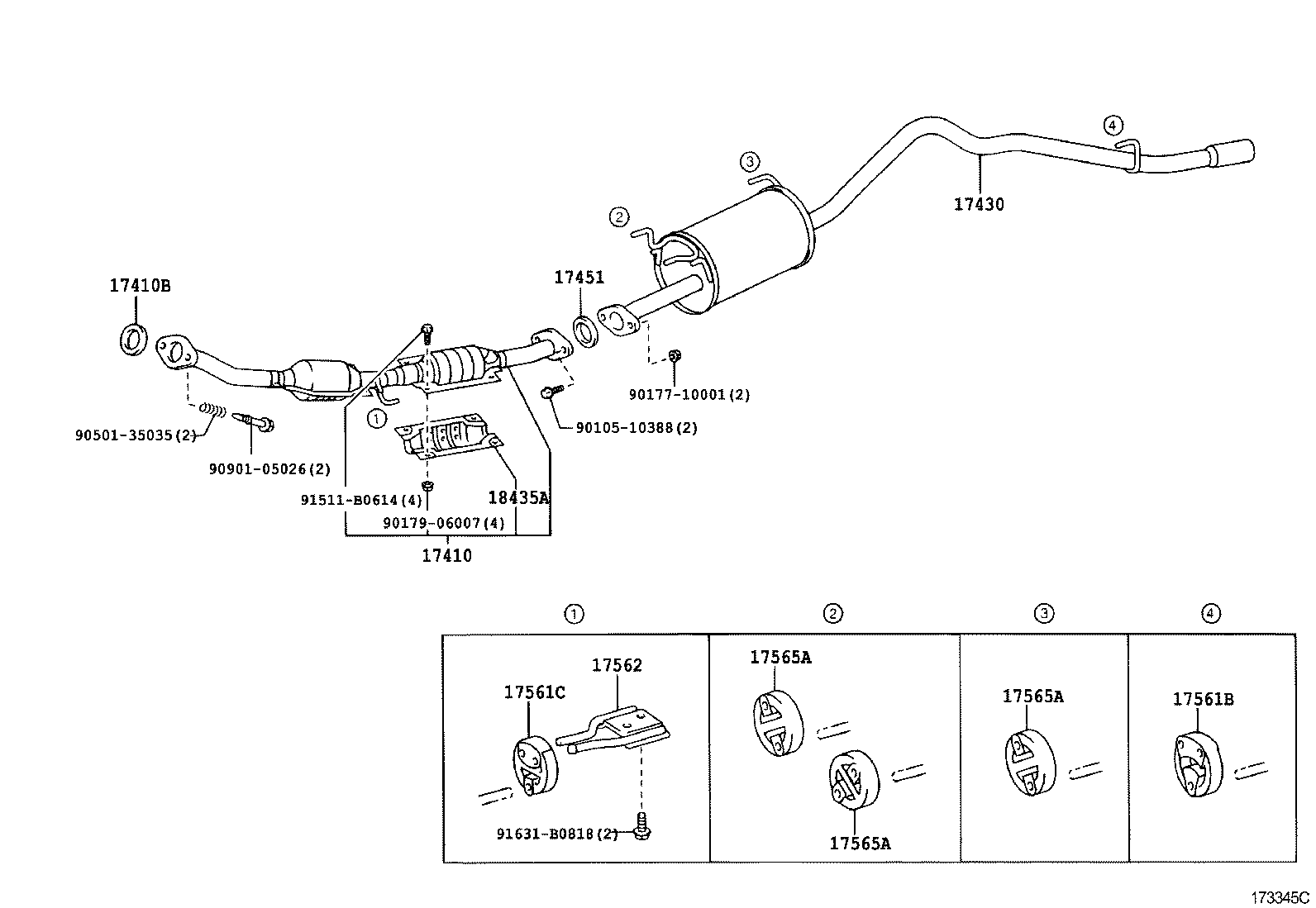

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17561B 17561C 17562 17565A 17565A 17565A 18435A 9010510388 9017710001 9017906007 9050135035 9090105026 91511B0614 91631B0818
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-13720

7KE..KR42

 1
17401-13250

7KE..KR42

 1
17410B - GASKET, EXHAUST PIPE
90917-06069

7KE..KR42

 2
17451-21050

7KE..KR42,52

 1
17451-64030

7KE..KR42

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-13600

7KE..KR42..CBU..SJL

 1
17430-13550

7KE..KR42..SJL

 1
17451 - GASKET, EXHAUST PIPE
17451-64030

7KE..KR42

ﾌﾛﾝﾄ

 1
90917-06044

7KE..KR42,52

ﾘﾔ

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 1
17561-73020

7KE..KR42,52

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

5K,7K..KR4#..SJL;2C,3CT,3SFE..CR4#,5#,SR40

 1
17561-74110

7KE..KR52;7KE..KR42..SJL;7KE..KR42..SRF..IV5

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-74370

3SFE..SR40;5K,7K..KR4#..SJL

 1
17562-74370

7KE..KR42..SJL

 1
17562-13200

7KE..KR42,52

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565-15140

7KE..KR42,52

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565-15140

7KE..KR42,52

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565-15140

7KE..KR42,52

 3
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-11030

7KE..KR42,52

 1
Common parts
90105-10388
90177-10001
90179-06007
90501-35035
90901-05026
91511-B0614
91631-B0818
