KR41V-SRSDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)CR41,51,KR4#..D

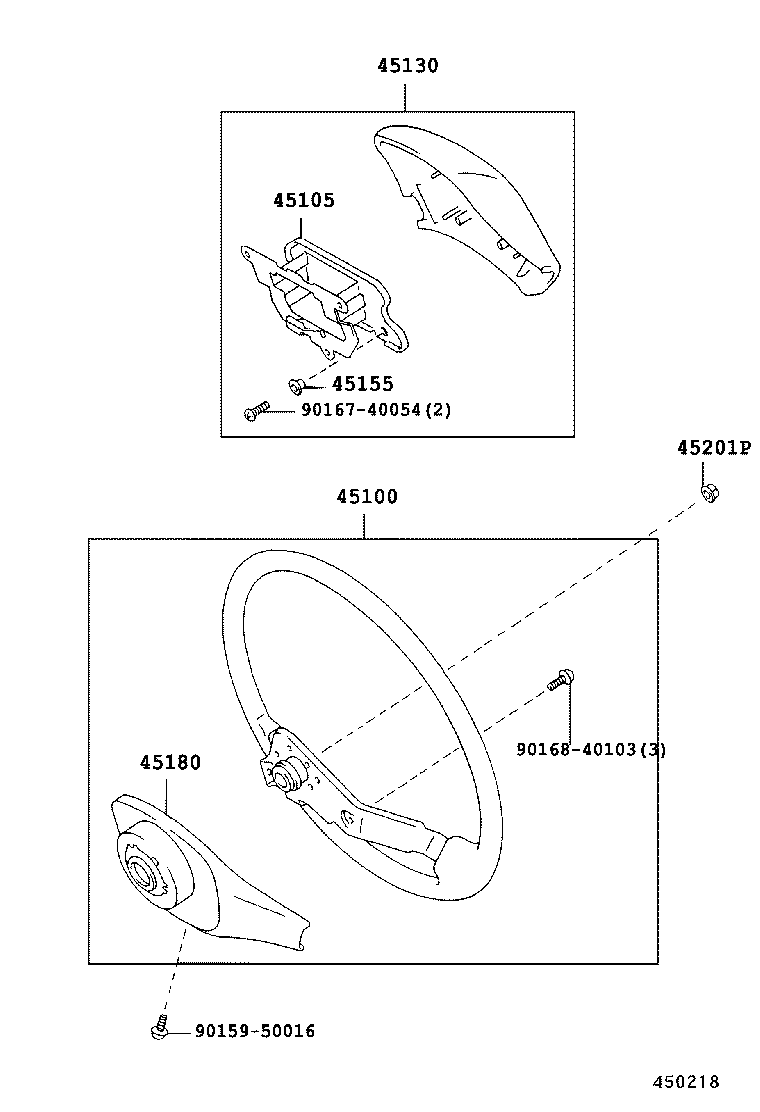

Click highlighted areas on diagram

2-SPOKE,PP(ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ)

diagram 45100 45105 45130 45155 45180 45201P 9015950016 9016740054 9016840103
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-32310B1

CR4#,5#,KR4#,SR40,50

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MD.MOON MIST,TRIM1#

 1
45100-26230B2

CR41,51,KR4#..D

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MD.MOON MIST,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12200

CR41,51,KR4#..D

 1
45130 - BUTTON ASSY, HORN
45130-26260B2

CR41,51,KR4#..D

MD.MOON MIST,TRIM1#

 1
45130-28350B0

CR4#,5#,KR4#,SR40,50

ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),MD.MOON MIST,TRIM1#,4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ

 1
45130-28360B0

CR4#,5#,KR4#,SR40,50

ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),MD.MOON MIST,TRIM1#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-12050

CR41,51,KR4#..D

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-26040B2

CR41,51,KR4#..D

MD.MOON MIST,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

CR4#,5#,KR4#,SR40,50

 1
Common parts
90159-50016
90167-40054
90168-40103

(9610-0208)

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45186 45186 45188 45188 45201P 9356014012 9356014012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-32310B1

CR4#,5#,KR4#,SR40,50

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MD.MOON MIST,TRIM1#

 1
45100-26230B2

CR41,51,KR4#..D

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,MD.MOON MIST,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-26260B2

CR41,51,KR4#..D

MD.MOON MIST,TRIM1#

 1
45130-28350B0

CR4#,5#,KR4#,SR40,50

ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),MD.MOON MIST,TRIM1#,4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ

 1
45130-28360B0

CR4#,5#,KR4#,SR40,50

ｱﾘ(ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),MD.MOON MIST,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010B1

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 2
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010B1

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

CR4#,5#,KR4#,SR40,50

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

CR4#,5#,KR4#,SR40,50

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

CR4#,5#,KR4#,SR40,50

 1
Common parts
93560-14012
