KR41V-SRSDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)5K

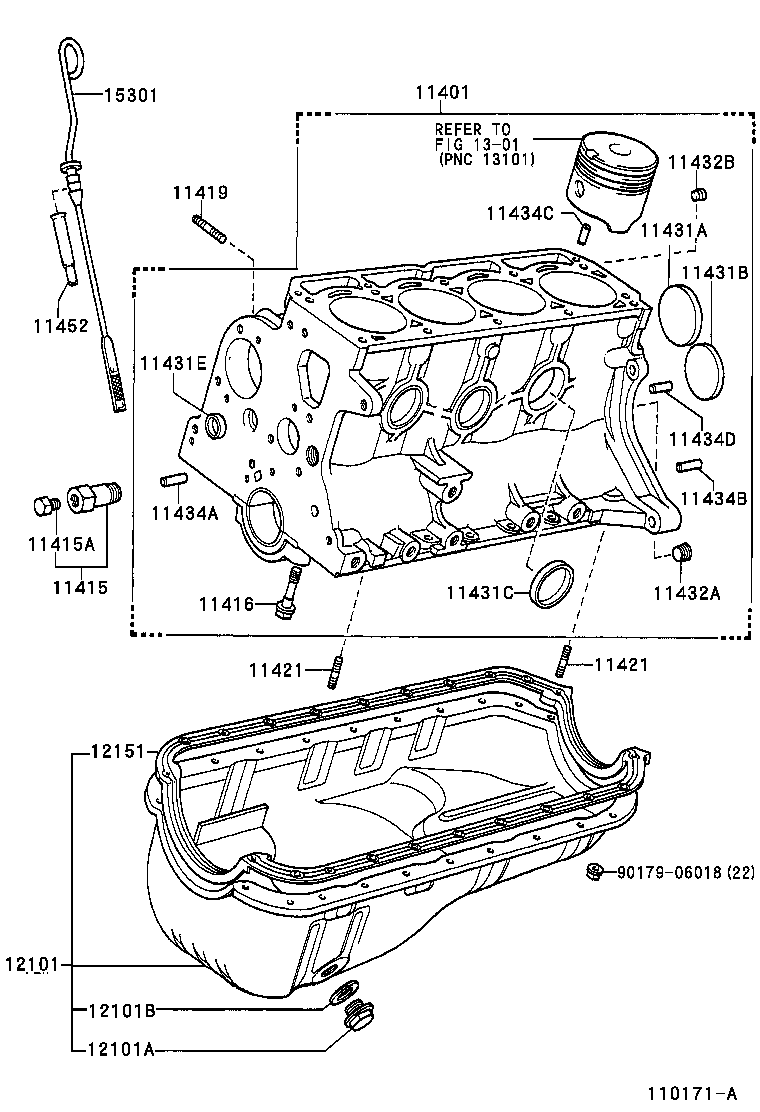

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11419 11421 11421 11431A 11431B 11431C 11431E 11432A 11432B 11434A 11434B 11434C 11434D 11452 12101 12101A 12101B 12151 1301 15301 9017906018
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19336

5K..KR41

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09091

5K,7K..KR4#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

5K,7K..KR4#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

5K,7K..KR4#

 10
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08102

5K,7K..KR4#

 2
11421 - BOLT, STUD(FOR OIL PAN)
90116-06006

5K..KR41

 16
11421 - BOLT, STUD(FOR OIL PAN)
90116-06006

5K..KR41

 16
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-47025

5K,7K..KR4#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-64500

5K,7K..KR4#

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-63500

5K..KR41

 3
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96412-01800

5K,7K..KR4#

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011

5K,7K..KR4#

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-51014

5K,7K..KR4#

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

5K,7K..KR4#

長さ=18,外径=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

5K,7K..KR4#

長さ=22,外径=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

5K,7K..KR4#

長さ=18,外径=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

5K,7K..KR4#

長さ=18,外径=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-13010

5K..KR41

 1
12101 - PAN SUB-ASSY, OIL
12101-19018

5K..KR41

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

5K,7K..KR4#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

5K,7K..KR4#

 1
12151 - GASKET, OIL PAN
12151-13011

5K..KR41

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-13011

5K..KR41

 1
Common parts
90179-06018
Linked diagrams
1301
