KR41V-SRMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9611- )KR4#,52

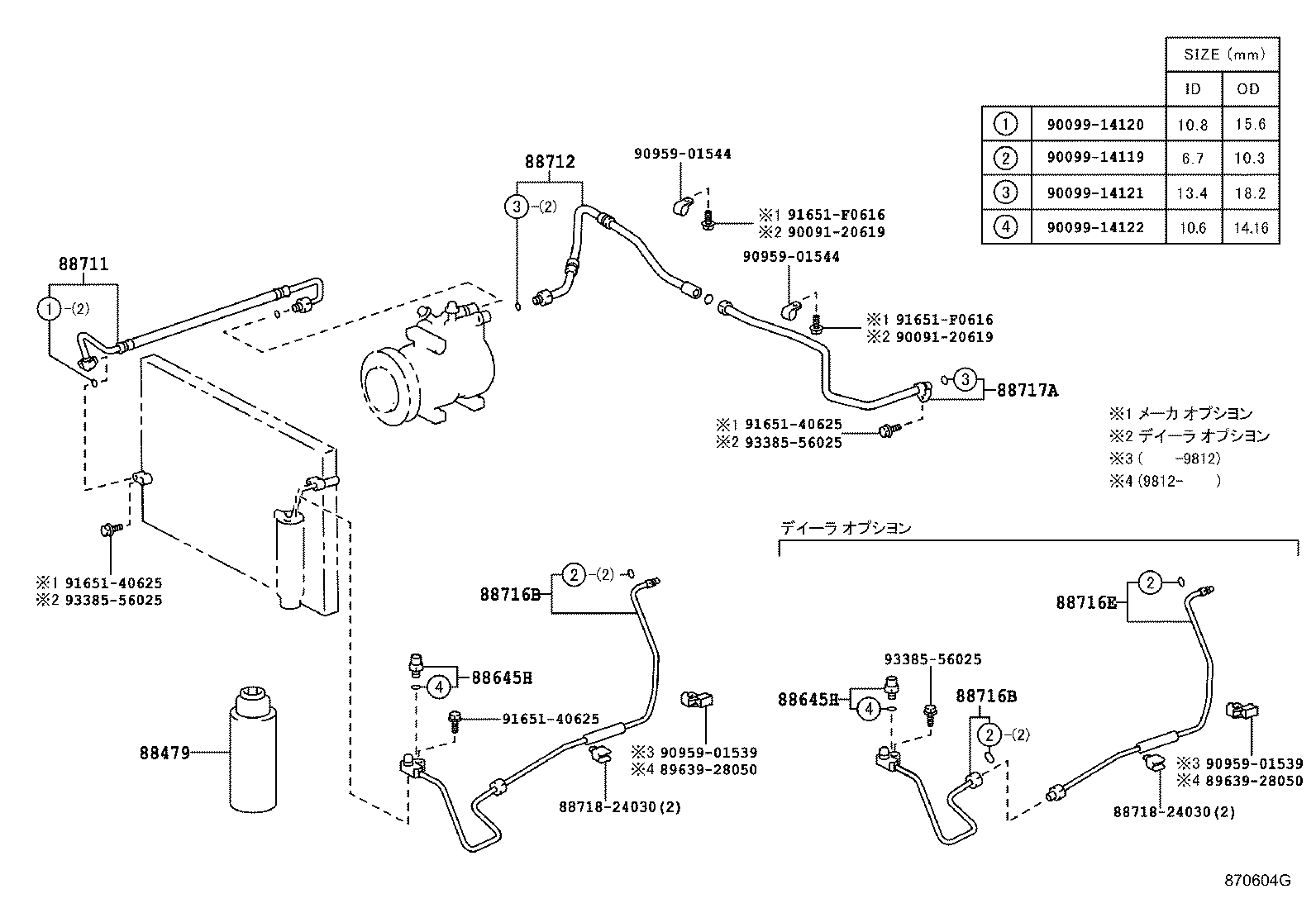

Click highlighted areas on diagram

ﾊﾟｲﾋﾟﾝｸﾞ

diagram 88479 88645H 88645H 88711 88712 88716B 88716B 88716E 88717A 8871824030 8871824030 8963928050 8963928050 9009120619 9009120619 9009914119 9009914120 9009914121 9009914122 9095901539 9095901539 9095901544 9095901544 9165140625 9165140625 9165140625 91651F0616 91651F0616 9338556025 9338556025 9338556025
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008

CR41,51,KR4#,SR40,50..03S,06S

200G

 3
88645H - SWITCH, PRESSURE NO.1
88645-34010

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J010

KR4#

 1
88711-28850

CR4#,5#,SR40,50

 1
88711-2J010

KR4#..D

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28570

CR4#,5#;SR40,50..B

 1
88712-28580

KR4#

 1
88712-28570

CR4#,5#

 1
88712-28570

CR4#,5#,SR40,50

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2R710

CR41,51,KR4#,SR40,50..03S,06S

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2R710

CR41,51,KR4#,SR40,50..03S,06S

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2R740

KR4#..D

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2J840

KR4#

 1
Common parts
88718-24030
89639-28050
90091-20619
90099-14119
90099-14120
90099-14121
90099-14122
90959-01539
90959-01544
91651-40625
91651-F0616
93385-56025
