KR41V-SRMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

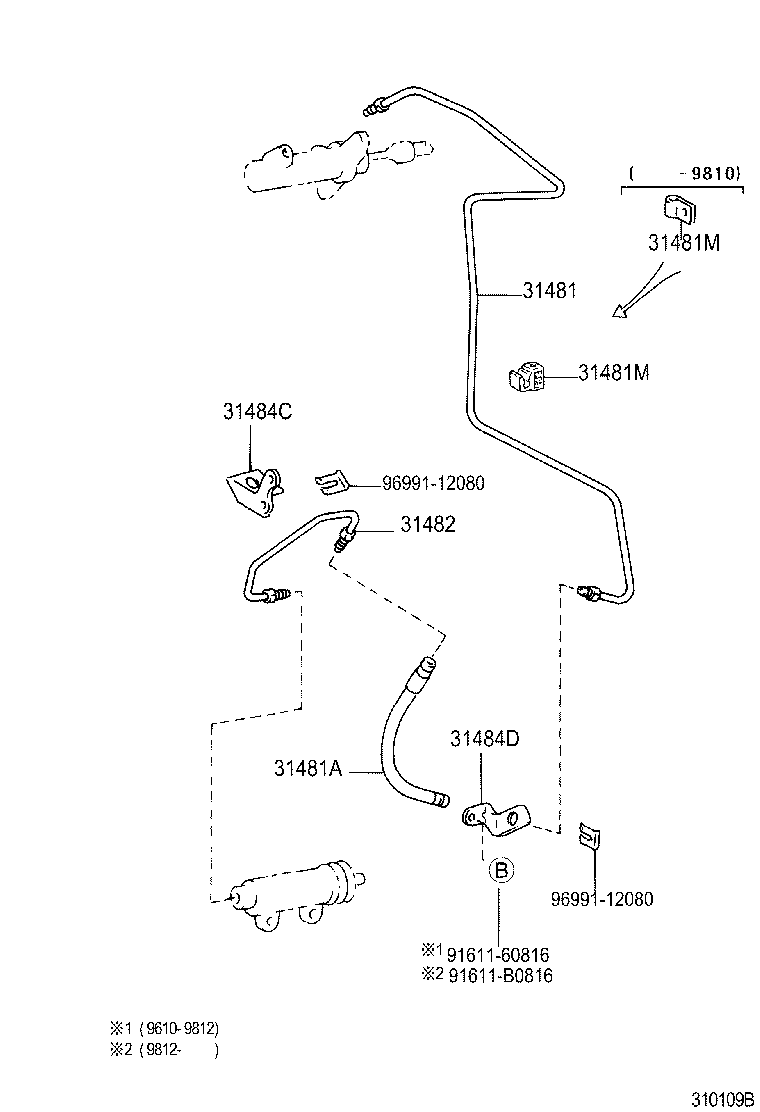

ILLUST NO. 2 OF 2(9611- )KR4#,52..MTM

Click highlighted areas on diagram

diagram 31481 31481A 31481M 31481M 31482 31484C 31484D 9161160816 91611B0816 9699112080 9699112080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-28230

CR4#,5#..MTM

 1
31481-28240

KR4#,SR40..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90947-02901

KR4#,SR40..MTM

 1
90947-02900

CR4#,5#..MTM

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
47371-12150

KR4#,SR40..MTM

 1
90949-01B45

KR4#,SR40..MTM

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
47371-12150

KR4#,SR40..MTM

 1
90949-01B45

KR4#,SR40..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-28170

KR4#..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-28120

KR4#..MTM

 1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-28110

KR4#,SR40..MTM

 1
Common parts
91611-60816
91611-B0816
96991-12080
