KR41V-REMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)5K,7K

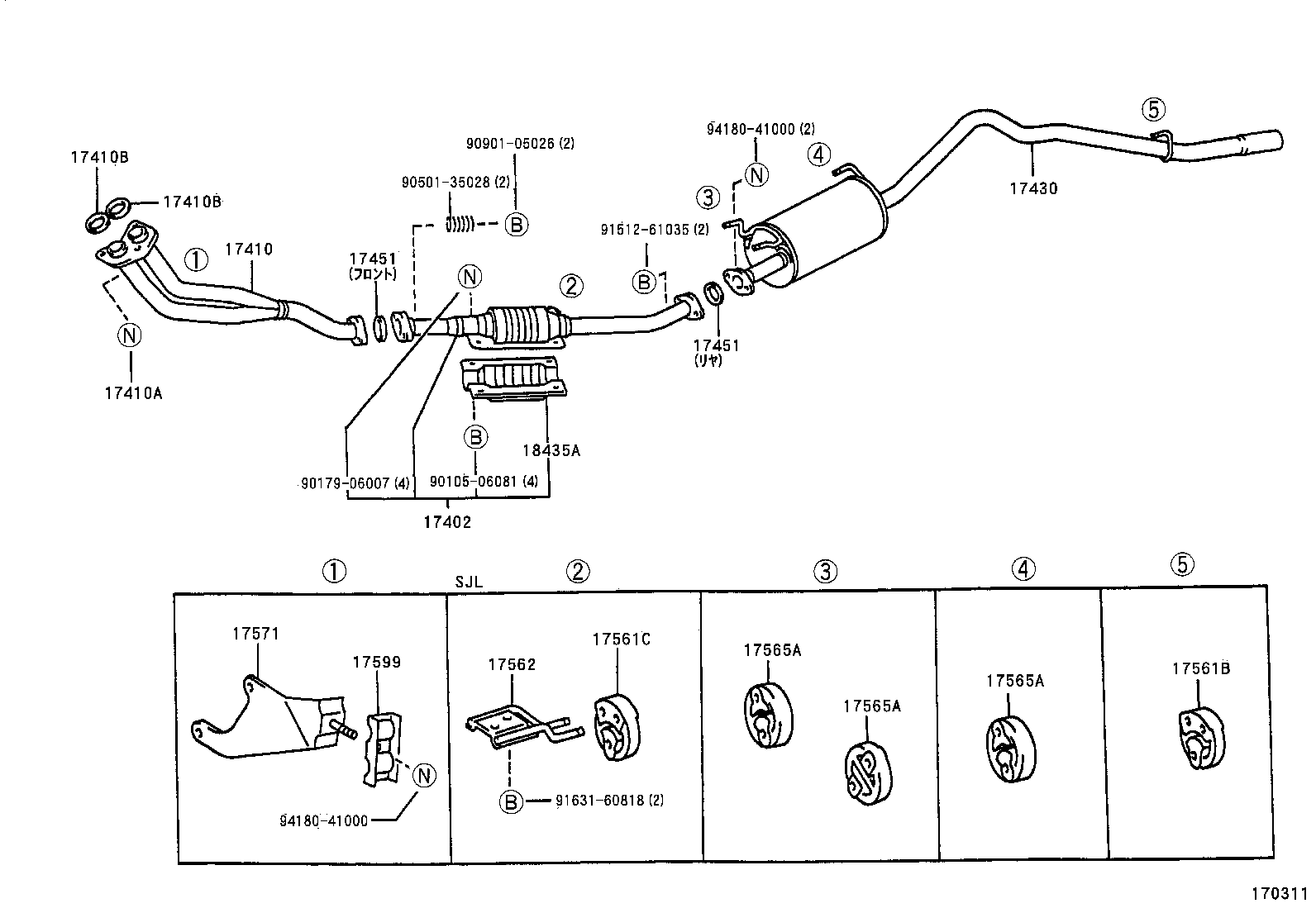

Click highlighted areas on diagram

diagram 17402 17410 17410A 17410B 17410B 17430 17451 17451 17561B 17561C 17562 17565A 17565A 17565A 17571 17599 18435A 9010506081 9017906007 9050135028 9090105026 9151261035 9163160818 9418041000 9418041000
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-13050

5K,7K..KR4#..V1

 1
17402-13010

5K,7K..KR4#..V1

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-13240

5K..KR41

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5K,7K,3SFE..KR4#,SR40,50

 3
17410B - GASKET, EXHAUST PIPE
90917-06069

5K,7K..KR4#

 2
17410B - GASKET, EXHAUST PIPE
90917-06069

5K,7K..KR4#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-13460

5K,7K..KR4#..V1

 1
17451 - GASKET, EXHAUST PIPE
90917-06044

5K,7K..KR4#

ﾘﾔ

 1
17451-64030

2C,5K,7K..CR41,51,KR4#

ﾌﾛﾝﾄ

 1
17451 - GASKET, EXHAUST PIPE
90917-06044

5K,7K..KR4#

ﾘﾔ

 1
17451-64030

2C,5K,7K..CR41,51,KR4#

ﾌﾛﾝﾄ

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 1
17561-73020

3SFE..SR40..MTM;2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR50

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-13280

5K,7K..KR4#

 1
17599 - HOLDER, EXHAUST PIPE SUPPORT STOPPER
17599-13010

5K,7K..KR4#

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-11020

5K,7K..KR4#

 1
Common parts
90105-06081
90179-06007
90501-35028
90901-05026
91512-61035
91631-60818
94180-41000
