KR41V-FRSDS (1996)
Toyota Lite/Townace Noah,V

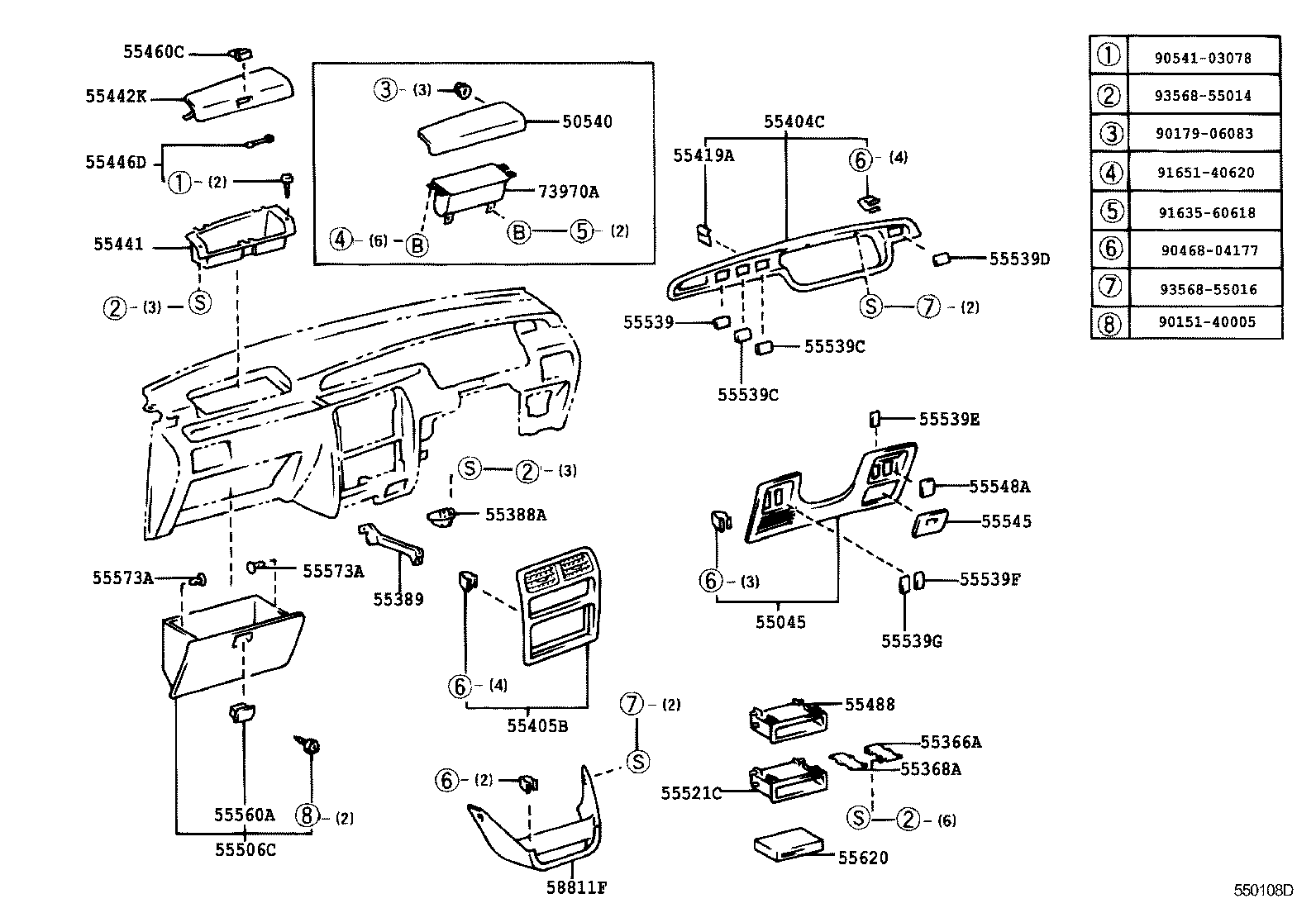

ILLUST NO. 2 OF 2(9610-9812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 55591-28020B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-28060B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 86211-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 86211-28040 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 86212-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 86212-28040 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55388A - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-28120 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 55419-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-28020B0 |
CR41,51,KR4#,SR40,50..03S,05S,06S MD.MOON MIST,TRIM1# |
1 | ||
| 55442K - DOOR, INSTRUMENT PANEL BOX | ||||
| 55442-28020B0 |
CR41,51,KR4#,SR40,50..03S,05S,06S MD.MOON MIST,TRIM1# |
1 | ||
| 55446D - SHAFT, INSTRUMENT PANEL BOX | ||||
| 55446-28010 |
CR41,51,KR4#,SR40,50..03S,05S,06S |
2 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-28010B0 |
CR41,51,KR4#,SR40,50..03S,05S,06S MD.MOON MIST,TRIM1# |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-16030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-28110B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55524-28030 |
CR41,51,KR4#;CR40,50,SR40,50..B,E,Q,V |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55524-28030 |
CR41,51,KR4#;CR40,50,SR40,50..B,E,Q,V |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55524-28040 |
CR41,51,KR4#,SR40,50..03S,05S,06S |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080B2 |
CR41,51,KR4#..D;CR40,50,SR40,50..B,E,Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080B2 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-28110G0 |
CR40..08S;CR40..HRF..Q;CR41,5#,KR4#,SR40,50 DK.SAGE,TRIM6# |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080B2 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-28110G0 |
CR40..08S;CR40..HRF..Q;CR41,5#,KR4#,SR40,50 DK.SAGE,TRIM6# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-28020B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55547-28020B2 |
CR4#,5#,KR4#,SR40,50..B,D,N MD.MOON MIST,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-18010B1 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-28040 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-28040 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-28030 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 55620-28030 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D,N) |
1 | ||
| 58811F - BOX, CONSOL | ||||
| 58811-28120B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 58811-28170B0 |
CR4#,5#,KR4#,SR40,50 ｱﾘ(*80),MD.MOON MIST,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73970-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 90179-06083 | ||||
| 90468-04177 | ||||
| 90541-03078 | ||||
| 91635-60618 | ||||
| 91651-40620 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||

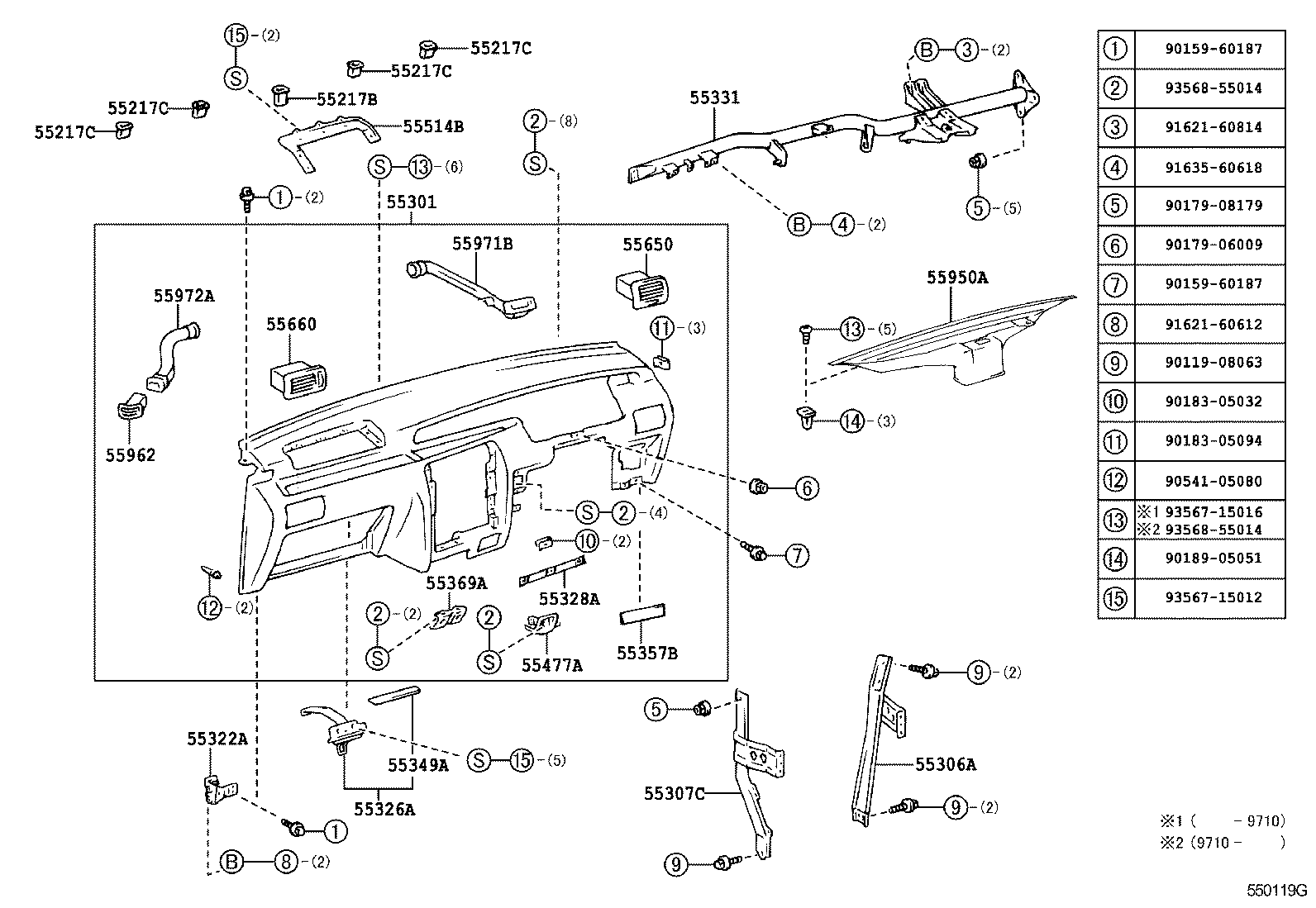

ILLUST NO. 1 OF 2(9610-9812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55217C - RETAINER, DASH PANEL SILENCER, NO.2 | ||||
| 55217-28020 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 55217C - RETAINER, DASH PANEL SILENCER, NO.2 | ||||
| 55217-28020 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 55217C - RETAINER, DASH PANEL SILENCER, NO.2 | ||||
| 55217-28020 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 55217C - RETAINER, DASH PANEL SILENCER, NO.2 | ||||
| 55217-28020 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-28230B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55301-28290B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55301-28240B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-28090 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55306-28090 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55307-28050 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55031-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-28040 |
CR4#,5#,KR4#,SR40,50 ｱﾘ(*80) |
1 | ||
| 55330-28070 |
CR4#,5#,KR4#,SR40,50 ｱﾘ(*80) |
1 | ||
| 55330-28030 |
CR41,51,KR4#..D |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-28080 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 55369A - BRACKET, ASH RECEPTACLE MOUNTING | ||||
| 55369-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55514B - RETAINER, AIR BAG PASSENGER DOOR | ||||
| 55514-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-28070B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-28070B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-28080 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55950-28090 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55950-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55950-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-28020B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90159-60187 | ||||
| 90179-06009 | ||||
| 90179-08179 | ||||
| 90183-05032 | ||||
| 90183-05094 | ||||
| 90189-05051 | ||||
| 90541-05080 | ||||
| 91621-60612 | ||||
| 91621-60814 | ||||
| 91635-60618 | ||||
| 93567-15012 | ||||
| 93567-15016 | ||||
| 93568-55014 | ||||
