KR41V-FRSDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

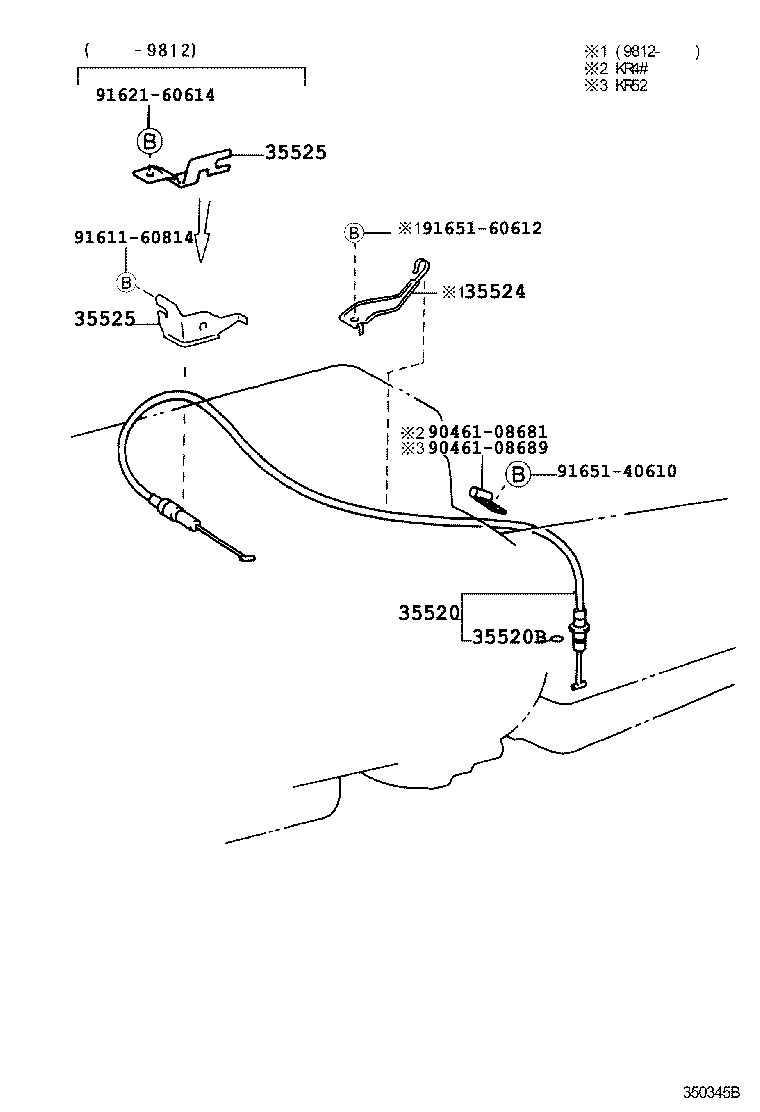

ILLUST NO. 2 OF 2(9611- )KR4#,52..ATM

Click highlighted areas on diagram

A42D,A44DF

diagram 35520 35520B 35524 35525 35525 9046108681 9046108689 9161160814 9162160614 9165140610 9165160612
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-28070

CR4#,5#..ATM

 1
35520-38010

KR4#..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

CR4#,5#,KR4#,SR40,50..ATM

 1
35525 - BRACKET, THROTTLE CABLE
35525-12060

KR4#..ATM

 1
35525 - BRACKET, THROTTLE CABLE
35525-12060

KR4#..ATM

 1
Common parts
90461-08681
90461-08689
91611-60814
91621-60614
91651-40610
91651-60612
