KR41V-FRMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)5K

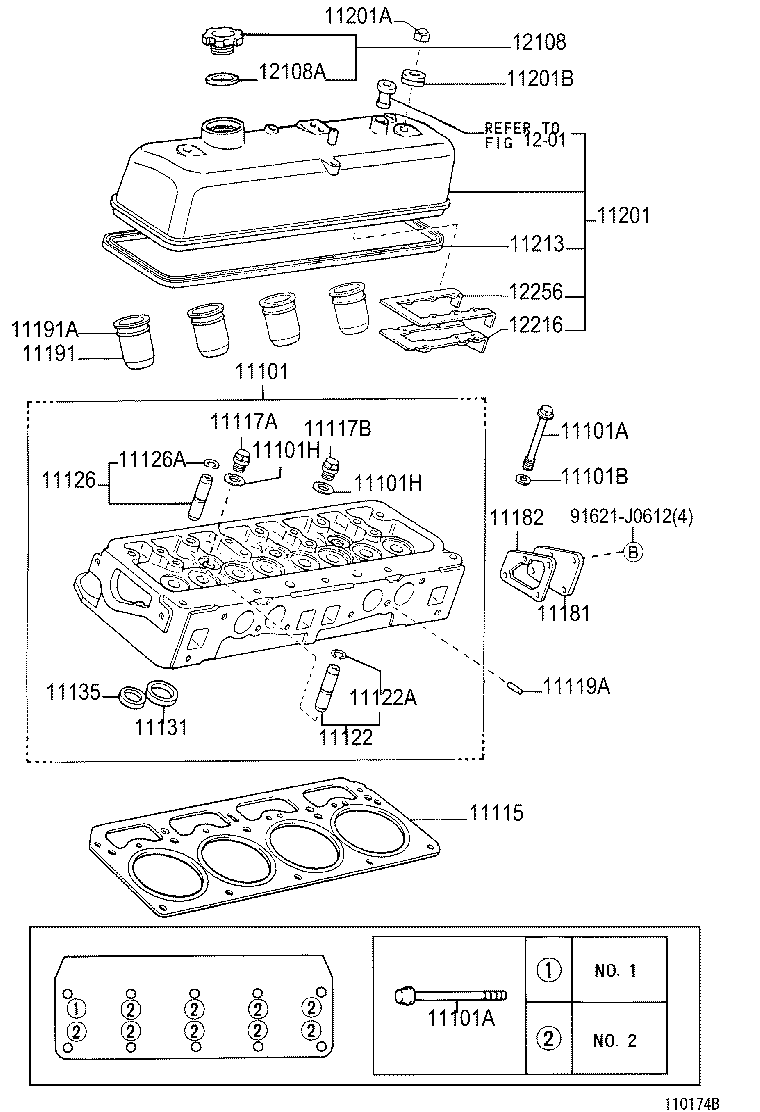

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101H 11101H 11115 11117A 11117B 11119A 11122 11122A 11126 11126A 11131 11135 11181 11182 11191 11191A 11201 11201A 11201B 11213 1201 12108 12108A 12216 12256 91621J0612
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-13062

5K..KR41

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02074

5K..KR41

NO.1

 1
90910-02069

5K..KR41

NO.2

 9
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02074

5K..KR41

NO.1

 1
90910-02069

5K..KR41

NO.2

 9
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10005

5K..KR41

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-15151

5K..KR41

外径=21

 2
90430-18152

5K..KR41

外径=25

 1
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-15151

5K..KR41

外径=21

 2
90430-18152

5K..KR41

外径=25

 1
11115 - GASKET, CYLINDER HEAD
11115-13041

5K..KR41

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-18063

5K,7K..KR4#

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-15045

5K..KR41

 2
11119A - PIN, STRAIGHT, NO.1
90250-08120

5K,7K..KR4#

長さ=18,外径=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-24020

5K,7K..KR4#

O/S 0.05

 4
11122-24020

5K,7K..KR4#

STD

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

5K,7K..KR4#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-24020

5K,7K..KR4#

STD

 4
11123-24020

5K,7K..KR4#

O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

5K,7K..KR4#

 4
11131 - SEAT, INTAKE VALVE
11132-24010

5K..KR41

O/S 0.03

 4
11131-24010

5K..KR41

STD

 4
11135 - SEAT, EXHAUST VALVE
11136-13010

5K..KR41

O/S 0.03

 4
11135-13010

5K..KR41

STD

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-13020

5K,7K..KR4#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-13020

5K,7K..KR4#

 1
11182-13020

5K..KR41

 1
11191 - TUBE, SPARK PLUG
11191-22010

5K,7K..KR4#

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31003

5K,7K..KR4#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-13021

5K..KR41

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
94171-10800

5K..KR41

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09007

5K,7K..KR4#

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-22010

5K,7K..KR4#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-65011

5K,7K..KR4#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

5K,7K..KR4#

 1
12216 - PLATE, VENTILATION BAFFLE
12216-22010

5K,7K..KR4#

 1
12256 - GASKET, VENTILATION BAFFLE
12256-22010

5K,7K..KR4#

 1
