KR41V-FMMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

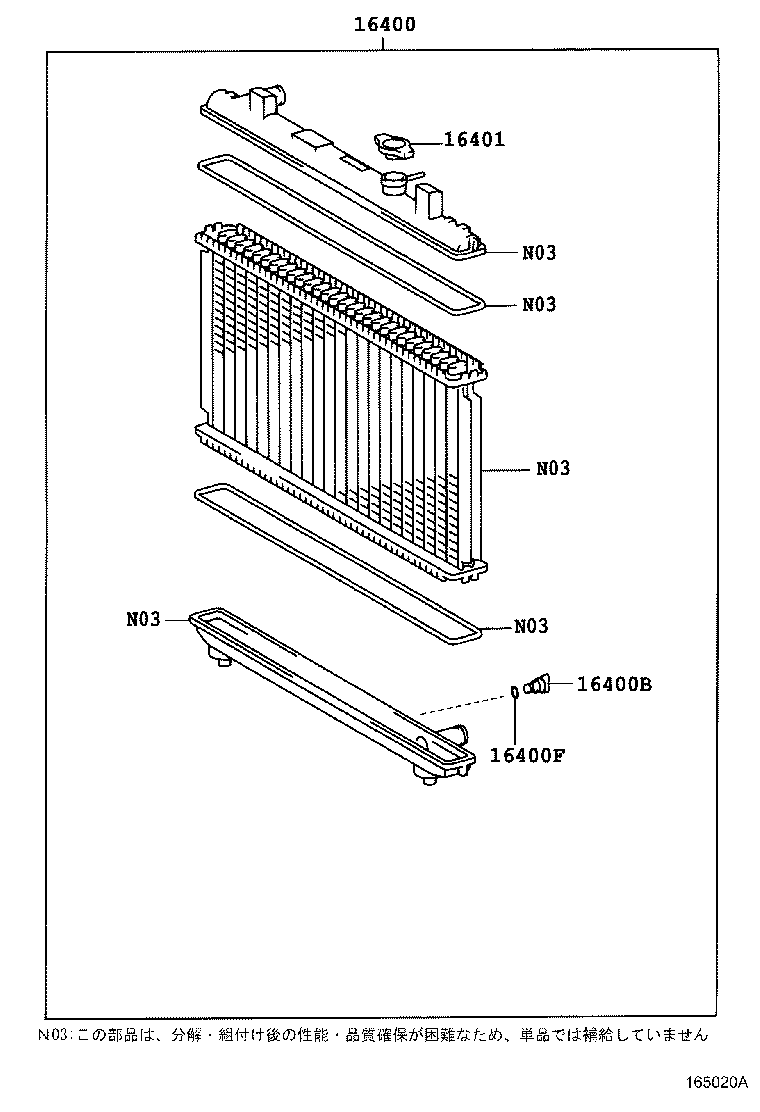

ILLUST NO. 2 OF 2(9611- )5K,7K#

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-7A380

5K,7K..KR4#..MTM

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

5K,7K..KR4#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

5K,7K..KR4#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-72090

5K,7K..KR4#

 1

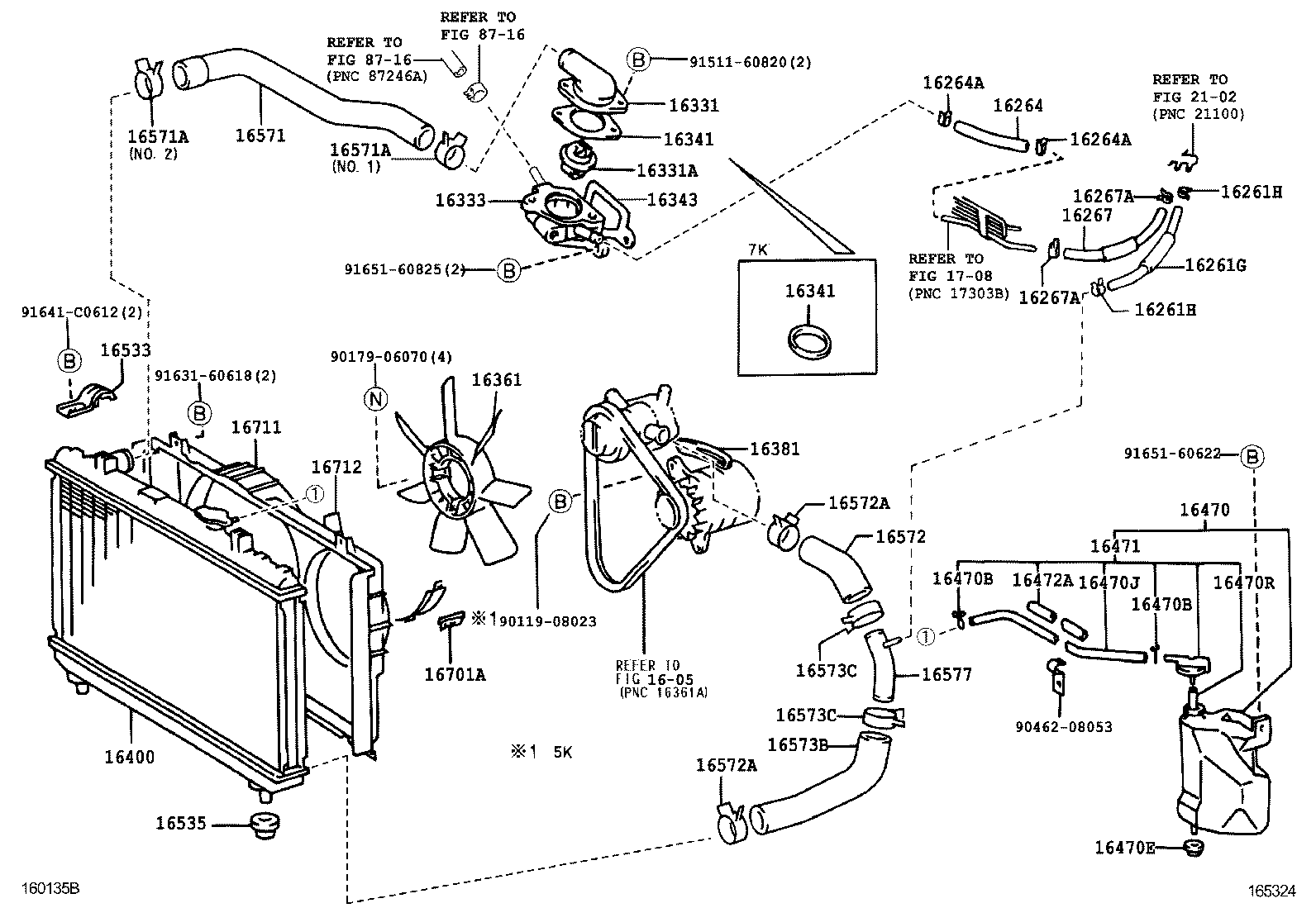

ILLUST NO. 1 OF 2(9611-9812)5K,7K

Click highlighted areas on diagram

diagram 1605 16261G 16261H 16261H 16264 16264A 16264A 16267 16267A 16267A 16331 16331A 16333 16341 16341 16343 16361 16381 16400 16470 16470B 16470B 16470E 16470J 16470R 16471 16472A 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16573B 16573C 16573C 16577 16701A 16711 16712 1708 2102 8716 8716 9011908023 9017906070 9046208053 9151160820 9163160618 91641C0612 9165160622 9165160825
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-13100

5K,7K..KR4#

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90467-11009

5K,7K..KR4#

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90467-11009

5K,7K..KR4#

 2
16264 - HOSE, WATER BY-PASS, NO.2
99555-00200

5K,7K..KR4#

*H,L=140

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009

5K,7K..KR4#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009

5K,7K..KR4#

 2
16267 - HOSE, WATER BY-PASS, NO.3
90447-12070

5K,7K..KR4#

長さ=170

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

5K,7K..KR4#

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

5K,7K..KR4#

 2
16331 - OUTLET, WATER
16331-13090

5K,7K..KR4#

 1
16331-13090

5K..KR41

 1
16331A - THERMOSTAT
90916-03078

5K,7K..KR4#

*WAX 88−100,ｶﾝﾚｲﾁ ｼﾖｳ

 1
90916-03083

5K,7K..KR4#

*WAX 82−95

 1
16333 - HOUSING, WATER OUTLET
16333-13141

5K..KR41

 1
16341 - GASKET, WATER OUTLET
16341-13040

5K..KR41

 1
16341 - GASKET, WATER OUTLET
16341-13040

5K..KR41

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-13020

5K..KR41

 1
16361 - FAN
16361-38010

5K,7K..KR4#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-24011

5K..KR41

 1
16400 - RADIATOR ASSY
16400-7A380

5K,7K..KR4#..MTM

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-64220

5K,7K..KR4#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5K,7K..KR4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5K,7K..KR4#

 2
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-20014

5K,7K..KR4#

 1
16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK)
90099-33534

5K,7K..KR4#

長さ=640

 1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

5K,7K..KR4#

*H,L=215

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-64060

5K,7K..KR4#

 1
16472A - PROTECTOR, HOSE
16479-64220

5K,7K..KR4#

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-64010

5K,7K..KR4#

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-40016

5K,7K..KR4#

 2
16571 - HOSE, RADIATOR, INLET
16571-13290

5K,7K..KR4#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001

5K,7K..KR4#

NO.2

 1
90467-31001

5K,7K..KR4#

NO.1

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001

5K,7K..KR4#

NO.2

 1
90467-31001

5K,7K..KR4#

NO.1

 1
16572 - HOSE, RADIATOR, OUTLET
16572-13280

5K,7K..KR4#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5K,7K..KR4#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5K,7K..KR4#

 2
16573B - HOSE, RADIATOR, NO.3
16573-13090

5K,7K..KR4#

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-37002

5K,7K..KR4#

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-37002

5K,7K..KR4#

 2
16577 - PIPE, RADIATOR, NO.7
16577-13060

5K,7K..KR4#

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

5K,7K..KR4#

 2
16711 - SHROUD, FAN
16711-13350

5K,7K..KR4#

 1
16712 - SHROUD, FAN, NO.2
16712-13150

5K,7K..KR4#

 1
Common parts
90119-08023
90179-06070
90462-08053
91511-60820
91631-60618
91641-C0612
91651-60622
91651-60825
Linked diagrams
1605
1708
2102
8716
