KR41V-FLMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )5D

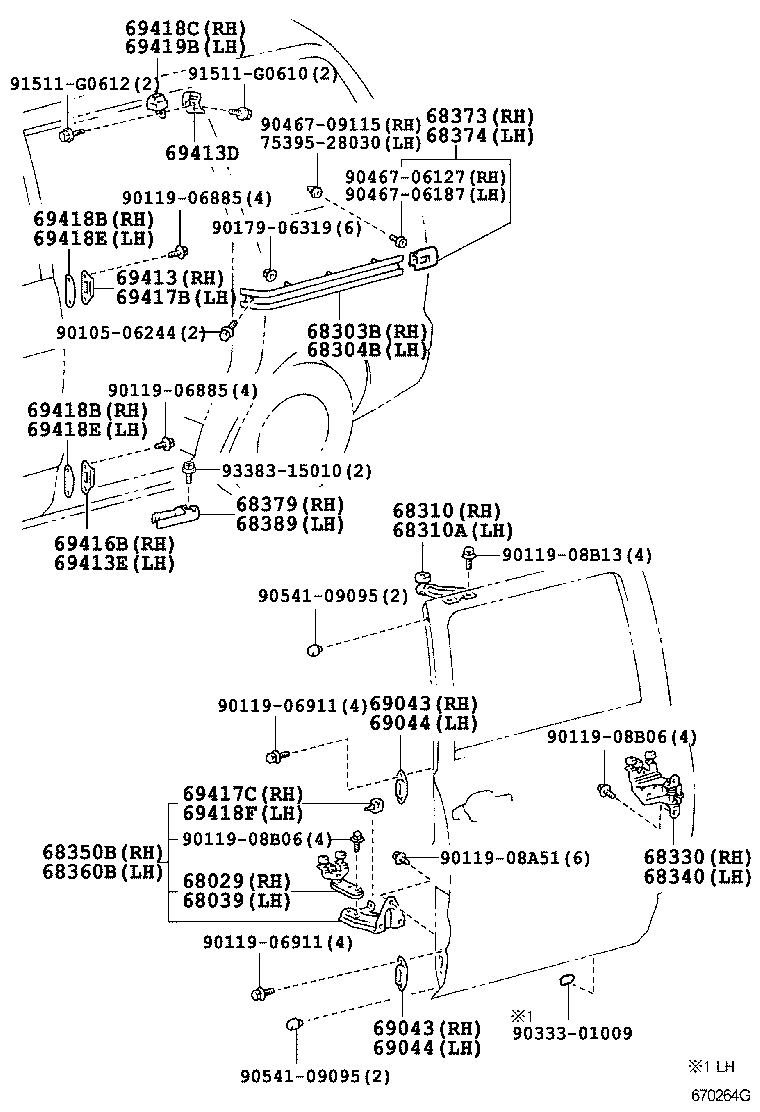

Click highlighted areas on diagram

diagram 68029 68039 68303B 68304B 68310 68310A 68330 68340 68350B 68360B 68373 68374 68379 68389 69043 69043 69044 69044 69413 69413D 69413E 69416B 69417B 69417C 69418B 69418B 69418C 69418E 69418E 69418F 69419B 7539528030 9010506244 9011906885 9011906885 9011906911 9011906911 9011908A51 9011908B06 9011908B06 9011908B13 9017906319 9033301009 9046706127 9046706187 9046709115 9054109095 9054109095 91511G0610 91511G0612 9338315010
Part # Description Qty Price
68029 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
68029-28010

CR41,51,KR4#,SR40,50..5D

 1
68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
68039-28010

CR4#,5#,KR4#,SR40,50

 1
68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303-28040

CR41,51,KR4#,SR40,50..5D

 1
68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304-28040

CR4#,5#,KR4#,SR40,50..B,D,N

 1
68310 - ROLLER ASSY, SLIDE DOOR, UPPER
68310-28030

CR41,51,KR4#,SR40,50..5D

 1
68310A - ROLLER ASSY, SLIDE DOOR, UPPER, LH
68320-28030

CR4#,5#,KR4#,SR40,50

 1
68330 - ROLLER ASSY, SLIDE DOOR, CENTER
68330-28030

CR41,51,KR4#,SR40,50..5D

 1
68330-28020

CR41,51,KR4#,SR40,50..5D

 1
68340 - ROLLER ASSY, SLIDE, LH
68340-28030

CR4#,5#,KR4#,SR40,50

 1
68340-28020

CR4#,5#,KR4#,SR40,50

 1
68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH
68350-28020

CR41,51,KR4#,SR40,50..5D

 1
68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH
68360-28020

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
68373 - MOULDING, SLIDE RAIL END, RH
68373-28030

CR41,51,KR4#,SR40,50..5D

 1
68374 - MOULDING, SLIDE RAIL END, LH
68374-28050

CR4#,5#,KR4#,SR40,50..B,D,N

 1
68374-28080

CR4#,5#,KR4#,SR40,50..B,D,N

 1
68379 - SPRING, SLIDE DOOR CATCH, RH
68379-28030

CR41,51,KR4#,SR40,50..5D

 1
68389 - SPRING, SLIDE DOOR CATCH, LH
68389-28030

CR4#,5#,KR4#,SR40,50

 1
69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69043-95J00

CR41,51,KR4#,SR40,50..5D..(B,D)

 2
69043-95J00

CR41,51,KR4#,SR40,50..5D

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69043-95J00

CR41,51,KR4#,SR40,50..5D..(B,D)

 2
69043-95J00

CR41,51,KR4#,SR40,50..5D

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69044 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE, LH
69043-95J00

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69043-95J00

CR41,51,KR4#,SR40,50..03S,06S

 2
69044 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE, LH
69043-95J00

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69043-95J00

CR41,51,KR4#,SR40,50..03S,06S

 2
69413 - STOP, SLIDE DOOR DOWN MALE
69416-28020

CR41,51,KR4#,SR40,50..5D..(B,D)

 1
69413D - BRACKET, SLIDE DOOR OPEN STOP
69413-28010

CR41,51,KR4#,SR40,50..5D

 2
69413E - STOPPER, SLIDE DOOR DOWN MALE, LH
69416-28020

CR41,51,KR4#,SR40,50..03S,06S

 1
69416B - STOPPER, SLIDE DOOR DOWN MALE
69416-95J01

CR41,51,KR4#,SR40,50..5D

 1
69417B - STOPPER, SLIDE DOOR DOWN MALE, LOWER RH
69416-28020

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
69417C - CUSHION, SLIDE DOOR OPEN STOPPER, RH
69417-28010

CR41,51,KR4#,SR40,50..5D

 1
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-28010

CR41,51,KR4#,SR40,50..5D

 1
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-28010

CR41,51,KR4#,SR40,50..5D

 1
69418C - STOPPER, BACK DOOR MALE, LOWER
69418-28030

CR41,51,KR4#,SR40,50..5D

 1
69418E - SHIM, SLIDE DOOR DOWN STOP MALE LH
69418-28010

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
69418E - SHIM, SLIDE DOOR DOWN STOP MALE LH
69418-28010

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
69418F - CUSHION, SLIDE DOOR OPEN STOPPER, LH
69417-28010

CR4#,5#,KR4#,SR40,50

 1
69419B - STOP, SLIDE DOOR OPEN, LH
69419-28020

CR4#,5#,KR4#,SR40,50

 1
Common parts
75395-28030
90105-06244
90119-06885
90119-06911
90119-08A51
90119-08B06
90119-08B13
90179-06319
90333-01009
90467-06127
90467-06187
90467-09115
90541-09095
91511-G0610
91511-G0612
93383-15010
