KR41V-ERSDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )5K,7K

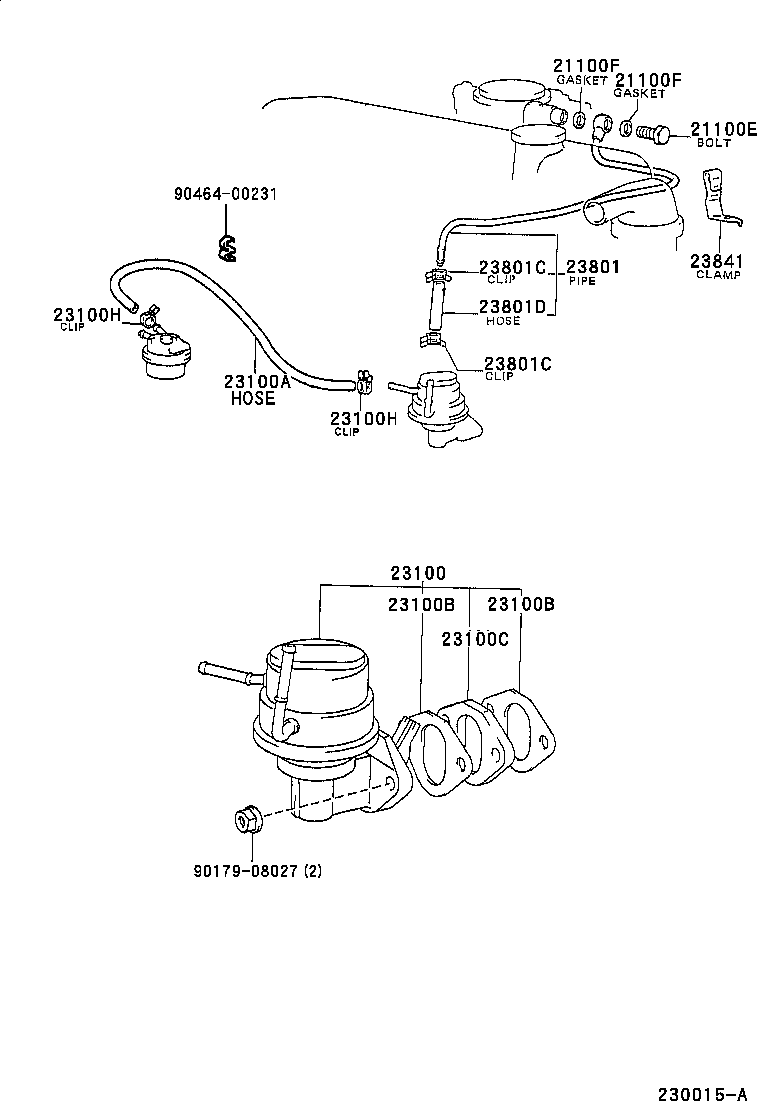

Click highlighted areas on diagram

diagram 21100E 21100F 21100F 23100 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 23801D 23841 9017908027 9046400231
Part # Description Qty Price
21100E - BOLT, CARBURETOR TO CARBURETOR HOSE UNION
90401-12097

5K,7K..KR4#

 1
21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT
90430-12005

5K,7K..KR4#

 2
21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT
90430-12005

5K,7K..KR4#

 2
23100 - PUMP ASSY, FUEL
23100-19236

5K,7K..KR4#

 1
23100A - HOSE, FUEL
95334-06028

5K,7K..KR4#

 1
23100B - GASKET, FUEL PUMP
90923-05021

5K,7K..KR4#

 2
90923-05021

5K..KR41

 2
23100B - GASKET, FUEL PUMP
90923-05021

5K,7K..KR4#

 2
90923-05021

5K..KR41

 2
23100C - INSULATOR, FUEL PUMP
90923-06015

5K,7K..KR4#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-41100

5K,7K..KR4#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

5K,7K..KR4#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-13140

5K..KR41

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

5K,7K..KR4#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

5K,7K..KR4#

 2
23801D - HOSE, FUEL PIPE, NO.1
95333-06020

5K..KR41

*H,L=160

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-13020

5K,7K..KR4#

 1
Common parts
90179-08027
90464-00231
