KR41V-ERMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 5K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

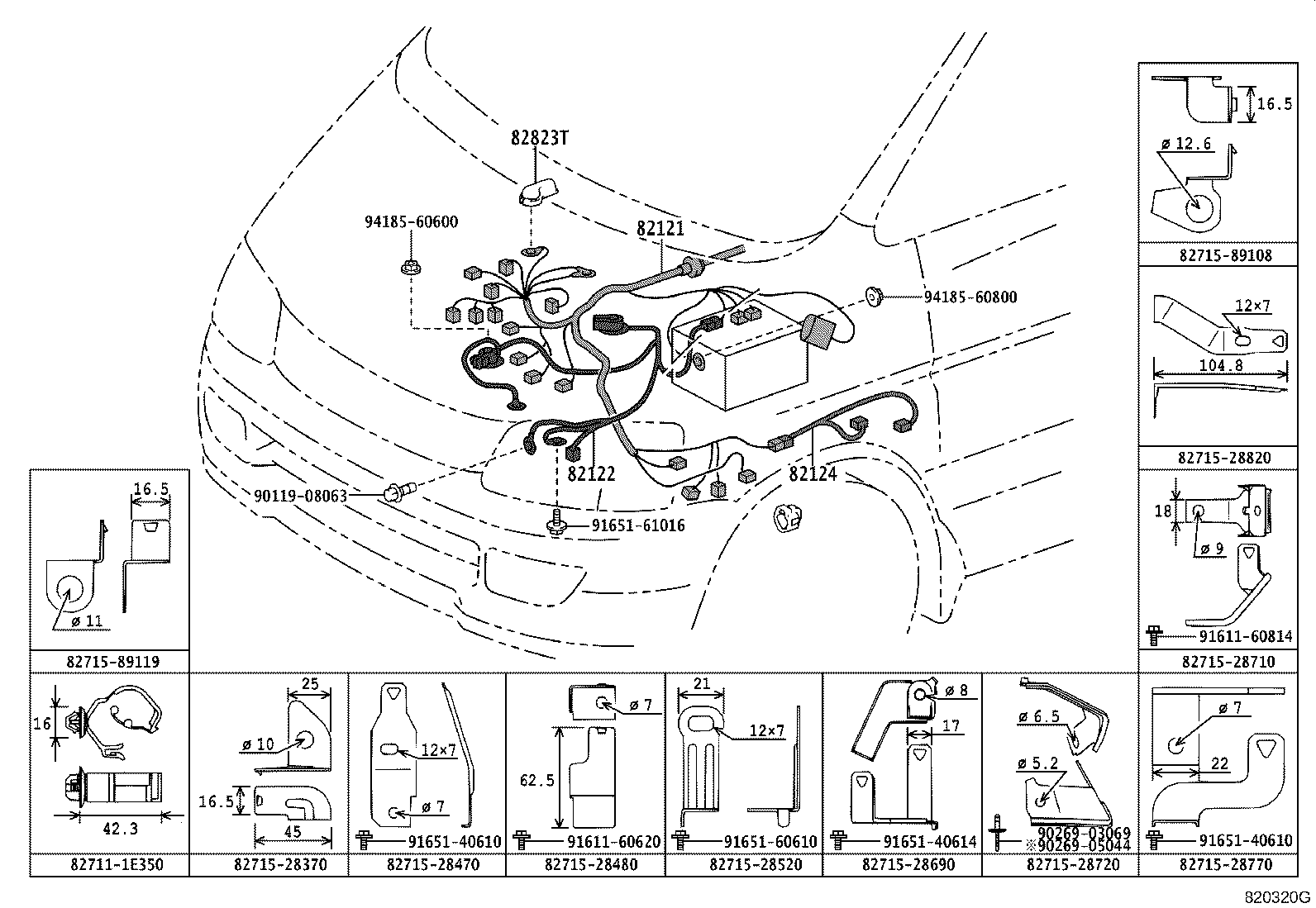

ILLUST NO. 1 OF 9(9610-9812)CR4#,5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82121 82122 82124 827111E350 8271528370 8271528470 8271528480 8271528520 8271528690 8271528710 8271528720 8271528770 8271528820 8271589108 8271589119 82823T 9011908063 9026903069 9026905044 9161160620 9161160814 9165140610 9165140610 9165140614 9165160610 9165161016 9418560600 9418560800
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-28470

KR4#..MTM

 1
82121-28471

KR4#..MTM

 1
82122 - WIRE, ENGINE, NO.2
82122-28300

KR4#

 1
82122-28310

KR4#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82122-28290

CR4#,5#

 1
82122-28370

CR4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82124 - WIRE, ENGINE, NO.4
82124-28300

KR4#..MTM

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

CR41,51,KR4#,SR40,50

 1
82823-24010

CR4#,5#

ｵﾙﾀﾈ-ﾀ 12V 90A OR 12V 120A

 1
Common parts
82711-1E350
82715-28370
82715-28470
82715-28480
82715-28520
82715-28690
82715-28710
82715-28720
82715-28770
82715-28820
82715-89108
82715-89119
90119-08063
90269-03069
90269-05044
91611-60620
91611-60814
91651-40610
91651-40614
91651-60610
91651-61016
94185-60600
94185-60800

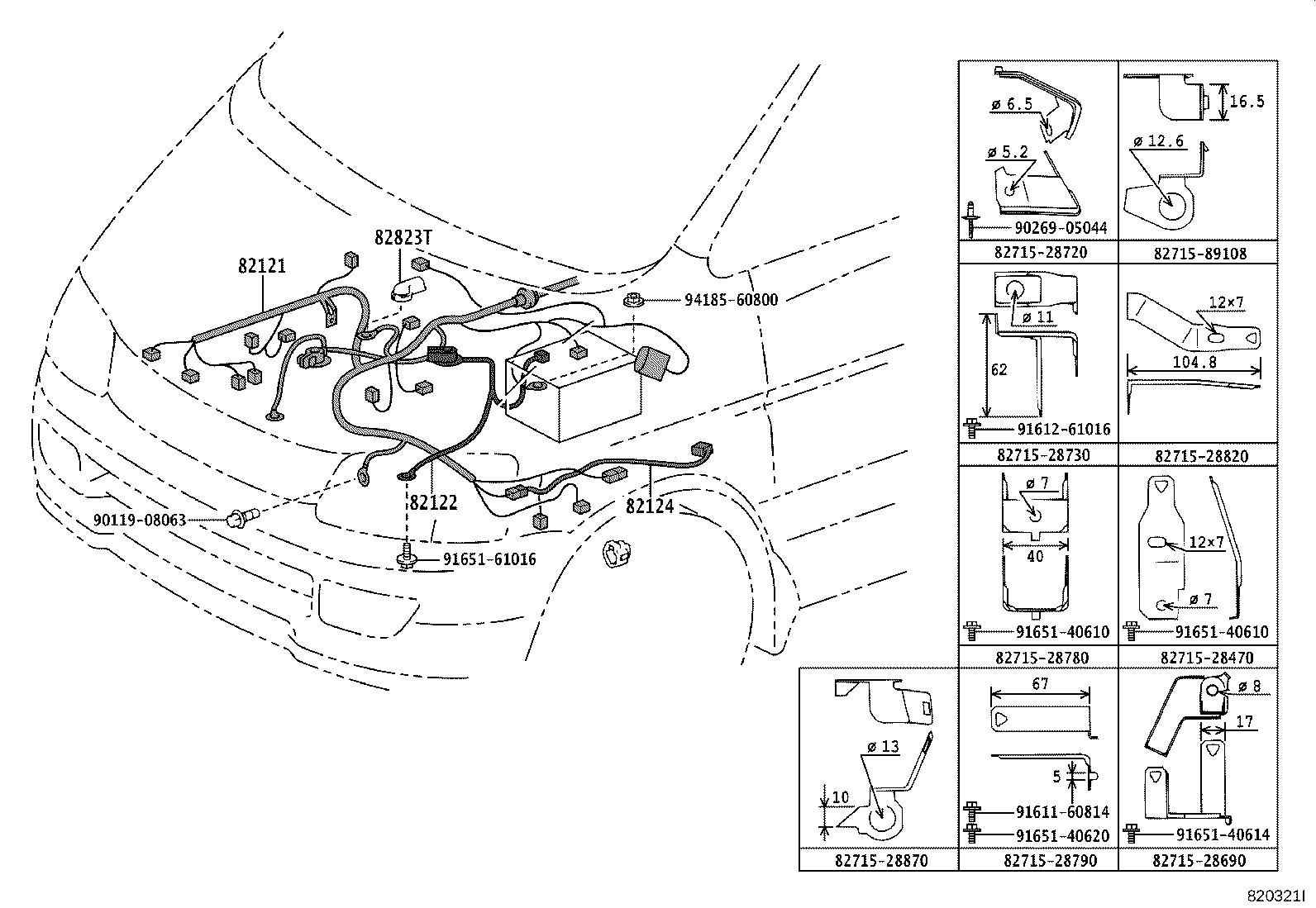

ILLUST NO. 1 OF 9(9611-9812)KR4#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82121 82122 82124 8271528470 8271528690 8271528720 8271528730 8271528780 8271528790 8271528820 8271528870 8271589108 82823T 9011908063 9026905044 9161160814 9161261016 9165140610 9165140610 9165140614 9165140620 9165161016 9418560800
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-28470

KR4#..MTM

 1
82121-28471

KR4#..MTM

 1
82122 - WIRE, ENGINE, NO.2
82122-28300

KR4#

 1
82122-28310

KR4#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82122-28290

CR4#,5#

 1
82122-28370

CR4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82124 - WIRE, ENGINE, NO.4
82124-28300

KR4#..MTM

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

CR41,51,KR4#,SR40,50

 1
82823-24010

CR4#,5#

ｵﾙﾀﾈ-ﾀ 12V 90A OR 12V 120A

 1
Common parts
82715-28470
82715-28690
82715-28720
82715-28730
82715-28780
82715-28790
82715-28820
82715-28870
82715-89108
90119-08063
90269-05044
91611-60814
91612-61016
91651-40610
91651-40614
91651-40620
91651-61016
94185-60800

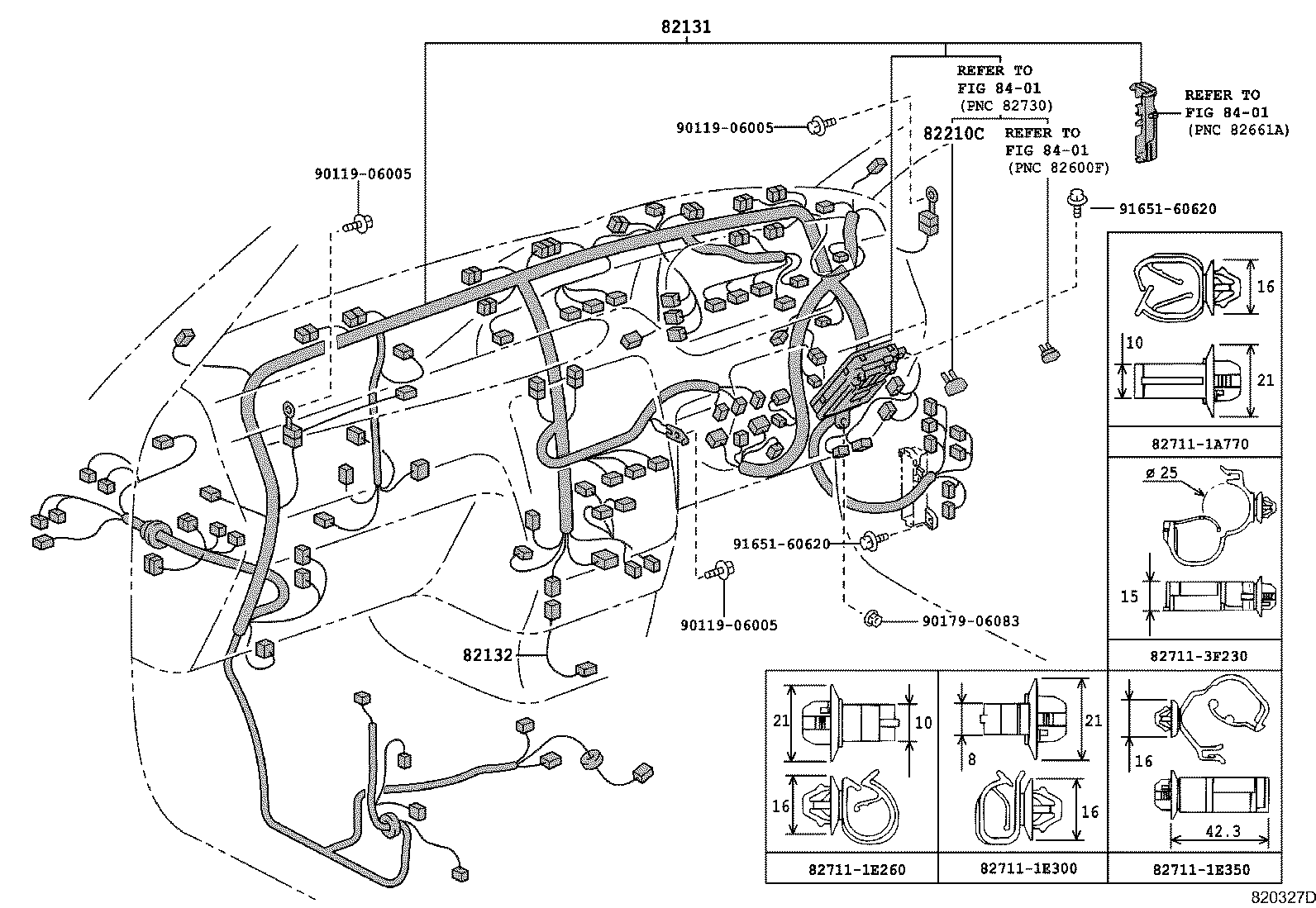

ILLUST NO. 4 OF 9(9610-9812)

Click highlighted areas on diagram

ｶｳﾙ ﾜｲﾔ

diagram 82131 82132 82210C 827111A770 827111E260 827111E300 827111E350 827113F230 8401 8401 8401 9011906005 9011906005 9011906005 9017906083 9165160620 9165160620
Part # Description Qty Price
82131 - WIRE, COWL
82131-2X430

KR4#

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)

 1
82131-2X440

KR4#

ｱﾘ(*80,ｳﾝﾃﾝｾｷ)

 1
82131-2X450

KR4#..D

 1
82131-2X451

KR4#..D

 1
82131-2X441

KR4#

ｱﾘ(*80,ｳﾝﾃﾝｾｷ)

 1
82131-2X431

KR4#

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)

 1
82210C - FUSIBLE LINK
90982-08202

CR4#,5#,KR4#,SR40,50

60A,ｵｽ端子,黄

 1
90982-08285

CR4#,5#,KR4#,SR40,50

50A,ﾒｽ端子,赤

 1
90982-08286

CR4#,5#,KR4#,SR40,50

140A,ｵｽ端子,赤茶

 1
90982-08203

CR4#,5#,KR4#,SR40,50

80A,ｵｽ端子,黒

 1
90982-08280

CR4#,5#,KR4#,SR40,50

30A,ﾒｽ端子,桃

 1
90982-08254

CR4#,5#,KR4#,SR40,50

120A,ｵｽ端子,白

 1
90982-08284

CR4#,5#,KR4#,SR40,50

40A,ﾒｽ端子,緑

 1
90982-08246

CR4#,5#,KR4#,SR40,50

100A,ｵｽ端子,青

 1
Common parts
82711-1A770
82711-1E260
82711-1E300
82711-1E350
82711-3F230
90119-06005
90179-06083
91651-60620
Linked diagrams
8401

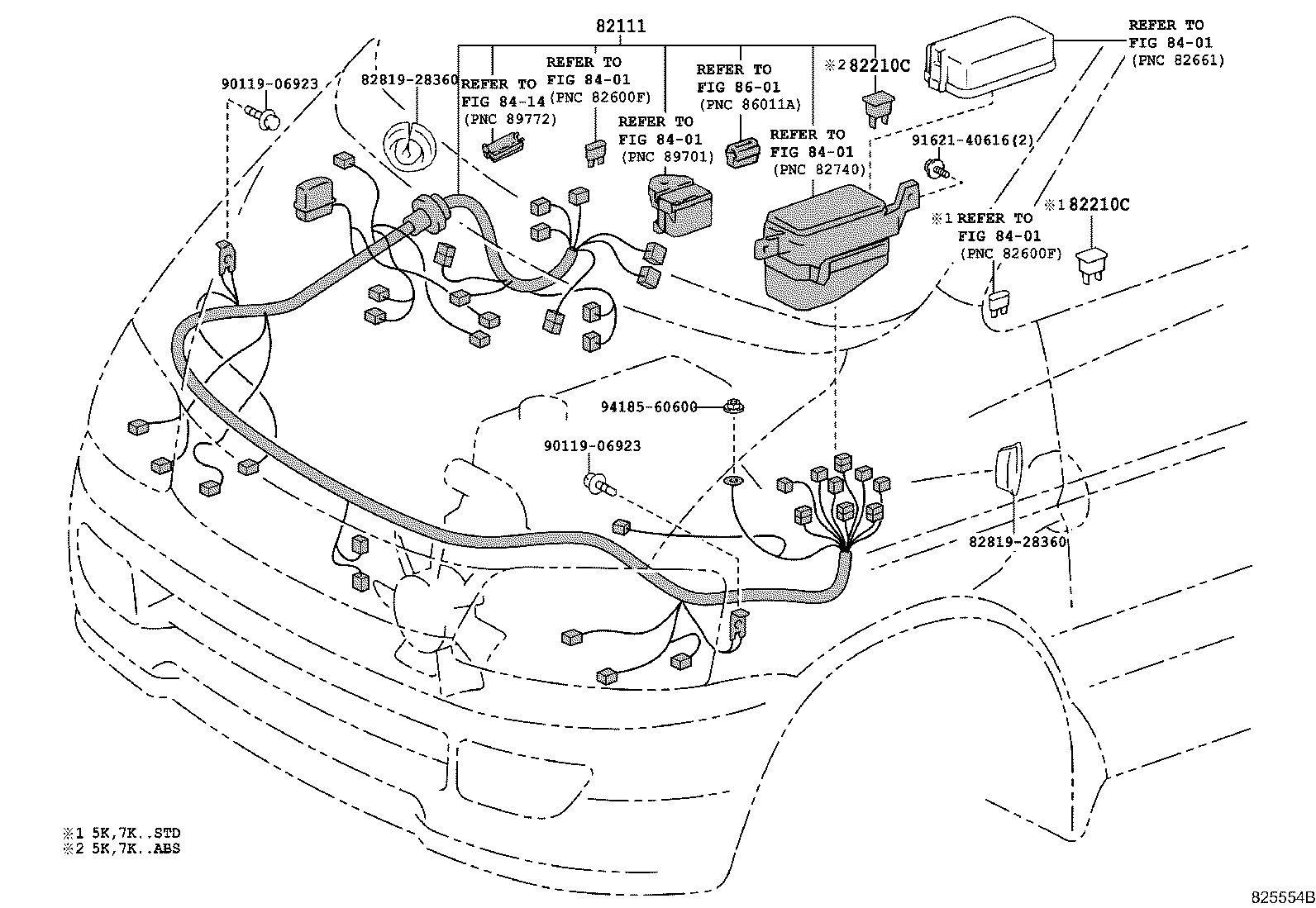

ILLUST NO. 2 OF 9(9611- )KR4#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾙ-ﾑ ﾜｲﾔ

diagram 82111 82210C 82210C 8281928360 8281928360 8401 8401 8401 8401 8414 8601 9011906923 9011906923 9162140616 9418560600
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-2R060

KR4#

 1
82111-2R050

KR4#

ｱﾘ(ABS)

 1
82111-2R051

KR4#

ｱﾘ(ABS)

 1
82111-2R061

KR4#

 1
82210C - FUSIBLE LINK
90982-08202

CR4#,5#,KR4#,SR40,50

60A,ｵｽ端子,黄

 1
90982-08285

CR4#,5#,KR4#,SR40,50

50A,ﾒｽ端子,赤

 1
90982-08286

CR4#,5#,KR4#,SR40,50

140A,ｵｽ端子,赤茶

 1
90982-08203

CR4#,5#,KR4#,SR40,50

80A,ｵｽ端子,黒

 1
90982-08280

CR4#,5#,KR4#,SR40,50

30A,ﾒｽ端子,桃

 1
90982-08254

CR4#,5#,KR4#,SR40,50

120A,ｵｽ端子,白

 1
90982-08284

CR4#,5#,KR4#,SR40,50

40A,ﾒｽ端子,緑

 1
90982-08246

CR4#,5#,KR4#,SR40,50

100A,ｵｽ端子,青

 1
82210C - FUSIBLE LINK
90982-08202

CR4#,5#,KR4#,SR40,50

60A,ｵｽ端子,黄

 1
90982-08285

CR4#,5#,KR4#,SR40,50

50A,ﾒｽ端子,赤

 1
90982-08286

CR4#,5#,KR4#,SR40,50

140A,ｵｽ端子,赤茶

 1
90982-08203

CR4#,5#,KR4#,SR40,50

80A,ｵｽ端子,黒

 1
90982-08280

CR4#,5#,KR4#,SR40,50

30A,ﾒｽ端子,桃

 1
90982-08254

CR4#,5#,KR4#,SR40,50

120A,ｵｽ端子,白

 1
90982-08284

CR4#,5#,KR4#,SR40,50

40A,ﾒｽ端子,緑

 1
90982-08246

CR4#,5#,KR4#,SR40,50

100A,ｵｽ端子,青

 1
Common parts
82819-28360
90119-06923
91621-40616
94185-60600
Linked diagrams
8401
8414
8601
