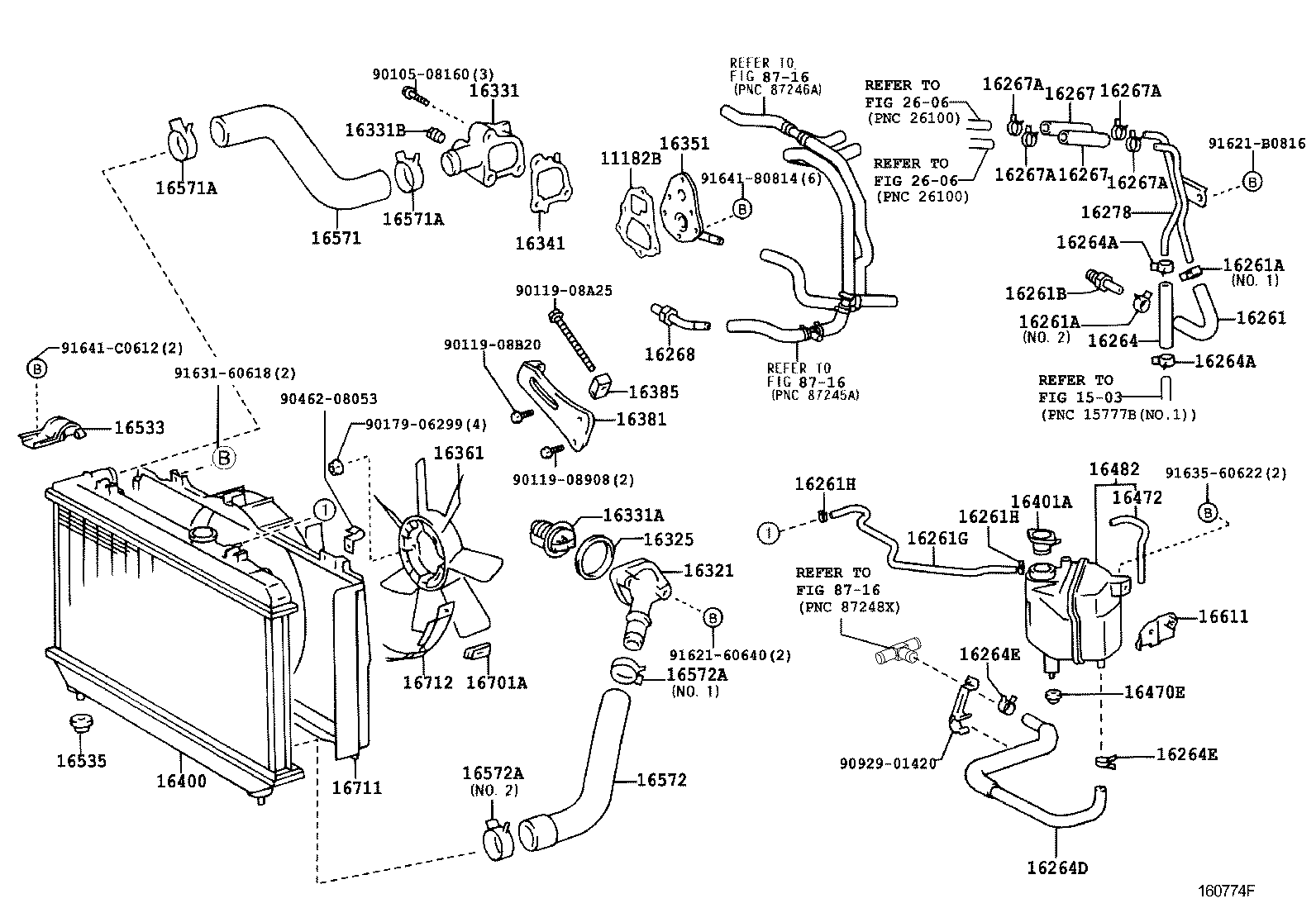

Toyota Lite/townace noah,v CR52 RADIATOR & WATER OUTLET

Part #	Description	Period	Qty
11182B - GASKET, CYLINDER HEAD REAR PLATE
11182-64021	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16261 - HOSE, WATER BY-PASS
16261-64150	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.2	12/1998 - 07/2004	1
90467-13073	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.1	12/1998 - 07/2004	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.2	12/1998 - 07/2004	1
90467-13073	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.1	12/1998 - 07/2004	1
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-53059	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16261G - HOSE, WATER BY-PASS, NO.1
16261-64160	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96135-51300	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96135-51300	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16264 - HOSE, WATER BY-PASS, NO.2
99555-10085	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 長さ=85	12/1998 - 07/2004	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13073	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13073	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16264D - HOSE, WATER BY-PASS, NO.2
16264-64180	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-22011	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-22011	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16267 - HOSE, WATER BY-PASS, NO.3
99555-10075	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 長さ=75	12/1998 - 07/2004	2
16267 - HOSE, WATER BY-PASS, NO.3
99555-10075	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 長さ=75	12/1998 - 07/2004	2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13073	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	4
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13073	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	4
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13073	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	4
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13073	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	4
16268 - PIPE, WATER BY-PASS, NO.1
16268-64100	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16278 - PIPE, WATER BY-PASS, NO.2
16278-64040	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16321 - INLET, WATER
16321-64080	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63011	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16331 - OUTLET, WATER
16331-64130	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16331A - THERMOSTAT
90916-03046	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 *WAX 82−95	12/1998 - 07/2004	1
16331B - PLUG(FOR WATER OUTLET)
90345-53030	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16341 - GASKET, WATER OUTLET
16341-64021	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16351 - OUTLET, WATER BY-PASS
16351-64020	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16361 - FAN
16361-56070	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16381 - BAR, FAN BELT ADJUSTING
16381-64140	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/1998 - 07/2004	1
16385 - SLIDER, FAN BELT ADJUSTING
16385-64030	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16400 - RADIATOR ASSY
16400-6A230	3CE..CR42,52..ATM	12/1998 - 01/2003	1
16400-6A231	3CE..CR42,52..ATM	01/2003 - 07/2004	1
16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK
16401-5B440	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-20014	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16472 - HOSE, BREATHER
90445-12078	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 *H,L=200	12/1998 - 07/2004	1
16482 - TANK SUB-ASSY, RADIATOR RESERVE
16480-64190	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16533 - SUPPORT, RADIATOR, UPPER
16505-64010	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16535 - SUPPORT, RADIATOR, LOWER
90480-40016	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16571 - HOSE, RADIATOR, INLET
16571-64290	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-41002	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-41002	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16572 - HOSE, RADIATOR, OUTLET
16572-64280	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37005	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.1	12/1998 - 07/2004	1
90467-41002	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.2	12/1998 - 07/2004	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37005	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.1	12/1998 - 07/2004	1
90467-41002	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.2	12/1998 - 07/2004	1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-64050	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16701A - CLIP(FOR FAN SHROUD)
90468-06013	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
16711 - SHROUD, FAN
16711-64440	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
16712 - SHROUD, FAN, NO.2
16712-64190	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
Common parts
90105-08160
90119-08908
90119-08A25
90119-08B20
90179-06299
90462-08053
90929-01420
91621-60640
91621-B0816
91631-60618
91635-60622
91641-80814
91641-C0612
Linked diagrams
1503
2606
8716

CR52V-SRSDE (1998)

ILLUST NO. 1 OF 3(9812- )3CE
