CR52V-RRMDE (1998)
Toyota Lite/Townace Noah,V
(9812- )3CE

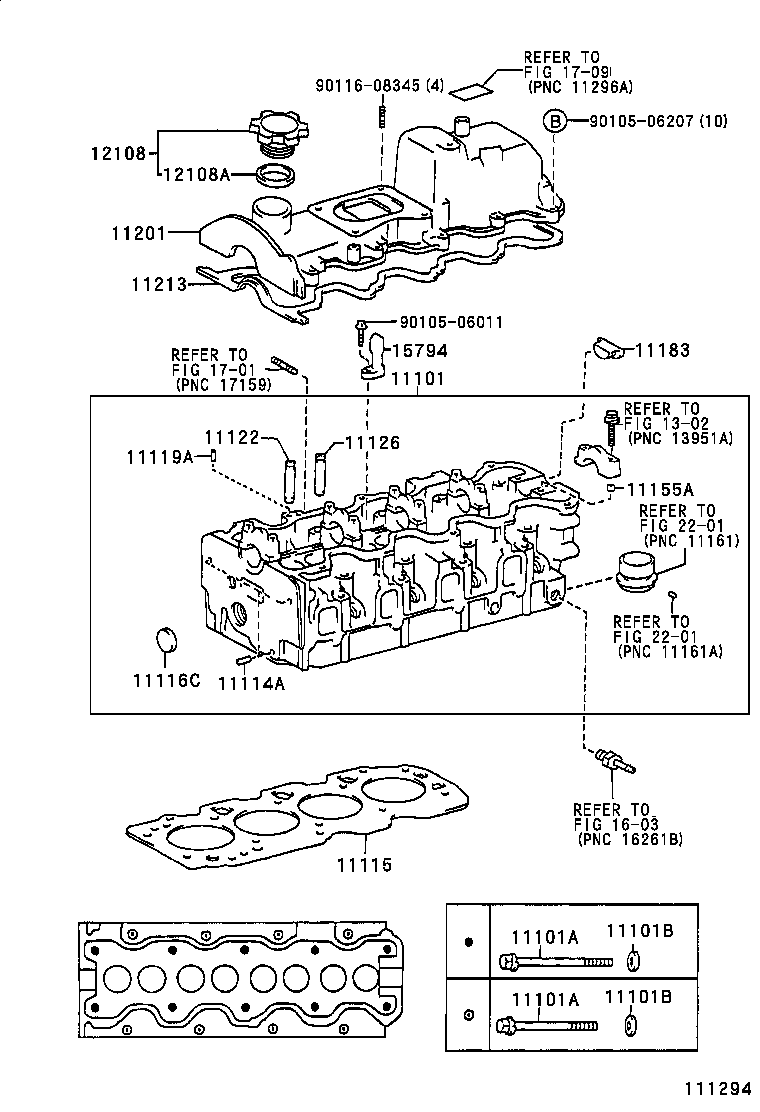

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-64370 |
3CE..CR42,52 |
1 | ||
| 11101-64371 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02131 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 *11−1.25PX123−53 |
8 | ||
| 90910-02130 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 *11−1.25PX145−53 |
10 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02131 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 *11−1.25PX123−53 |
8 | ||
| 90910-02130 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 *11−1.25PX145−53 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
18 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
18 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 長さ=11,外径=6 |
3 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-6419001 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 MARK 1,修理書参照 |
1 | ||
| 11115-6419003 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 MARK 3,修理書参照 |
1 | ||
| 11115-6419005 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 MARK 5,修理書参照 |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06013 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 長さ=16,外径=6 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-64010 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 STD |
4 | ||
| 11123-64010 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-64030 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 O/S 0.05 |
4 | ||
| 11126-64030 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 STD |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
10 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-64010 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-64180 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-64061 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-50040 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-50010 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
1 | ||
| 15794 - NOZZLE, CYLINDER HEAD OIL | ||||
| 15794-64011 |
3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-06207 | ||||
| 90116-08345 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||
| 1701 | ||||
| 1709 | ||||
| 2201 | ||||
