Toyota Lite/townace noah,v CR52 AIR CLEANER

CR52V-ERMDE (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Jul 2004

Engine 3CE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9812-0208)3CE

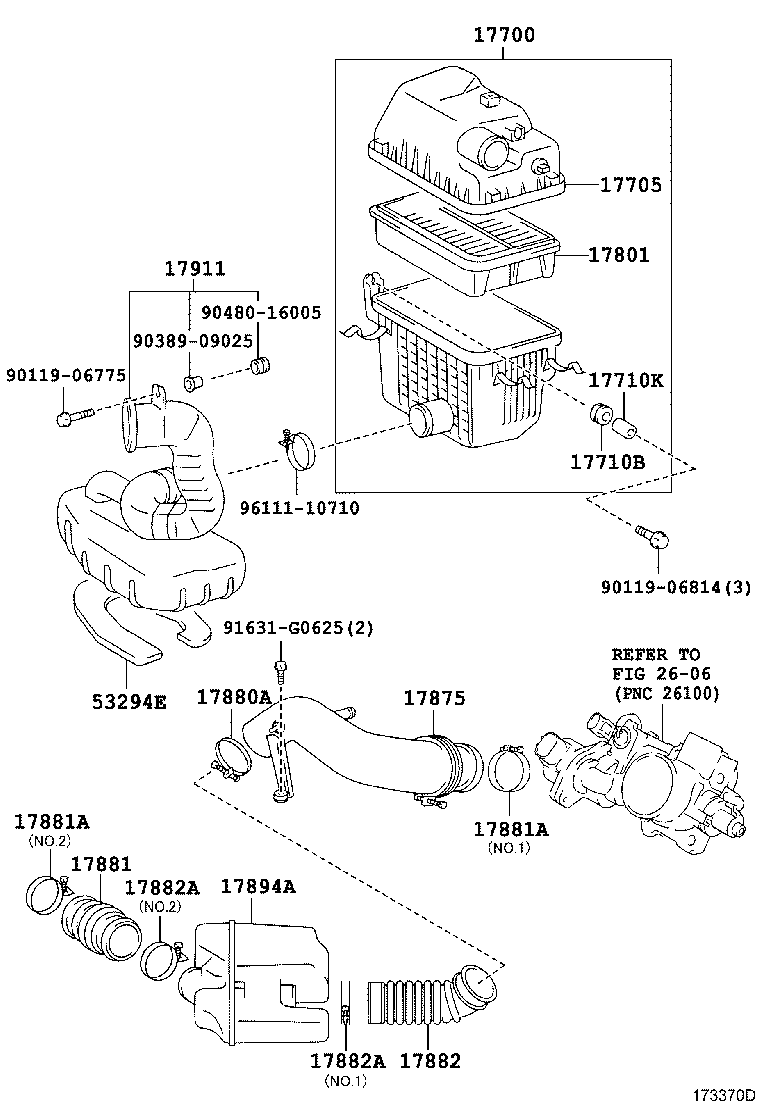

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-64450	3CE..CR42,52	12/1998 - 04/1999	1
17700-64480	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	04/1999 - 07/2004	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74460	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	04/1999 - 07/2004	1
17710B - GROMMET
90480-11015	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	04/1999 - 07/2004	3
17710K - COLLAR(FOR AIR CLEANER)
90387-09064	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	04/1999 - 07/2004	3
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-55020	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-64100	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
17880A - CLAMP, HOSE
96111-10780	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
17881 - HOSE, AIR CLEANER, NO.1
17881-64430	3CE..CR42,52	08/2002 - 07/2004	1
17881-64380	3CE..CR42,52	12/1998 - 08/2002	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.1	12/1998 - 07/2004	1
96111-10750	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.2	12/1998 - 07/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.1	12/1998 - 07/2004	1
96111-10750	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.2	12/1998 - 07/2004	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-64100	3CE..CR42,52	08/2002 - 07/2004	1
17894-11050	3CE..CR42,52	12/1998 - 08/2002	1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
90460-52003	3CE..CR42,52	12/1998 - 08/2002	1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-28040	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
53294E - SEAL, COOL AIR INTAKE PIPE
53294-28010	CR4#,5#	12/1998 - 07/2004	1
Common parts
90119-06775
90119-06814
90389-09025
90480-16005
91631-G0625
96111-10710
Linked diagrams
2606

(0208- )3CE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-64450	3CE..CR42,52	12/1998 - 04/1999	1
17700-64480	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	04/1999 - 07/2004	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74460	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	04/1999 - 07/2004	1
17710B - GROMMET
90480-11015	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	04/1999 - 07/2004	3
17710K - COLLAR(FOR AIR CLEANER)
90387-09064	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	04/1999 - 07/2004	3
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-55020	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-64100	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
17880A - CLAMP, HOSE
96111-10780	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
17881 - HOSE, AIR CLEANER, NO.1
17881-64430	3CE..CR42,52	08/2002 - 07/2004	1
17881-64380	3CE..CR42,52	12/1998 - 08/2002	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.1	12/1998 - 07/2004	1
96111-10750	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.2	12/1998 - 07/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.1	12/1998 - 07/2004	1
96111-10750	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5 NO.2	12/1998 - 07/2004	1
17882 - HOSE, AIR CLEANER, NO.2
17882-64130	3CE..CR42,52	08/2002 - 07/2004	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10830	3CE..CR42,52 NO.2	08/2002 - 07/2004	1
96111-10750	3CE..CR42,52 NO.1	08/2002 - 07/2004	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10830	3CE..CR42,52 NO.2	08/2002 - 07/2004	1
96111-10750	3CE..CR42,52 NO.1	08/2002 - 07/2004	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-64100	3CE..CR42,52	08/2002 - 07/2004	1
17894-11050	3CE..CR42,52	12/1998 - 08/2002	1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-28040	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
53294E - SEAL, COOL AIR INTAKE PIPE
53294-28010	CR4#,5#	12/1998 - 07/2004	1
Common parts
90119-06775
90119-06814
90389-09025
90480-16005
91631-G0625
96111-10710
Linked diagrams
2606
